More Products Join the SPARTAN Linear Range


12 September 2016

Raytec have added two new variants to the LED Linear lighting range with the launch of the WL84-1200 and WL168-1500 luminaires. Both products provide end users with the output of a 2ft and 4ft LED fitting, but in the body of a larger 4ft and 5ft luminaire respectively, and are designed as a retrofit solution for traditional fluorescent to maximise value and cost savings.

Be Efficient, Upgrade Easily

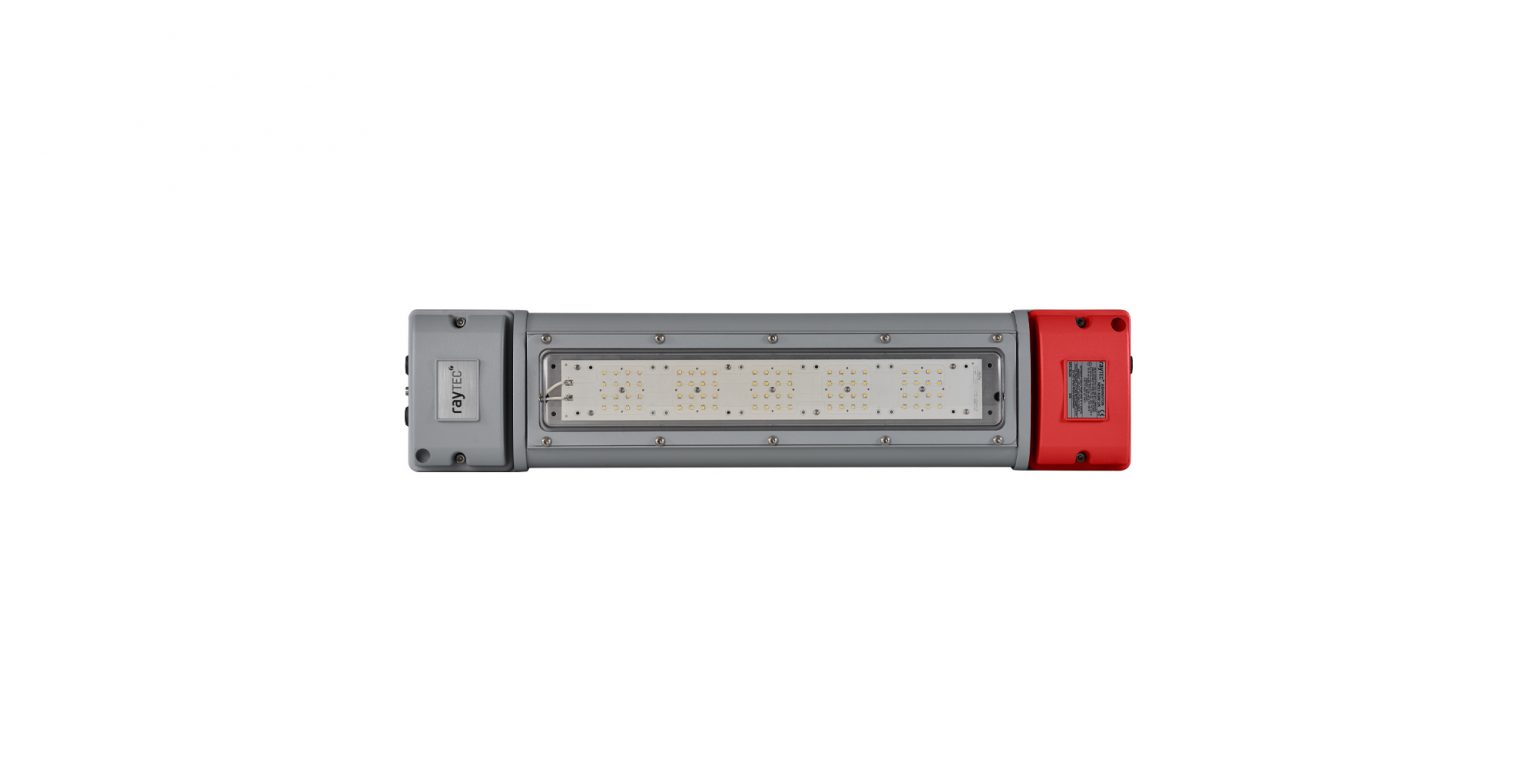

If you read our recent white paper ‘How You can Change a 5ft Fluorescent for a 4ft LED Linear’ you’ll know how the performance benefits of LED can allow you to downsize the size your light fitting when switching and ultimately save money. However, recognising that many installations require a retrofit solution, where for ease of installation the physical size of the luminaire needs to be the same as the fluorescent luminaire it’s replacing, Raytec have launched the SPARTAN Linear WL84-1200 (a 4ft Luminaire with the output of the standard WL84 2ft fitting), and Linear WL168-1500 (a 5ft luminaire with the output of a standard WL168 4ft fitting).

The SPARTAN Linear WL84-1200 is a direct retrofit to existing 2x36w fluorescent luminaires. With an energy saving of 56% per fitting, the WL84-1200 can offer significant energy savings and cost reductions over larger installations.

The larger unit is the SPARTAN WL168-1500 which is a direct retrofit to existing 2x58w fluorescent luminaires and delivers an energy saving of 41% per fitting.

The lumen output and light distribution also allow a direct, easy replacement of traditional fluorescent luminaires, meaning you will be able to upgrade without complication and enjoy all the benefits of long life LED lighting while making regular lamp changes redundant and achieving large energy savings.

Reduce Maintenance Costs

The modular design, which is a feature across all of the SPARTAN products, also extends to the WL84-1200 and WL168-1500 luminaires and allows quick and easy servicing and inspection of all key components including LED and PSU modules. With a traditional fluorescent fitting this would not be possible and maintenance would be required more regularly.

With the additional benefit of SPARTAN’s effective thermal management system, the LEDs are kept cool and the operating temperature low, so you can be sure that your luminaire will provide exceptional performance over a long lifetime when compared to fluorescent lighting solutions.

Summary of Key Features:

  • ATEX and IEC Ex approved
  • Zone 1, Zone 2 and Industrial variants
  • Standard and emergency variants
  • Retrofitable
  • Ultra-long life LED
  • High lumen output LED
  • Modular Design
  • Cool Extrude™ Thermal Management Technology
  • Easy installation, maintenance and inspection
  • Wide operating temperature range of -40°C to +60°C
  • Clear external tear off strips on outer optics available
  • 5 year warranty

If you would like to know more about switching to LED, contact to find out about the benefits of upgrading to LED with SPARTAN Linear.
