Linear WL84

SPARTAN Linear WL84, Zone 1/21, 3,065lm

Sector: Hazardous
Certification: ATEX, IECEx and UKEX
Classification: Zone 1 & 21

The SPARTAN Linear range is designed to retrofit conventional fluorescent fittings or for use in new hazardous area installations. Designed to provide extreme levels of durability, and with a unique modular design which makes maintenance quick and easy. All SPARTAN luminaires are designed and manufactured in the UK and come with an industry-leading 5-year warranty.

Request a quote Add to quote

Jump to Downloads

Ultra-Powerful.

SPARTAN Linear delivers industry-leading power and performance with an efficacy of up to 142 lumens per watt on standard variants.

Robust and Durable.

Housed in marine grade aluminium with stainless steel fasteners and brackets, SPARTAN Linear is IP66 and IP67 rated and can survive in the most extreme environments.

Bespoke LED.

Raytec are specialists in LED and SPARTAN Linear has been specifically designed around the LEDs with a bespoke housing for optimum performance and reliability.

Choice of Optics.

Available with a choice of different optics to suit a wide range of applications, including asymmetric patterns for aisle, corridor and perimeter installations.

The overall dimensions, fixing centres and cable entries have been designed to directly replace traditional 2x18W fluorescent fittings.

Ex Linear Lighting - easy maintenance — Key components such as the LED and PSU modules are easily accessible for straightforward maintenance and inspection.

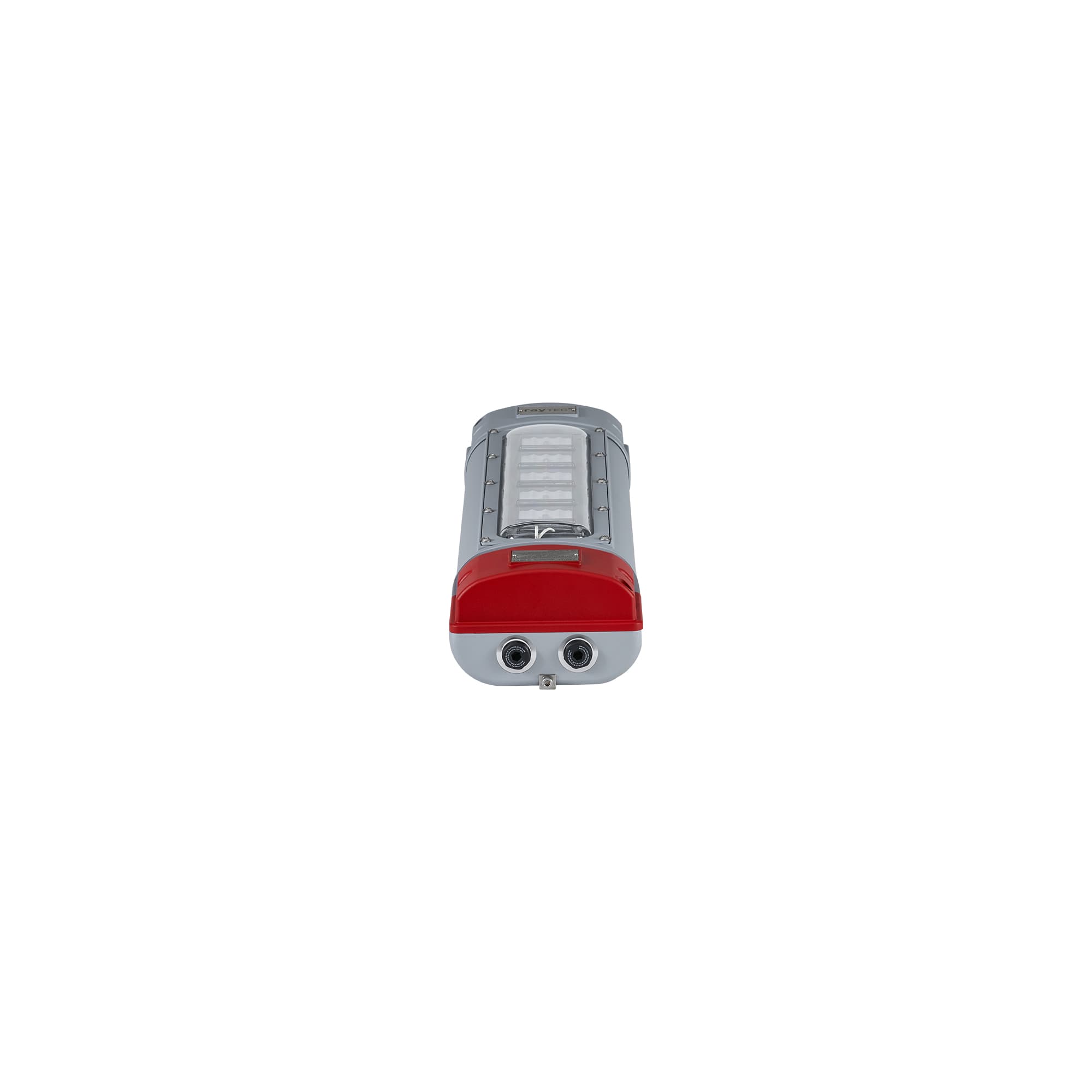

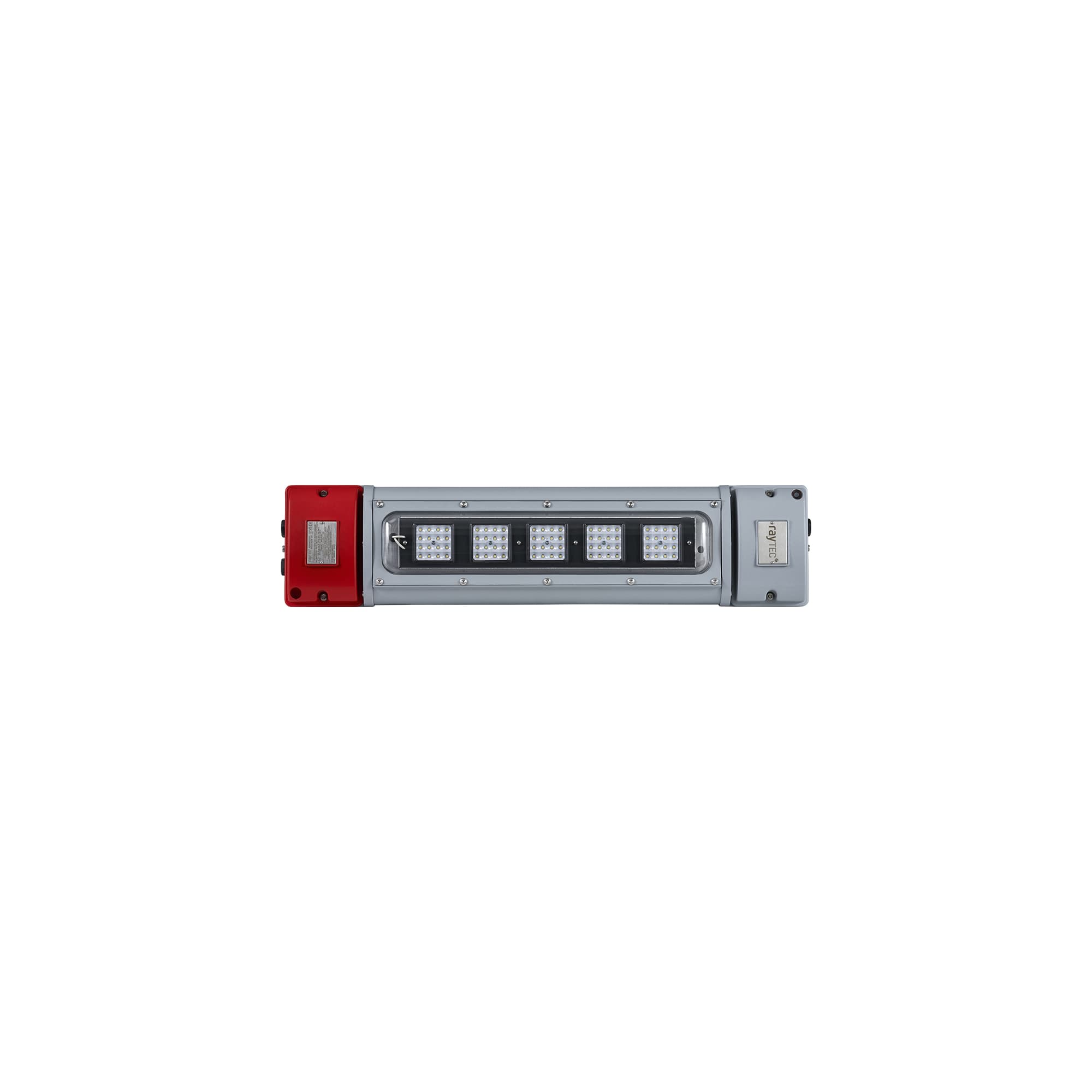

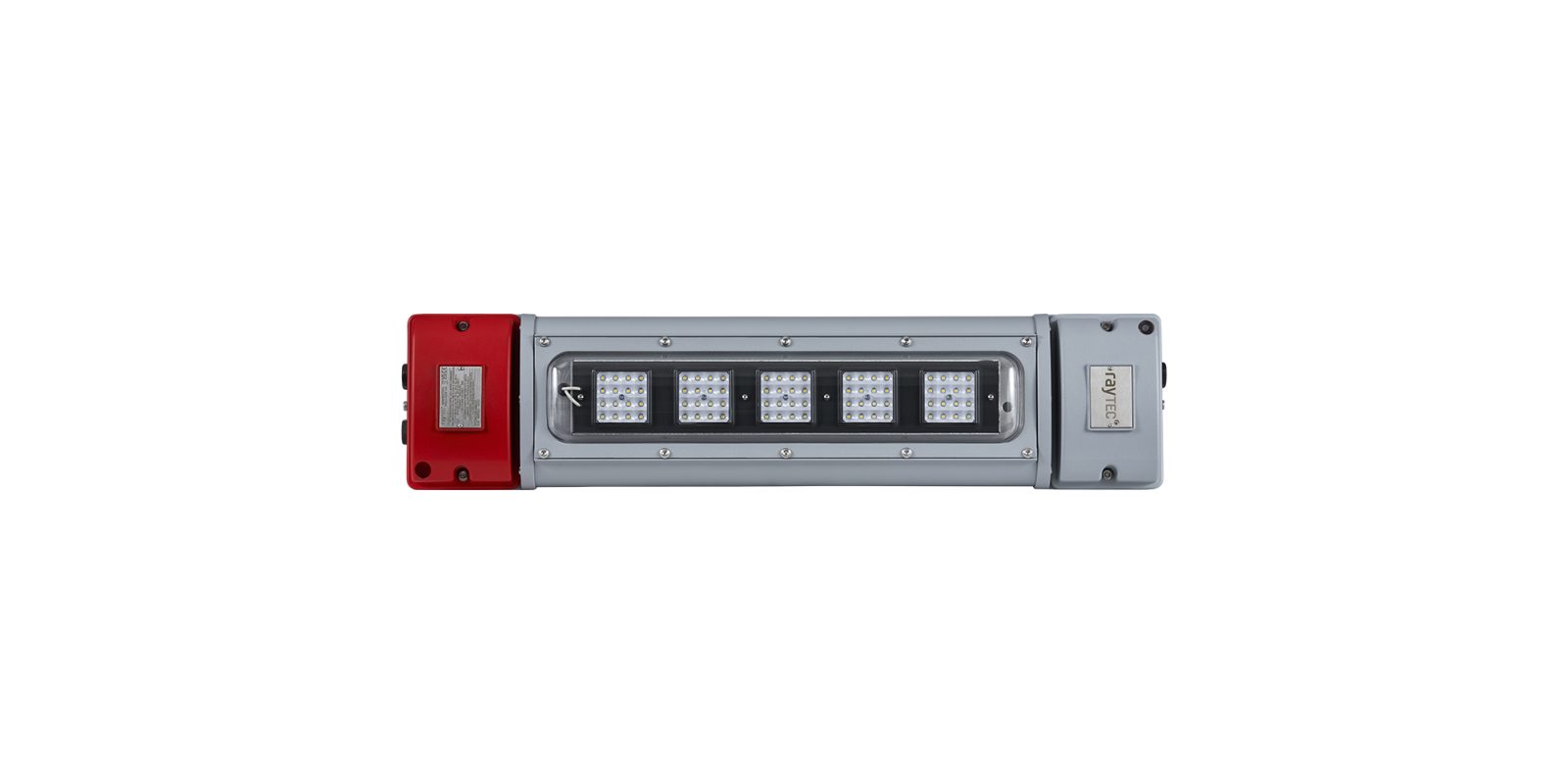

Emergency variants are available to provide 3 hours of battery back-up at 25% power. The Intelligent Emergency system self-tests the battery and communicates via a tri-colour LED indicator.

WL84 Variants.

Safety Shower

Green LED technology designed for use where safety shower units are located. Dominant wavelength: 519nm. Dedicated optic for maximum visibility

Wildlife Friendly

Amber LED technology designed to protect wildlife in coastal locations or natures reserves. Dominant wavelength: 600nm

Diffused Lenses

Diffused lenses help to soften the light outut and are available as accessories or can come pre-fitted as standard

WL84 Essential

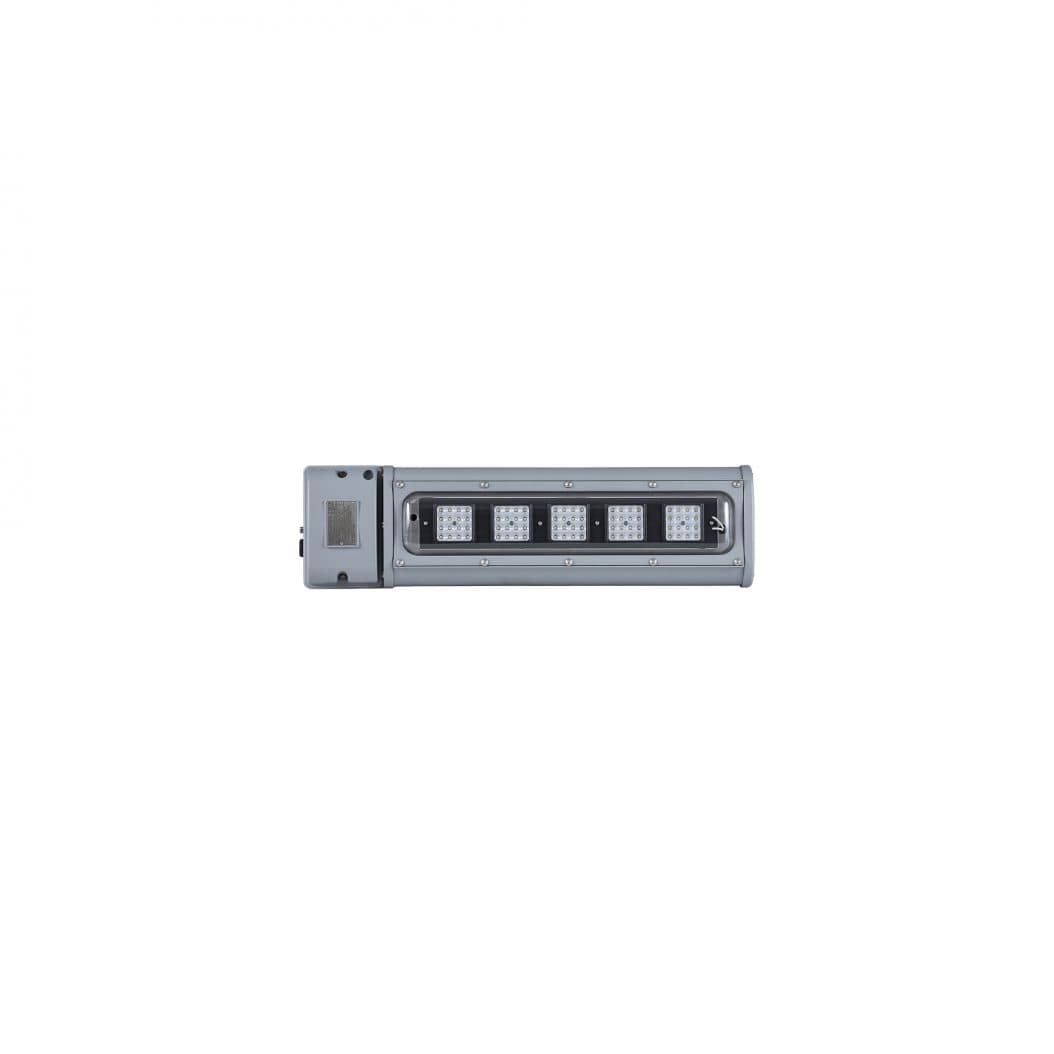

WL84 Essential for loop in, loop out installations

WL84 Standard

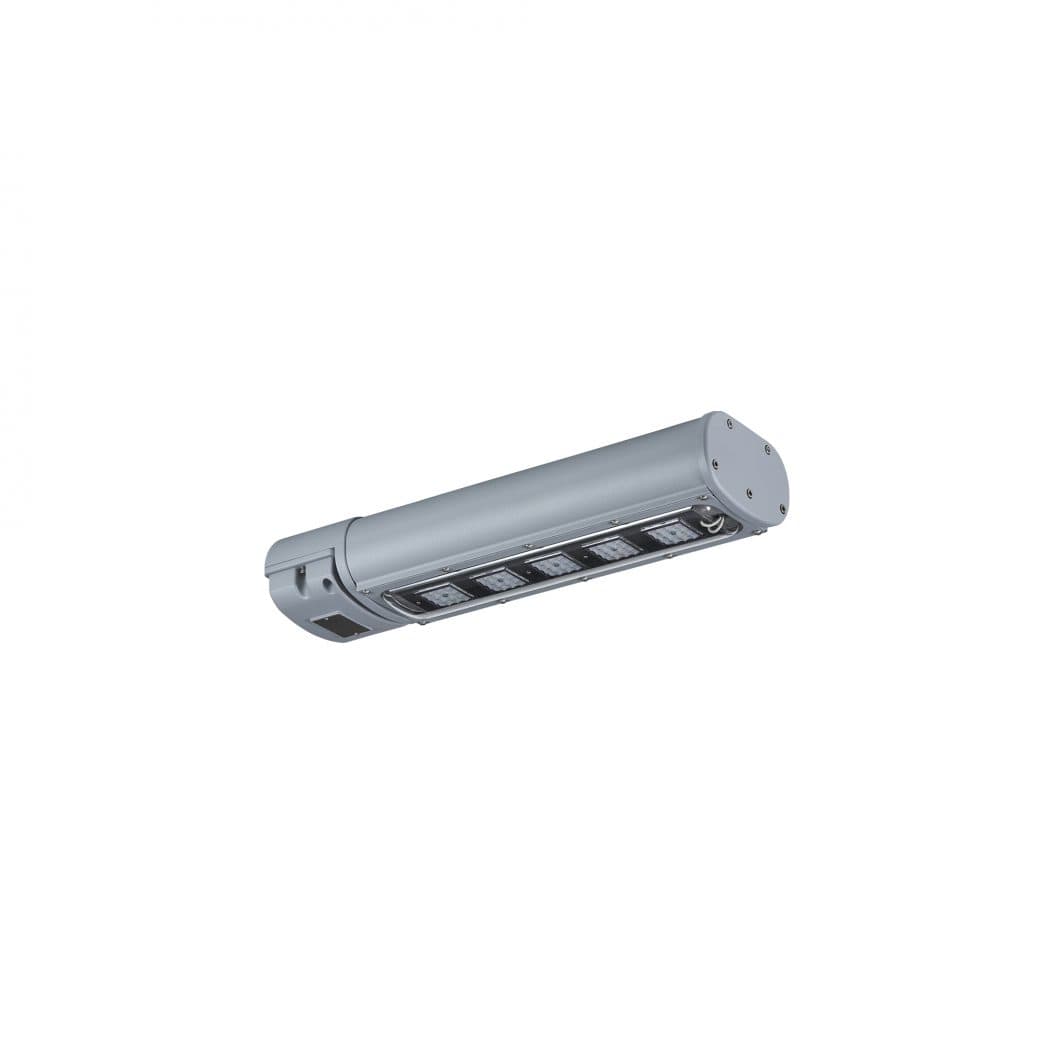

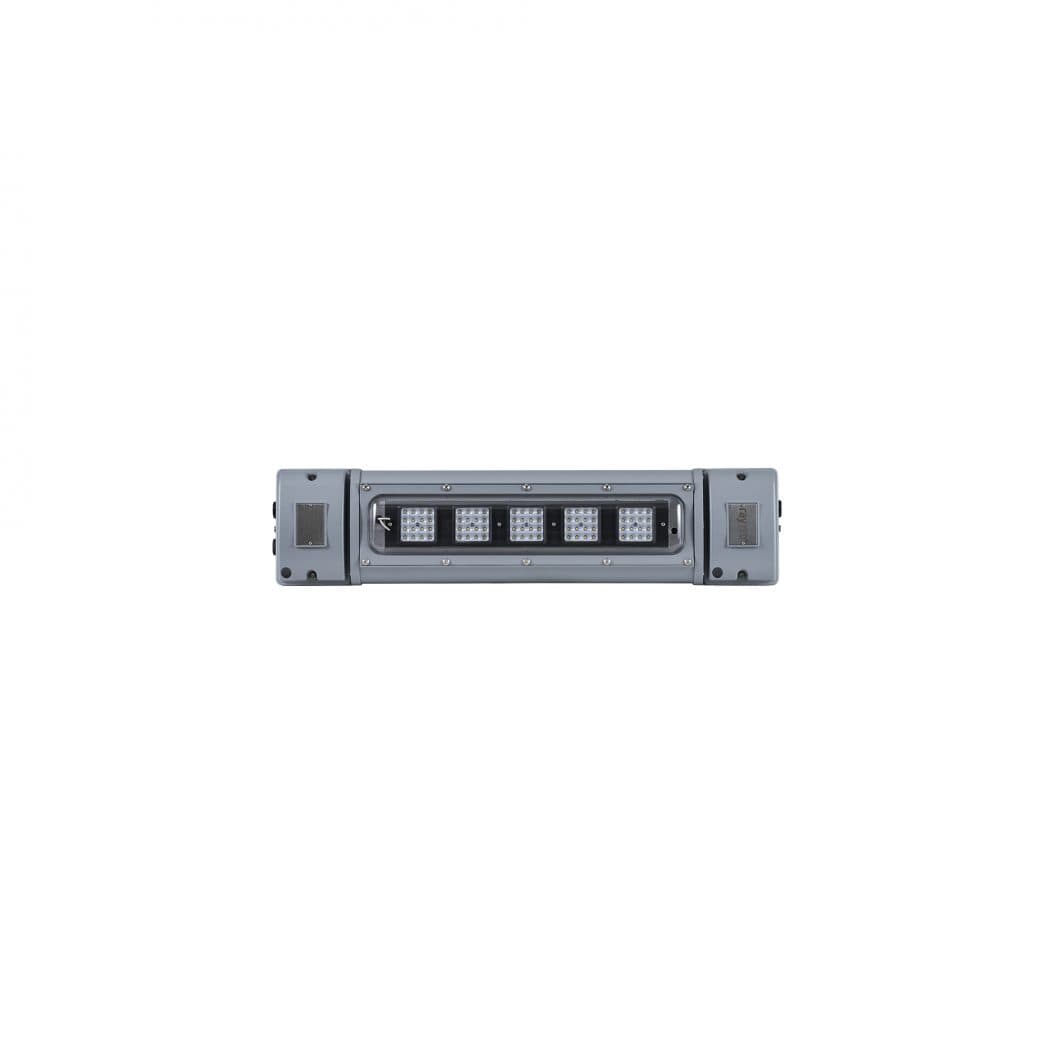

The standard WL84 is designed to directly replace existing 2x18W fluorescent luminaires, with equivalent dimensions, fixing centres and cable entries.

WL84-1200

The WL84-1200 has an elongated body which means it can directly replace a tradational 4ft fluorescent, but with the power and consuption of a 2ft LED luminaire to provide signficant cost savings

Specs

Select Option

	WL84	WL84 Emergency	WL84 Essential
ATEX Rating	ATEX UKEX and IEC Ex rated for Gas and Dust
Hazardous Area Rating	Zone 1 (Gas), Zone 21(Dust)
Certificates	ATEX: CML14ATEX3119 IECEx: IECExCML15.0001 UKEX: CML21UKEX3105
Gas	II 2 G D Ex eb mb IIC T4 Gb Ta= -40°C to+60°C (-20°C to +50°C for emergency variants)
Dust	Ex tb IIIC T80°C Db Ta= -40°C to+60°C (-20°C to +50°C for emergency variants)
ABS Certificate Number	# 20-1990083-PDA

	WL84	WL84 Emergency
Input	Standard: 110-254Vac 50/60Hz, 110-254Vdc * Low voltage: 18-48V AC and 18-69V DC Extra low voltage: 12V AC/DC	110-254V 50/60Hz AC only
Power	24W	32W
Termination	Incoming terminal block suitable for looping 4 core 4mm² cable (6mm² available - POA)
Power Factor	>0.95	>0.95
Cable Entries	2xM20 cable entries at both ends, through wired as standard (other entries available upon request), dispatched complete with three ATEX/IEC Ex/UKEX approved blanking plugs	2xM20 cable entries at both ends, through wired as standard (other entries available upon request), dispatched complete with three ATEX/IEC Ex/UKEX approved blanking plugs

	WL84	WL84 Emergency	WL84 Essential
Lumen Output on Mains	3065
LED Type	Platinum Elite SMT LEDs	Platinum Elite SMT LEDs	Platinum Elite SMT LEDs
Number of LEDs	80
CRI	80+
Colour Temperature	6500K standard

	WL84	WL84 Emergency	WL84 Essential
Enclosure	Marine grade aluminium epoxy powder coated, UV stabilised polycarbonate, all external fasteners and brackets are marine grade stainless steel
Unit Colour	Silver (RAL 9006)	Silver (RAL 9006), Red (RAL3024) - Emergency battery cover	Silver (RAL 9006)
Mounting	Via M8/M6 tapped holes. Various mounting arrangements available (please see product overview guide)

Product Dimensions.

WL84 Standard & Emergency

WL84 Essential

WL84-1200

Light Distribution.

Standard Optic

Symmetrical Optics

Asymmetrical Optics

Downloads.

Datasheet - SPARTAN Linear - Zone 1/21 Installation Guide - SPARTAN Linear Zone 1/21 & Zone 2/22 ATEX Certificate - SPARTAN Linear - Zone 1/21 IECEx Certificate - SPARTAN Linear - Zone 1/21 UKCA Certificate - SPARTAN Linear - Zone 1/21 ABS Certificate - Approval 2020 SPARTAN Linear Mounting & Accessories Guide SPARTAN & WARRIOR Photometric Data
