WARRIOR Linear NL, 3,970lm - 10,470lm
About WARRIOR NL Linear
- Sector
- Industrial
- Certification
- Certification: UL 844, UL 1598, UL 1598A, and UL 8750; CSA 22.2 No. 137, CSA 22.2 No. 250.0 and CSA 22.2 No. 250.13

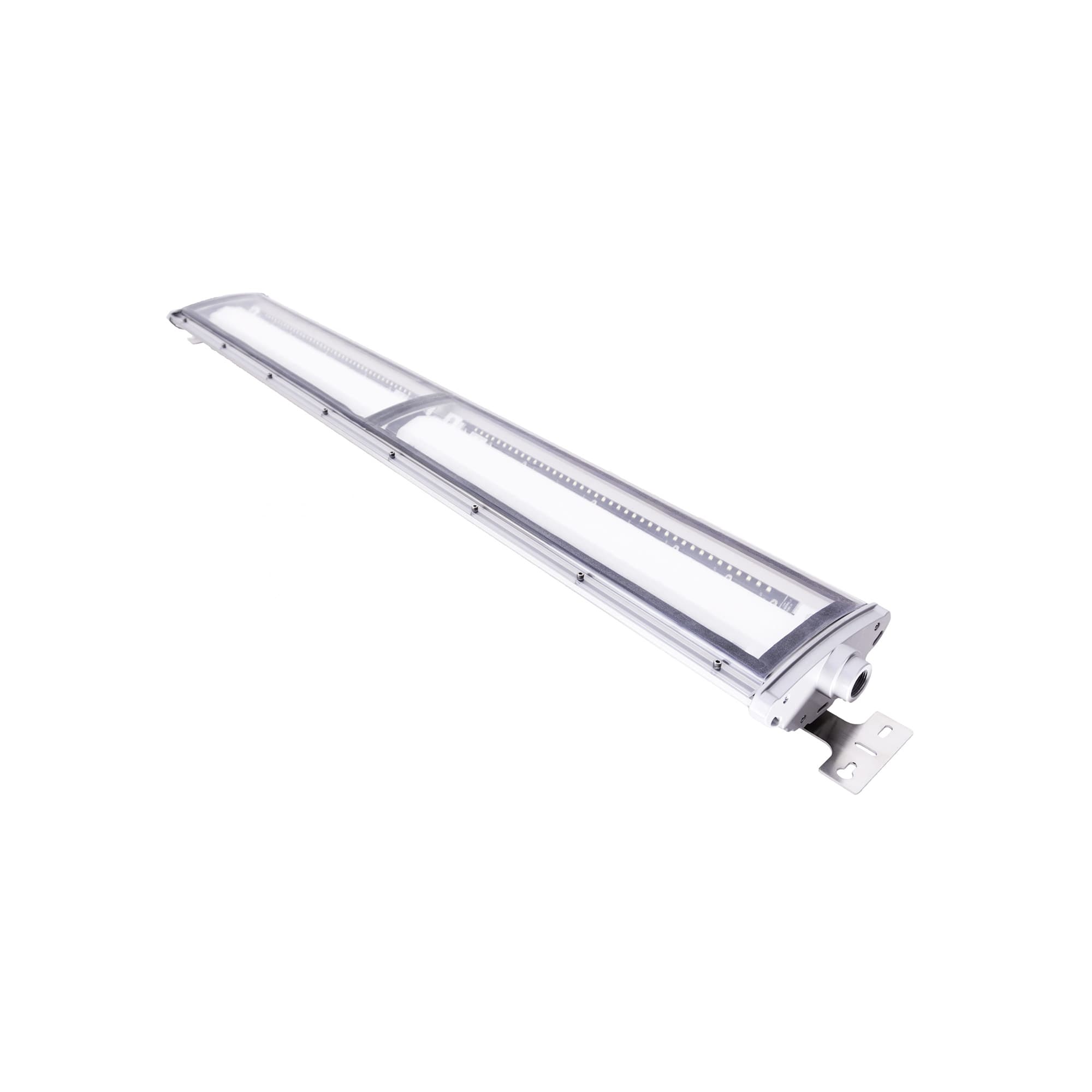

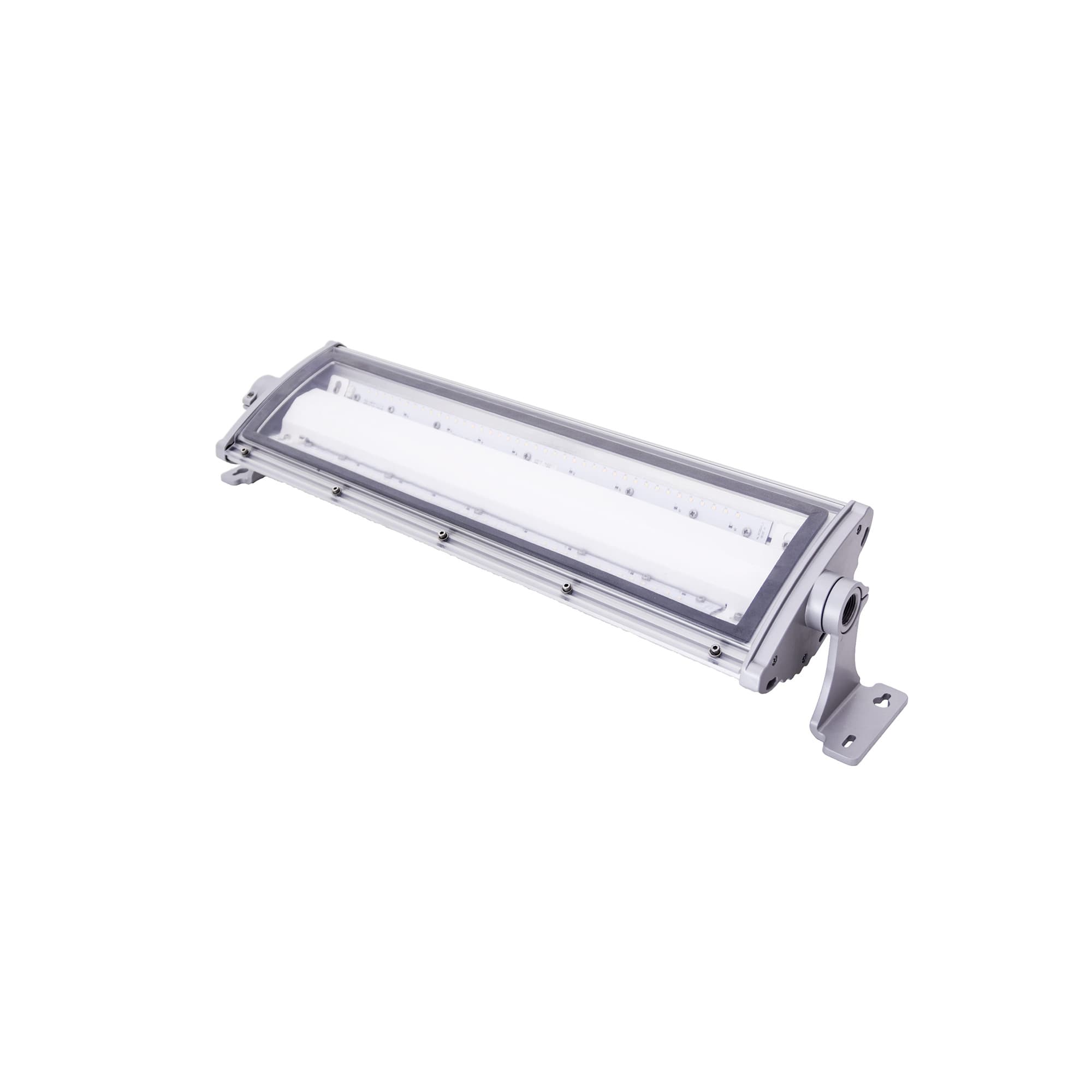

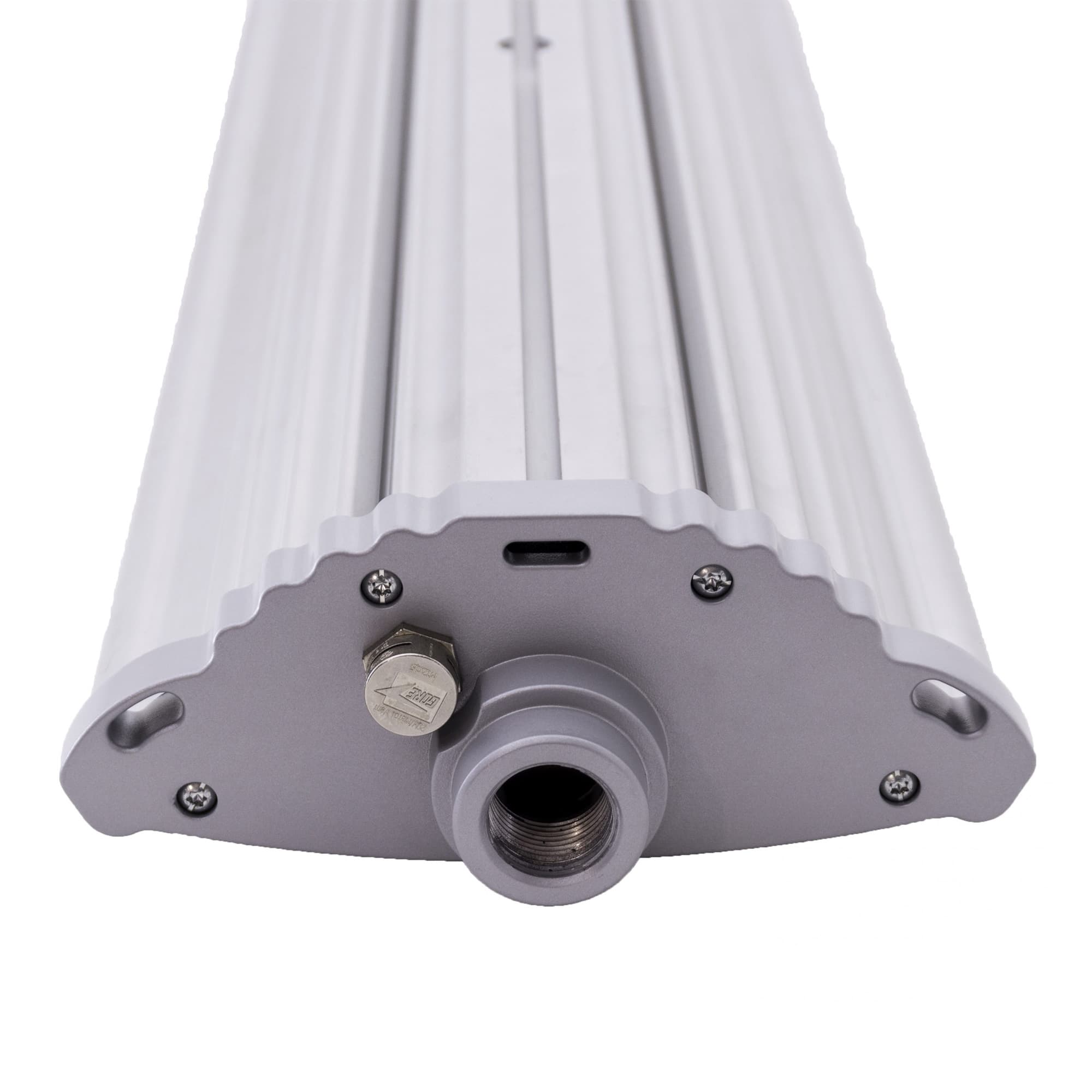

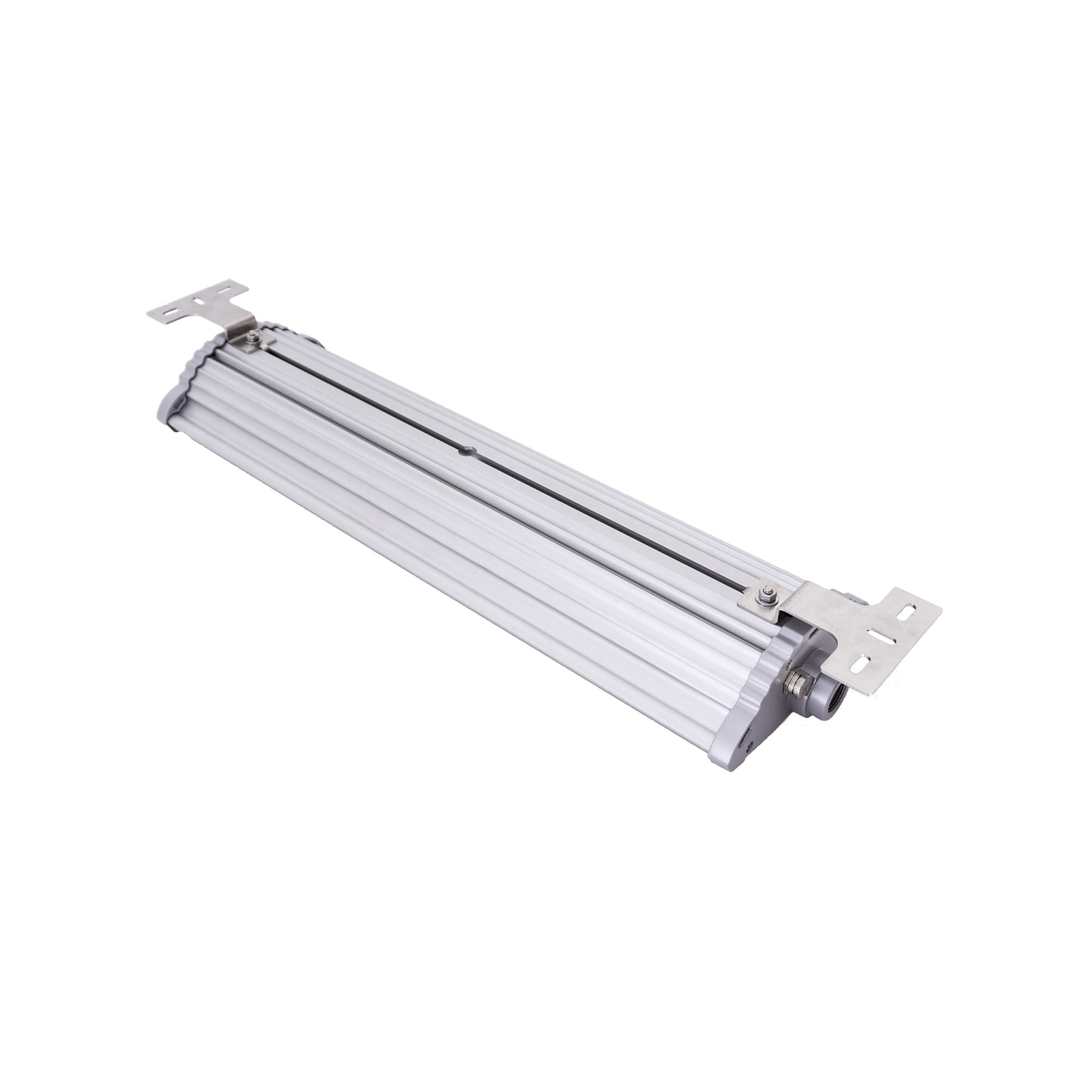

NL fixtures are durable and robust linear luminaires designed to replace linear fluorescent fixtures in industrial and tunnel applications. With a projected lifespan of 60,500 hours. The NL is available in 2ft and 4ft lengths and can be surface-mounted or suspended from a ceiling. Up to 10.5K lumens output, IP66 rating, multiple light output packages and easy field angle adjustment make the NL a flexible replacement for linear fluorescent fixtures.
Designed for industrial and harsh locations. 100% field serviceable for components and sub assemblies.

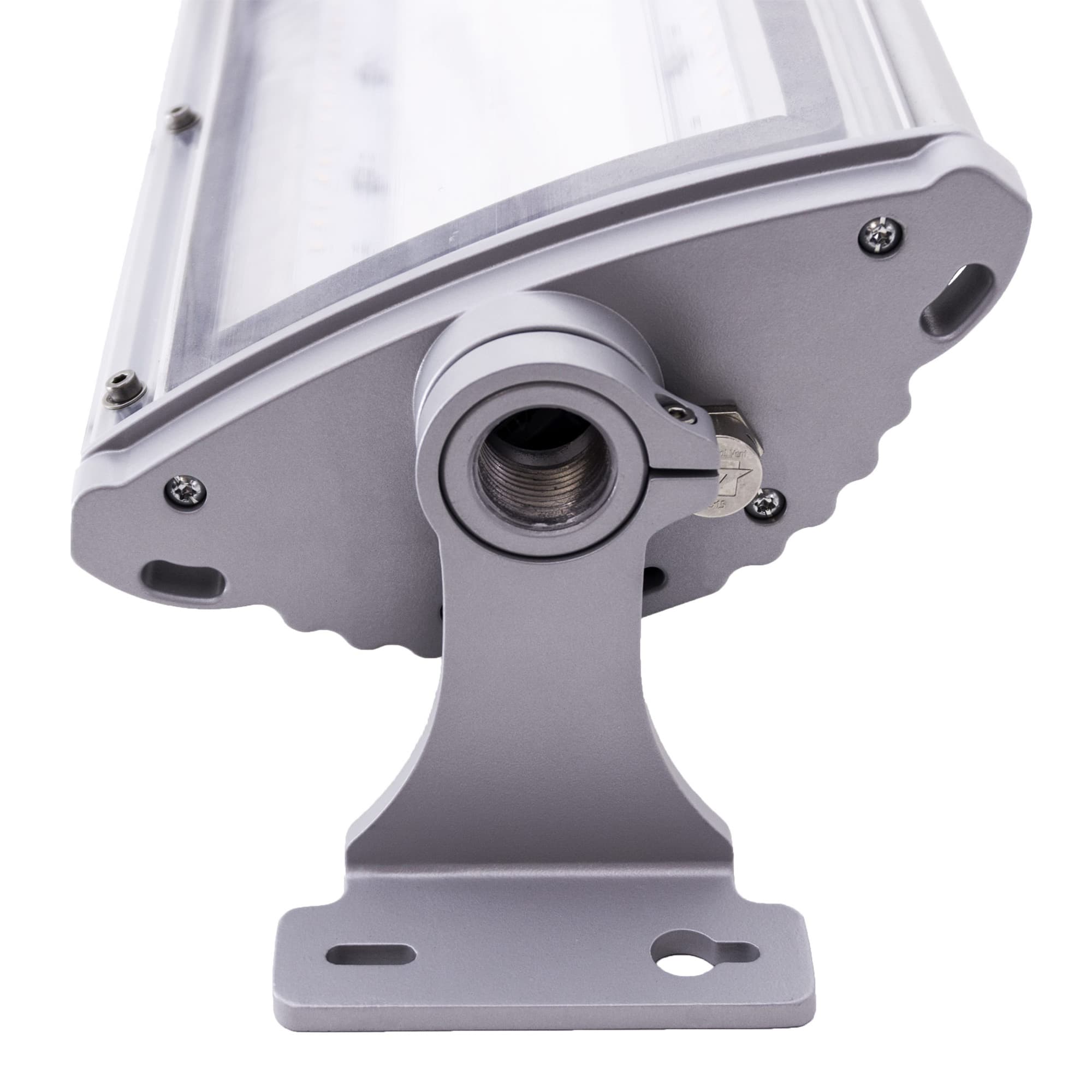

Minimum CRI of 70. Field angle adjustment with optional swivel mount. Surface or suspension mounting. End-to-end wiring installation. Multiple light output options to replace fluorescent fixtures. -40C to +55C operating range. IP66 vented enclosure eliminates pressure differentials for reliable sealing.
0-10V dimming 1%-100%.
Specs
Select Option
| NL2S | NL2H | NL2X | NL4S | NL4H | |
|---|---|---|---|---|---|
| Housing | Powder Coated Aluminium | ||||
| Input Voltage | AC: 120-277 VAC | HV: 347-480 VAC | ||||
| Rated Power | AC: 36W | HV: 36W | AC: 52W | HV: 52W | AC: 70W | HV: 82W | AC: 85W | HV: 90W | AC: 105W | HV: 109W |
| Connections | 3/4 NPT, Both ends | ||||
| Temperature Range | AC: -40 to 55°C | HV: -40 to 54°C | AC: -40 to 55°C | HV: -40 to 54°C | AC: -40 to 52°C | HV: -40 to 46°C | AC: -40 to 55°C | HV: -40 to 54°C | AC: -40 to 55°C | HV: -40 to 52°C |
| Certifications | Certified to UL 844, UL 1598, UL1598A and UL 8750; CSA 22.2 No. 137, CSA 22.2 No. 250.0 & CSA 22.2 No. 250.13; | ||||
| IP Rating | IP66 | ||||
| Colour Temperature | 5000K (2700-6500K options available) | ||||
| CRI | 70 | ||||
| Total Lumens | 3970 | 5143 | 7965 | 8697 | 10470 |
| Lumen Maintenance | LM-80 > 60,600 hrs | ||||
| Weight | 5.3 kg (12 lb) | 5.3 kg (12 lb) | 5.3 kg (12 lb) | 8.6 kg (19 lb) | 8.6 kg (19 lb) |
Product Dimensions.
