Mid-Power Flood

WARRIOR Mid Power Flood, Heavy Industrial, 5,000lm - 15,000lm

About WARRIOR Mid-Power Flood MPFL

Sector
Hazardous
Applications
Non-hazardous, safe areas

The WARRIOR Mid-Power Flood range is designed to illuminate large, open spaces within industrial environments. Available with a range of different outputs from 5,000 to 15,000 lumens, the Mid-Power Flood uses Raytec’s field-proven, long-life LED technology to ensure a lifetime of 10 years+. All WARRIOR luminaires come with an industry-leading 5-year warranty.

Jump to Downloads
ATEX LED Floodlight

Built Powerful.

High lumen output from 5,000 to 15,000 lumens, along with a range of different beam patterns to effectively light up large open areas such as oil rigs.

Built Flexible.

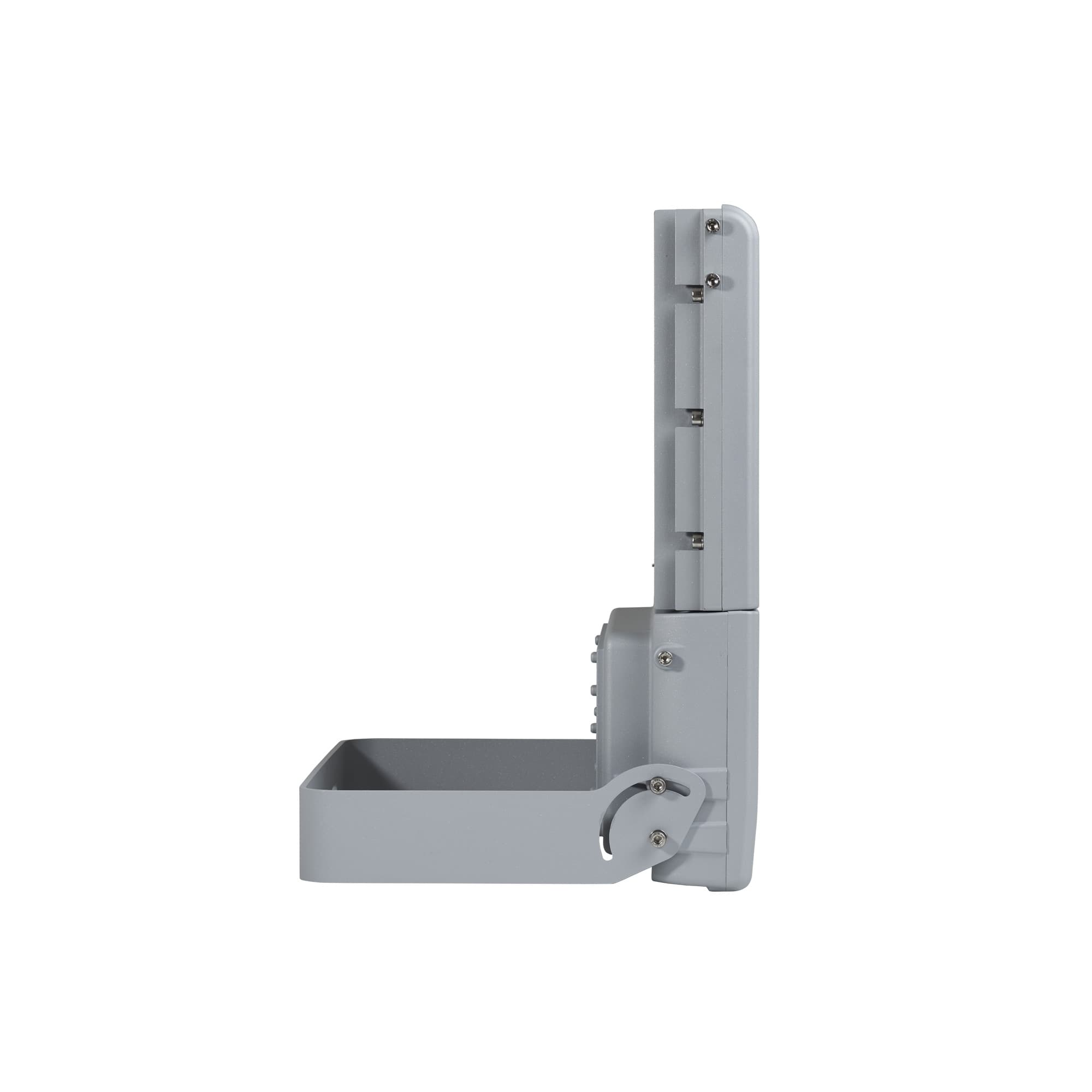

The modular design allows easy access to key components and the ability to mount the PSU remotely, making installation and maintenance easy.

Built Tough.

Constructed using tough, marine-grade aluminium and IP66 & IP67 rated, the MPFL is designed to withstand even the most challenging conditions.

Robust & Durable.

ATEX LED Floodlight - Bracketry WARRIOR Mid-Power Flood

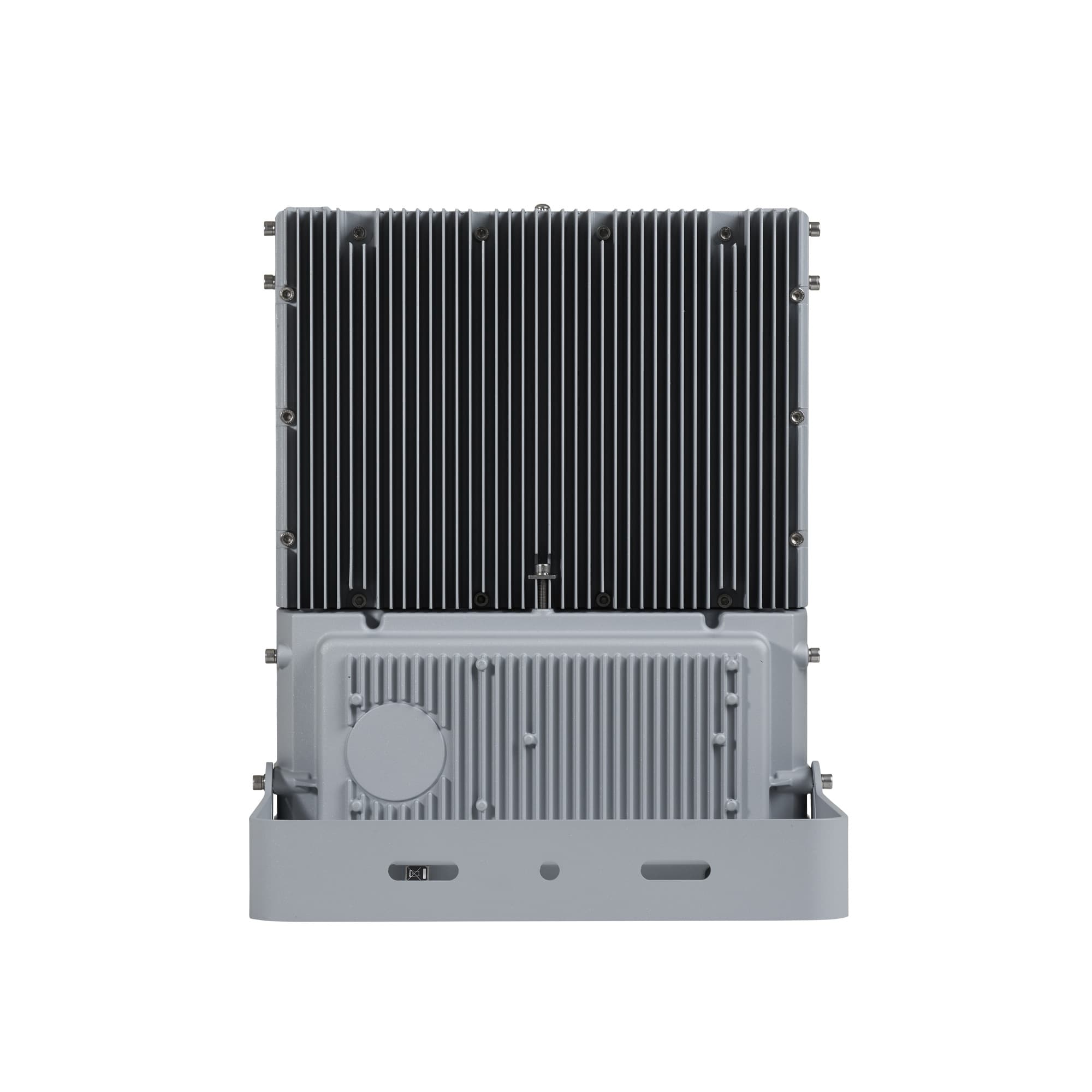

Robust and durable construction from marine grade aluminium and with a wide operating temperature for even the most challenging conditions.

Easy to Maintain.

WARRIOR Mid-Power Bay
Designed with maintenance in mind, featuring an innovative modular design to allow quick and easy on-site servicing.

Secondary Optics.

Secondary optics are utilised to deliver a range of different beam patterns. This ensures light is targeted efficiently and there's no loss of light output on wider beam angle variants.

Specs

Select Option

MPFL 5KMPFL 7.5KMPFL 10KMPFL 12.5KMPFL 15K
Input110-277V 50/60Hz AC only
Power40W60W80W100W120W
TerminationIncoming terminal block suitable for looping 4 core 4mm² cable
Power Factor>0.95
Cable Entries2xM20 as standard (other entries available upon request), dispatched complete with one approved blanking plug
MPFL 5KMPFL 7.5KMPFL 10KMPFL 12.5KMPFL 15K
Lumen Output5,149lm7,663lm10,298lm12,873lm15,325lm
LED TypePlatinum Elite SMT LEDs
No. of LEDs2424484848
CRI70+
Colour Temperature5,700K
MPFL 5KMPFL 7.5KMPFL 10KMPFL 12.5KMPFL 15K
Burning PositionUniversal
IP RatingIP66 & IP67
Temperature Range-40°C to +60°C
Weight13.2kg (29.1lbs)
EnclosureMarine grade aluminium epoxy powder coated, toughened glass, all external fasteners and brackets are marine grade stainless steel
Unit ColourSilver (RAL 9006)
MountingStirrup bracket

Product Dimensions.

MPFL Dimension Drawing MPFL

Light Distribution.

Circular Beam Patterns

10x10
30x30 Circuar beam pattern
30x30
60x60 Circuar beam pattern
60x60
90x90 Circuar beam pattern
90x90
120x15

Downloads.

Datasheet – WARRIOR MPFL Installation Guide - WARRIOR Mid Power Flood & Bay SPARTAN & WARRIOR Photometric Data
