Linear Spigot

WARRIOR Linear Spigot, Heavy Industrial, 3,524lm - 7,048lm

Sector: Heavy Industrial
Applications: Non-hazardous, safe areas

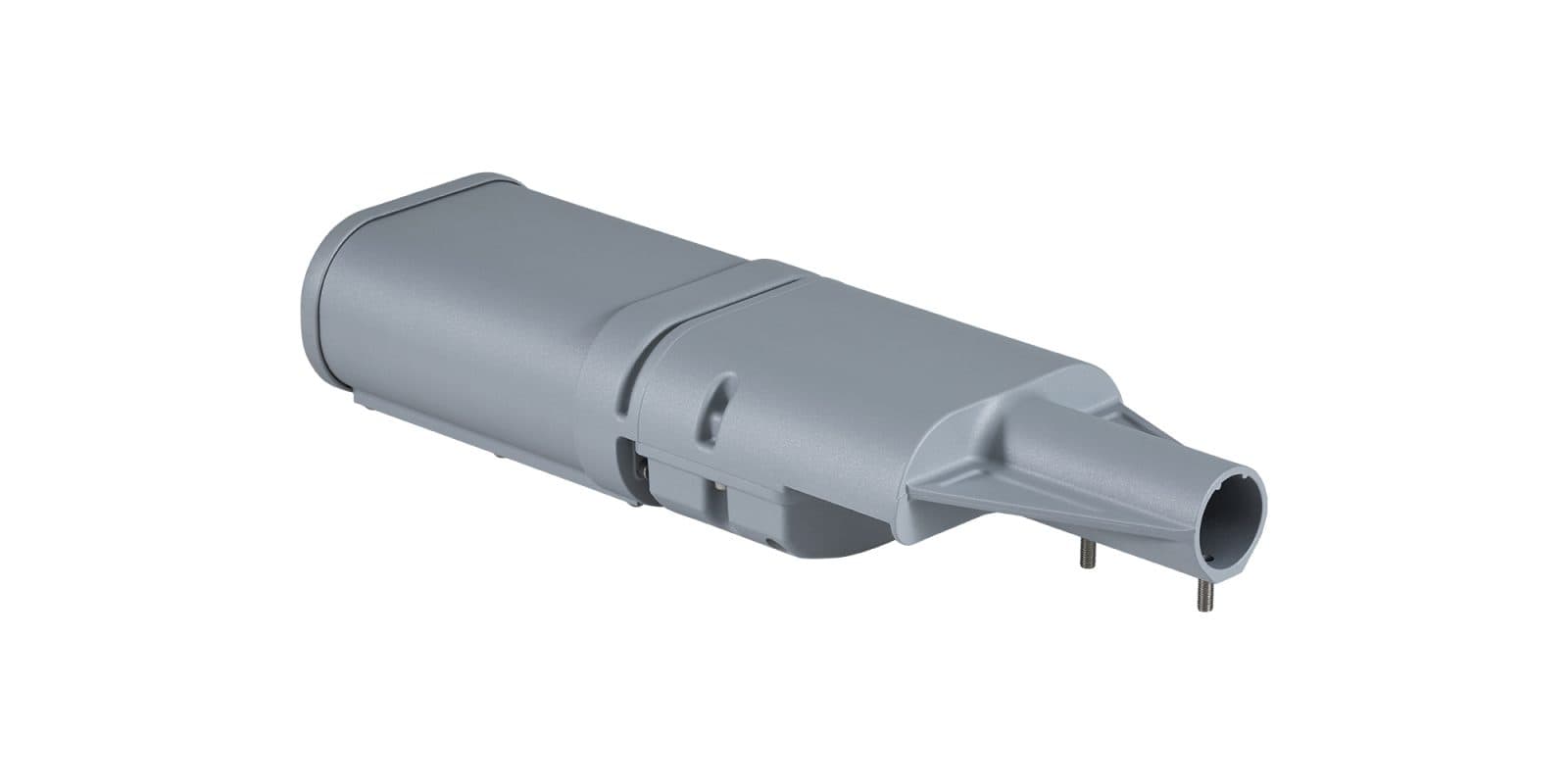

The WARRIOR Linear Spigot range is designed to retrofit existing fluorescent pole installations, or for new pole mount applications. The integrated spigot bracket is designed to fit poles up to 42mm in diameter and is fully shrouded for environmental protection. All WARRIOR luminaires are designed and manufactured in the UK and come with an industry-leading 5-year warranty.

Request a quote Add to quote

Jump to Downloads

Ultra Powerful.

WARRIOR Linear delivers industry-leading power and performance with an efficacy of up to 142 lumens per watt on standard variants.

Bespoke LED.

Raytec are specialists in LEDs, meaning SPARTAN Linear has been designed around the LEDs with a bespoke housing for optimum performance and reliability.

Intelligent Emergency.

Emergency variants are available to provide 3 hours of battery back-up at 25% power. The Intelligent Emergency system self-tests the battery and communicates via a tri-colour LED indicator.

The integrated spigot bracket is designed to fit poles up to 42mm in diameter and is fully shrouded for environmental protection.

Ex Linear Lighting - easy maintenance — Key components such as the LED and PSU modules are easily accessible for straightforward maintenance and inspection.

Specs

Select Option

	WL84	WL84 EMX25	WL168
Input	110-254V AC, 18-48V AC and 18-69V DC, 12V AC/DC	110-254V AC only	110-254V AC only
Power	29W	32W	59W
Termination	Incoming terminal block suitable 4 core 4mm² cable (6mm² available)	Incoming terminal block suitable 4 core 4mm² cable (6mm² available)	Incoming terminal block suitable 4 core 4mm² cable (6mm² available)
Power Factor	>0.95
Cable Entries	1xM20 cable entry as standard (other entries available upon request), dispatched complete with an ATEX/IEC Ex approved blanking plug

	WL84	WL84 EMX25	WL168
Lumen Output on Mains	3524	3524	7048
LED type	Platinum Elite SMT LEDs
Number of LEDs	80	80	160
CRI	80+
Colour Temperature	6500K standard

	WL84	WL84 EMX25	WL168
Burning Position	Universal
IP Rating	IP66 & IP67
Temperature Range	-40°C to +55°C	-20°C to +50°C	-40°C to +55°C
Weight	6kg (13.2lbs)	7kg (15.4lbs)	9kg (19.8lbs)
Enclosure	Marine grade aluminium epoxy powder coated, UV stabalised polycarbonate, all external fasteners and brackets are marine grade stainless stee
Unit Colour	Silver (RAL 9006)	Silver (RAL 9006), Red (RAL3024) - Emergency battery cover	Silver (RAL 9006)
Mounting	Via 34-42mm spigot entry. Grub screws provided as standard

	WL84 Emergency
Function	Self-testing intelligent emergency
System Health Indicator	Tri-colour LED indicator
Emergency Duration	Up to 3hrs @ 25% power, other options available
Emergency Battery	Ni/Cd 12V
Emergency Charge Time	20 hours
