Flood BL24

WARRIOR Flood, Heavy Industrial, 2,750 - 4,650lm

About WARRIOR Flood BL24

Sector
Heavy Industrial
Applications
Non-hazardous, safe areas

The WARRIOR Flood BL24 range is designed for hazardous area environments which require high performance, reliable, White-Light illumination up to 4,650 lumens. Its compact, low profile design is ideal for restricted space applications and is available with emergency battery back-up. All WARRIOR luminaires come with an industry-leading 5-year warranty.

Jump to Downloads

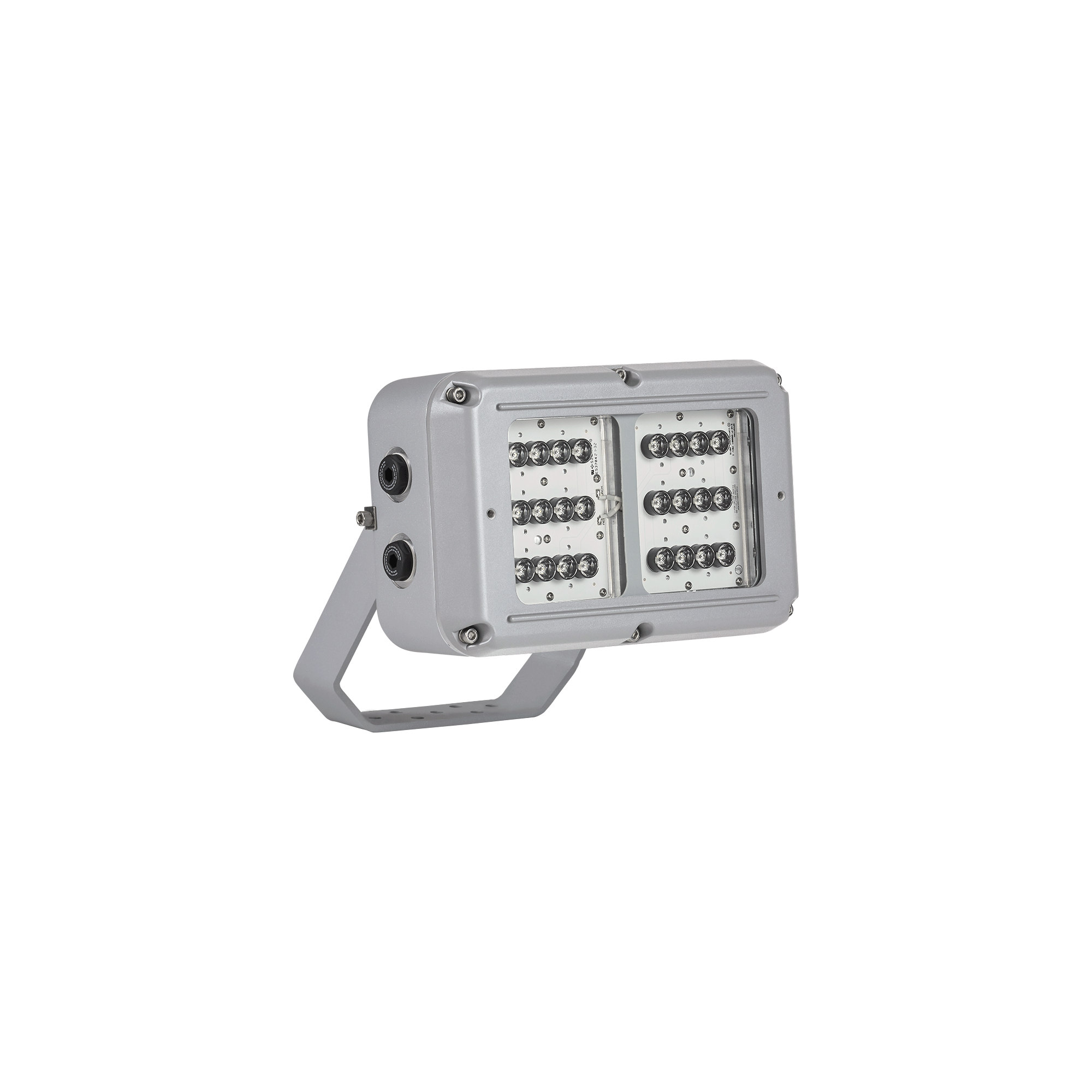

flood light up close Bulkhead BL24 Zone 2

Intelligent Emergency Variants.

Emergency variants are available to provide 3 hours of battery back-up at 25% power. The Intelligent Emergency system self-tests the battery and communicates via a tri-colour LED indicator.

Robust and Durable.

WARRIOR Flood BL24 is designed from marine grade aluminium with stainless steel bracketry and fastenings to ensure it can withstand the most extreme environments.

Easy Maintenance.

A unique modular design allows quick and easy maintenance. PSUs and control gear can be accessed from the front so maintenance can be carried out while the luminaire is in-situ.

Specs

Select Option

BL24BL24-HOBL24 EmergencyBL24-HO Emergency
Input110-254V 50/60Hz AC only, 18-48V AC and 18-69V DC (LV), 12V AC/DC (ELV)110-254V 50/60Hz AC only
Power20W-34W24W-37W
TerminationIncoming terminal block suitable for looping 4 core 4mm² cable (6mm² available)Incoming terminal block suitable for looping 4 core 4mm² cable (6mm² available)
Power Factor>0.9>0.9
Cable Entries4xM20 as standard (other entries available upon request)4xM20 as standard (other entries available upon request)
BL24BL24-HOBL24 EmergencyBL24-HO Emergency
Beam Patterns - Circular10°x10° or 30°x30° or 50°x50° or 80°x80° or 120°x120° (10x10 option can be upgraded to Vario Technology)10°x10° or 30°x30° or 50°x50° or 80°x80° or 120°x120° (10x10 option can be upgraded to Vario Technology)
Beam Patterns - Elliptical35°x 10°or 60°x 25°or 80°x 30° or 120°x 50° (VARIO)35°x10° or 60°x25° or 80°x30° or 120°x50° (VARIO)
Lumen Output2,750 lm – circular beam patterns 2,500 lm – elliptical beam patterns (VARIO)4,650 lm – circular beam patterns 4,100 lm – elliptical beam patterns (VARIO)2,750 lm – circular beam patterns 2,500 lm – elliptical beam patterns (VARIO)4,650 lm – circular beam patterns 4,100 lm – elliptical beam patterns (VARIO)
LED TypePlatinum Elite SMT LEDsPlatinum Elite SMT LEDs
Number of LEDs24
CRI80+80+
Colour Temperature6500K standard6500K standard
BL24BL24-HOBL24 EmergencyBL24-HO Emergency
Burning PositionUniversalUniversal
IP RatingIP66 & IP67IP66 & IP67
Temperature Range- 50°C to +55°C - 20°C to +46°C
Weight5kg (11.0Ibs)6kg (13.2Ibs)
EnclosureMarine grade aluminium epoxy powder coated, toughened glass, all external fasteners and brackets are marine grade stainless steelMarine grade aluminium epoxy powder coated, toughened glass, all external fasteners and brackets are marine grade stainless steel
Unit ColourSilver (RAL 9006)Silver (RAL 9006)
MountingComes complete with stainless steel brackets. Other options availableComes complete with stainless steel brackets. Other options available
BL24 EmergencyBL24-HO Emergency
FunctionSelf-testing intelligent emergency
System health indicatorTri-colour LED indicator
Emergency DurationUp to 3hrs @ 25% power Other options available
Emergency Battery2.5 Ah
Emergency Charge Time20 hours

Product Dimensions.

Bulkhead Flood BL24 Dimension Sketch Flood BL24

Light Distribution.

Circular Beam Angles

10x10
30x30
50x50
80x80
120x120

Elliptical Beam Angles

35x10
60x25
80x30
120x50

Downloads.

Datasheet - WARRIOR Flood BL24 - Industrial Installation Guide - WARRIOR Bulkhead and BL24 Flood Mounting & Accessories Guide - Flood & Bulkhead SPARTAN & WARRIOR Photometric Data
