Bay AR

WARRIOR Bay, 10,000lm - 33,000lm


Certified to UL 1598 & UL 1598A, UL 8750; CSA 22.2 No. 250.0, CSA 22.2 No. 250.13; NSF-2: Splash and Non-Food Zones.

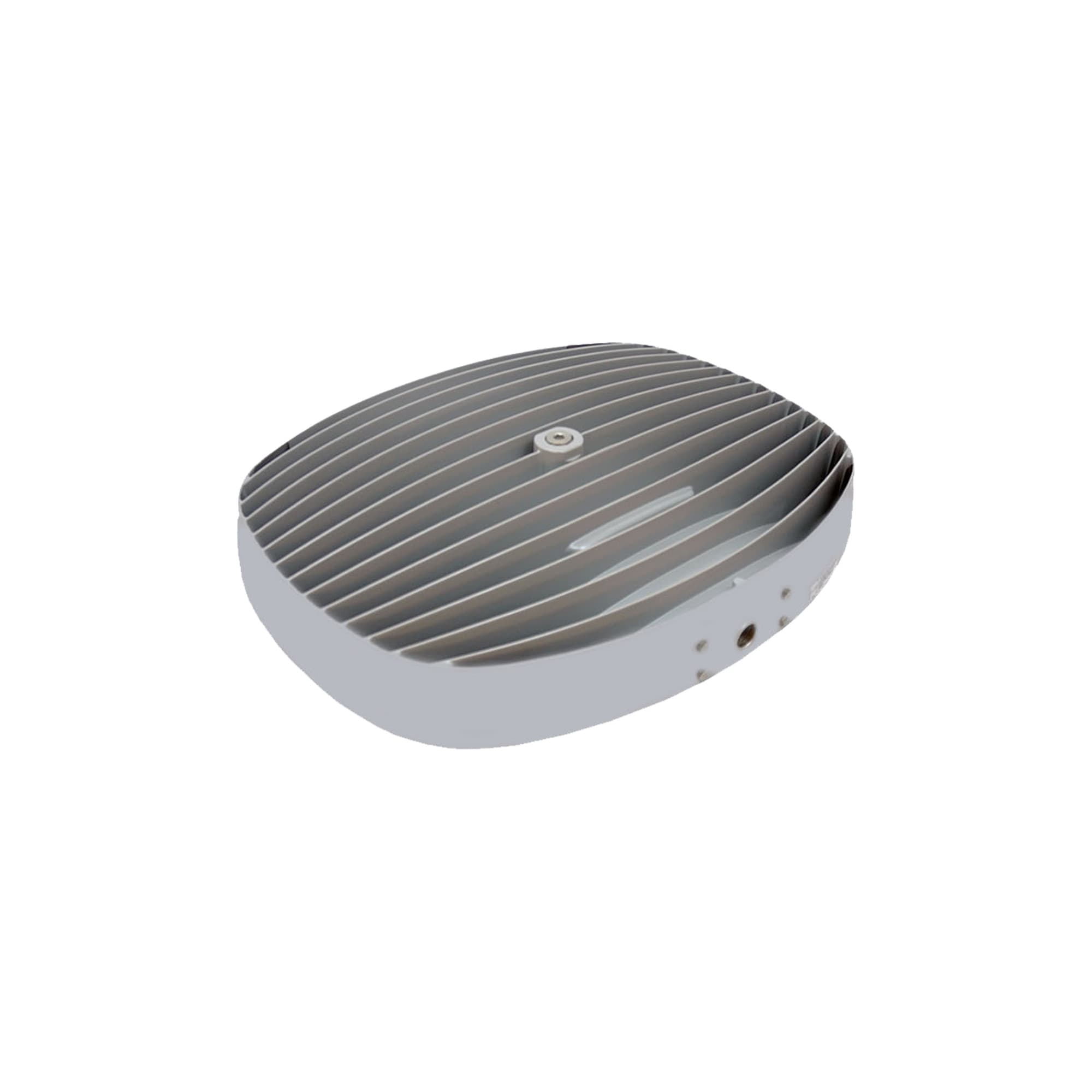

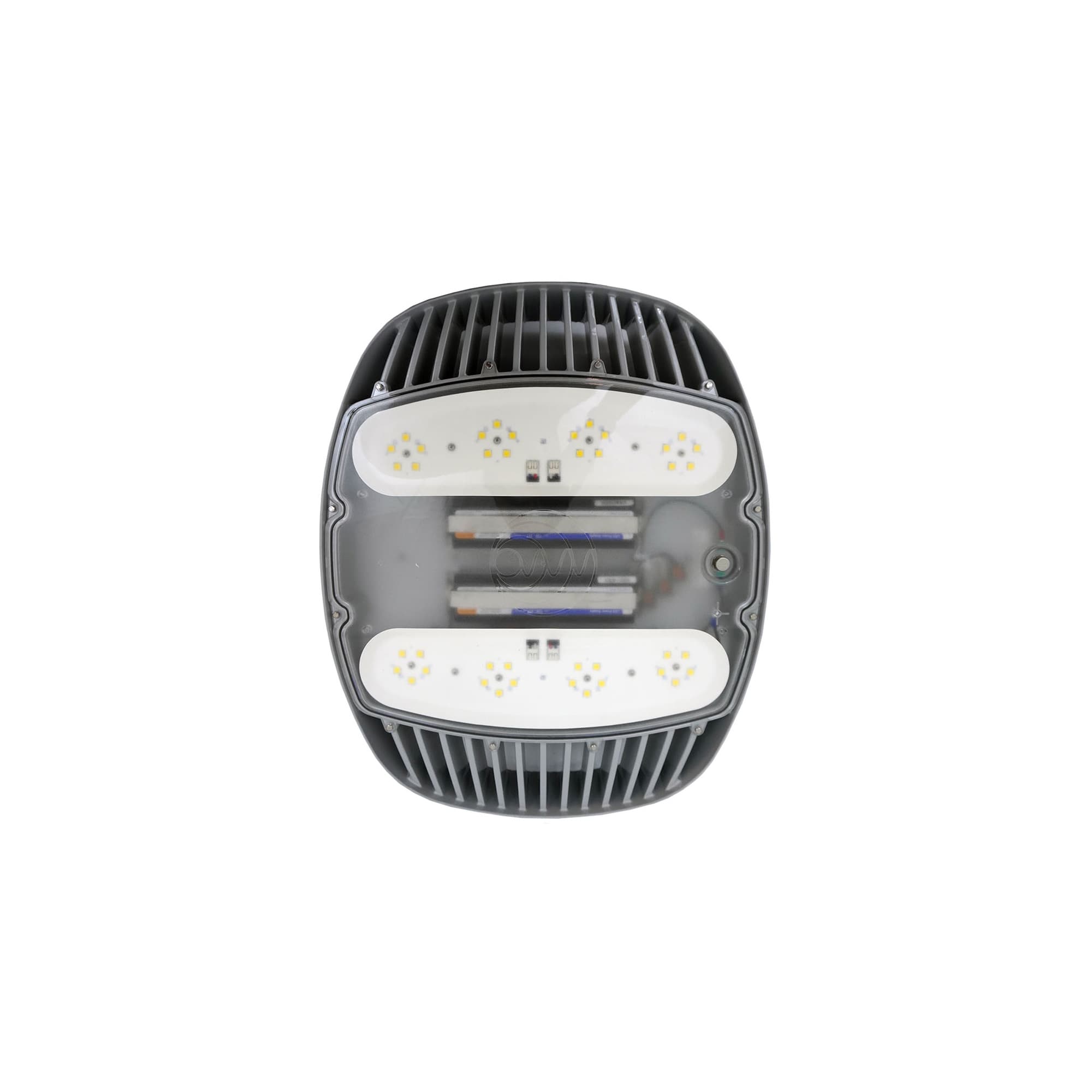

WARRIOR AR Bay is an LED luminaire designed for applications requiring a high lumen output system capable of withstanding exposure to highly contaminated environments and rigorous cleaning routines with corrosive chemicals. 100% field serviceable with multiple distribution patterns and multiple mounting options. Thermally managed for maximum longevity. Extremely water resistant, and corrosion protected for marine applications.

Special powder coating for extreme resistance to chemical attack, aggressive cleaning agents and biocides used in food processing industries.

NSF Certified for use in Splash and Non-Food Zones. Low surface energy coating and smooth surface texture prevent debris build-up and staining.

ARs are factory programmed to offer light outputs ranging from 10,000 to 33,000 lumen for hazardous as well as up to 48,000 lumens in general location applications. Auto-ranging power supplies allow operation on 120-277 VAC or 347-480 VAC. Optional 0-10V dimming provides further opportunities for fine-tuned illumination results based on facility and operator preference.

Jump to Downloads


Select Option

HousingDie-cast Aluminium with Polycarbonate Lens
Input VoltageAC: 120-277 VAC | HV: 347-480 VAC (50/60Hz)
Power (Typ)Model dependent - refer to product datasheet
Connections2 x 3/4” NPT
Temperature Range (CID2, C1Z2)Model dependent - refer to product datasheet
Temperature Range (CIID2, Z22)Model dependent - refer to product datasheet
CertificationsCertified to UL 1598 & UL 1598A, UL 8750; CSA 22.2 No. 250.0, CSA 22.2 No. 250.13; NSF-2: Splash and Non-Food Zones
IP RatingIP66/67 Suitable for wet locations. Marine outside type (salt water)
Colour Temperature50: 5000K
CRI50: 70 | Special Order: 90+
Lumen MaintenanceLM-80 > 100,000 hrs (Based on CREE long term testing)
Weight16.4 kg (36 lbs)

Product Dimensions.



Datasheet - WARRIOR AR Bay Installation Instructions - WARRIOR AR Bay Photometric Data - AR Bay
