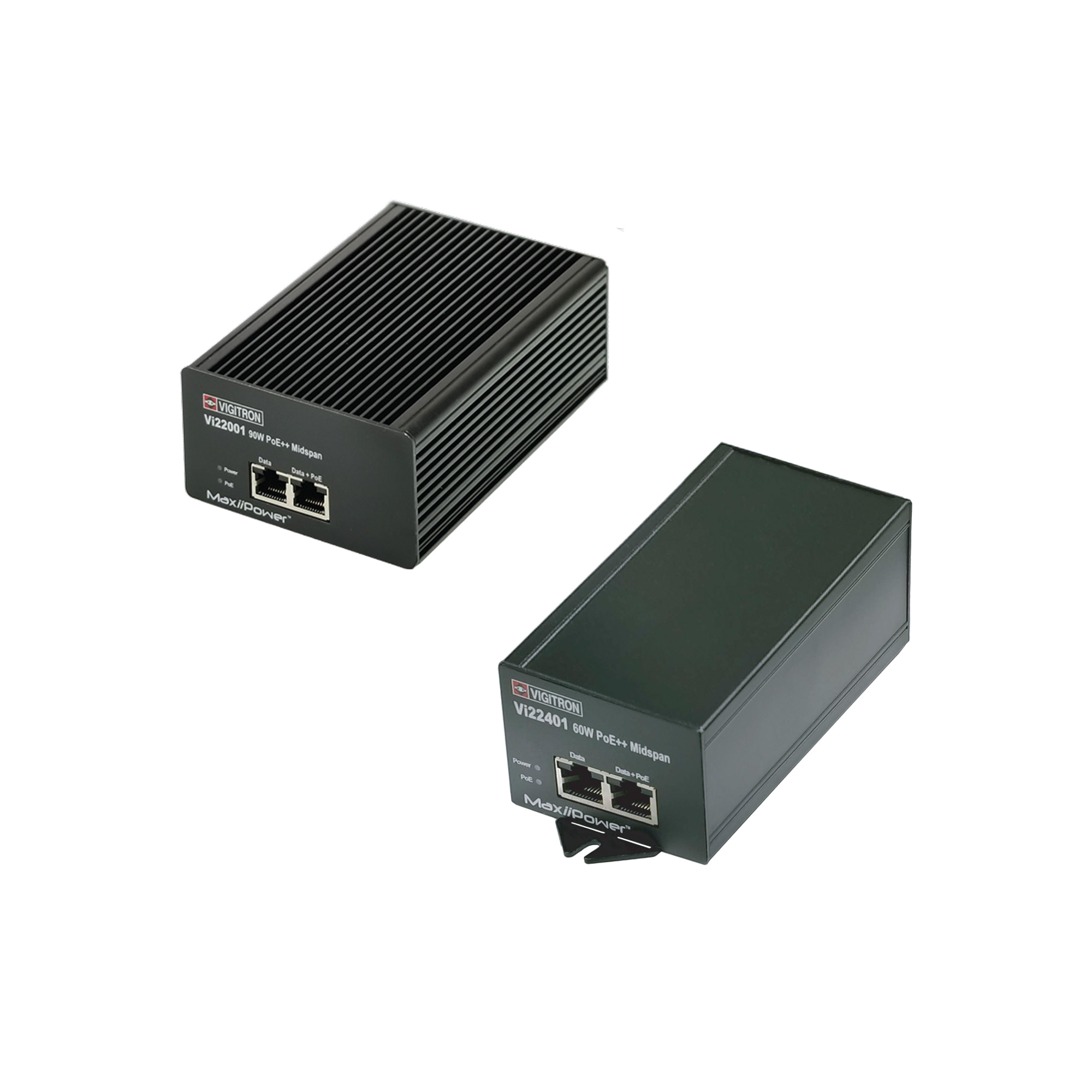

Vi22001 & Vi22401 MaxiiPower Midspan
(Only available in the Americas)
About Vi2201 & Vi22401
- Sector
- Security
The MaxiiPower Model Vi22001 is a unique Single port PoE Midspan designed for the most demanding power applications of 10/100/1000 Base-T networks. With the ability to provide up to 90W PoE power, it is the most cost effective method for powering PTZ domes cameras with heaters and blowers. The Midspan is compliant IEEE 802.3af, IEEE 802.3at, and proposed IEEE 802.3bt standards up to 90W PoE applications.
Vigitron’s MaxiiPower™ Vi22401 is a high power single port Midspan compliant to IEEE 802.3af/at 60W. It is a cost effective solution for powering a wide range of IP cameras that offers all standard PoE safety features including detection, connection/disconnection and fault protection. With a transmission bandwidth of up to 1Gbps, its application has virtually no bandwidth limitations and interfaces with the highest megapixel cameras.
Specs
Select Option
| Vi22001 | Vi22401 | |
|---|---|---|
| Ethernet Interface | Standard 10/100/1000 BaseTX | Standard 10/100/1000 BaseTX |
| UTP | Category-5 (or higher) | Category-5 (or higher) |
| Output Power | 90W @ 56 VDC | 60W @ 54 VDC |
| AC Input Power | 90-264VAC @ 1.1A Max, 50-60 Hz | 90-264VAC, 50-60 Hz |
| PoE Standards | 802.3af, 802.3at, UPoE up to 90W | 802.3af, 802.3at, UPoE up to 90W |
| Status LEDs | Power: Green LED PoE On: Green | Power: Green LED PoE On: Green |
| Connectors | Input Interface: Shielded RJ-45 Output Interface: Shielded RJ-45 Main Power: IEC 320-C14 inlet | Input Interface: Shielded RJ-45 Output Interface: Shielded RJ-45 Main Power: IEC 320-C14 inlet |
| Humidity | 0 to 90%, non-condensing | 0 to 90%, non-condensing |
| Temperature | Cold Start: -20°C, Operating: -40°C to +60°C, Storage: -40°C to +85°C | Cold Start: -20°C, Operating: -40°C to +50°C, Storage: -40°C to +85°C |
| Dimensions | 2x3.75x5.71 in., 5.1x9.5x15.5 cm (HxWxL) | 1.87x2.56x6.17 in., 4.7x6.5x15.3 cm (HxWxL) |
| Weight | 1.58 lbs (720 g) | 0.95 lb (430 g) |
| Material | Extruded Aluminum | Extruded Aluminum |
| Power Cord | Molded IEC 7ft. (200 cm) power cord | Molded IEC 7ft. (200 cm) power cord |
