VLK-i4
2x VARIO2 i4 850nm illuminators with integrated camera housing
Lighthouse Kit
VARIO2 illuminator and camera housing, low voltage.
About VARIO2 Lighthouse Kit (VLK)
- Sector
- Security
- Wavelength
- Infra-Red 850nm, White-Light or Hybrid

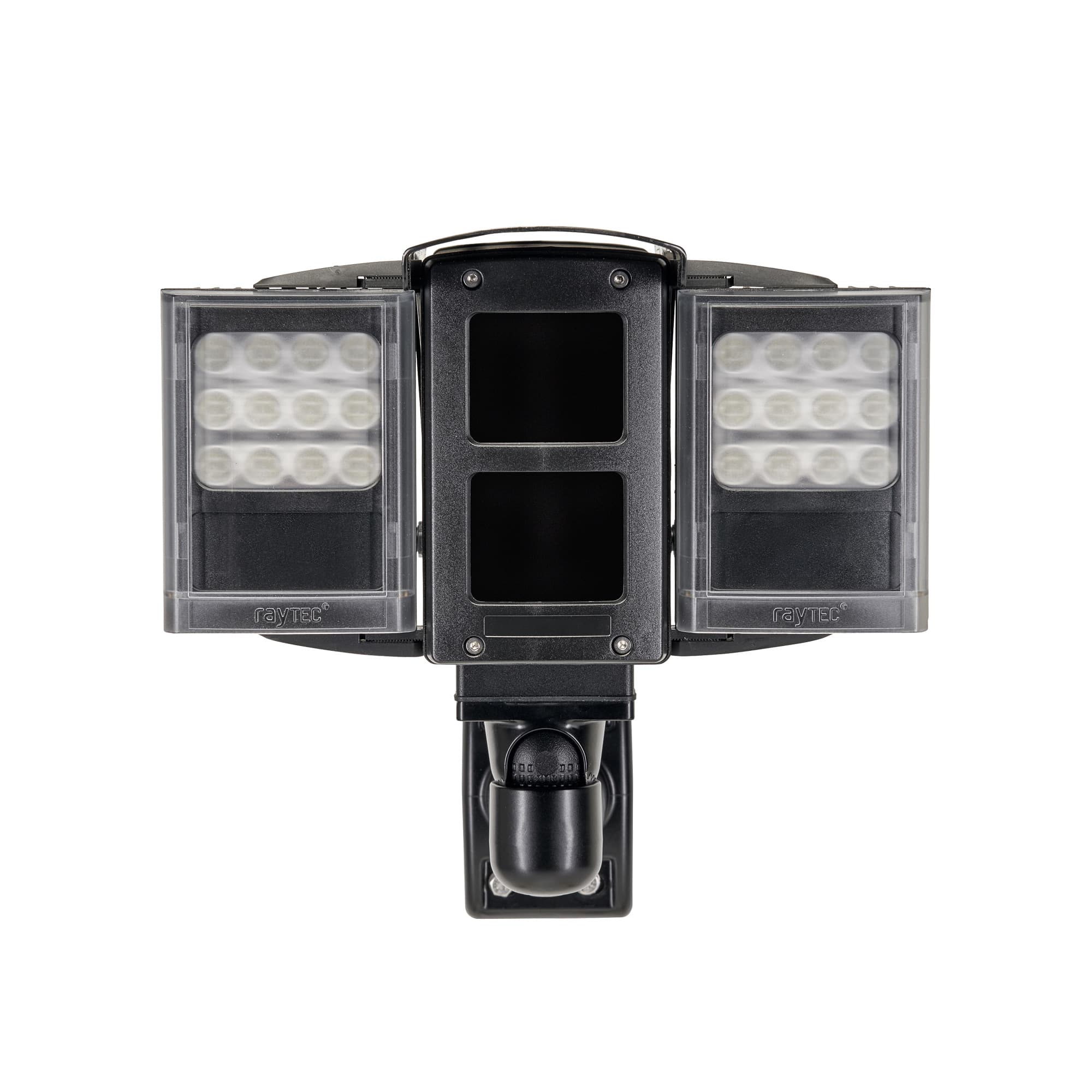

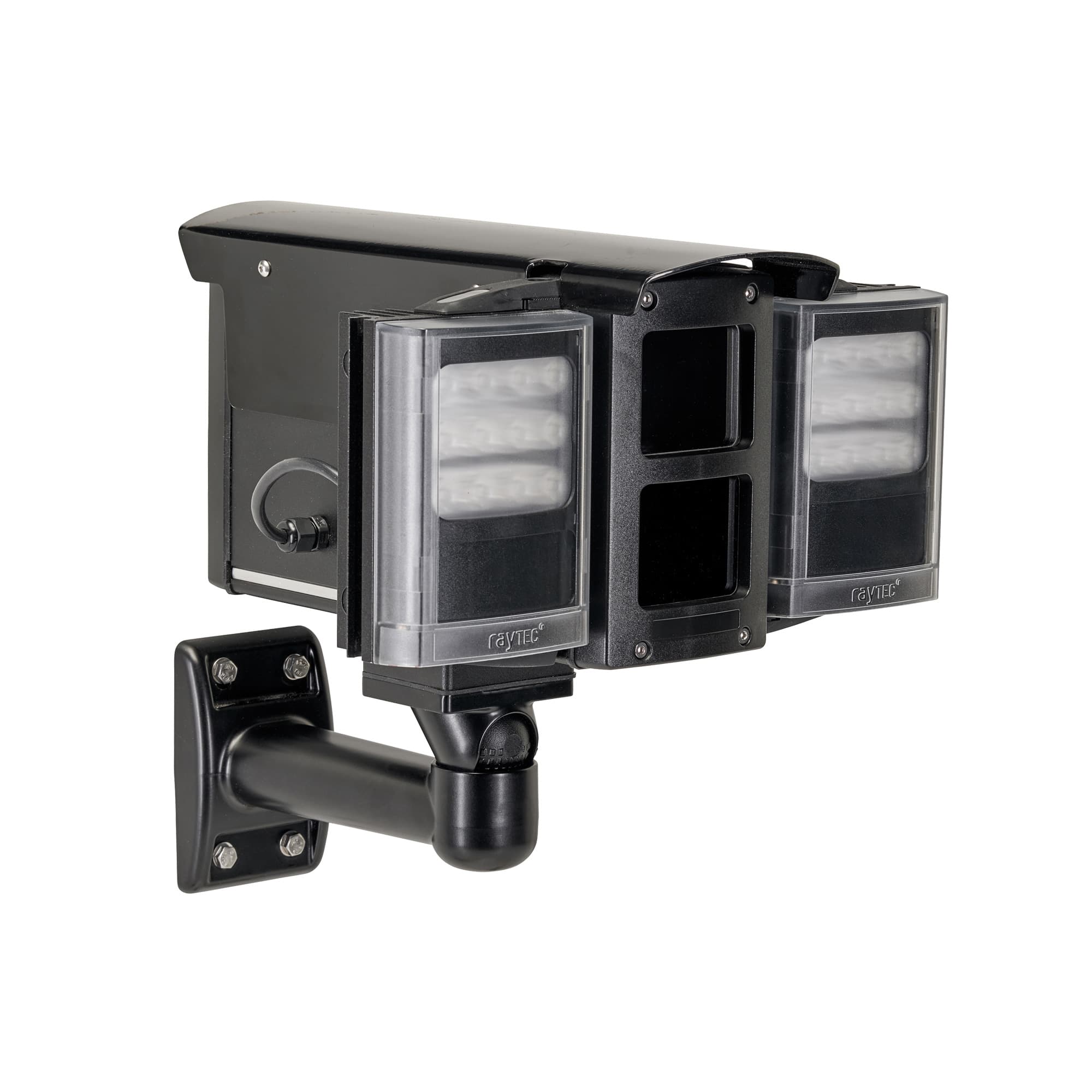

The VARIO2 Lighthouse Kit (VLK) is a fully integrated lighting, camera housing and mounting bracket solution. It allows two inbuilt VARIO2 LED illuminators (available in Infra-Red, White-Light or Hybrid) to be integrated easily with up to two IP or Analogue cameras (cameras not provided) for a variety of applications including video surveillance and ANPR/LPR.
Jump to Downloads
Flexible Use.
Able to accommodate up to two cameras, IP or analogue, the VLK is ideal for a wide range of applications, including video surveillance and ANPR/LPR.
Hot-spot Reduction Technology.
A highly diffused, elliptical beam shape delivers more light where it's needed; minimising light wastage and preventing overexposure of foreground objects.
Easy Installation.
Cable managed, Integrated bracket and fully pre-wired for easy mounting and installation. Quick and convenient to wire and set-up
vlk VARIANTS.
VARIO2 VLK illuminators are available in a range of different sizes to suit different applications and requirements.
VLK-i6
2x VARIO2 i6 850nm illuminators with integrated camera housing
VLK-w4
2x VARIO2 w4 White-Light illuminators with integrated camera housing
VLK-hy6
2x VARIO2 hybrid illuminators, White-Light and 850nm IR, with integrated camera housing
Specs
Select Option
| VLK-i6 | VLK-i4 | VLK-w4 | VLK-hy6 | |
|---|---|---|---|---|
| Wavelength | 850nm | White-Light | 850nm and White-Light | |
| Max Distance | 282m (925ft) | 220m (722ft) | 155m (509ft) | 254m (833ft) |
| Consumption | 61W (inc approx. Camera 6W and Camera heater 5W) 25W per LED panel | 37W (inc approx. Camera 6W and Camera heater 5W) 13W per LED panel | 59W (inc approx. Camera 6W and Camera heater 5W) 24W per LED panel | 53W (inc approx. Camera 6W and Camera heater 5W) 21W per LED panel |
| Input | 15 - 24V AC/DC | 15 - 24V AC/DC | 24V DC | |
| LED Type | PLATINUM Elite SMT LEDs | PLATINUM Elite SMT LEDs | PLATINUM Elite twin-core SMT LEDs | |
| No. of LEDs | 24 | 18 | 24 | 12x Infra-Red, 12 x White-Light |
| IP Rating | IP66 | IP66 | IP66 | |
| Temp Range | - 50° to +50°C (-58 to 122°F) | |||
| Colour | Black | Black | Black | |
| Weight | 5.4kg (12lbs) inc. wires and bracket | |||
| Dimensions (LxWxH) | 336 x 302 x 173mm - excluding bracket (13.2” x 11.9” x 6.8” approx) | |||
| Drilling Dimensions | 4 x M5 holes 40x62mm (1.57 x 2.44") | |||
| Cable | Cat5e 8 x 24AWG and Power/Aux 6-core | |||
| Cable Length | 4m (13ft) | 4m (13ft) | 4m (13ft) | |
| Bracketry | Integrated wall bracket, cable managed and pre-wired as standard (Optional pole mount and wall mount brackets available) | |||
| Integrated Command & Control Technology | Advanced Features |
|---|---|
| Power adjust from 20-100% | Timer function (up to 30 mins) |
| In-built photocell for automatic on/off operation | Telemetry control |
| Photocell following output | Remote Dimming |
| Photocell sensitivity adjust | Restore factory default settings |
| Telemetry input | Optional PIN to lock in settings and limit access |
| LED status indicator provides status on performance of the unit | Remote Control can be disabled for improved security |
| LED status indicator on/off | |
| Disable programming mode |
| Optional VARIO PSU to power VLK illuminators and cameras | |
|---|---|
| Input | 100-230V AC input |
| Consumption | 100W Max |
| Output | 24V |
| Terminations | Cat5e termination and connections for input/output |
