Panoramic Ultra

VARIO2 Panoramic Ultra, Ultra-wide Angle-White-light illuminators

Sector: Security
Wavelength: White-Light

The awarding-winning range of VARIO2 White-Light illuminators is available in ultra-wide angle white-light, designed to provide 180° coverage from one illuminator, or 360° coverage with just two illuminators. Delivers a highly diffused, elliptical beam shape to deliver more light where needed, generating longer distances and minimising light wastage.

Request a quote Add to quote

Jump to Downloads

180° Coverage.

A single illuminator delivers 180° coverage at distances up to 68m (223ft), and 360° coverage with only two units, for seamless, full-scene CCTV images at night.

Perfect for PTZ Domes.

VARIO2 Panoramic’s ultra-wide angles and long distances make it the ideal solution for wide-angle, PTZ, multi-sensor, or 360° dome cameras covering large areas.

Hot-Spot Reduction Technology.

Delivers a highly diffused, elliptical beam shape to deliver more light where it’s needed, generating both longer distances and minimising light wastage. HRT also minimises the overexposure of foreground objects.

Optionally available with a dedicated remote control to allow quick, safe set-up from ground level, speeding up commissioning.

Angle of illumination can be easily, quickly and precisely adjusted by changing the VARIO holographic lens insert, to match the specific camera field of view.

Availabe as multi-panel units which use Adaptive Illumination™ allows the installer to adjust the angle of the light projection from a single unit to fit the specific demands of any nstallation. Adjustment is quick and convenient and any angle up to 180° (depending on model) is easily selectable.

VARIO2 VARIANTS.

VARIO2 Panoramic Ultra illuminators are available in two sizes to suit different applications and requirements.

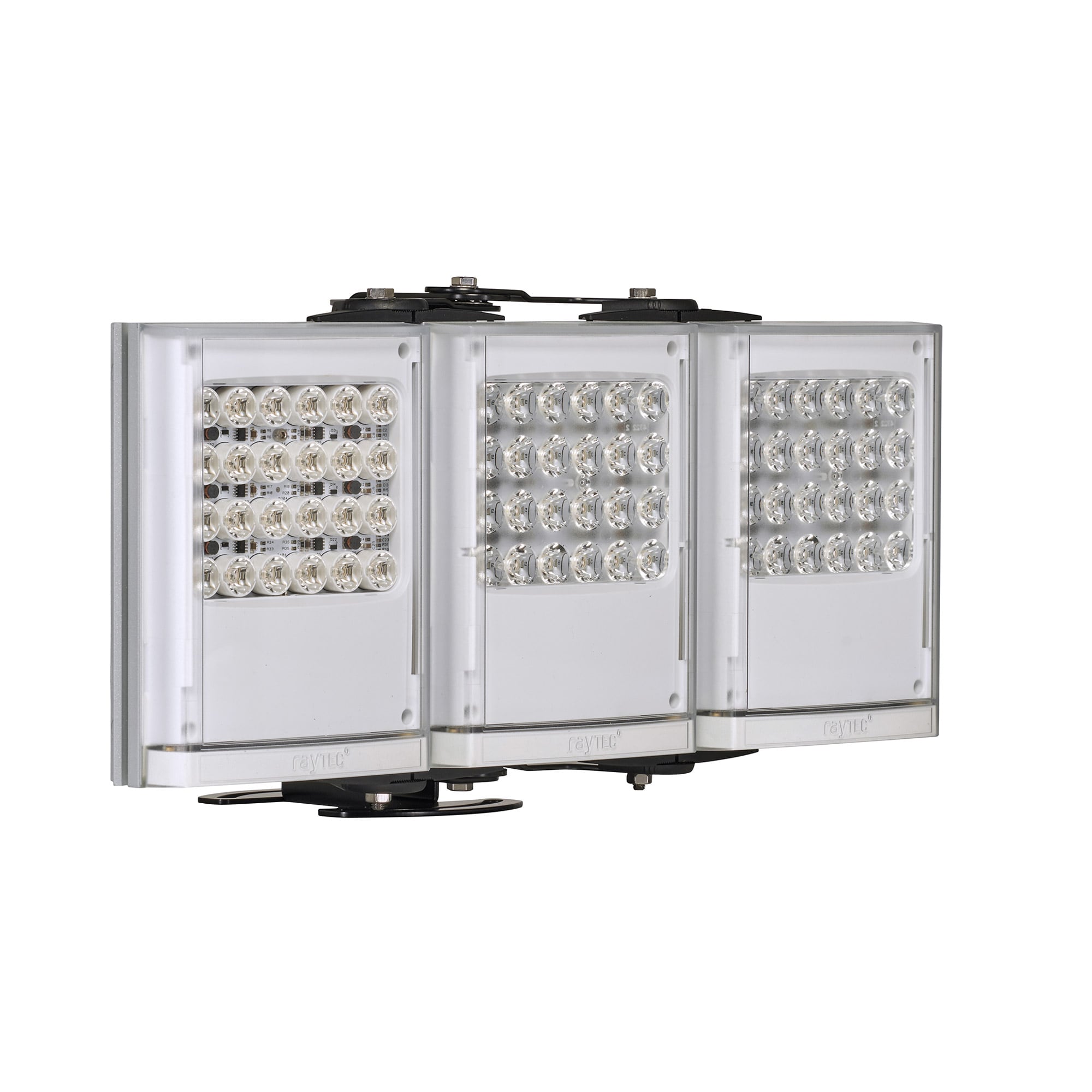

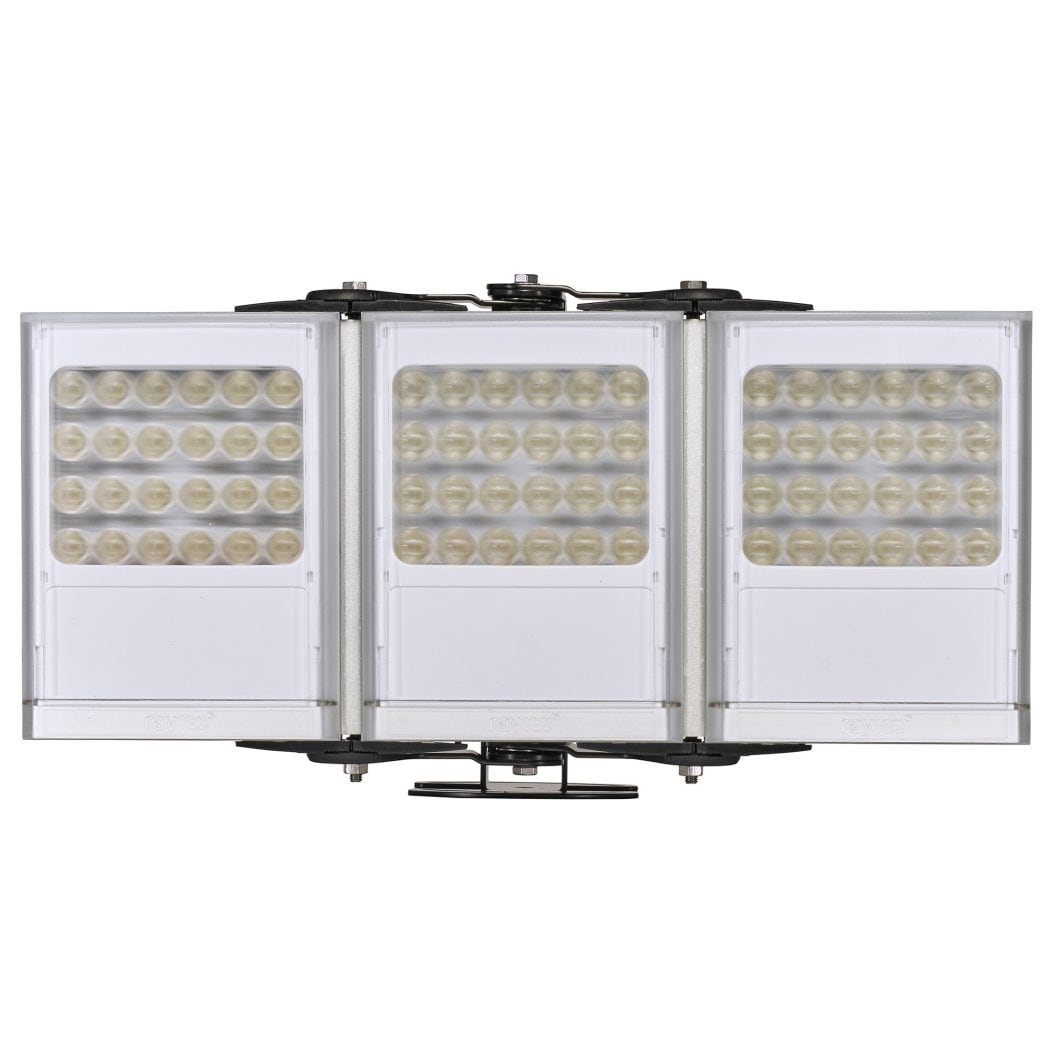

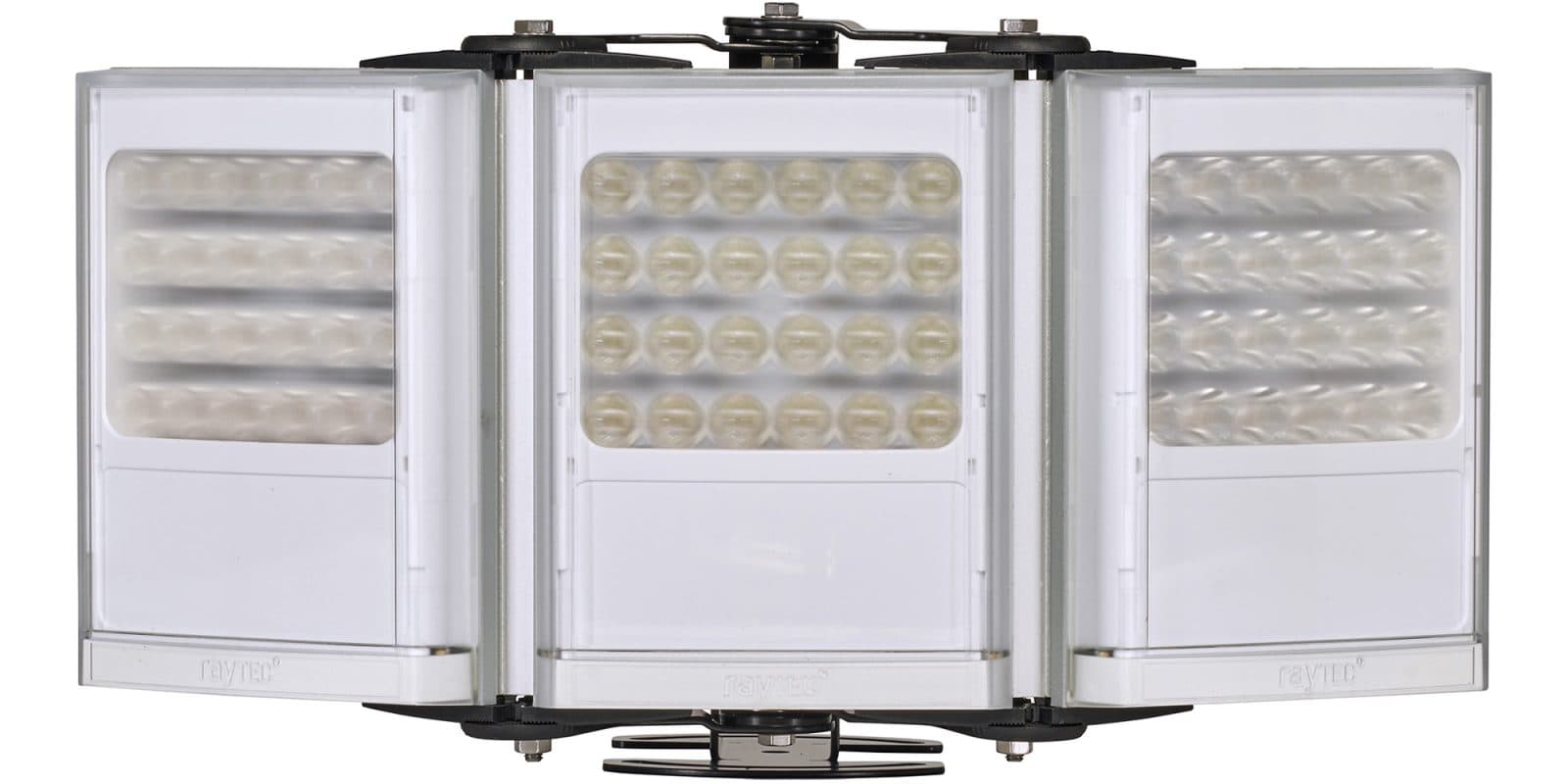

w8-3

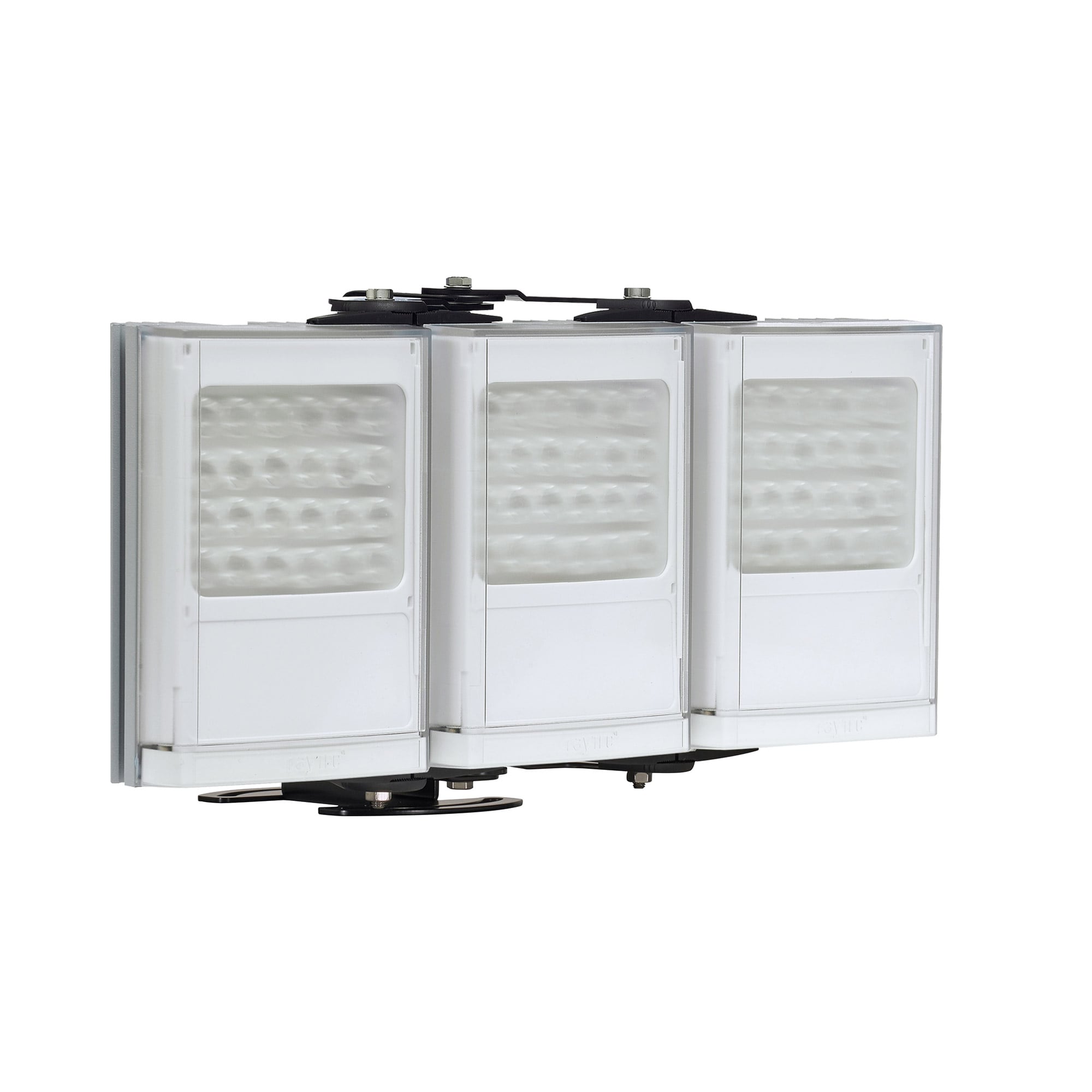

VARIO2 w8-3 Panoramic Ultra, 60 - 180 x 10° AI, 12-24V AC/DC, Silver, White-Light

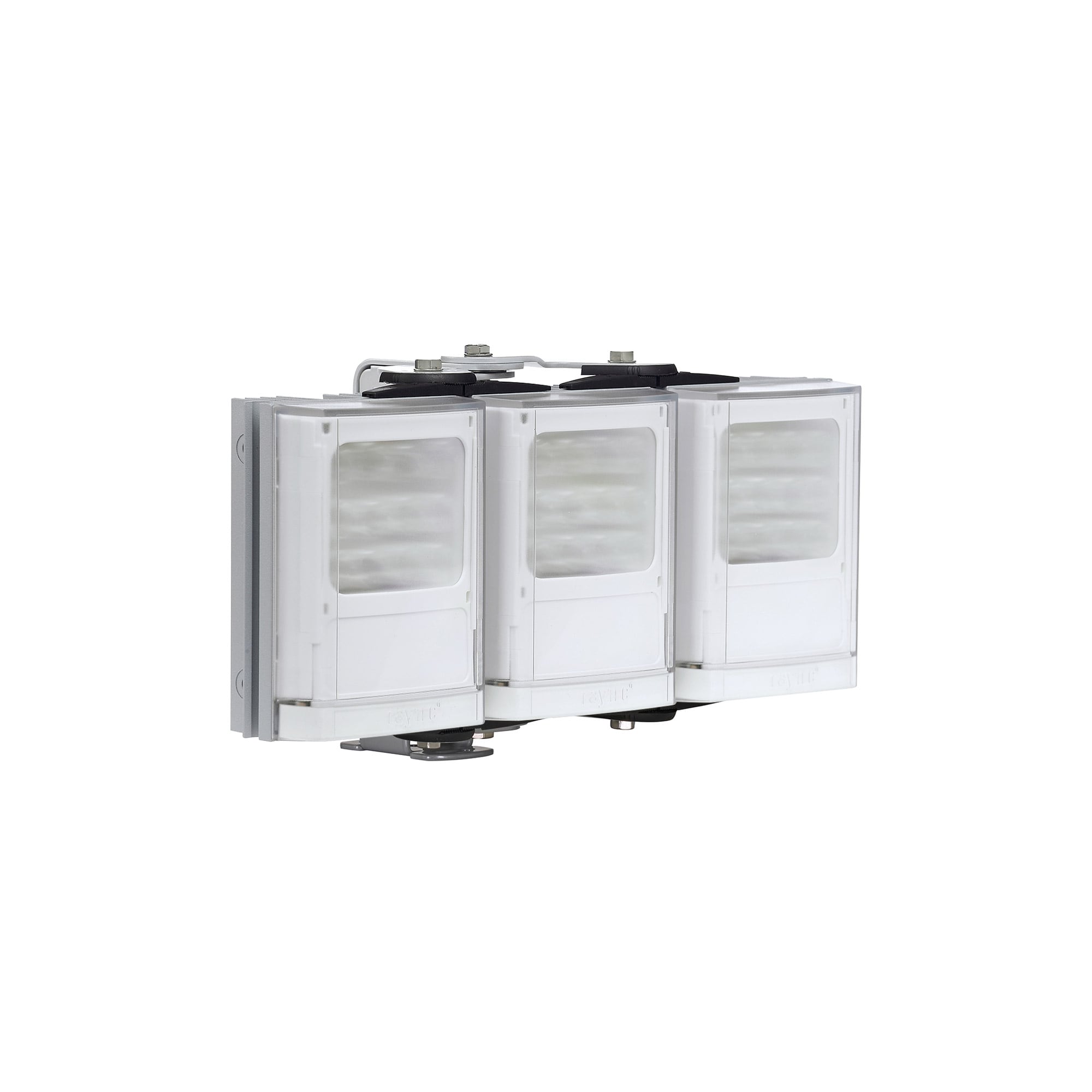

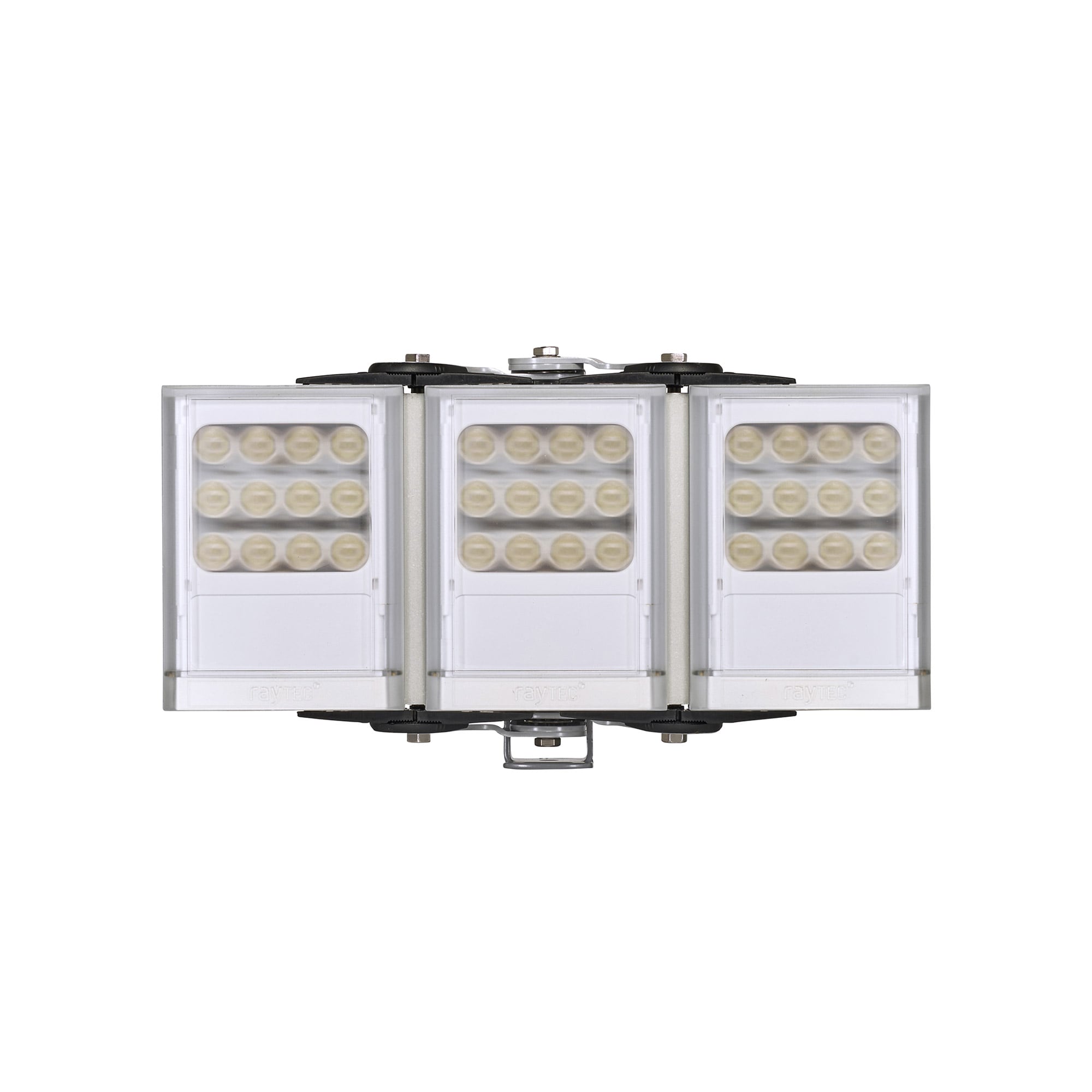

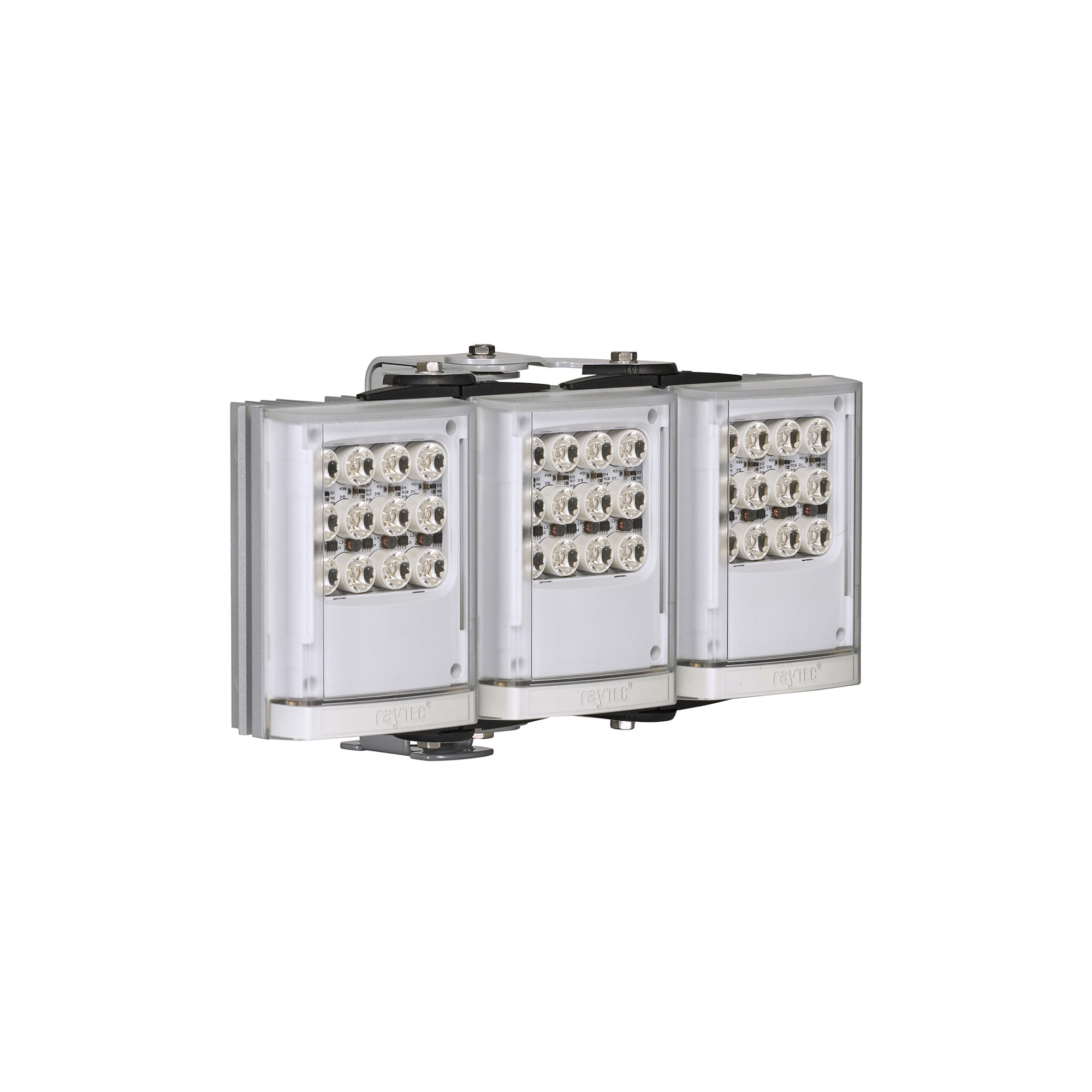

w4-3

VARIO2 w6-3 Panoramic Ultra, 60 - 180 x 10° AI, 12-24V AC/DC, Silver, White-Light

Specs

Select Option

	w8-3	w4-3
Wavelength	White-Light
Max Distance	140m (459ft)	89m (292ft)
Angle	60°-180° x 10°
Input	12-24V AC/DC
Consumption	126W max
Beam Shape	Elliptical with HRT (Hot-spot Reduction Technology)
LED Type	Platinum Elite SMT LEDs
Beam Angle System	VARIO Interchangeable Lens System
Number of LEDs	72	36
Colour	Silver
IP Rating	IP66
Temp Range	-50° to +50°C (-58 to 122°F)
Weight	6kg (13.2lbs)	3.75kg (8.3lbs)
Cable Length	2.5m
Country of Manufacture	United Kingdom
Bracketry	Adaptive Illumination circular bracket included (optional pole and wall mount brackets available)

	Integrated Standard Features	Advanced Features (via remote control)
	Power adjust from 20-100%	Timer function (up to 30 mins)
	In-built photocell for automatic on/off operation	Telemetry control
	Photocell following output	Remote dimming
	Photocell sensitivity adjust	Restore factory default settings
	LED status indicator provides status on performance of the unit	Optional PIN to lock in settings and limit access
	LED status indicator on/off	Remote control can be disabled for improved security
	Disable programming mode

Product Dimensions.

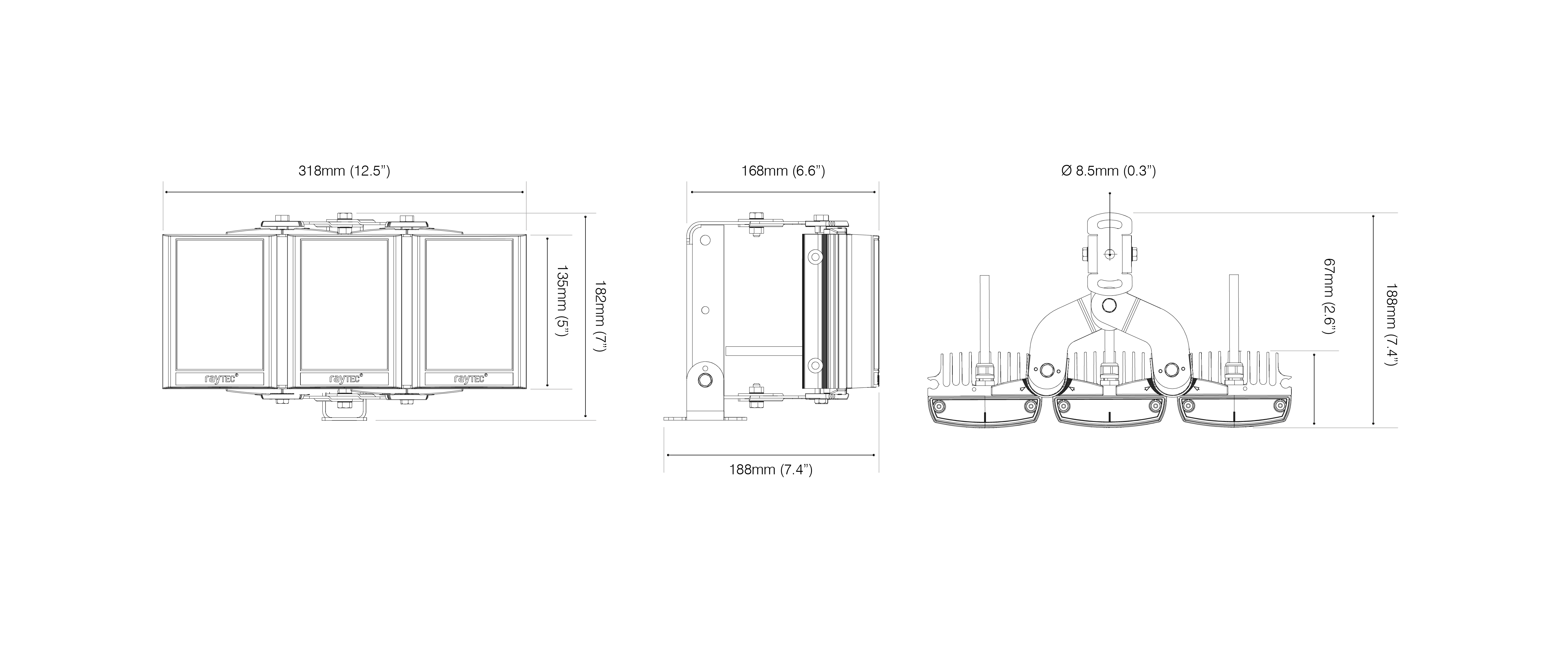

w4-3

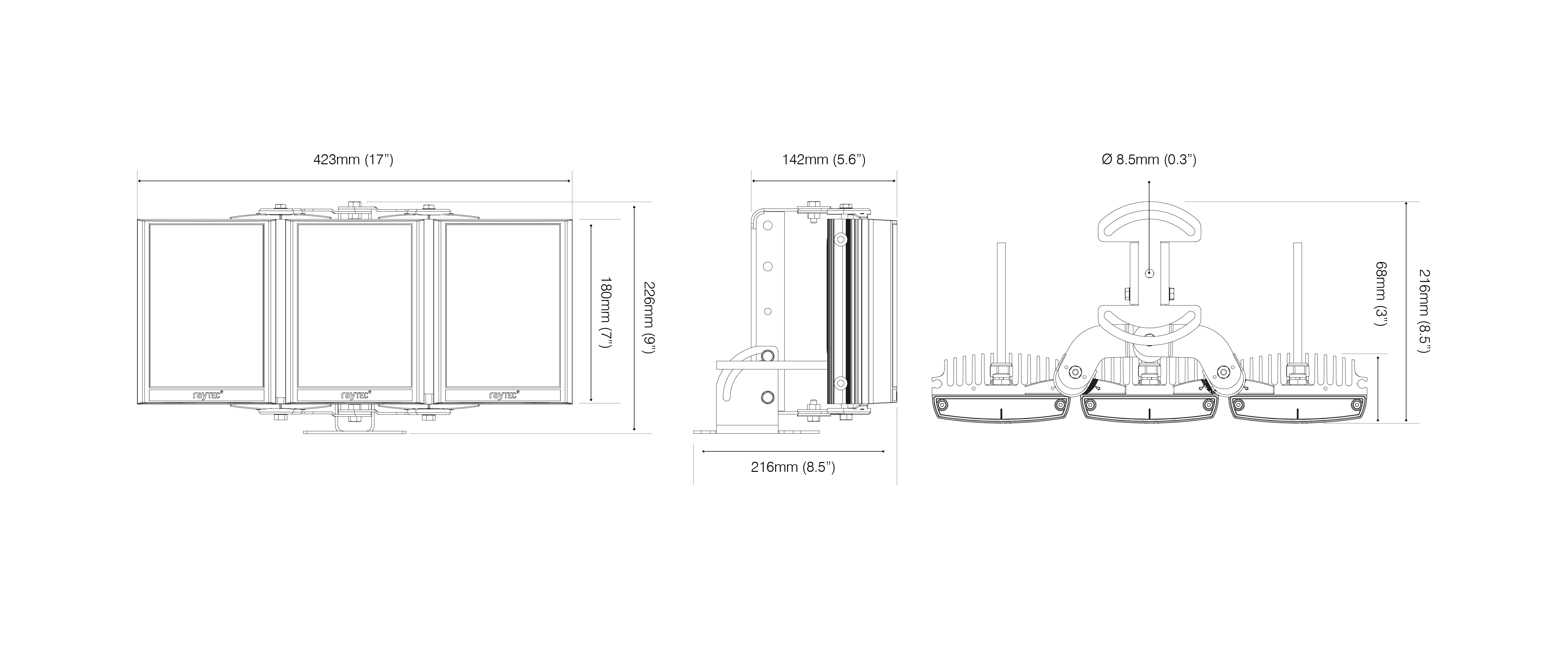

w8-3

Downloads.

Datasheet - VARIO2 Panoramic Ultra - White-Light Installation Guide - VARIO2 User Guide - VARIO2 Remote Control Bracket Guide - VARIO Universal Bracket (VUB)
