VARIO2 Panoramic Ultra, Ultra-Wide Angle Infra-Red Illuminators

About VARIO2 Panoramic Ultra IR

Sector
Security
Wavelength
Infra-Red 850nm (940nm options available)

The awarding-winning range of VARIO2 Infra-Red illuminators is available in ultra-wide angle infra-red, designed to provide 180° coverage from one illuminator, or 360° coverage with just two illuminators. Delivers a highly diffused, elliptical beam shape to deliver more light where needed, generating longer distances and minimising light wastage.

Jump to Downloads

180° Coverage.

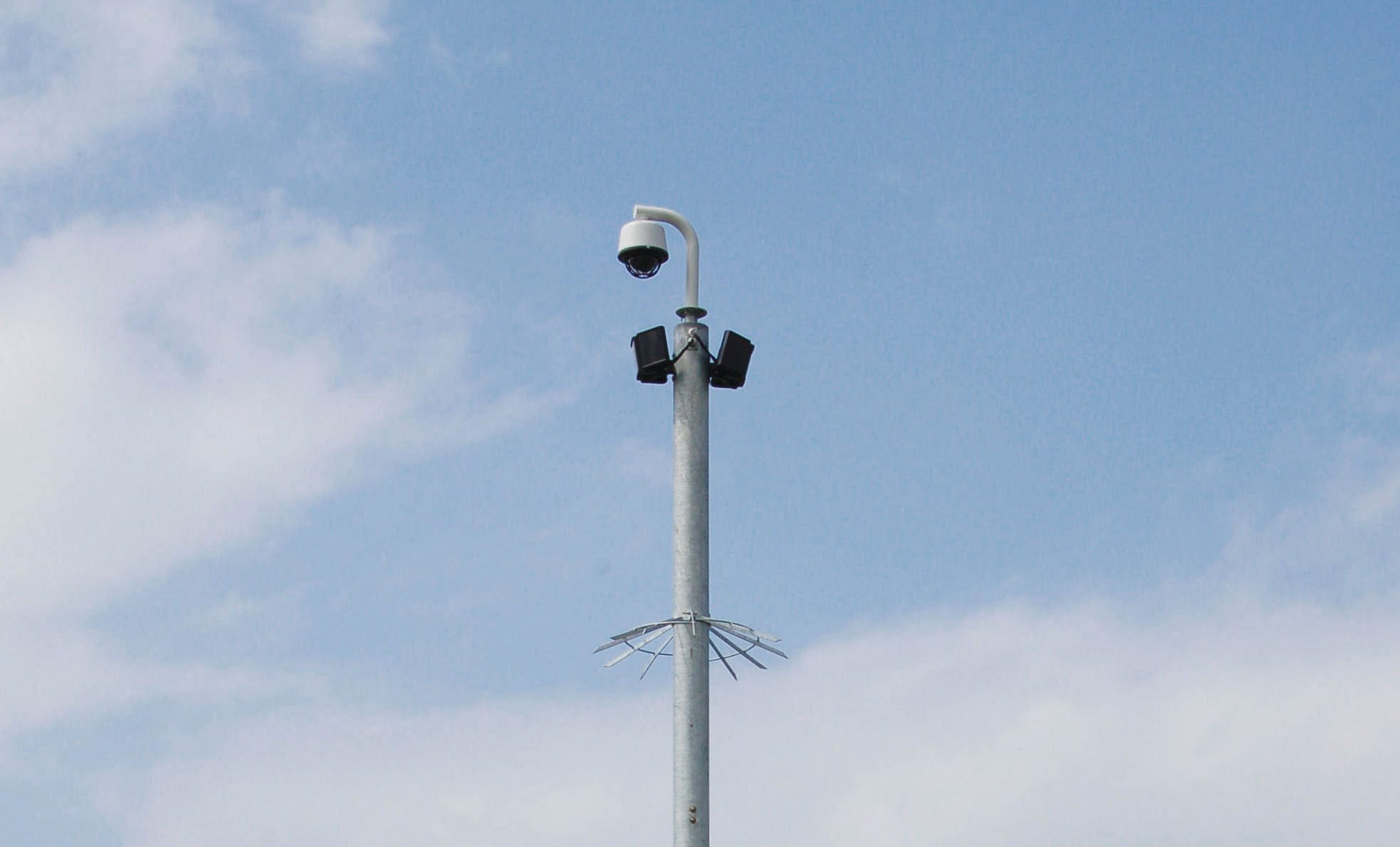

A single illuminator delivers 180° coverage at distances up to 150m (492ft), and 360° coverage with only two units, for seamless, full-scene CCTV images at night.

Perfect for PTZ Domes.

VARIO2 Panoramic’s ultra-wide angles and long distances make it the ideal solution for wide-angle, PTZ, multi-sensor, or 360° dome cameras covering large areas.

Hot-Spot Reduction Technology.

Delivers a highly diffused, elliptical beam shape to deliver more light where it’s needed, generating both longer distances and minimising light wastage. HRT also minimises the overexposure of foreground objects.

VARIO2 VARIANTS.

VARIO2 illuminators are available in two sizes to suit different applications and requirements.

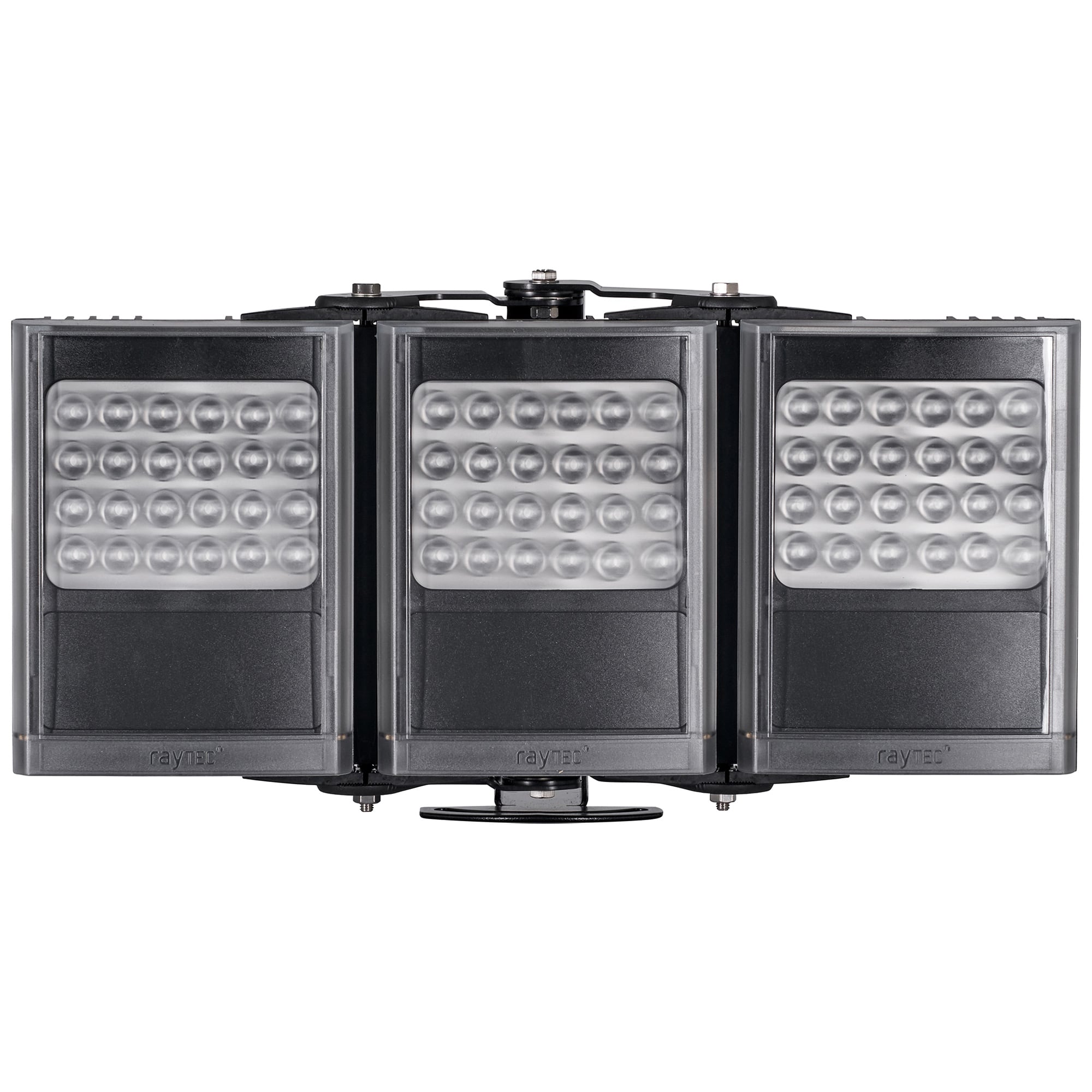

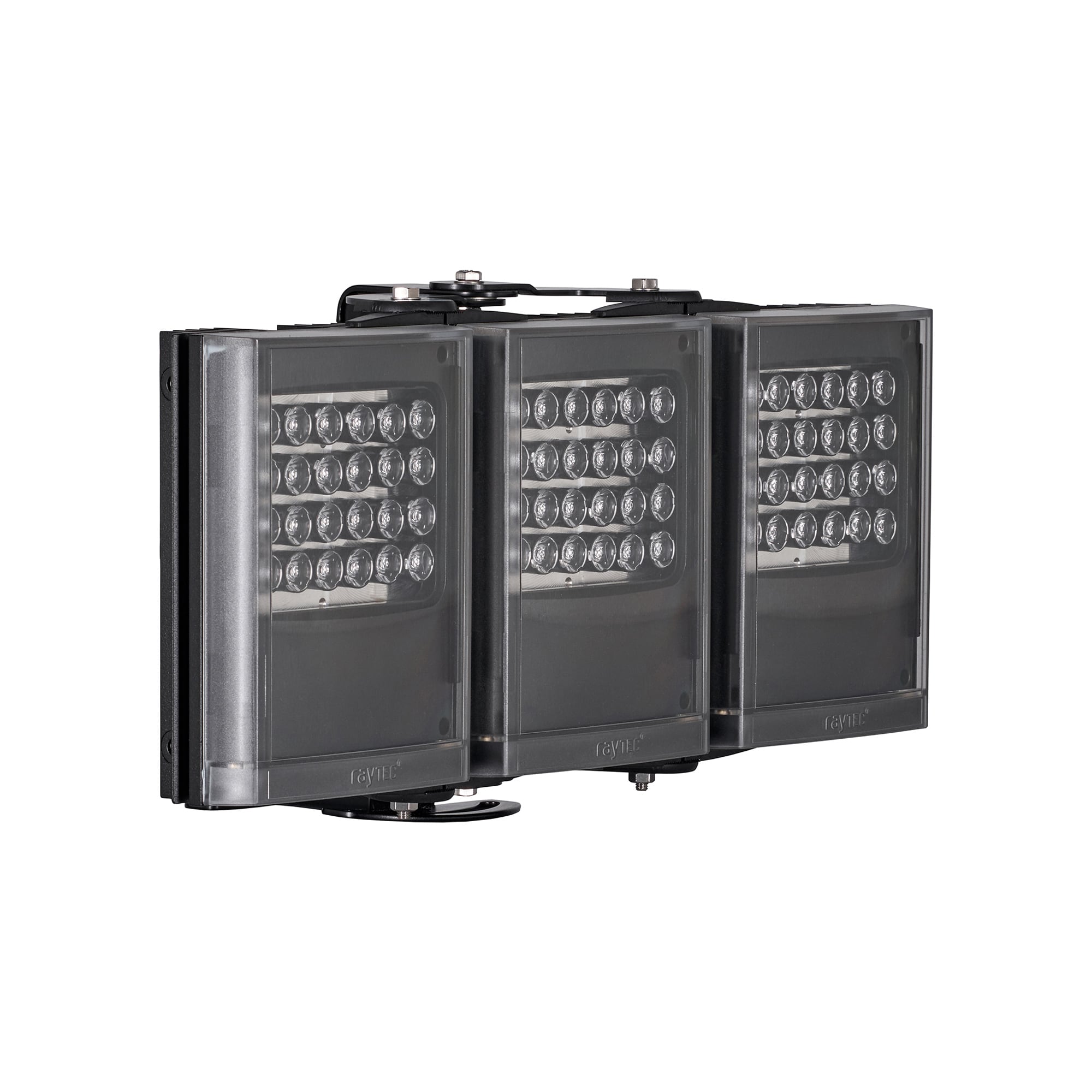

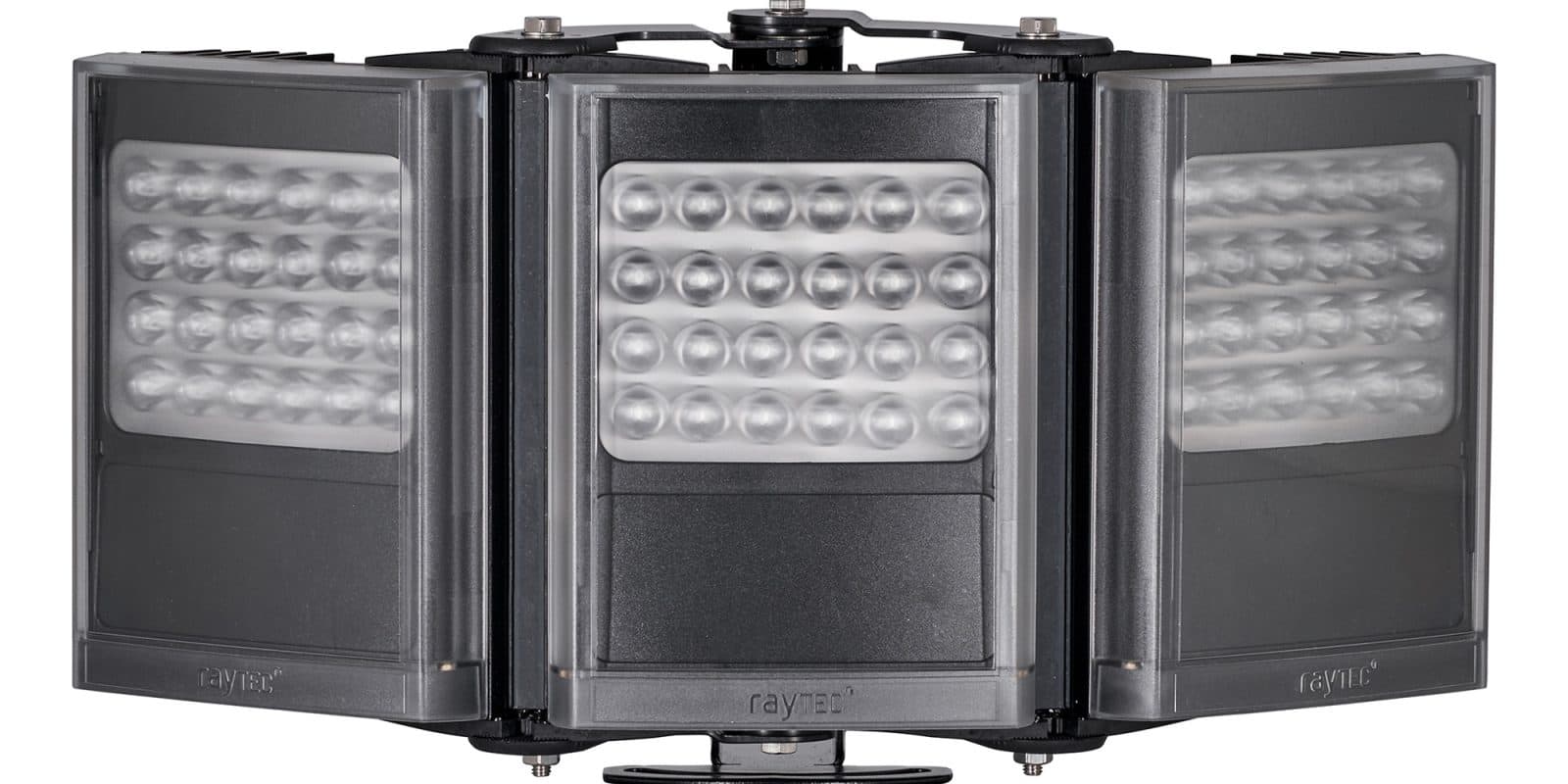

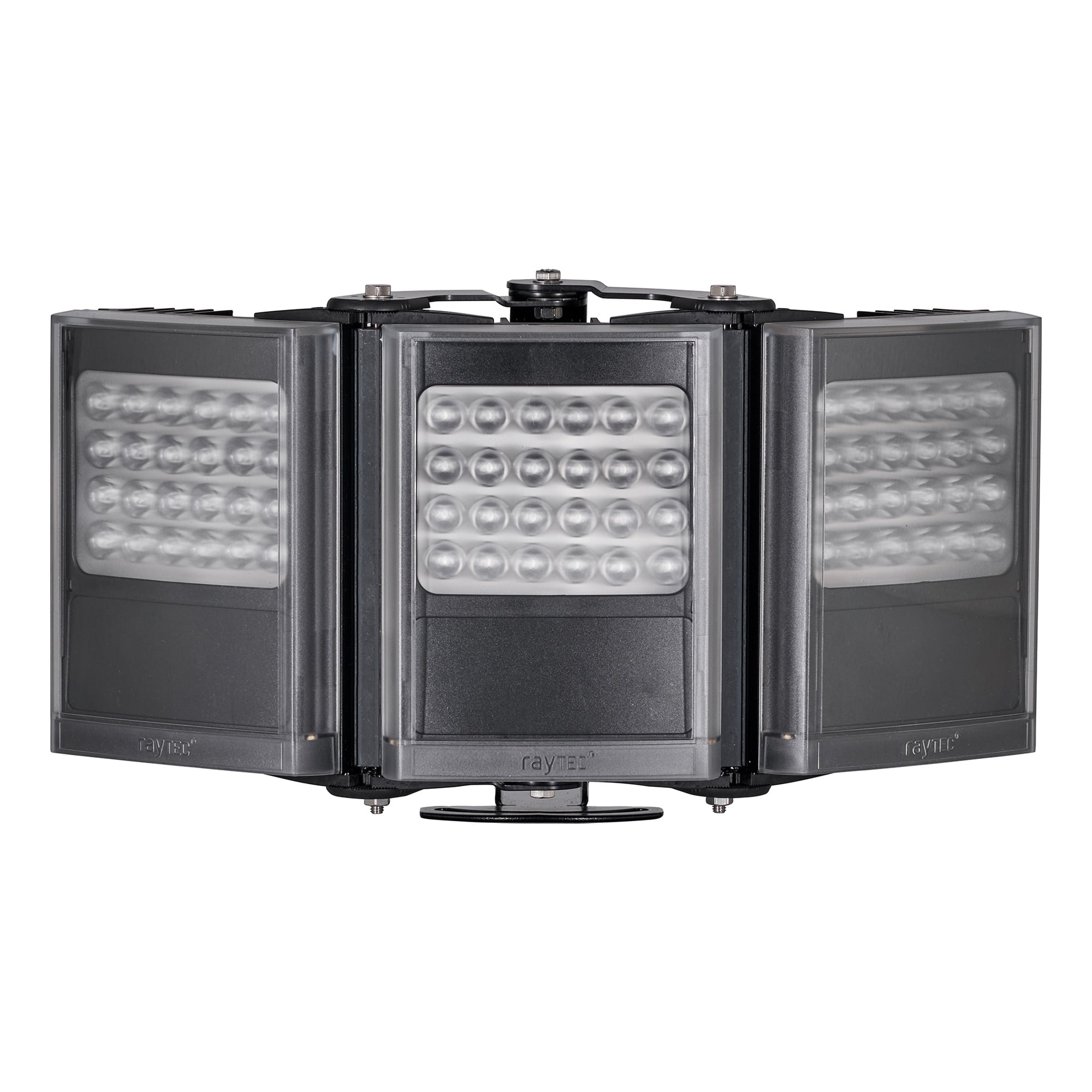

i8-3

VARIO2 i8-3 Panoramic Ultra, 60 - 180 x 10° AI, 12-24V AC/DC, Black, Infra-Red

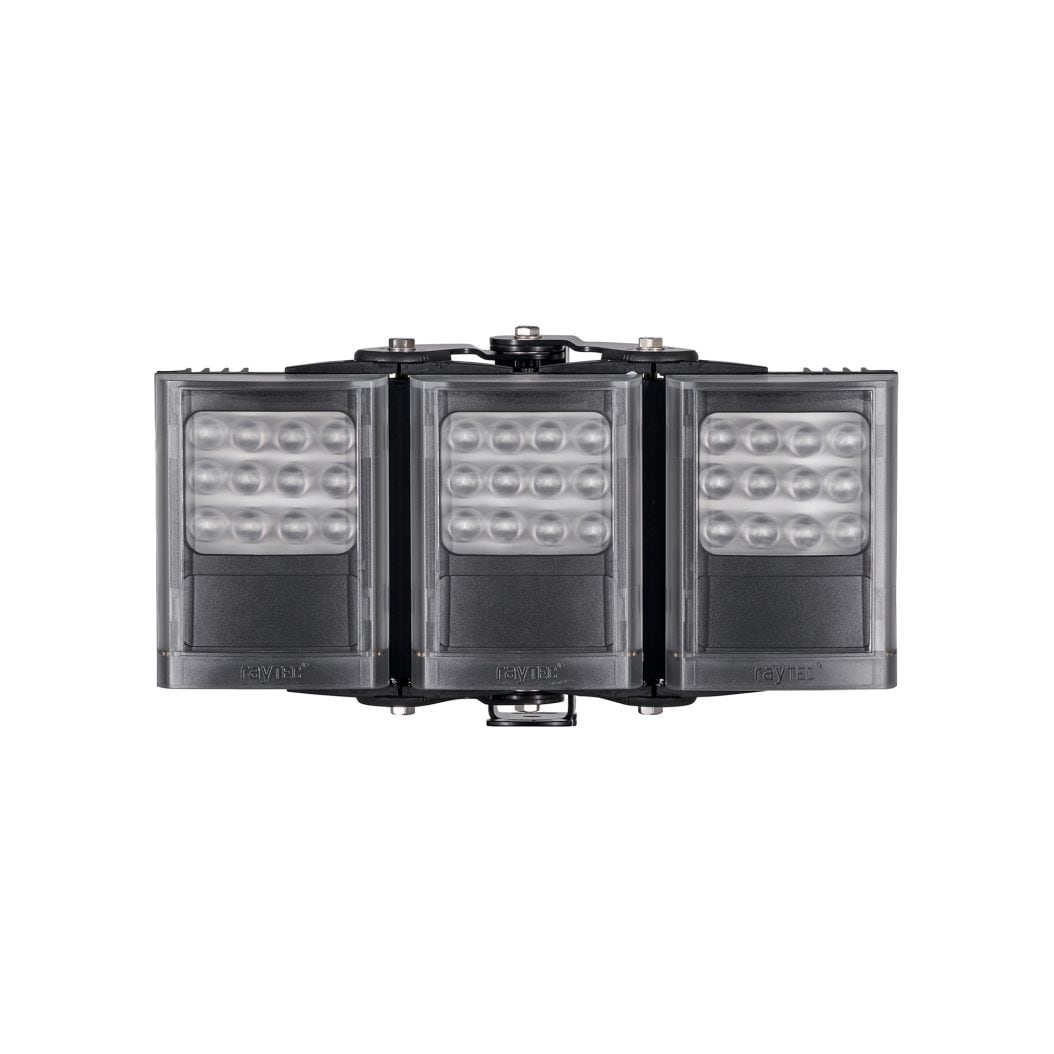

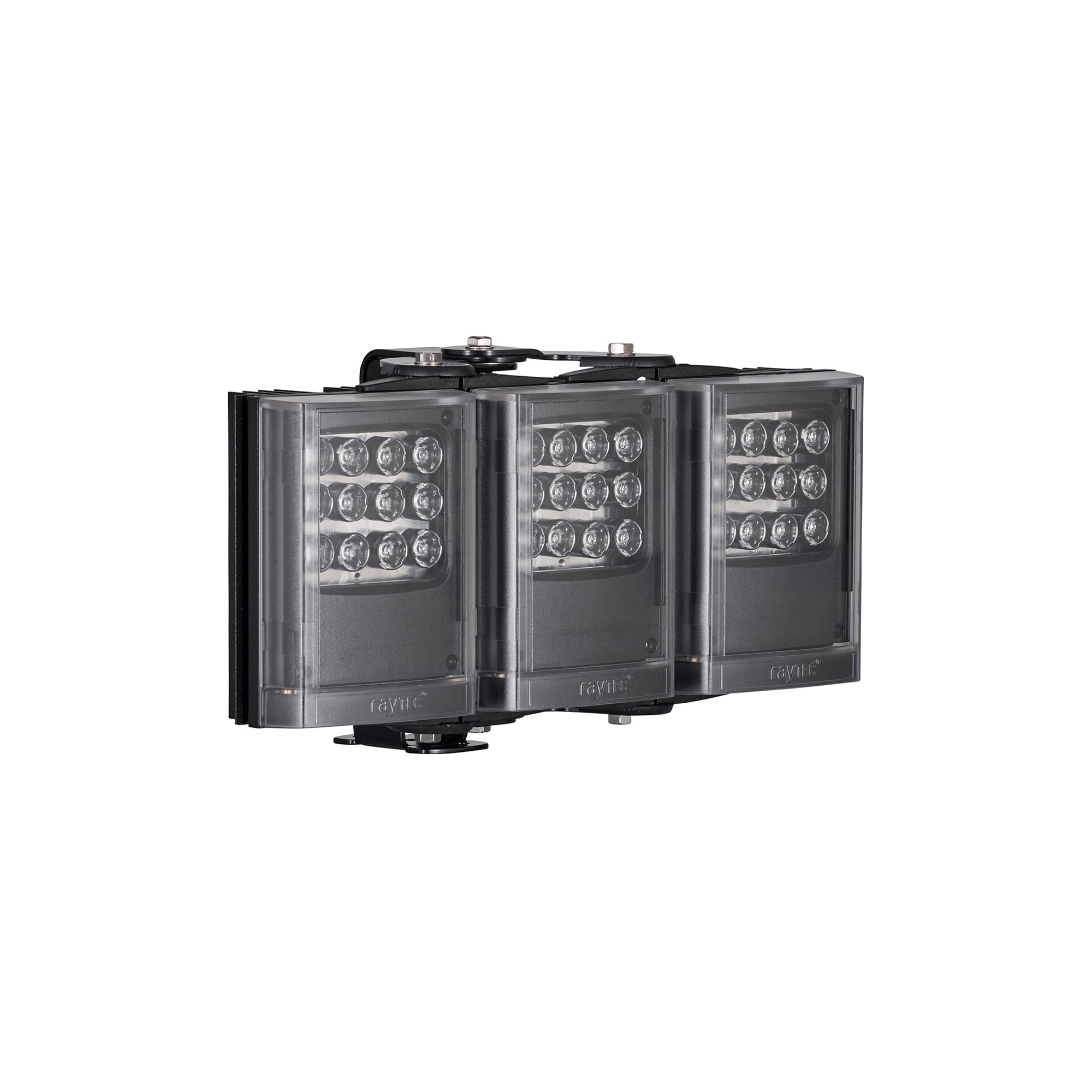

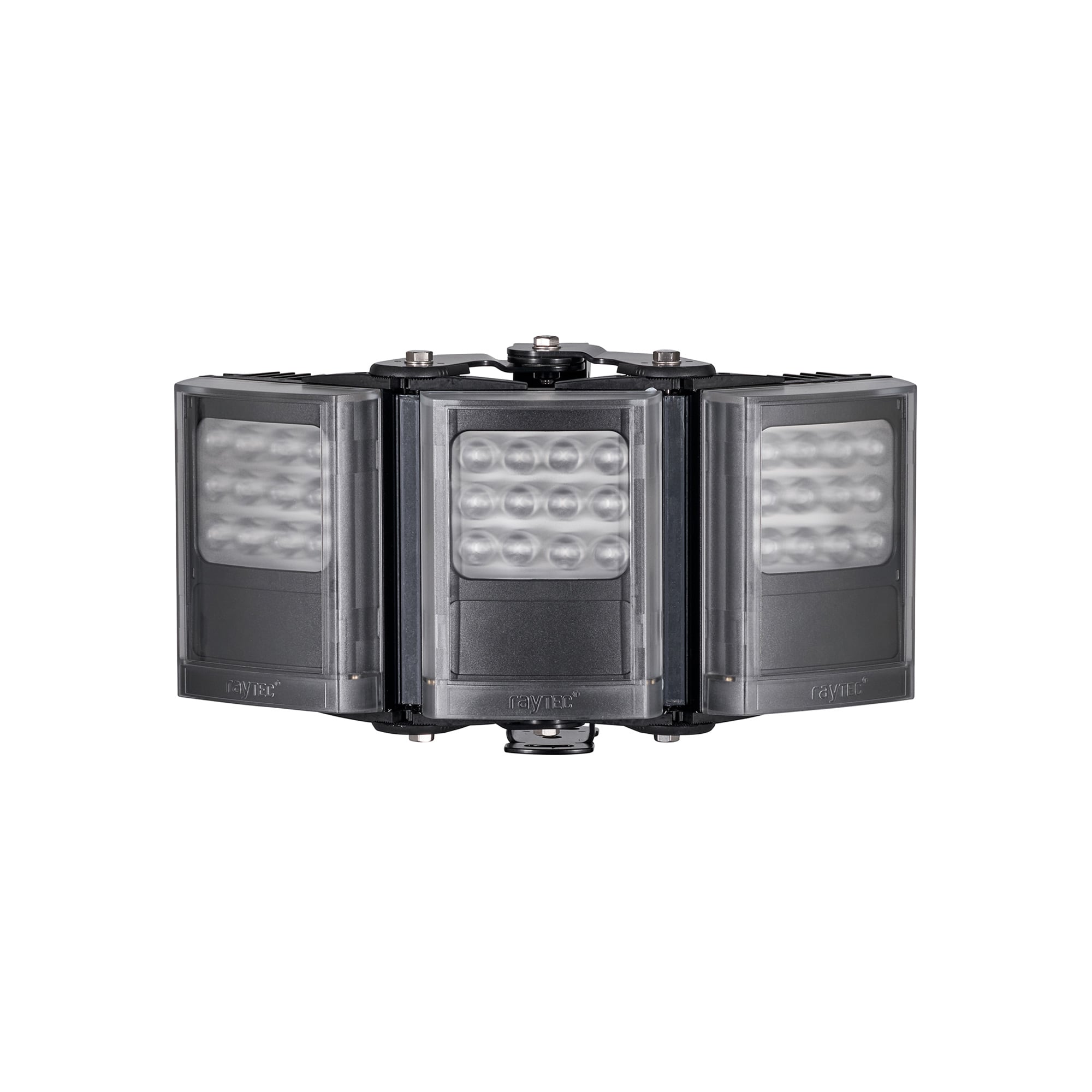

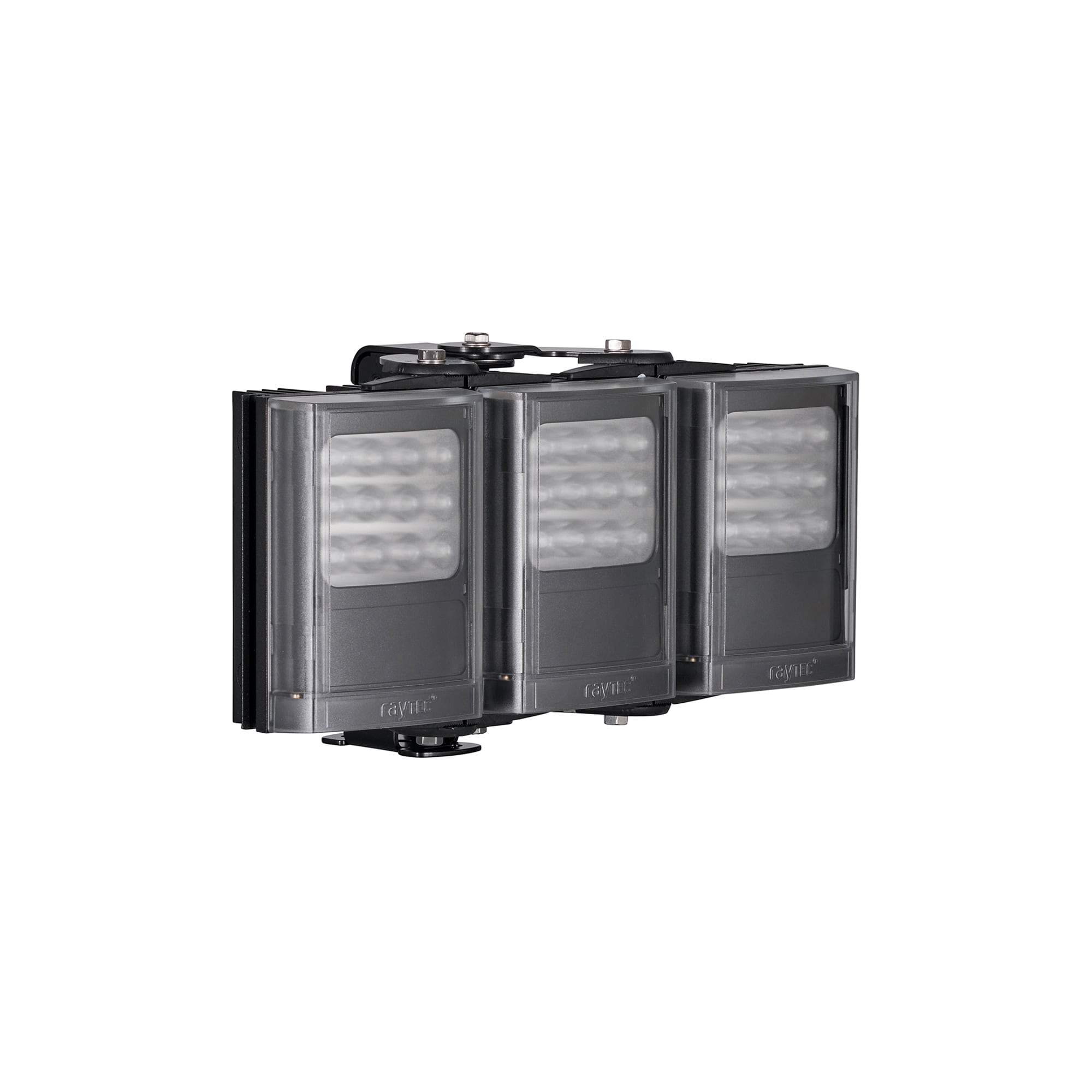

i6-3

VARIO2 i6-3 Panoramic Ultra, 60 - 180 x 10° AI, 12-24V AC/DC, Black, Infra-Red

Specs

Select Option

i8-3i6-3
Wavelength850nm (940nm options available)
Max Distance260m (853ft)170m (558ft)
Angle60°-180° x 10°
Input12-24V AC/DC
Consumption138W max75W max
Beam ShapeElliptical with HRT (Hot-spot Reduction Technology)
LED TypePlatinum Elite SMT LEDs
Beam Angle SystemVARIO Interchangeable Lens System
Number of LEDs7236
IP RatingIP66
Temp Range-50° to +50°C (-58 to 122°F)
Colour Black
Weight 6kg (13.2lbs)3.75kg (8.3lbs)
Dimensions423 x 226 x 68mm (17” x 9” x 3” approx.)318 x 182 x 67mm (12.5” x 7” x 3” approx.
Cable Length2.5m
BracketryAdaptive Illumination circular bracket included (optional pole and wall mount brackets available
Country of ManufactureUnited Kingdom
Integrated Standard FeaturesAdvanced Features (via remote control)
Power adjust from 20-100%Timer function (up to 30 mins)
In-built photocell for automatic on/off operationTelemetry control
Photocell following outputRemote dimming
Photocell sensitivity adjustRestore factory default settings
LED status indicator provides status on performance of the unitOptional PIN to lock in settings and limit access
LED status indicator on/off Remote control can be disabled for improved security
Disable programming mode

Product Dimensions.

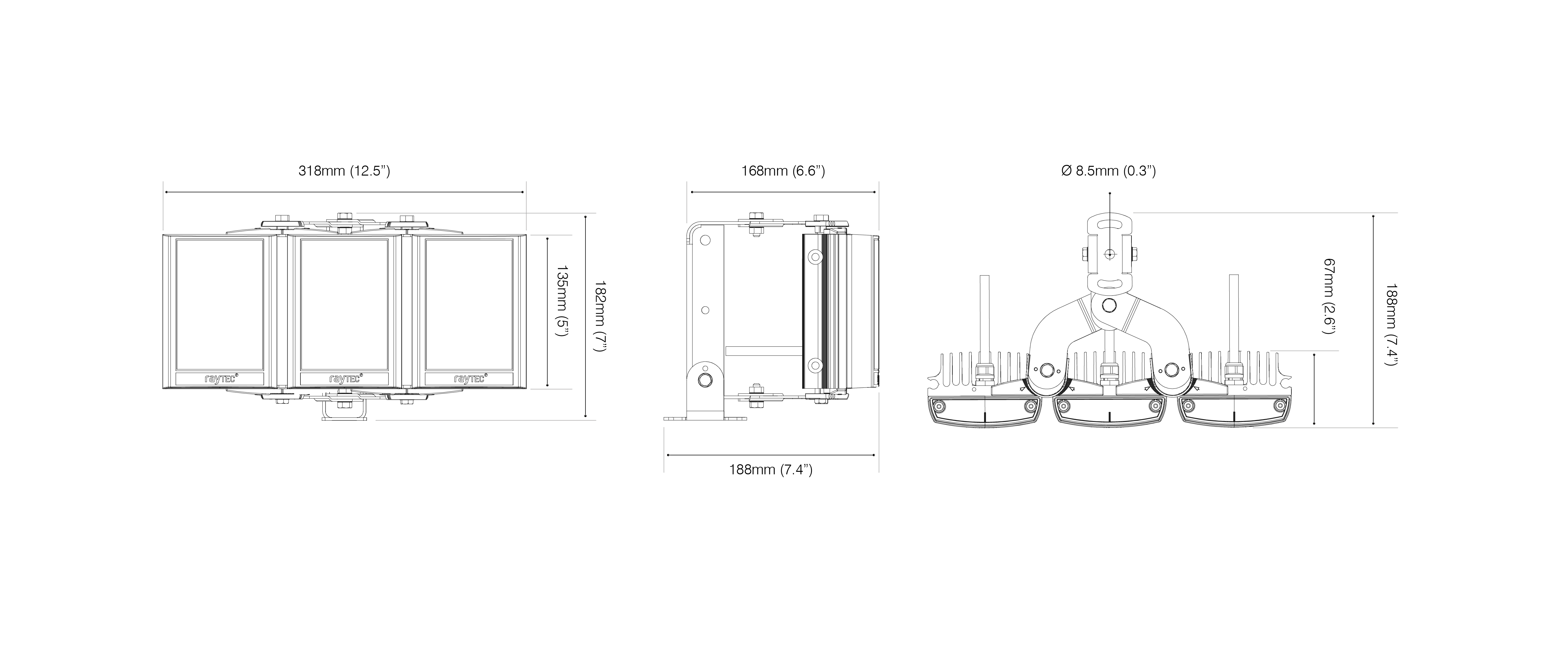

i6-3

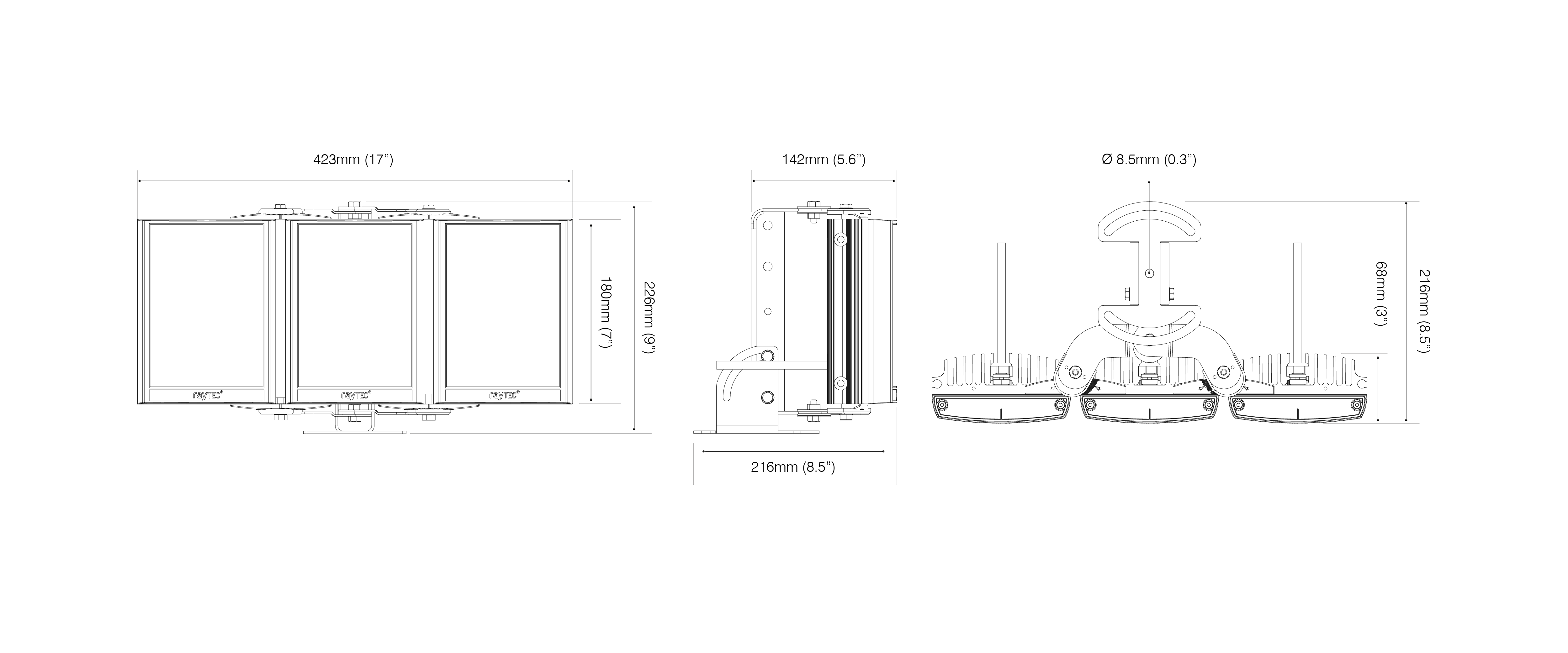

i8-3
