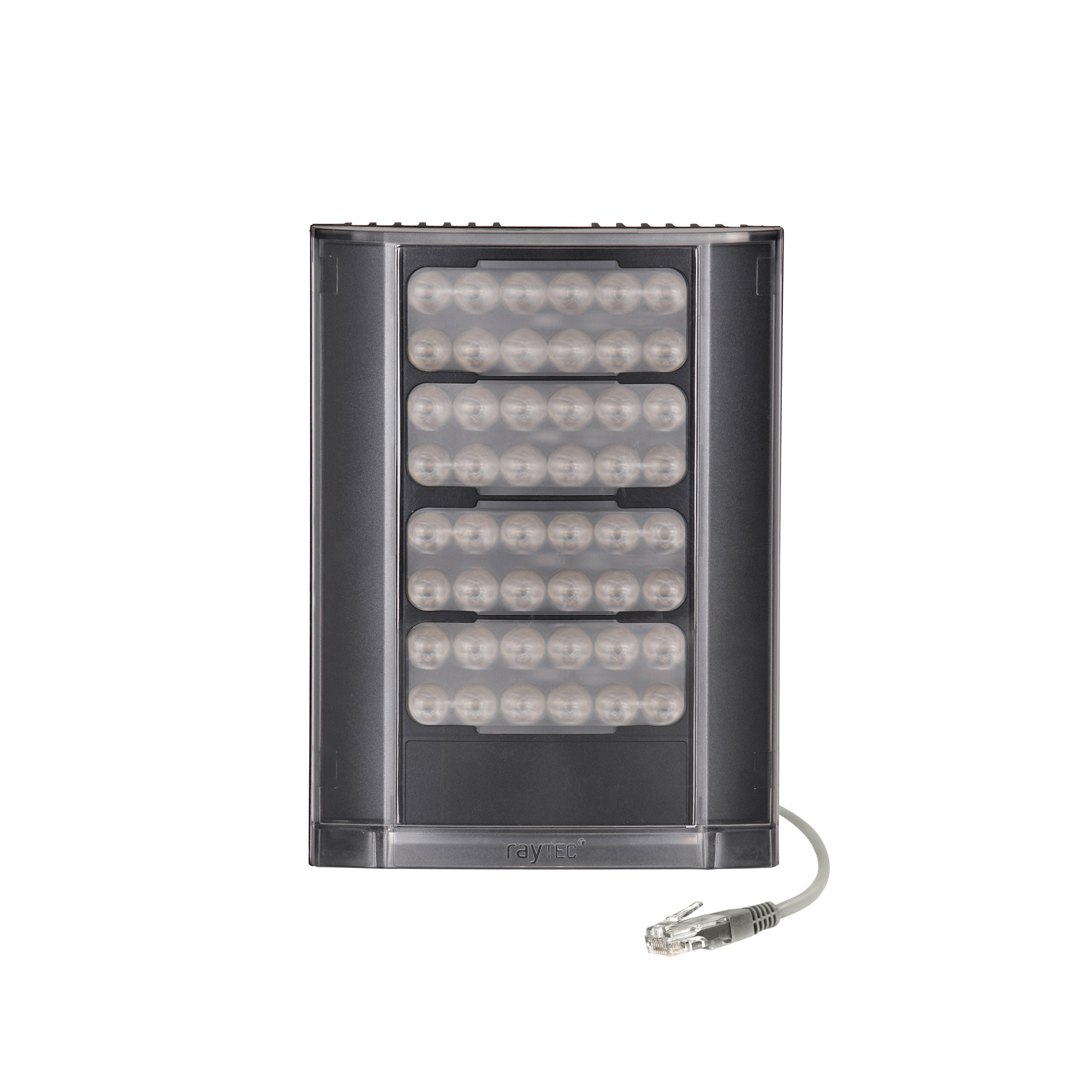

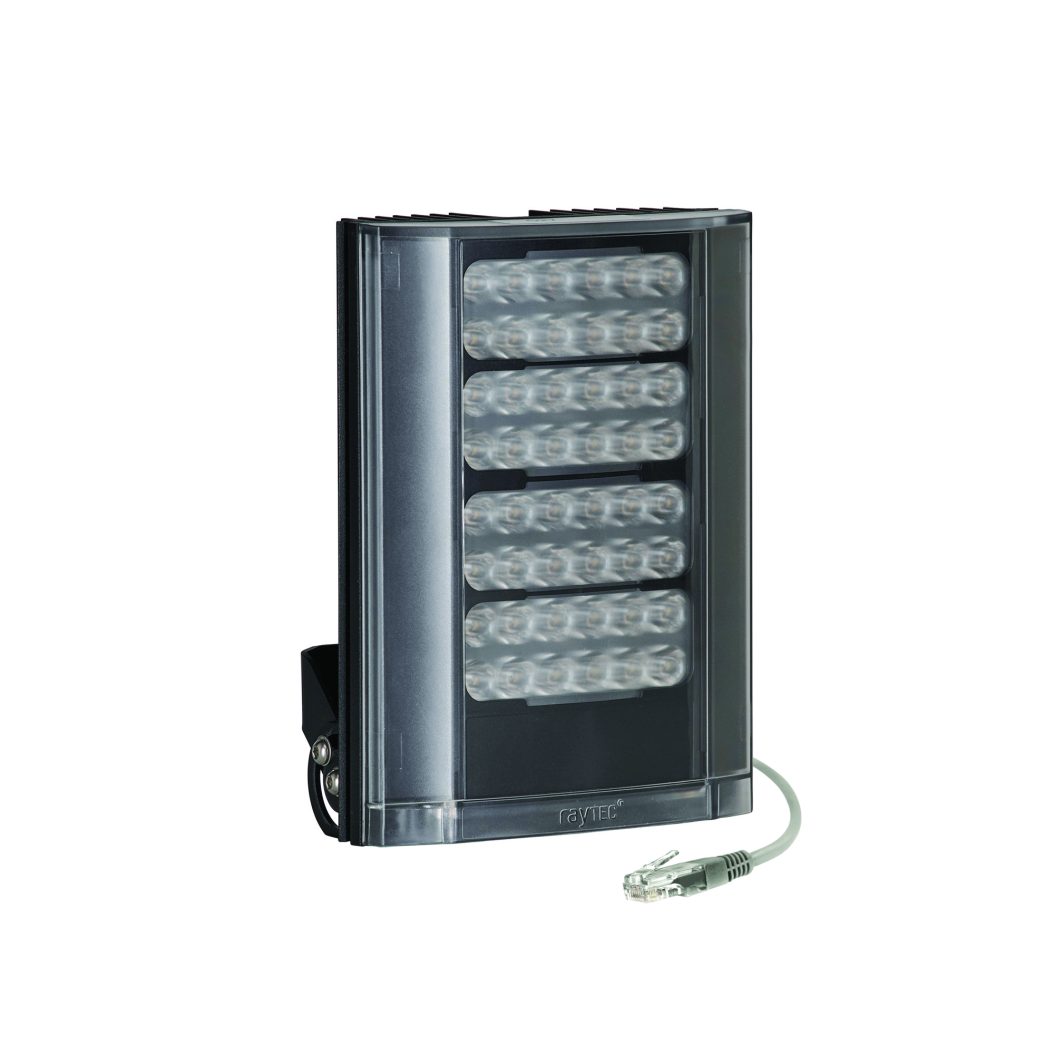

i16
i16-1 long-range illuminator
IPPoE
VARIO2 IPPoE, medium and long-range Infra-Red illuminators with full network capability
About VARIO2 IPPoE – IR
- Sector
- Security
- Wavelength
- 850nm (940nm options available)
The awarding-winning VARIO2 IPPoE delivers dedicated high-performance lighting for IP cameras. It can be fully integrated into an IP eco-system to provide smart, situation dependent lighting. The range is made up of a number of sizes designed to cover medium and long-range distances. VARIO2 infrared security light delivers world-leading power and illumination distances which can improve the performance of any video surveillance system at night.
Jump to Downloads
Outstanding Distances.
VARIO2 delivers distances of up to 500m (1,640 ft) of Infra-Red illumination, utilising PLATINUM Elite SMT LED technology for maximum performance and reliability.
Fully Programmable.
Control from anywhere on the network. Easy set-up, commissioning, operation and maintenance, minimising labour time and costs whilst maximising performance 24/7.
Integrated Web Interface.
An integrated web interface provides a host of user-defined additional settings and diagnostics tools. Tailor your solution to meet the exact demands of your installation.
Advanced Security.
Greater levels of security, including stricter access controls and HTTPS. Health monitoring and lifetime diagnostics also provide insight into the illuminator’s history and status.
Platform Integration.
Interchangeable Lenses.
Hot Spot Reduction Technology.
VARIO2 Variants.
VARIO2 illuminators are available in a range of different sizes to suit different applications and requirements.

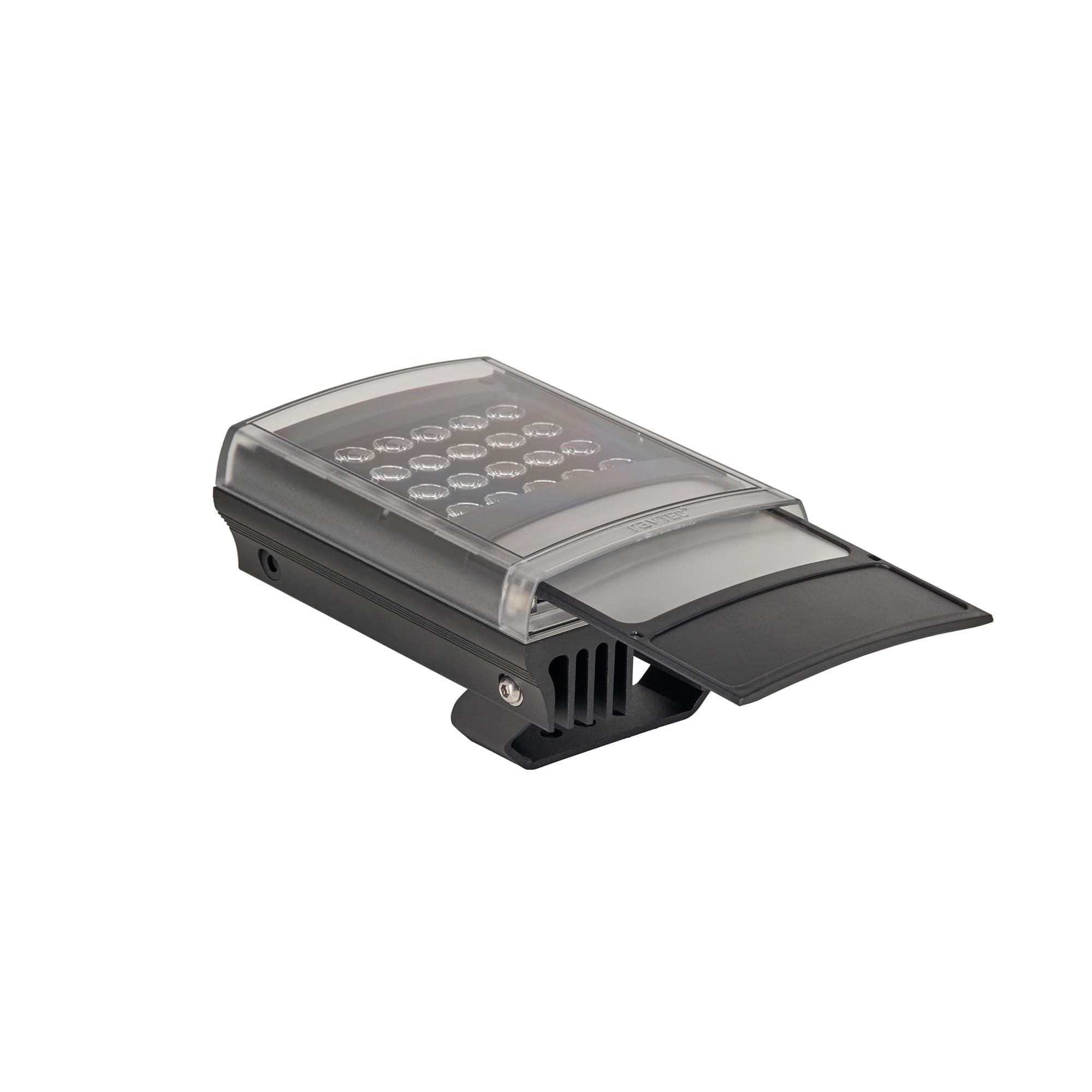

i8
i8-1 long-range illuminator

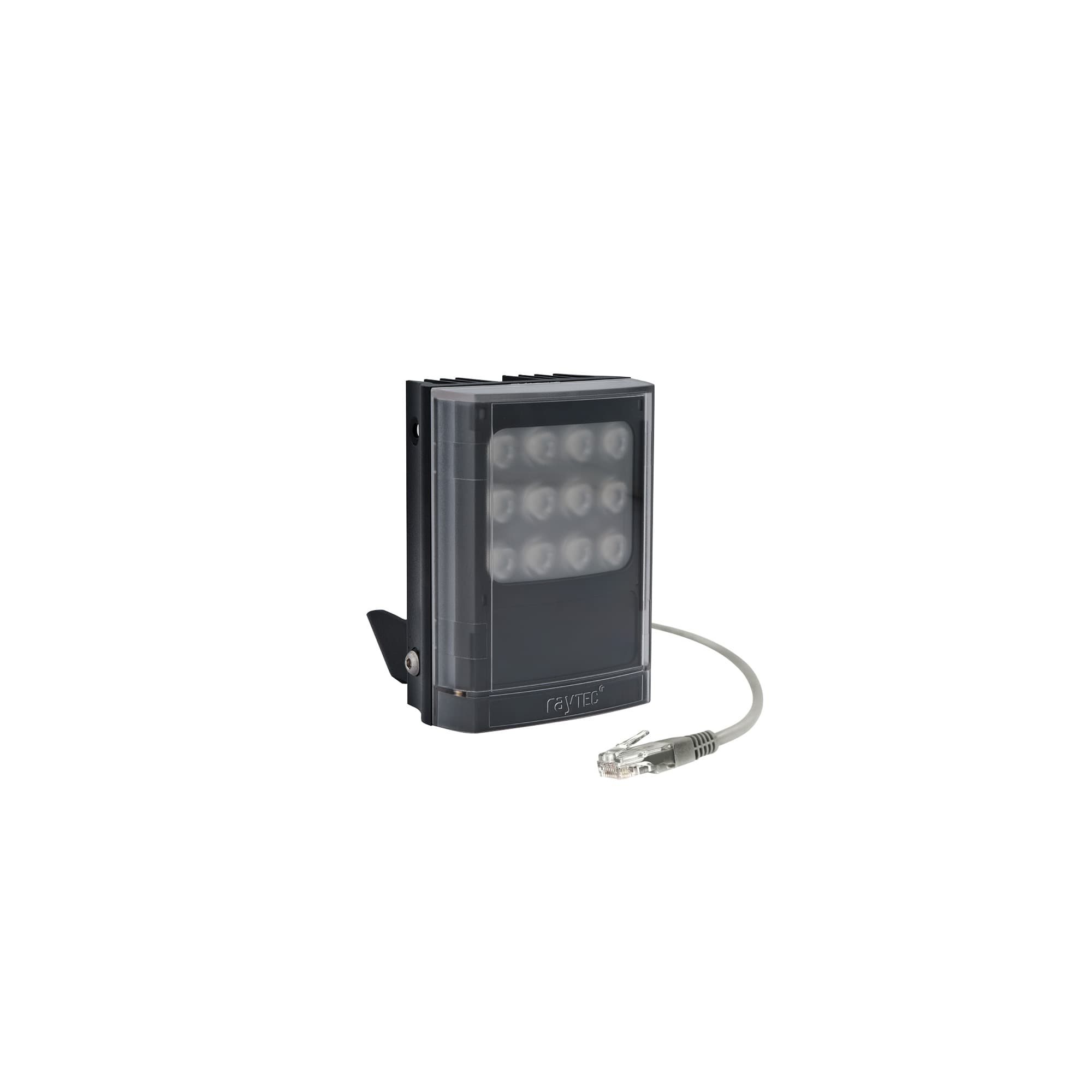

i6
i6-1 long-range illuminator

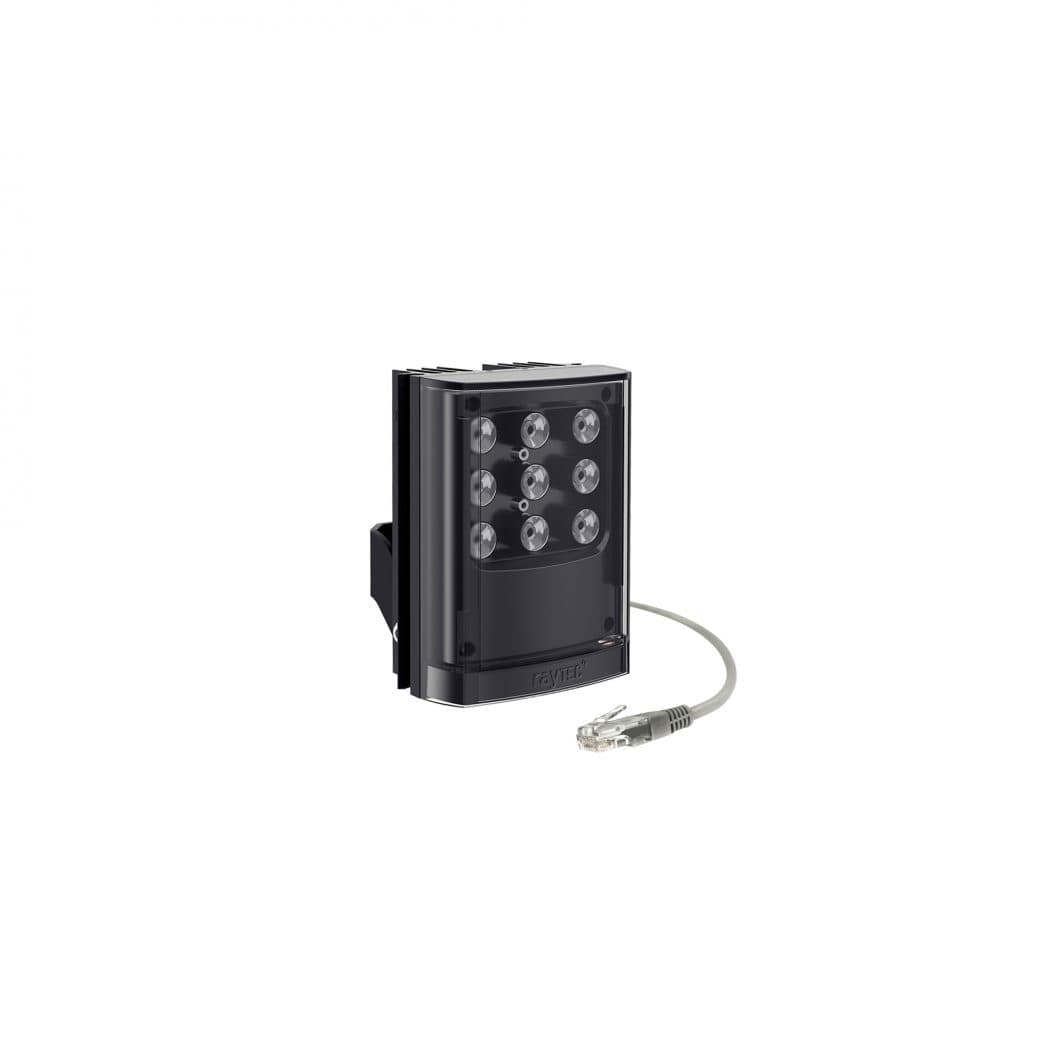

i4
i4-1 medium-range illuminator
Specs
Select Option
| i4 | i6 | i8 | i16 | |
|---|---|---|---|---|
| Max Distance | 144m (472 ft) | 200m (656 ft) | 350m (1148 ft) | 500m (1,640ft) - DC supply 420m (1,378ft) - POE supply |
| Angle | Standard pack includes 10° circular + 35° x 10° (fitted as standard) and 60° x 25°elliptical lenses. Additional optional lenses: 80° x 30°, 120° x 50° | |||
| Input | PoE+ IEEE 802.3at or 24V DC | PoE+ IEEE 802.3at or 24V DC | 60W PoE (4-pair PoE), IEEE 802.3bt or 24V DC | 90W PoE (4-pair PoE) IEEE 802.3bt or 24V DC |
| Consumption | 15W (25W for 940nm variants) | 25W | 51W | 93W - DC supply 71W - PoE supply |
| Data Input | Cat 5 Cable | |||
| HTTPS | Encryption algorithm: ECDSA (256 bit private keys) | |||
| HTTPS Certificate | DiscoMan Version 2 required for certificate generation by DiscoMan | |||
| Beam Shape | Elliptical with HRT (Hot-spot Reduction) Technology | |||
| Beam Angle System | VARIO Interchangeable Lens System | |||
| LED Type | Platinum Elite SMT LEDs | |||
| Number of LEDs | 9 (12 for 940nm variants) | 12 | 24 | 48 |
| Wavelength | 850nm (940nm options available) | 850nm | 850nm (940nm options available) | 850nm (940nm options available) |
| IP Rating | IP66 | |||
| Temp Range | -50° to +50°C (-58 to 122°F) | |||
| Colour | Black | |||
| Weight | 950g (2.1lbs) | 950g (2.1lbs) | 1.65kg (3.6lbs) | 3.16kg (7lbs) |
| Cable Length | 2 x 2.5m | |||
| Bracketry | U bracket included. VUB Bracketry also available (Optional) | |||
| Min. System Req. | PC running Windows with network access and a modern web browser | |||
| Hardware Features | Quick Access Software Features | Advanced User Defined Software Features | System Integration | Security and Diagnostics | |
|---|---|---|---|---|---|
| In-built photocell for automatic on/off operation | Individual or group control (Groups up to 16 units) | Timer functions | API for integration into 3rd party platforms | Advanced security | |
| Configurable external output | Power On/Off | Soft start turn on | API for integration into network devices via HTTP commands | HTTPS | |
| External telemetry input | Power control: 20-100% | 3 x deterrent patterns | Lifetime diagnostics | ||
| Boost: 110% power for 10 seconds | 3 x deterrent speeds | Advanced diagnostics with health monitoring | |||
| Deterrent feature with selectable patterns and speeds | Selectable external telemetry input: volt – free or TTL | Administrator and user access levels | |||
| Photocell sensitivity trigger level | Password Protection: create user and administrator passwords | ||||
| Assign illuminator to group for collective control | |||||
| Assign name, group name and IP address | |||||
| Restore factory defaults | |||||
| Restart/reboot | |||||
| Software upgrade | |||||
| Supported protocols include HTTP, Local and VMS operating modes (including combinations | |||||
| Ping command functionality | |||||
| See datasheet for full list of features and specification | |||||
Product Dimensions.
VARIO2 IP PoE i4 & i6
VARIO2 IP PoE i8
VARIO2 IP PoE i16Downloads.
