PSU Outdoor AC Power Supply
(Only available in the Americas)
About VARIO PSU VAR-PSU-7A4U
- Sector
- Security

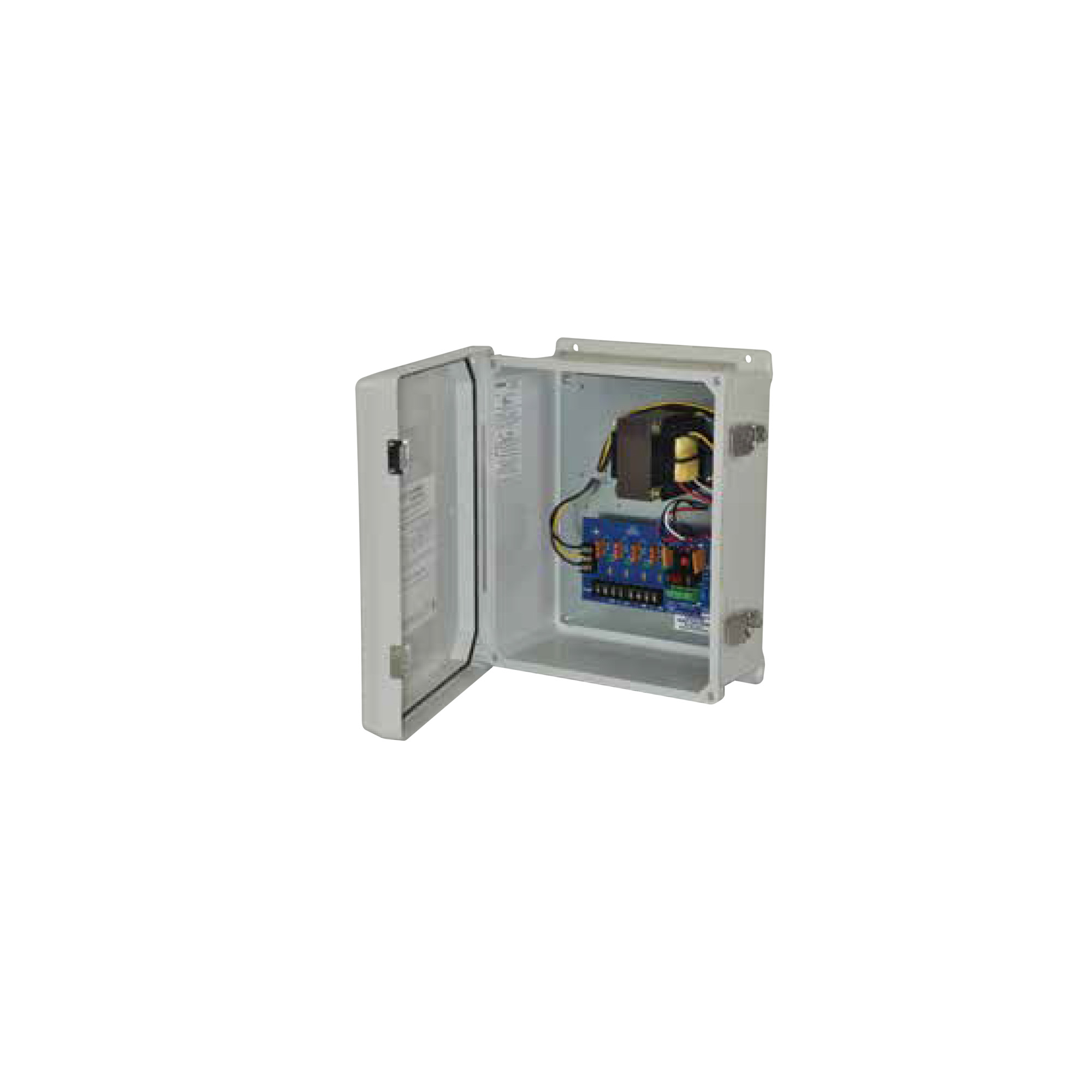

Raytec VAR-PSU-7A4U Outdoor Power Supplies provide 24VAC or 28VAC distributed via four (4) outputs for powering Raytec illuminators and other video accessories.
Specs
Select Option
| VAR-PSU-7A4U | |
|---|---|
| Input Voltage | 115VAC, 50/60Hz, 2.0A or 230VAC, 50/60Hz, 1A |
| Output | Output options: a. 7.25A @ 24VAC or b. 6.25A @ 28VAC |
| Indicators (LED) | Individual power output LED indicators. Illuminated master power switch |
| Agency Listings | UL/cUL: Information Technology Equipment (UL 60950-1) Equipment to be Installed Outdoors (UL 60950-22). CE European Conformity |
| Enclosure Dimensions (H x W x D approx.) | Product Weight: 13.31” x 11.31” x 5.59” (338.1mm x 287.3mm x 142mm). |
| Product Weight / Shipping (approx.) | 13.12 lbs. (5.95 kg) Shipping Weight: 14.22 lbs. (6.45 kg) |
| Temperature | Operating: 24VAC @ 7.25A output: - 40ºC to 60°C (-40ºF to 140ºF); 28VAC @ 6.25A output: - 40ºC to 70°C (-40ºF to 158ºF). Storage: -40ºC to 75ºC (-40ºF to 167ºF). |
| Relative Humidity | 85% +/-5% |
| BTU/Hr. (approx.): | 90 BTU/Hr. |
Downloads.
Datasheet - VAR-PSU-7A4U
