PSU Outdoor AC Power Supply

(Only available in the Americas)

About VARIO PSU Outdoor AC Power Supply

Sector
Security

Raytec PSU Outdoor Power Supplies provide 24VAC or 28VAC distributed via four (4) outputs for powering Raytec illuminators and other video accessories.

Jump to Downloads

Specs

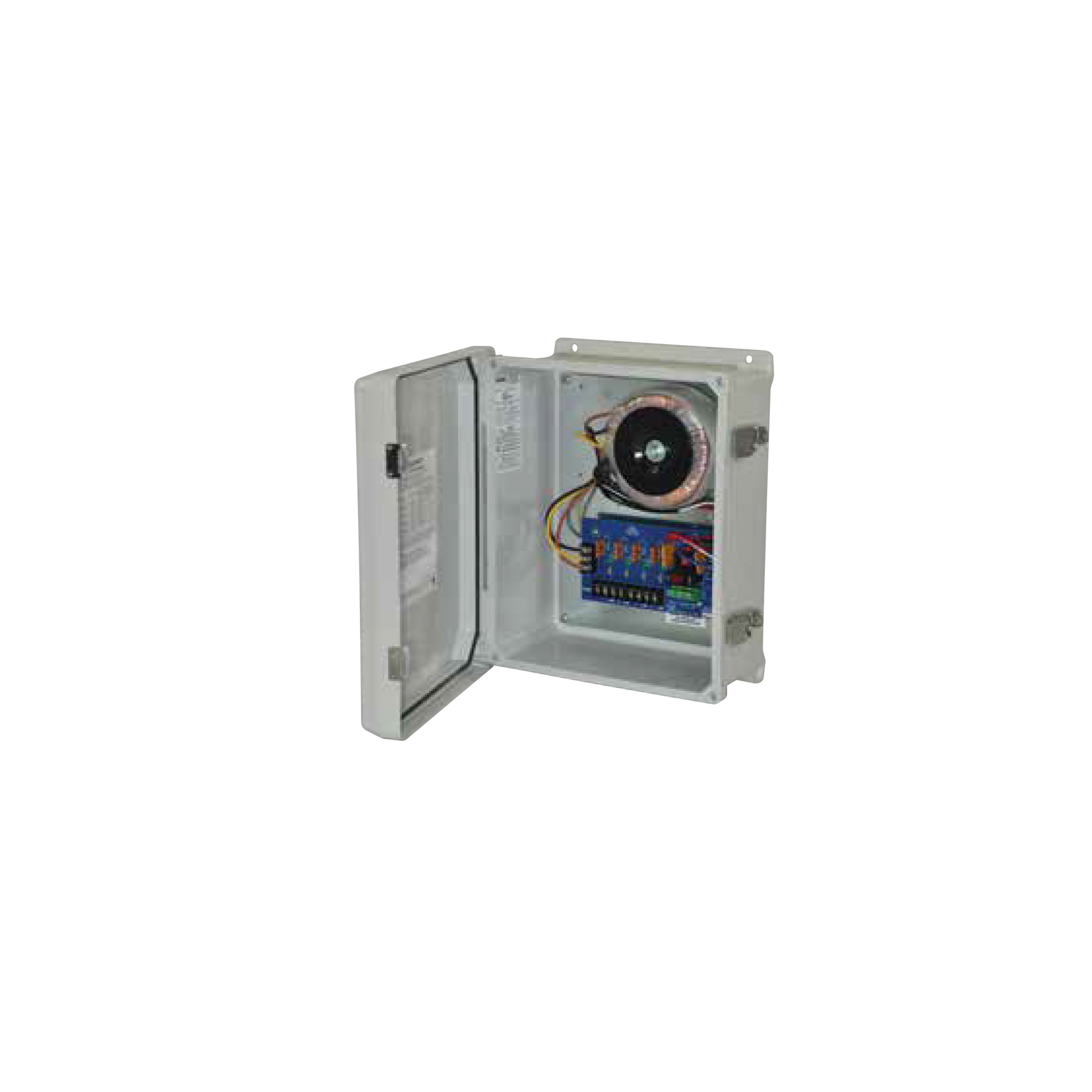

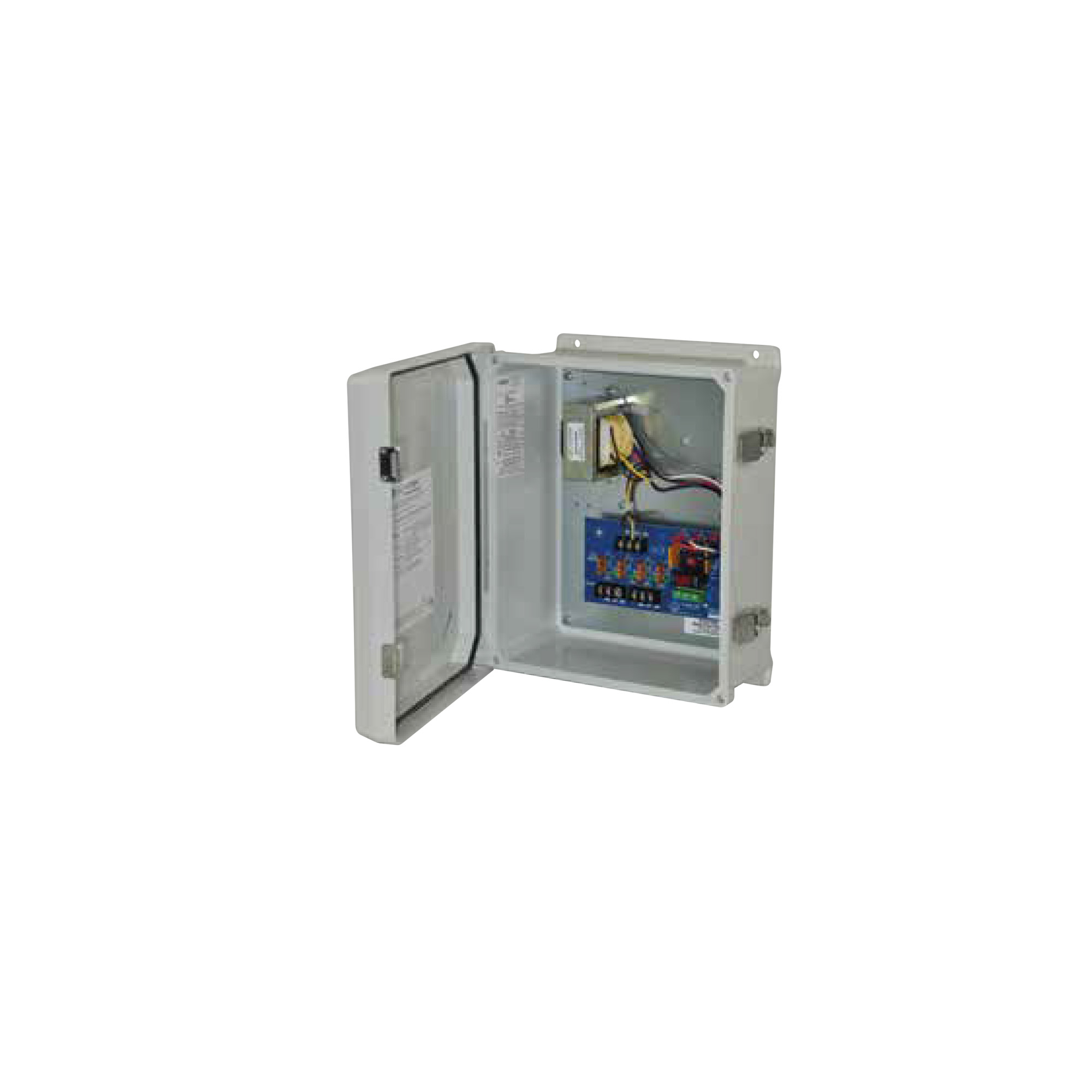

VAR-PSU-4A4UVAR-PSU-7A4UVAR-PSU-12A4U
Input Voltage115VAC, 50/60Hz, 1.0A or 230VAC, 50/60Hz, 0.5A.115VAC, 50/60Hz, 2.0A or 230VAC, 50/60Hz, 1A115VAC, 50/60Hz, 3.0A or 230VAC, 50/60Hz, 1.5A.
OutputOutput options: a. 4A @ 24VAC or b. 3.5A @ 28VAC.Output options: a. 7.25A @ 24VAC or b. 6.25A @ 28VACOutput options: a. 12.5A @ 24VAC or b. 10A @ 28VAC.
Indicators (LED)Individual power output LED indicators. Illuminated master power switch.Individual power output LED indicators. Illuminated master power switch.Individual power output LED indicators. Illuminated master power switch.
Output for VARIO IlluminatorsUL/cUL: Information Technology Equipment (UL 60950-1) Equipment to be Installed Outdoors (UL 60950-22). CE European ConformityUL/cUL: Information Technology Equipment (UL 60950-1) Equipment to be Installed Outdoors (UL 60950-22). CE European ConformityUL/cUL: Information Technology Equipment (UL 60950-1) Equipment to be Installed Outdoors (UL 60950-22). CE European Conformity
Enclosure Dimensions (H x W x D approx.):13.31” x 11.31” x 5.59” (338.1mm x 287.3mm x 142mm)13.31” x 11.31” x 5.59” (338.1mm x 287.3mm x 142mm).13.31” x 11.31” x 5.59” (338.1mm x 287.3mm x 142mm).
Product Weight / Shipping (approx.)Product Weight: 10.32 lbs (4.68 kg) Shipping Weight: 11.7 lbs (5.3 kg)Product Weight: 13.12 lbs (5.95 kg) Shipping Weight: 14.22 lbs (6.45 kg)Product Weight: 15.45 lbs. (7.01 kg) Shipping Weight: 16.75 lbs. (7.6 kg)
TemperatureOperating: 24VAC @ 4A output: -40ºC to 60°C (-40ºF to 140ºF); 28VAC @ 3.5A output: -40ºC to 70°C (-40ºF to 158ºF). Storage: -40ºC to 75ºC (-40ºF to 167ºF).Operating: 24VAC @ 7.25A output: - 40ºC to 60°C (-40ºF to 140ºF); 28VAC @ 6.25A output: - 40ºC to 70°C (-40ºF to 158ºF). Storage: -40ºC to 75ºC (-40ºF to 167ºF).Operating: 24VAC @ 12.5A output: - 40ºC to 60°C (-40ºF to 140ºF); 28VAC @ 10A output: - 40ºC to 70°C (-40ºF to 158ºF). Storage: -40ºC to 75ºC (-40ºF to 167ºF).
Relative Humidity85% +/-5%85% +/-5%85% +/-5%
BTU/Hr. (approx.):50.16 BTU/Hr.90 BTU/Hr.154 BTU/Hr.
