URBAN-X Pro

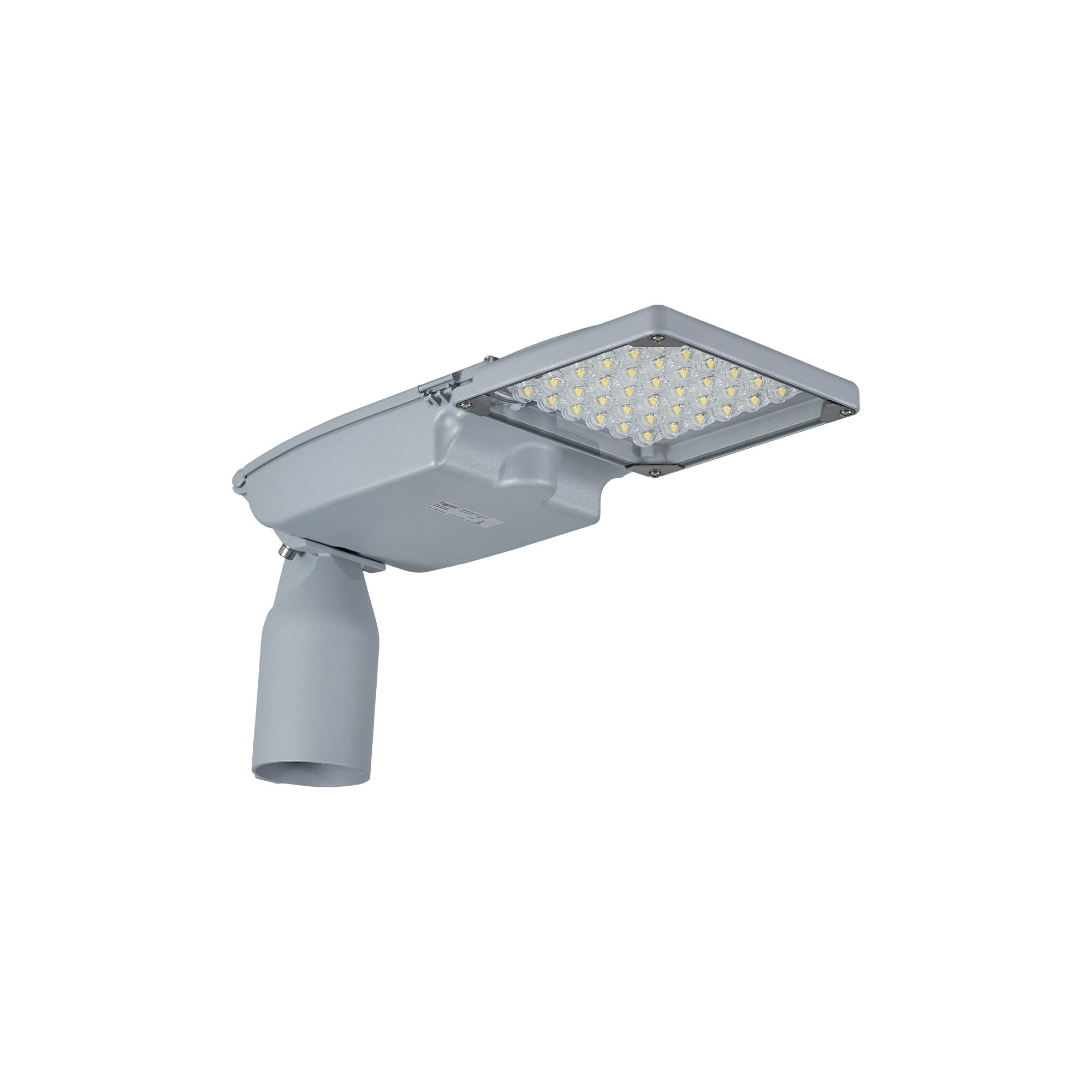

URBAN-X Pro White-Light Multi-Purpose Luminaire

About URBAN-X Pro

Sector
Industrial
Wavelength
White-Light

The URBAN-X Pro is a powerful multi-purpose luminaire, designed for a range of perimeter, fence line, street, pathway and industrial lighting applications. Available with optional intelligent features including; photocell, programmable driver, constant light output, DALI compatibility and part-night dimming.  All URBAN-X luminaires come with an industry-leading 5-year warranty.

Jump to Downloads

Powerful & Efficient.

URBAN-X Mini utilises the latest high power PLATINUM SMT LED technology to deliver a high lumen output of up to 14,000lm, combined with high efficacy of 140lm/w

Intelligent & Controllable.

Fully programmable driver that provides DALI compatibility, part night dimming, time & scheduling commands. Also available with an optional photocell for full intelligent lighting installations.

Robust & Durable.

Constructed from LM6 marine-grade cast aluminium to give environmental protection (IP66) and safeguard against high salinity, while also being impact resistant (IK08).

Lightweight Design.

A two-piece, lightweight design (<4kg) which means the luminaire can be installed safely and easily, allowing installation costs to be kept to a minimum.

Adjustable Bracket.

With an integrated adjustable bracket that can be rotated 90°, the luminaire can be fixed to any column, bracket or pole in post top or sidearm configuration.

Specs

Select Option

PRO 40PRO 60PRO 80PRO 100
Consumption40W60W80W100W
Input220-240V AC
Frequency50 - 60Hz
Power Factor>0.95 VAC at 230V 50Hz
Efficiency>80% 230VAC, Full load
Surge ProtectionWithout photocell: 8kV, With photocell: 2kV
PRO 40PRO 60PRO 80PRO 100
Spigot DiameterCompatible with 60-76mm (2.36-2.99”)
BracketryIntegrated spigot mount with adjustable rotation
FinishSilver (RAL 9006) polyester powder coating
Cable LengthNo cable as standard
Weight<4kg
PhotocellOptional mini photocell
PRO 40PRO 60PRO 80PRO 100
Lumen Output5,6008,40011,20014,000
LED TypePLATINUM SMT LED
WavelengthWhite-Light
Colour Temp4000K (other options available)
CRI≥70
PRO 40PRO 60PRO 80PRO 100
Temp Range-30°C to +40°C (-22°F to 104°F). -30°C to +60°C (-22°F to 140°F) with reduced performance (50% light output)
IP RatingIP66
SafetyEN60598 approved
Impact Res.IK08
SalinityLM6 marine grade cast aluminium

Product Dimensions.

Street SL96

Downloads.

Datasheet - URBAN-X Pro Quick Start Guide - URBAN-X Pro Installation Guide - URBAN-X Pro
