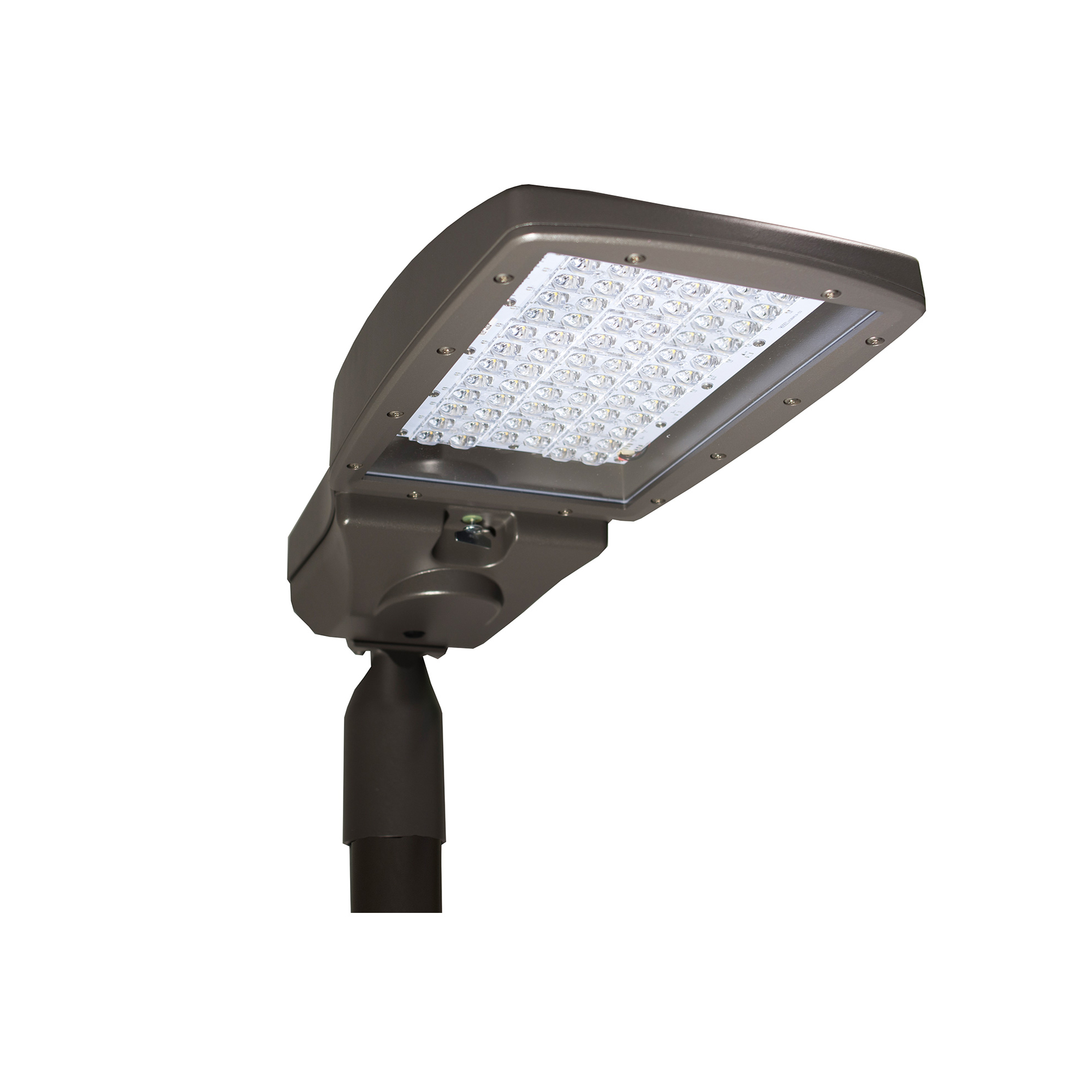

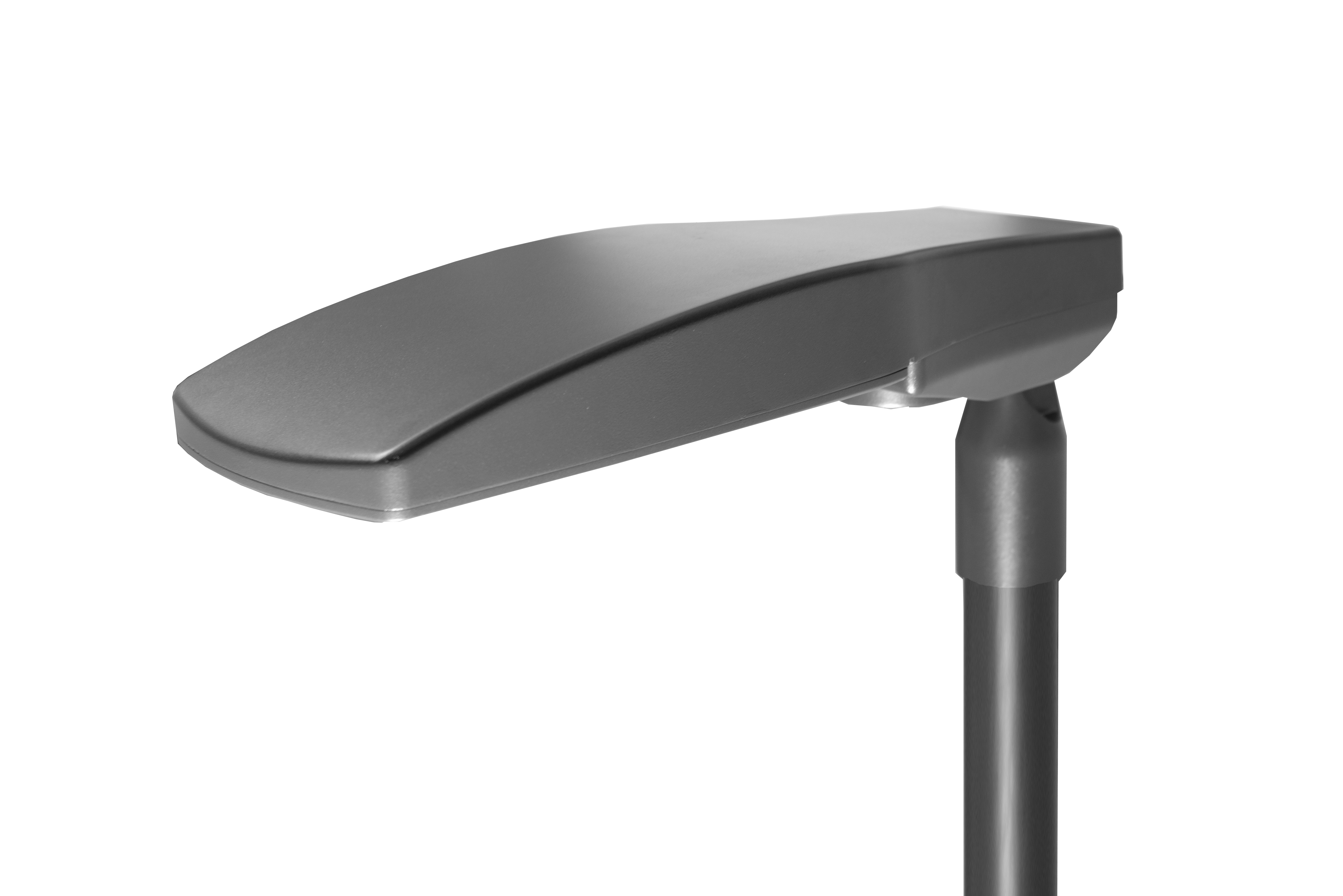

URBAN Plus White-Light Multi-purpose LED Luminaire
About URBAN Plus
- Sector
- Industrial
- Applications
- Non-hazardous, safe areas
The URBAN Plus range has been specifically designed with energy saving in mind. With a low power consumption of 120W, and a high efficacy of 142lm/W, URBAN Plus delivers significant energy savings and outstanding optical performance. With up to 24,000 lm, the URBAN Plus is ideally suited for elevated mounting heights of up to 15m with the widest column spacing. Applications include roads, pedestrian routes, recreational and other outdoor lighting uses. Raytec are specialists in LEDs and all our products are designed around the LEDs with bespoke housing for optimum performance and reliability. All URBAN luminaires are designed and manufactured in the UK and come with an industry-leading 5-year warranty.
Energy Saving.
With a low power consumption of 120W, and a high efficacy of 142 lm/W, URBAN Plus delivers significant energy savings and outstanding optical performance.
Easy to Install.

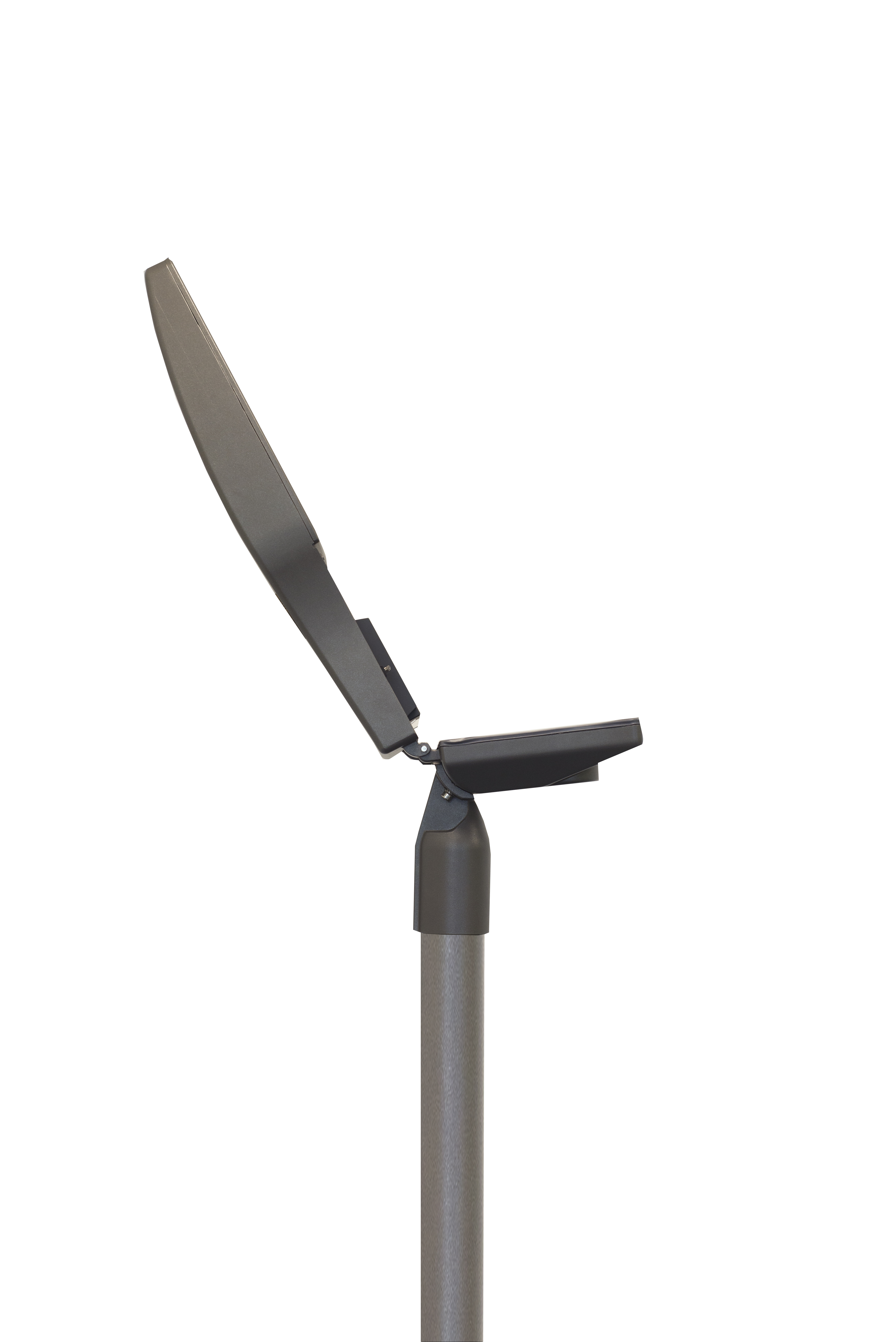

Features an integrated spigot mount bracket with adjustable rotation, and ‘Easy-Beam’ adjustment which allows users to alter the uplift of illumination without having to demount or switch off power.
Ultra-Powerful.

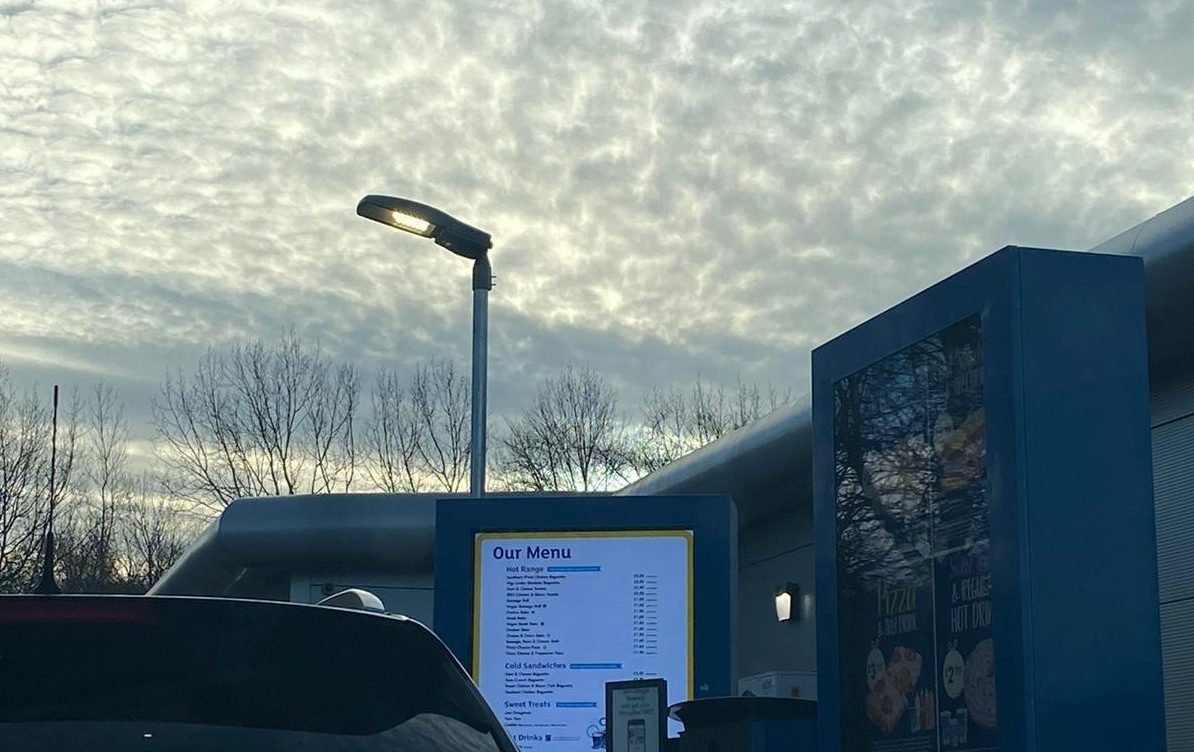

With up to 24,000 lm, the URBAN Plus is ideally suited for elevated mounting heights of up to 15m with the widest column spacing. Applications include roads, pedestrian routes, recreational and other outdoor lighting uses.
Choice of Optics.
Available with a choice of different optics to suit a wide range of applications, including asymmetric patterns for aisle, corridor and perimeter installations.
Specs
Select Option
| UBPL | |
|---|---|
| Input | 186-240Vac |
| Frequency | 50/60 Hz |
| Power Factor | >0.9 at 230V 50Hz |
| Surge Protection | Without photocell: 10kV With photocell: 2kV |
| Consumption | 120W, 150W, 170W versions |
| UBPL | |
|---|---|
| Total Lumens | 120W - 17,000 lm 150W - 21,000 lm 170W - 24,000 lm |
| Angle | See beam angle options below |
| LED Type | PLATINUM SMT LED |
| Number of LEDs | 68 |
| Wavelength | White-Light |
| Colour Temperature | 4000K (other options available) |
| Colour Reproduction Index (CRI) | ≥70 |
| LED Lifetime L70 at F10 | 100,000 hours at ambient of 25˚C in accordance with IES LM 80 |
| UBPL | |
|---|---|
| Spigot (pole) Diameter | Compatible with 60-76mm (2.36-2.99”) (Pole adaptor available for 34-42mm &48mm poles) |
| Bracketry | Supplied with integrated spigot mount with adjustable rotation |
| Finish | Sable Grey (RAL 2900) polyester powder coating |
| Cable Length | Optional 12m pre-wired |
| Dimensions | 691 x 276 x 304mm (27” x 11” x 8” approx) |
| Weight | 8.5Kg |
| Control Options | Photocell (NEMA or Miniature) Zhaga Socket Standalone Dimming (DALI) C M S Compatible Part Night Dimming |
| UBPL | |
|---|---|
| Function | Self-testing intelligent emergency backup |
| System Health Indicator | Tri-colour LED indicator |
| Emergency Duration | Up to 3hrs @ 20% power |
| Emergency Battery | NiMH 6V |
| Emergency Charge Time | 20 hours |
| UBPL | |
|---|---|
| Temp Range | -30°C to +40°C (-22°F to 104°F) with automatic thermal control |
| IP Rating | IP65 |
| Safety | Designed and manufactured to comply with EN60598 |
| Warranty | 5 Years |
| Country of Manufacture | United Kingdom |
| Impact Resistance | IK08 |
| Salinity | LM6 marine grade cast aluminium |
| Aerodynamic Resistance | End (max) 0.02 Front (max) 0.07 |

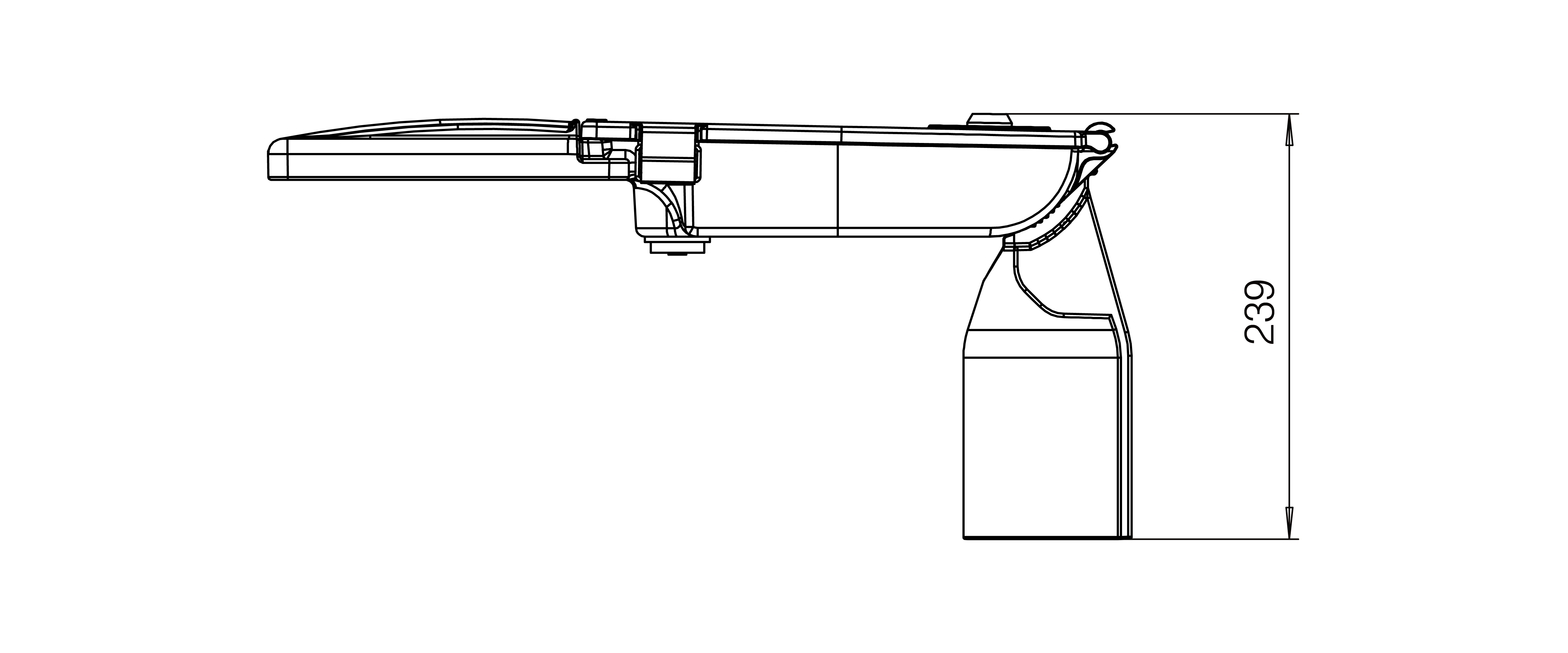

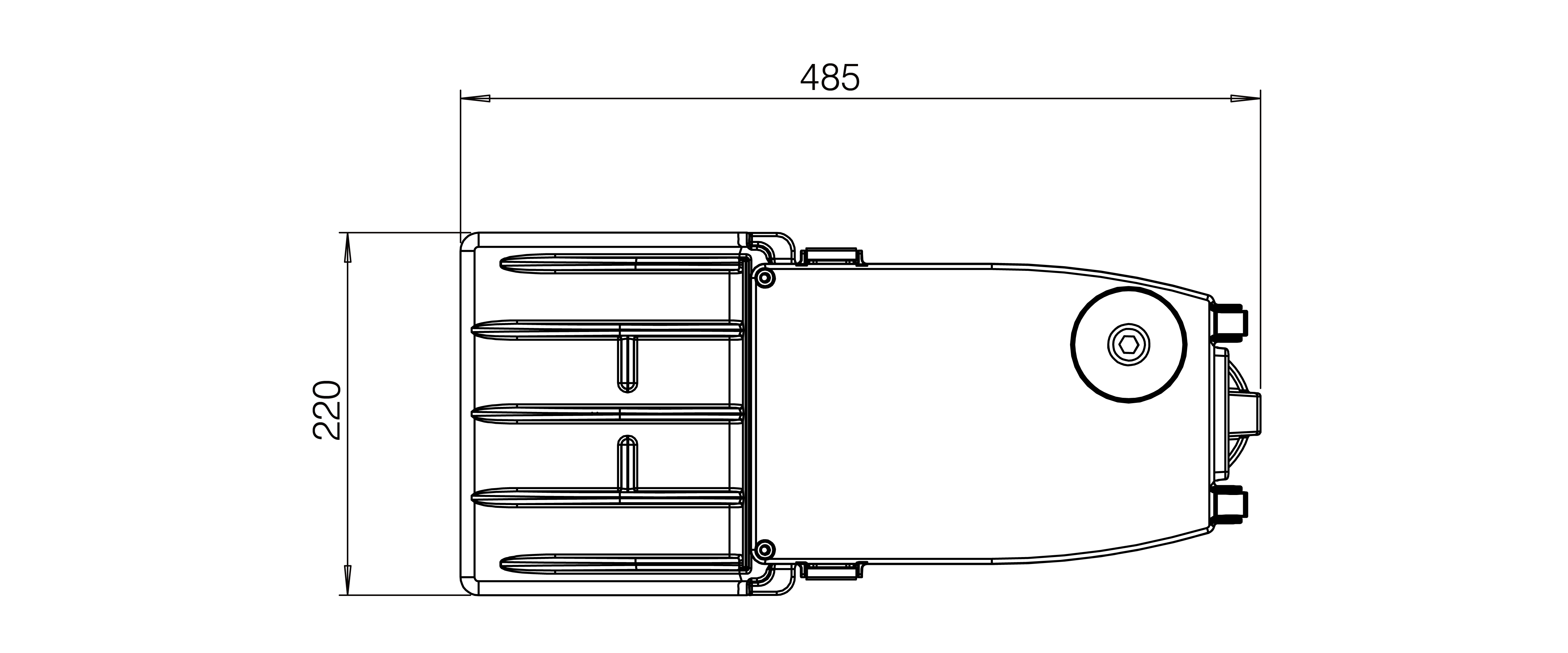

Product Dimensions.
