URBAN-X Mini

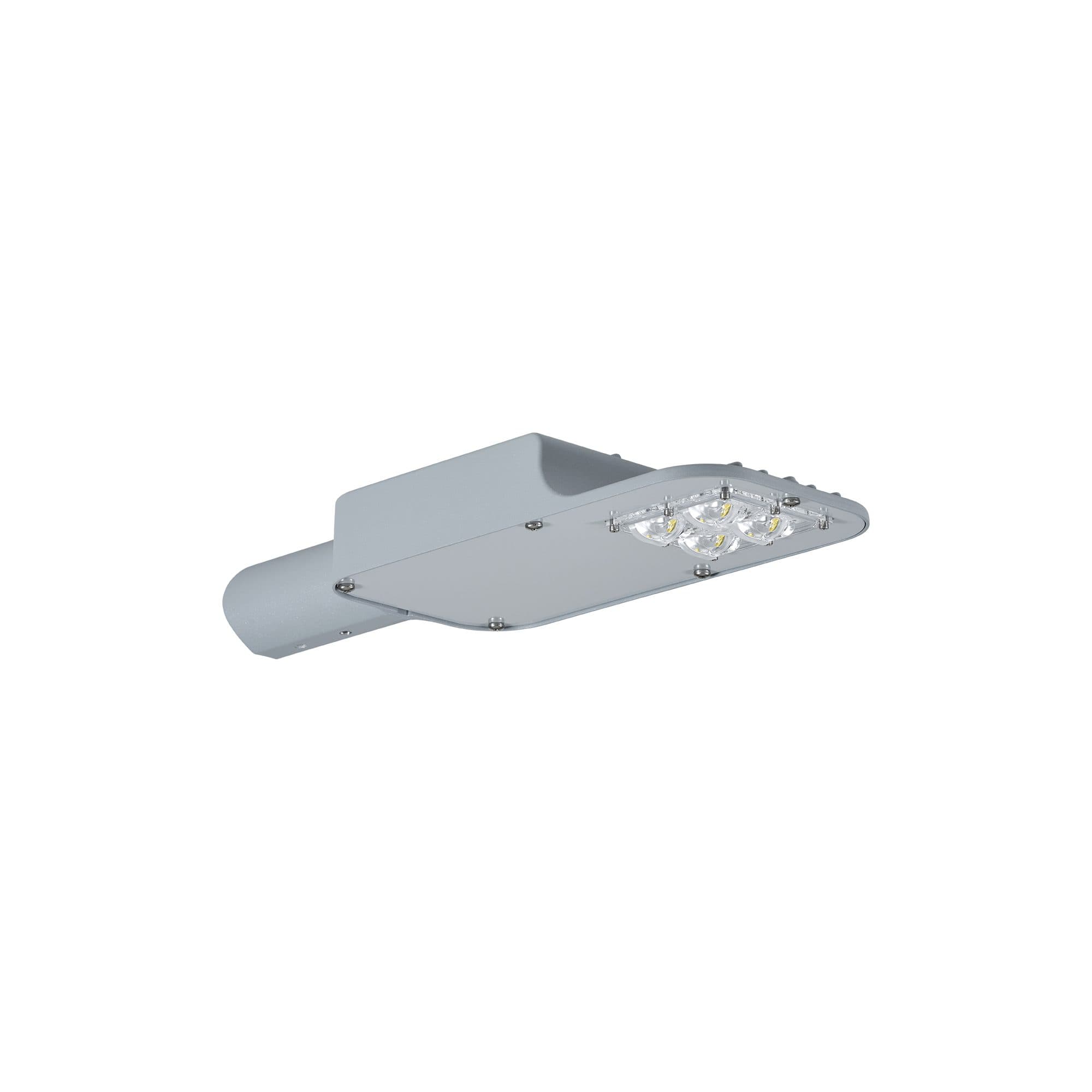

URBAN-X Mini White-Light Multi-Purpose Luminaire

About URBAN-X Mini

Sector
Industrial
Wavelength
White-Light

The URBAN-X Mini is a small, powerful multi-purpose luminaire, designed for a range of street, pathway and industrial lighting applications. Available with optional intelligent features including; photocell, programmable driver, constant light output, DALI compatibility and part-night dimming.  All URBAN-X luminaires come with an industry-leading 5-year warranty.

Jump to Downloads

Powerful & Efficient.

URBAN-X Mini utilises the latest high power PLATINUM multi-core LEDs to deliver a high lumen output of up to 4,400lm, combined with high efficacy of 110lm/w

Intelligent & Controllable.

Fully programmable driver that provides DALI compatibility, part night dimming, time & scheduling commands. Also available with an optional photocell fur full intelligent lighting installations.

Robust & Durable.

Constructed from LM6 marine-grade cast aluminium to give environmental protection (IP66) and safeguard against high salinity, while also being impact resistant (IK08).

Lightweight Design.

One-piece, lightweight design (2kg (4.4lbs)) which means the luminaire can be installed safely and easily, allowing installation costs to be kept to a minimum.

Integrated Spigot.

With a convenient integrated spigot mount, the luminaire can be fixed to any horizontal pole arrangement with a diameter of up to 42mm (1.65”).

Specs

Select Option

MIN20MIN30MIN40
Consumption20W30W40W
Input220-240V AC
Frequency50 - 60Hz
Power Factor>0.95 VAC at 230V 50Hz
Efficiency>80% 230VAC, Full load
Surge ProtectionWithout photocell: 8kV, With photocell: 2kV
MIN20MIN30MIN40
Spigot DiameterCompatible with up to 42mm (1.65”)
BracketryIntegrated horizontal spigot mount
FinishSilver (RAL 9006) polyester powder coating
Cable LengthNo cable as standard. 8m and 12m options available. 3 core or 5 core (DALI) options available
Weight2kg (4.4lbs)
PhotocellOptional mini photocell. Other photocell options available
MIN20MIN30MIN40
Lumen Output2,2003,3004,400
LED TypePLATINUM Multi-Core LED
No of LEDs4
WavelengthWhite-Light
Colour Temp4000K (other options available)
CRI≥70
MIN20MIN30MIN40
Temp Range-30° to +60°C (-22 to 140°F) with automatic thermal control
IP RatingIP66
SafetyEN60598 approved
Impact Res.IK08
SalinityLM6 marine grade cast aluminium

Product Dimensions.

URBAN-X Mini

Downloads.

Datasheet - URBAN-X Mini Quick Start Guide - URBAN-X Mini Installation Guide - URBAN-X Mini
