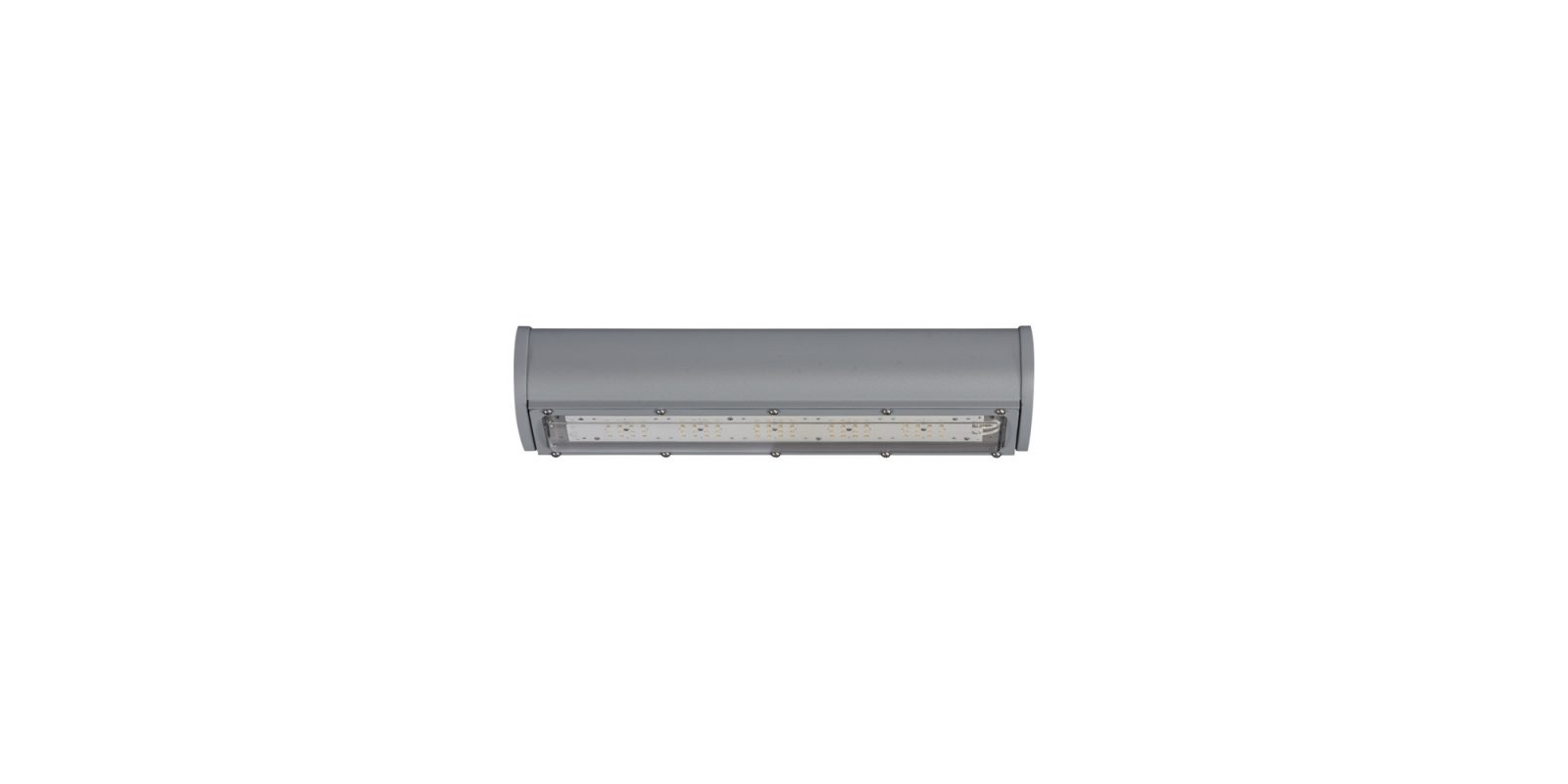

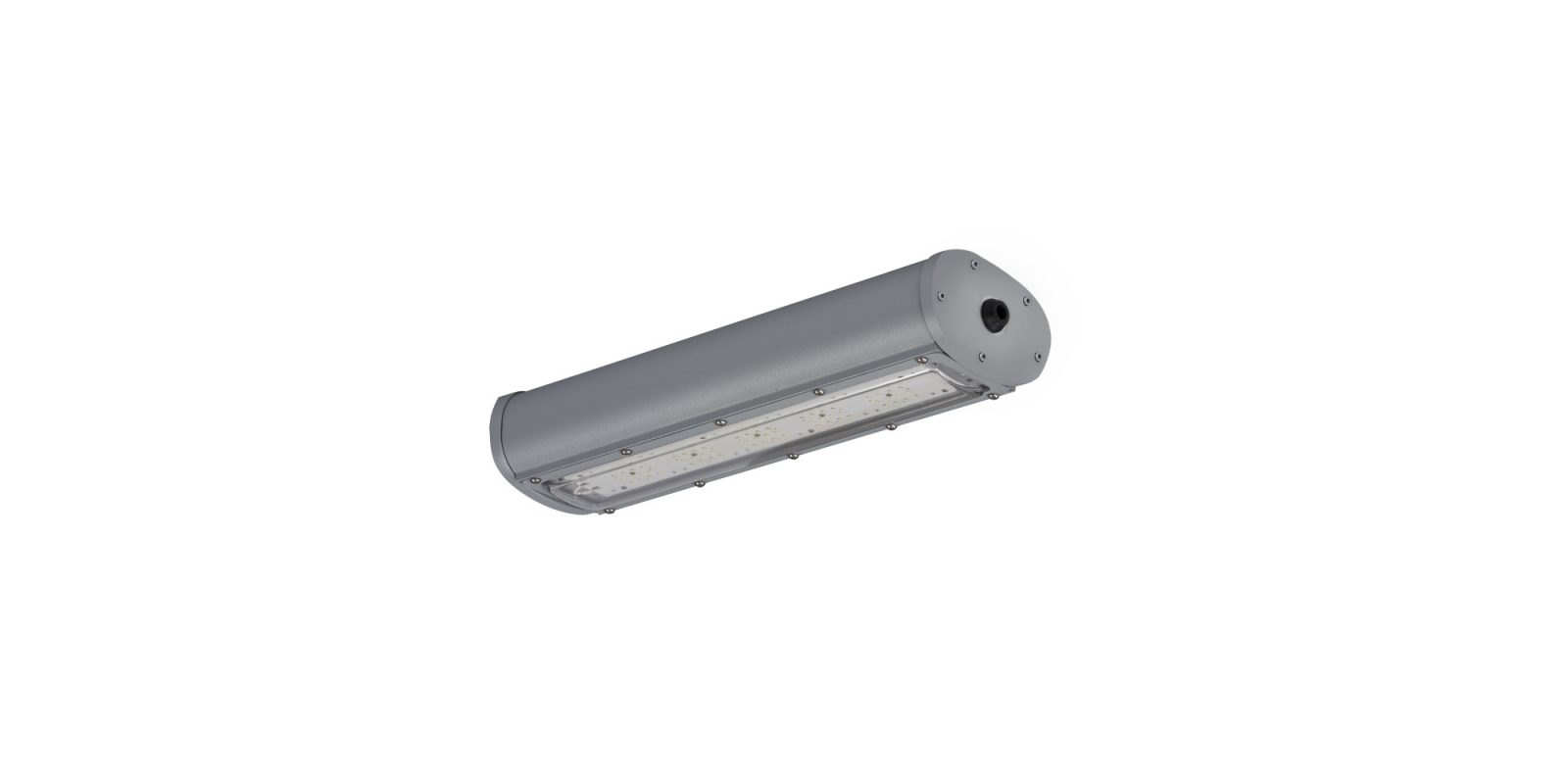

Linear WL84

URBAN Linear WL84, Industrial, 5,553lm

About URBAN Linear WL84

Sector
Industrial
Applications
Non-hazardous, safe areas

The URBAN Linear range has been specifically designed for industrial applications to provide the highest levels of performance, efficacy, and control. Providing up to 5,553lm, URBAN Linear is available with both symmetrical and asymmetrical optics to reduce light wastage, and is supplied with a 2 metre long flying lead for easy installation. LEDs are housed within their own bespoke housing for optimum performance and reliability. URBAN Luminaires also come with DALI 2.0 as standard. All URBAN luminaires are designed and manufactured in the UK and come with an industry-leading 5-year warranty.



Jump to Downloads
URBAN luminaires

Ultra-Powerful.

URBAN Linear offers a lumen output of up to 5,553lm - delivering industry-leading power and performance with an efficacy of up to 142 lumens per watt on standard variants.

Robust and Durable.

Housed in marine grade aluminium with stainless steel fasteners and brackets, URBAN Linear is IP66 and IP67 rated and can survive in the most extreme environments.

Bespoke LED.

Raytec are specialists in LED and URBAN Linear has been specifically designed around the LEDs with a bespoke housing for optimum performance and reliability.

Choice of Optics.

Available with a choice of different optics to suit a wide range of applications, including asymmetric patterns for aisle, corridor and perimeter installations.

Loop-in Loop-out.

URBAN luminaires
For installations which require high performance, reliable, White-Light illumination - where 'through wiring' is not necessary.

Fully Retrofitable.

The overall dimensions, fixing centres and cable entries have been designed to directly replace traditional 2x18W fluorescent fittings.

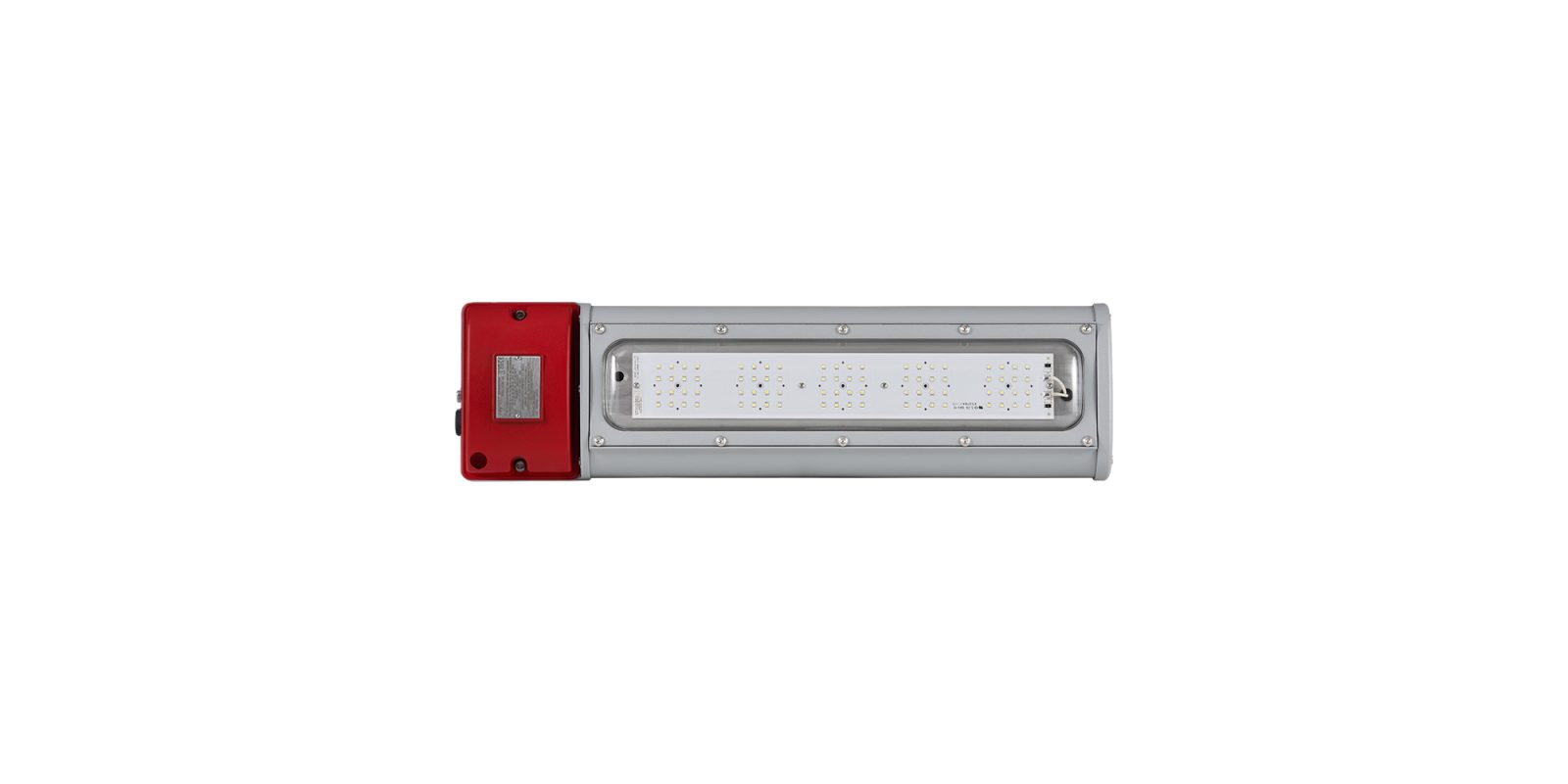

Intelligent Emergency.

Emergency variants are available to provide 3 hours of battery back-up at 20% power. The Intelligent Emergency system self-tests the battery and communicates via a tri-colour LED indicator.

Specs

Select Option

WL84WL84 EMX20
Input186-264VAC 50/60Hz
Power36W39W
Termination2m long 3 core & 2 core flying lead on standard version
2m long 4 core & 2 core flying lead on emergency version
Optional No Cable (NC) version with incoming terminal block suitable for 4 core 4mm2 cable		2m long 3 core & 2 core flying lead on standard version
2m long 4 core & 2 core flying lead on emergency version
Optional No Cable (NC) version with incoming terminal block suitable for 4 core 4mm2 cable
Power Factor>0.95
WL84WL84 EMX20
Lumen Output on Mains5,553
LED TypePlatinum Elite SMT LEDsPlatinum Elite SMT LEDs
Number of LEDs80
CRI80+
Colour Temperature4000K standard
WL84WL84 EMX20
EnclosureMarine grade aluminium epoxy powder coated, UV stabilised polycarbonate, all external fasteners and brackets are marine grade stainless steel
Unit ColourSilver (RAL 9006)Silver (RAL 9006)
Red (RAL 3024) - Emergency battery cover
MountingVia M8/M6 tapped holes, various mounting arrangements available.
Supplied with 2x M8 eyebolts.		Via M8/M6 tapped holes, various mounting arrangements available.
Supplied with 2x M8 eyebolts.
WL84 EMX20
FunctionSelf-testing intelligent emergency backup
System Health IndicatorTri-colour LED indicator
Emergency DurationUp to 3hrs @ 20% power
Emergency BatteryNiMH 6V
Emergency Charge Time20 hours

Product Dimensions.

WL84 Standard & Emergency

Light Distribution.

Standard Optic

Symmetrical Optics

Asymmetrical Optics

Downloads.

Datasheet – URBAN Linear Installation Instructions - URBAN Linear Guide - Storage and Handling of Batteries ABS Certificate - Approval 2020 SPARTAN Linear Mounting & Accessories Guide URBAN Photometric Data
