URBAN Low Bay, Industrial, 24,830lm
About URBAN Low Bay
- Sector
- Industrial
- Applications
- Non-hazardous, safe areas
The URBAN Low Bay range has been specifically designed for industrial applications to provide the highest levels of performance, efficacy, and control. Providing up to 24,830 lumens, URBAN Low Bay was built to effectively light areas such as production halls or warehouses. LEDs are housed within their own bespoke housing for optimum performance and reliability. URBAN luminaires also come with DALI 2.0 as standard. All URBAN luminaires are designed and manufactured in the UK and come with an industry-leading 5-year warranty.
Ultra-Powerful.

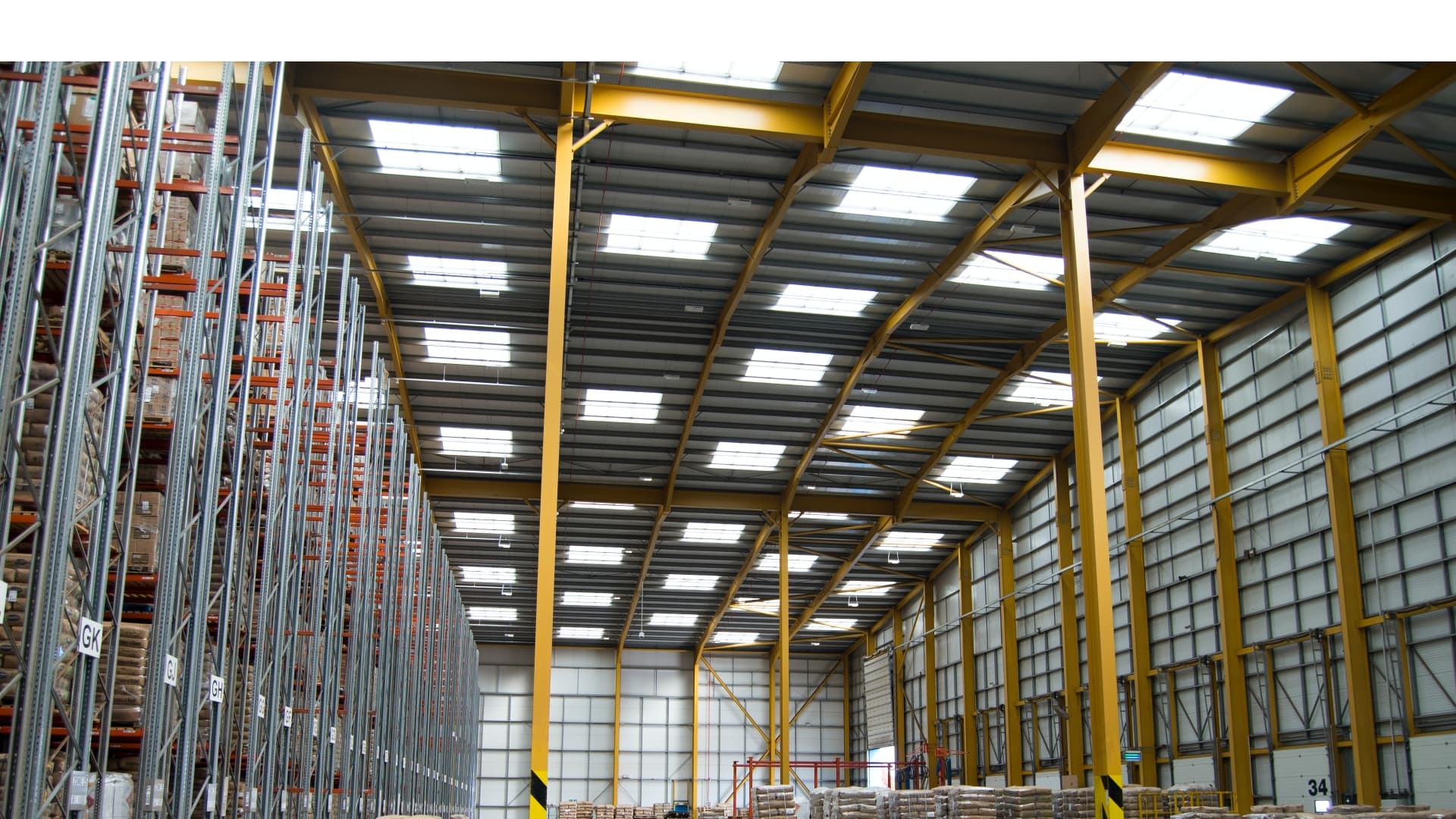

URBAN Low Bay offers multiple output options up to 24,830 lumens to effectively light areas such as production halls or warehousing.
Retrofitable .
Designed to directly replace traditional discharge light sources up to 400W SON. Ready to install from the box with minimum wiring required.
Bespoke LED.
URBAN Low Bay has been specifically designed around the LEDs with a bespoke housing for optimum performance and reliability.
Controllable .

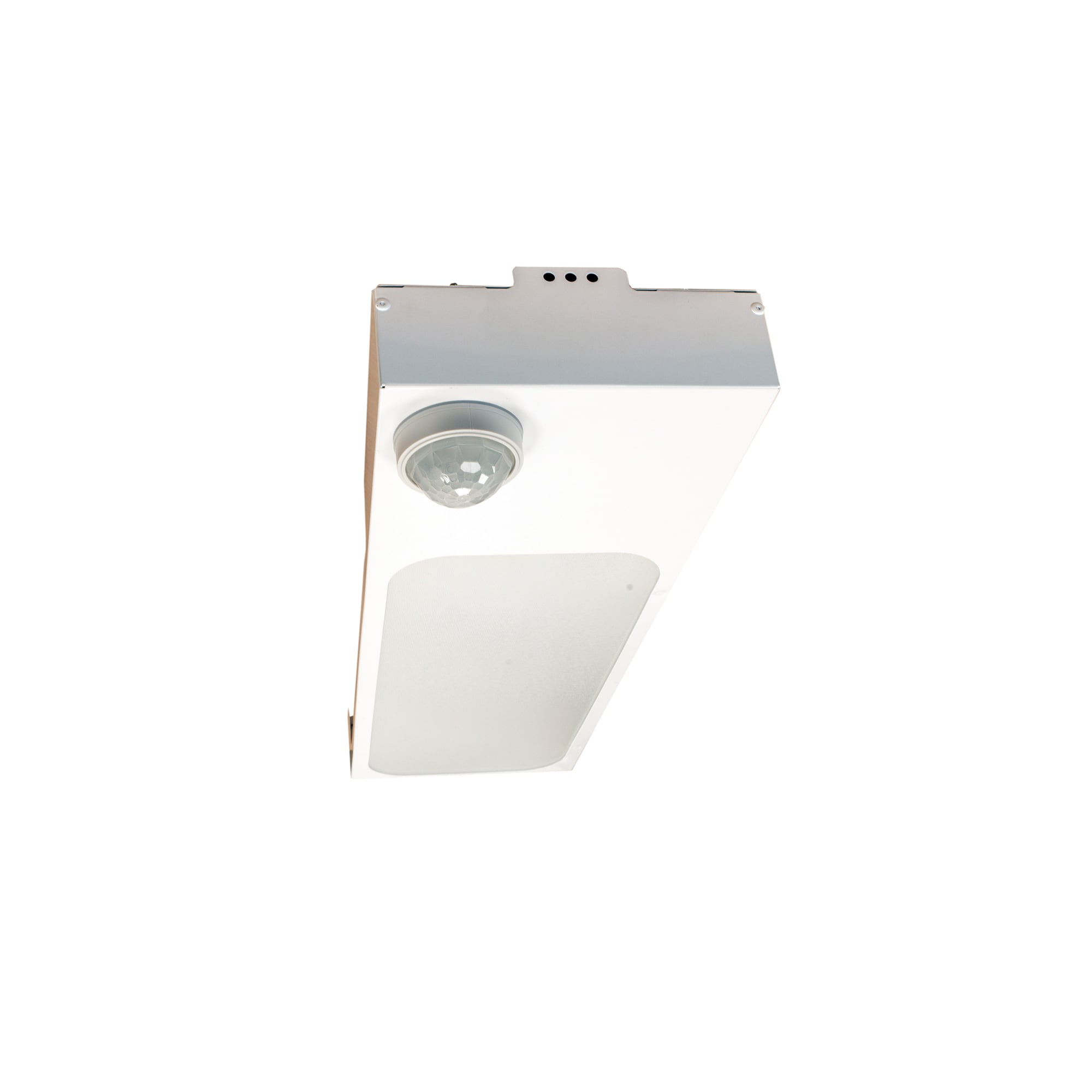

Multiple control options including DALI 2.0, wireless, presence detection and daylight harvesting, offering precise and flexible control of lighting assets.
Specs
Select Option
| ULB50 | ULB75 | ULB100 | ULB125 | ULB150 | ULB165 * | |
|---|---|---|---|---|---|---|
| Input | 186-254Vac for all variants | |||||
| Power | 50W | 75W | 100W | 125W | 150W | 165W |
| Termination | Incoming terminal block suitable for looping 4 core 2.5mm² cable | |||||
| Power Factor | >0.95 | |||||
| Cable Entries (IP21) | 1 x 20mm through hole entry and 1 x 20mm knock-out entry for loop in/loop out | |||||
| Cable Entries (IP65) | 2M flying lead supplied with IP67 connector | |||||
| * available in IP21 variant only | ||||||
| ULB50 | ULB75 | ULB100 | ULB125 | ULB150 | ULB165 * | |
|---|---|---|---|---|---|---|
| Lumen Output on Mains | 7,524 | 11,286 | 15,048 | 18,811 | 22,573 | 24,830 |
| LED Type | Platinum Elite SMT LEDs | |||||
| CRI | 80+ | |||||
| Colour Temperature | 4000K as standard (3000K & 5000K optional) | |||||
| Diffuser | Micro Prismatic | |||||
| LED Lifetime (L70/F10) | 100,000 Hours at 25°C in accordance with IES TM21 | |||||
| * available in IP21 variant only | ||||||
| ULB50 | ULB75 | ULB100 | ULB125 | ULB150 | ULB165 * | |
|---|---|---|---|---|---|---|
| IP Rating | IP21 for IP21 variant IP65 for IP65 variant | |||||
| IK Rating | IK07 as standard (IK10 optional) | |||||
| Temperature Range | - 40°C to + 40°C (-20°C to +40°C for emergency versions) | |||||
| Weight | 4.2kg | |||||
| Enclosure (IP21) | Epoxy powder coated zinc coated steel | |||||
| Enclosure (IP65 & IP65 Food Safe) | Epoxy powder coated stainless steel | |||||
| Unit Colour | White (RAL9016) | |||||
| Design Standard | Designed and manufactured to comply with EN60598 | |||||
| Mounting Accessories | Trunking, Chain & Food Safe (Only on IP65 version) mounting Kits Available | |||||
| * available in IP21 variant only | ||||||
| ULB50 | ULB75 | ULB100 | ULB125 | ULB150 | ULB165 * | |
|---|---|---|---|---|---|---|
| Function | Basic and Self-testing intelligent emergency backup available | |||||
| System Health Indicator | Bi-colour LED indicator | |||||
| Emergency Duration | 600 Lumens for 180mins (Other options available - contact Raytec) | |||||
| Emergency Battery | NiMH 3V 4Ah | |||||
| Emergency Charge Time | 20 hours | |||||
| * available in IP21 variant only | ||||||

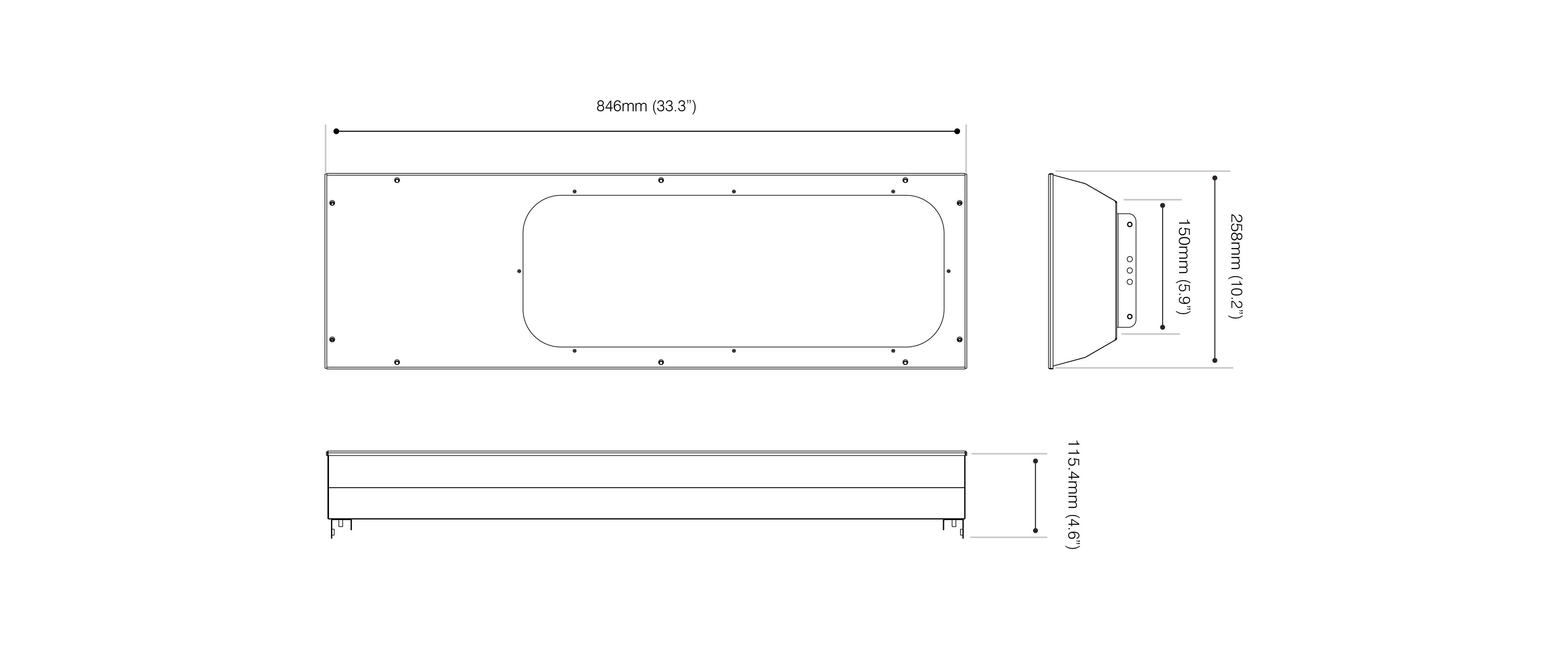

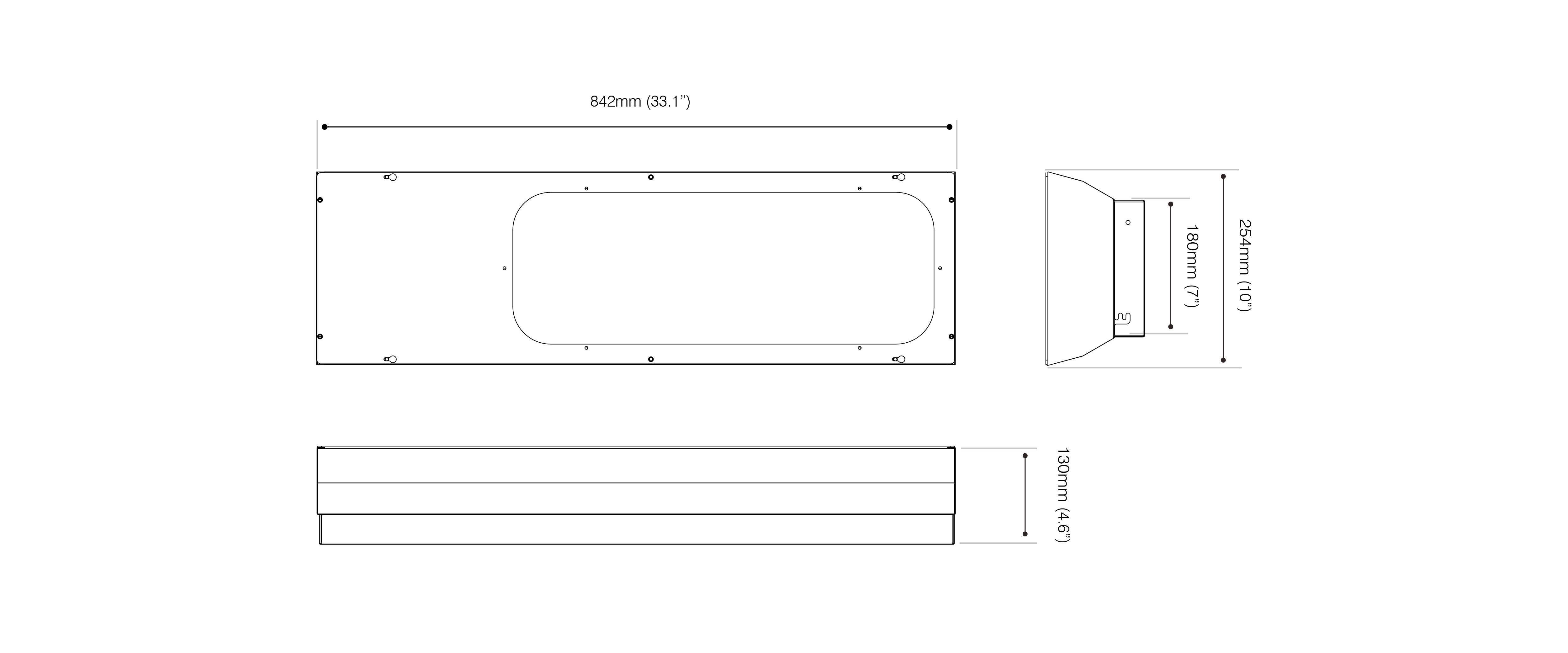

Product Dimensions.

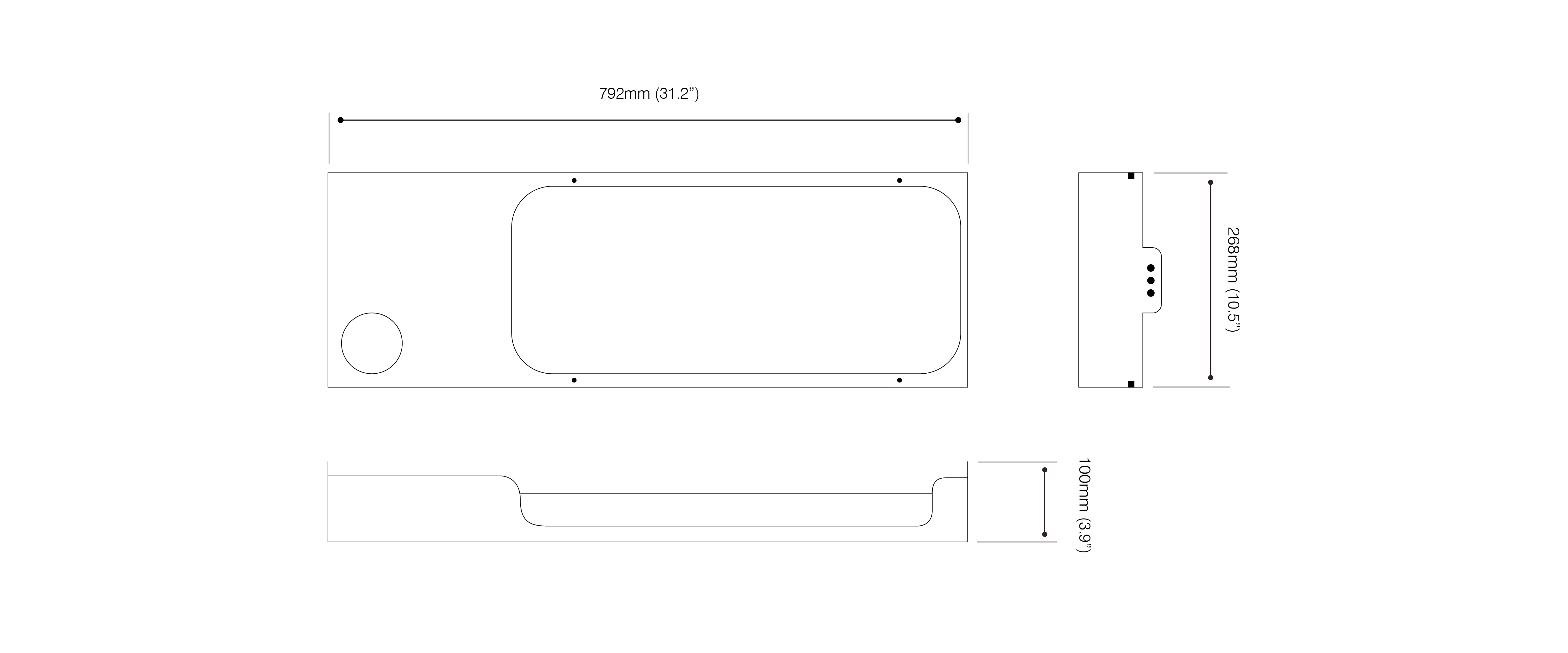

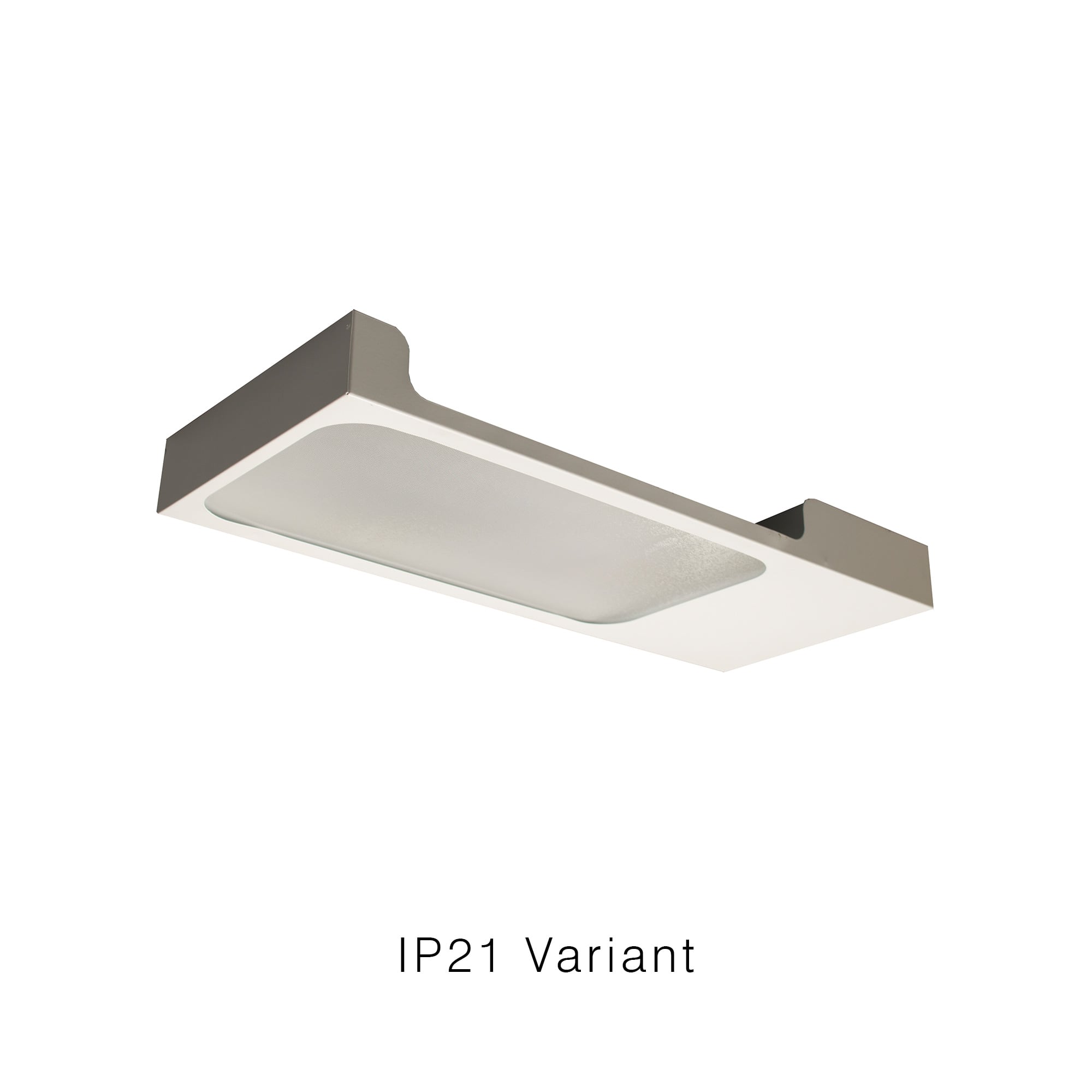

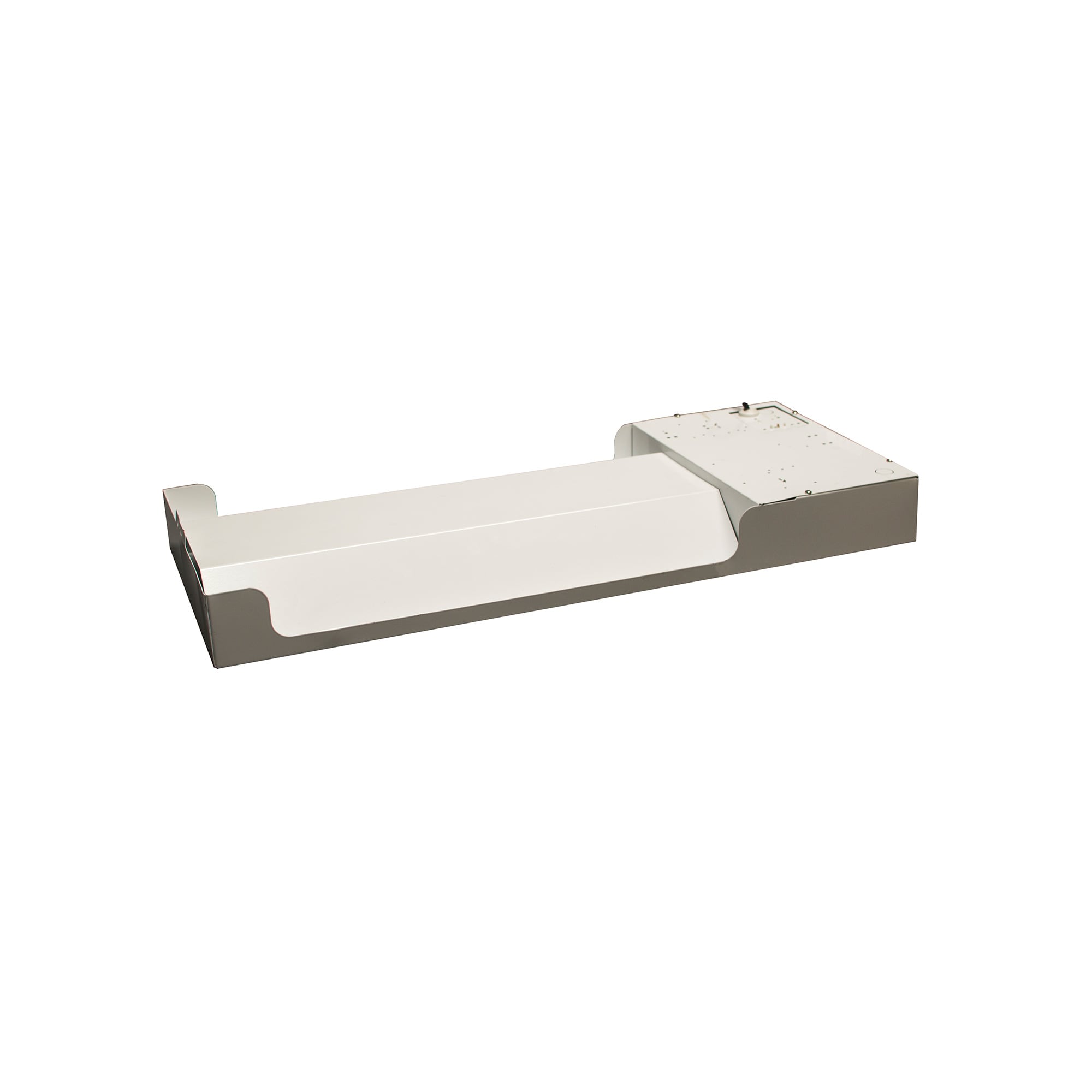

IP21 Variant

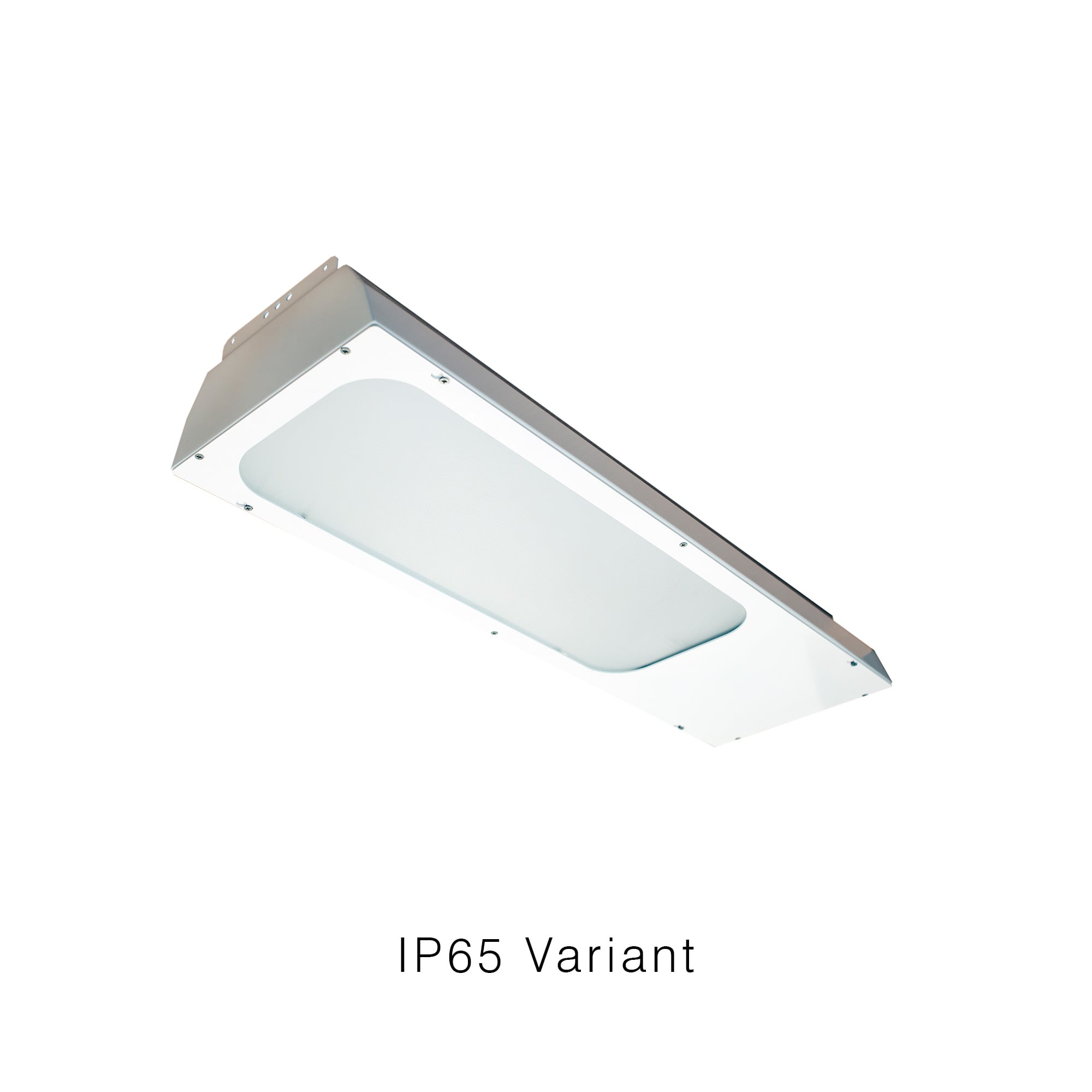

IP65 Variant

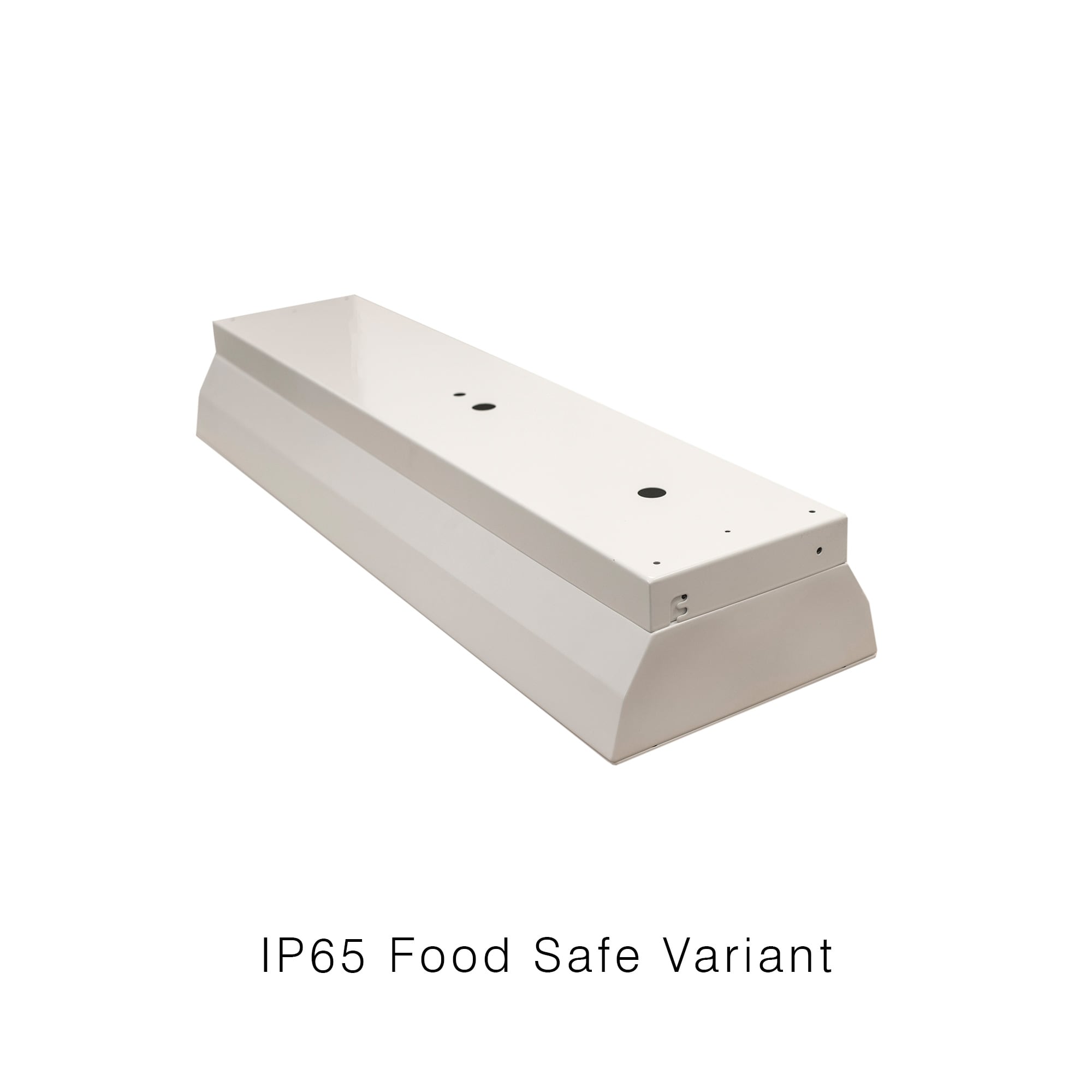

IP65 Food Safe Variant
