Street SL96
SPARTAN Street SL96, Zone 1/21, 6,770lm
About SPARTAN Street Zone 1/21
- Sector
- Hazardous
- Wavelength
- White-Light

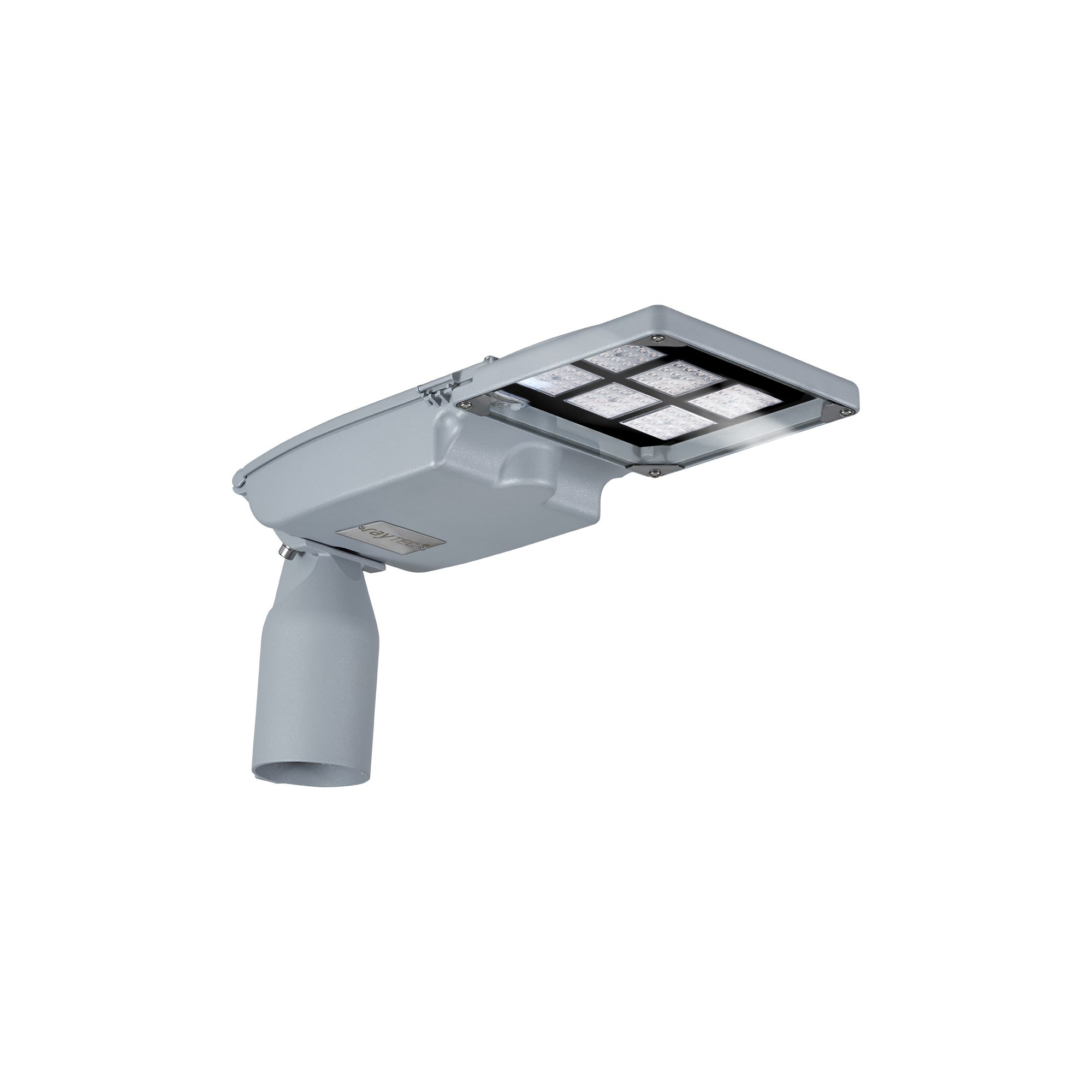

The SPARTAN Street is a powerful multi-purpose Ex luminaire for use in a wide range of Zone 1 and Zone 21 hazardous areas. Available with a range of optics, SPARTAN Street provides the ideal solution for illuminating access roads, walkways or perimeters. It can also be used for general illumination of car parks, or other areas located on sites which are deemed high-risk or have been classified as a hazardous area.
Energy Saving.
With a low power consumption of 53W, and a high efficacy of 128lm/W, SPARTAN Street delivers significant energy savings and outstanding optical performance.
Easy to Install.
SPARTAN Street weighs only 6.5kg and comes pre-terminated with a 12M outdoor, 3 core, cold resistant, PVC cable for quick and easy installation.
Ultra-Flexible.

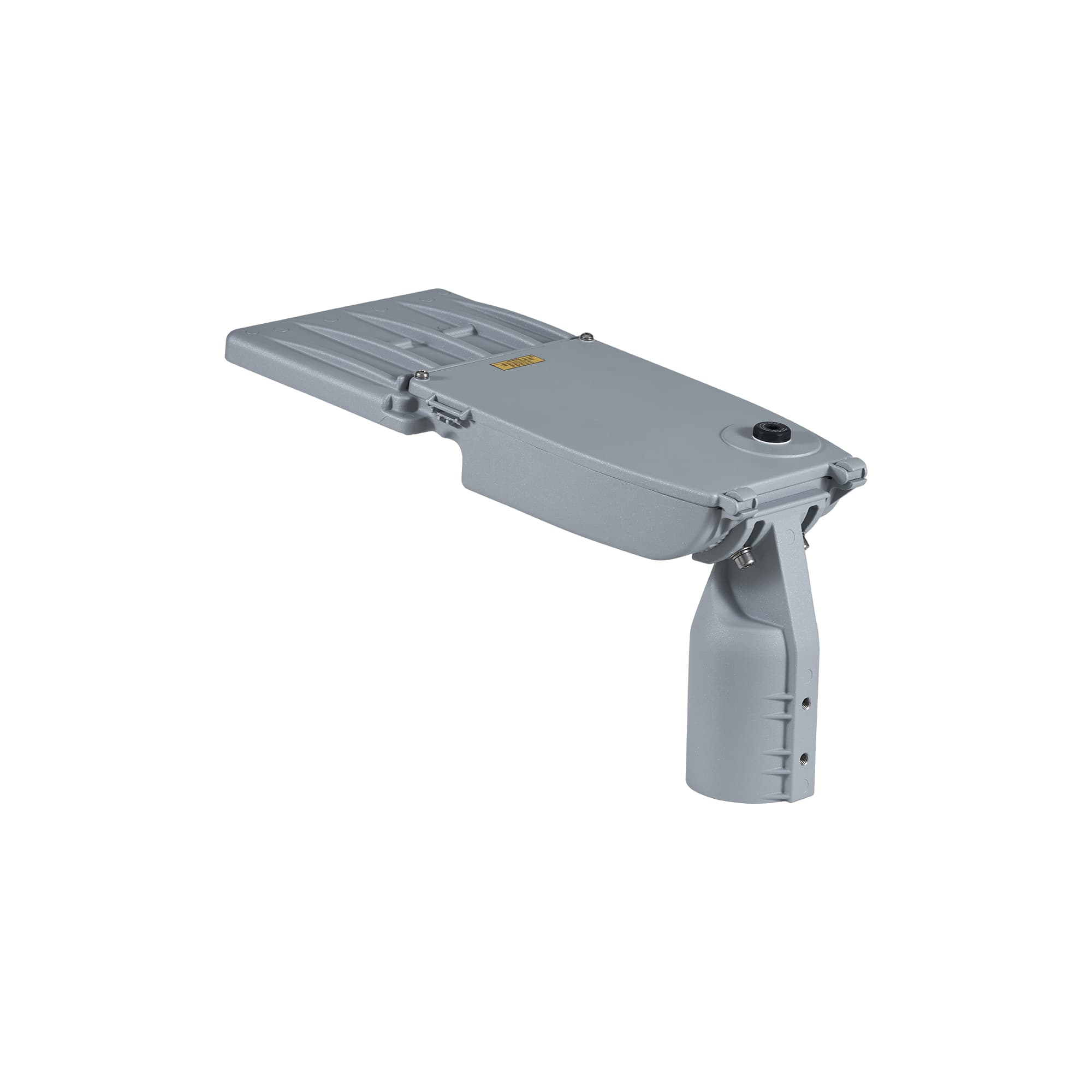

With an adjustable bracket that can be rotated 90°, the luminaire can be fixed to any column, bracket or pole in post top or side arm configuration.
Bespoke LED.
Raytec are specialists in LEDs and all our products are designed around the LEDs with bespoke housing for optimum performance and reliability.
Specs
Select Option
| SL96 | |
|---|---|
| Input | 110-254V AC 50/60Hz |
| Power | 53W |
| Power Factor | >0.95 |
| Termination | Supplied pre-terminated, with 12m of 3 core Outdoor Cold Resistant PVC Cable |
| SL96 | |
|---|---|
| ATEX Rating | ATEX Rating ATEX, UKEX and IEC Ex rated for Gas and Dust |
| Hazardous Area Rating | Zone 1 (Gas), Zone 21 (Dust) |
| Certificates | IECEx CML 23.0094X, CML 23ATEX3246X, CML 23UKEX3247X |
| Gas | II 2 G Ex eb mb IIC T4 Gb Ta = -40 °C to +50 °C |
| Dust | II 2 D Ex tb IIIC T80°C Db Ta = -40 °C to +50 °C |
| SL96 | |
|---|---|
| Beam Patterns | Perimiter/Pathway - PP1 Perimiter/Pathway - PP2 Perimiter/Pathway - PP3 Area - AR1 |
| Lumen output on mains | Up to 6,770 |
| LED Type | Platinum Elite SMT LEDs |
| Number of LEDs | 96 |
| CRI | ≥80 |
| Colour Temperature | 4000K |
| SL96 | |
|---|---|
| IP Rating | IP66 |
| IK Rating | IK07 |
| Temperature Range | -40°C to +50°C |
| Weight | 6.5kg |
| Enclosure | Marine grade aluminium epoxy powder coated, all external fasteners and brackets are marine grade stainless steel |
| Unit Colour | Silver (RAL 9006) |
| Installation Instructions | See document 1286-D-00002 at www.raytecled.com |
| Dimensions | See dimensional sketches |
| Mounting | Supplied with Integrated Spigot Mount with adjustable rotation |
| Spigot (pole) Diameter | Compatible with 76mm pole diameter (48mm & 60mm pole adaptors are available) |
