Linear WL84

SPARTAN Linear WL84, Zone 2/22, 3,524lm

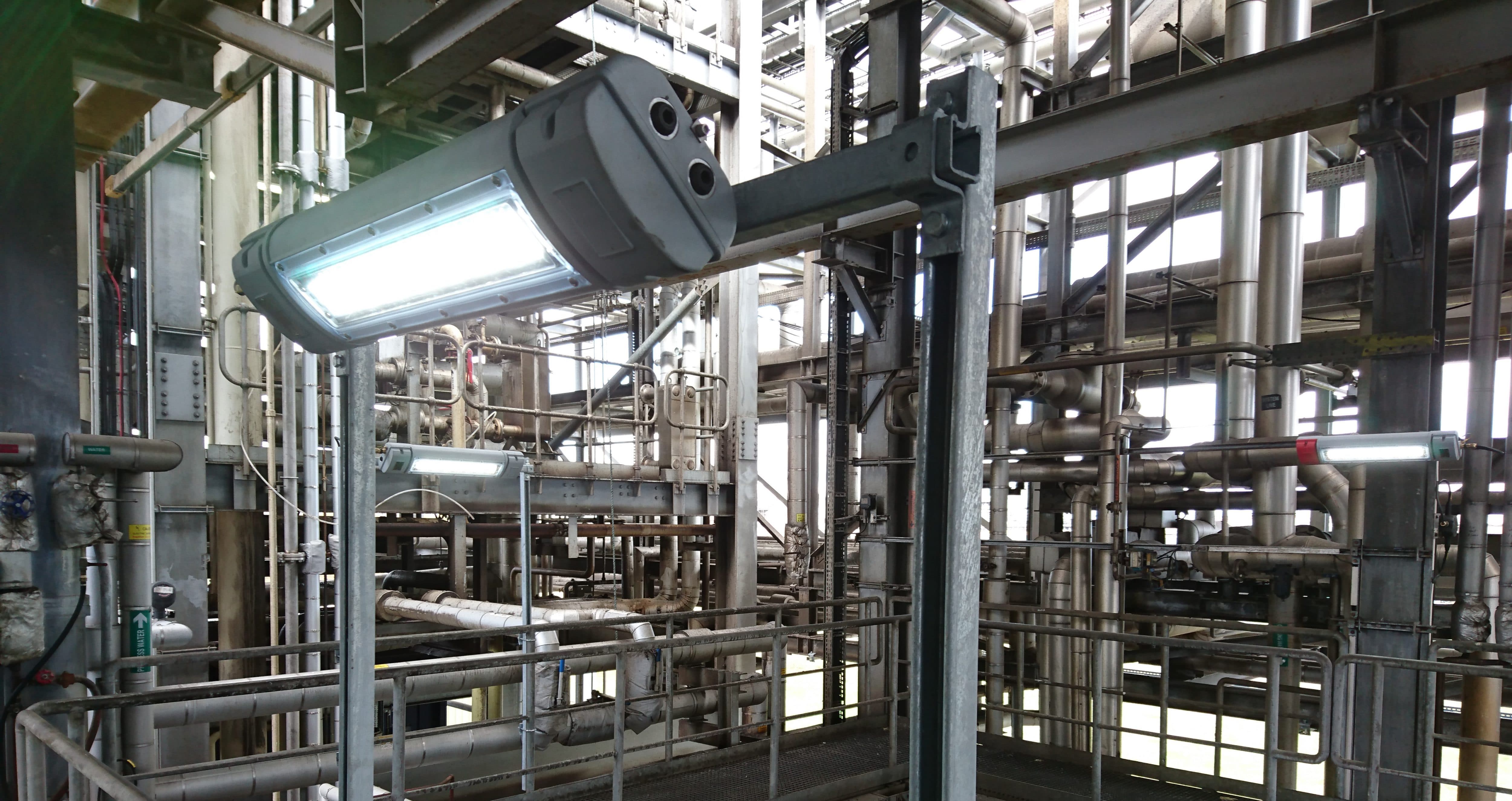

About SPARTAN Linear WL84 Zone 2

Sector
Hazardous
Certification
ATEX, IECEx and UKEX
Classification
Zone 2 & 22

The SPARTAN Linear WL84 Zone 2 range is designed to retrofit conventional fluorescent fittings or for use in new hazardous area installations. Designed to provide extreme levels of durability, and with a unique modular design which makes maintenance quick and easy. All SPARTAN luminaires are designed and manufactured in the UK and come with an industry-leading 5-year warranty.



Jump to Downloads

Ultra-Powerful.

SPARTAN Linear WL84 Zone 2 delivers industry-leading power and performance with an efficacy of up to 142 lumens per watt on standard variants.

Robust and Durable.

Housed in marine grade aluminium with stainless steel fasteners and brackets, SPARTAN Linear is IP66 and IP67 rated and can survive in the most extreme environments.

Bespoke LED.

Raytec are specialists in LED and SPARTAN Linear has been specifically designed around the LEDs with a bespoke housing for optimum performance and reliability.

Choice of Optics.

Available with a choice of different optics to suit a wide range of applications, including asymmetric patterns for aisle, corridor and perimeter installations.

WL84 Variants.

Ex Linear Lighting - safety shower Ex Linear Lighting - safety shower

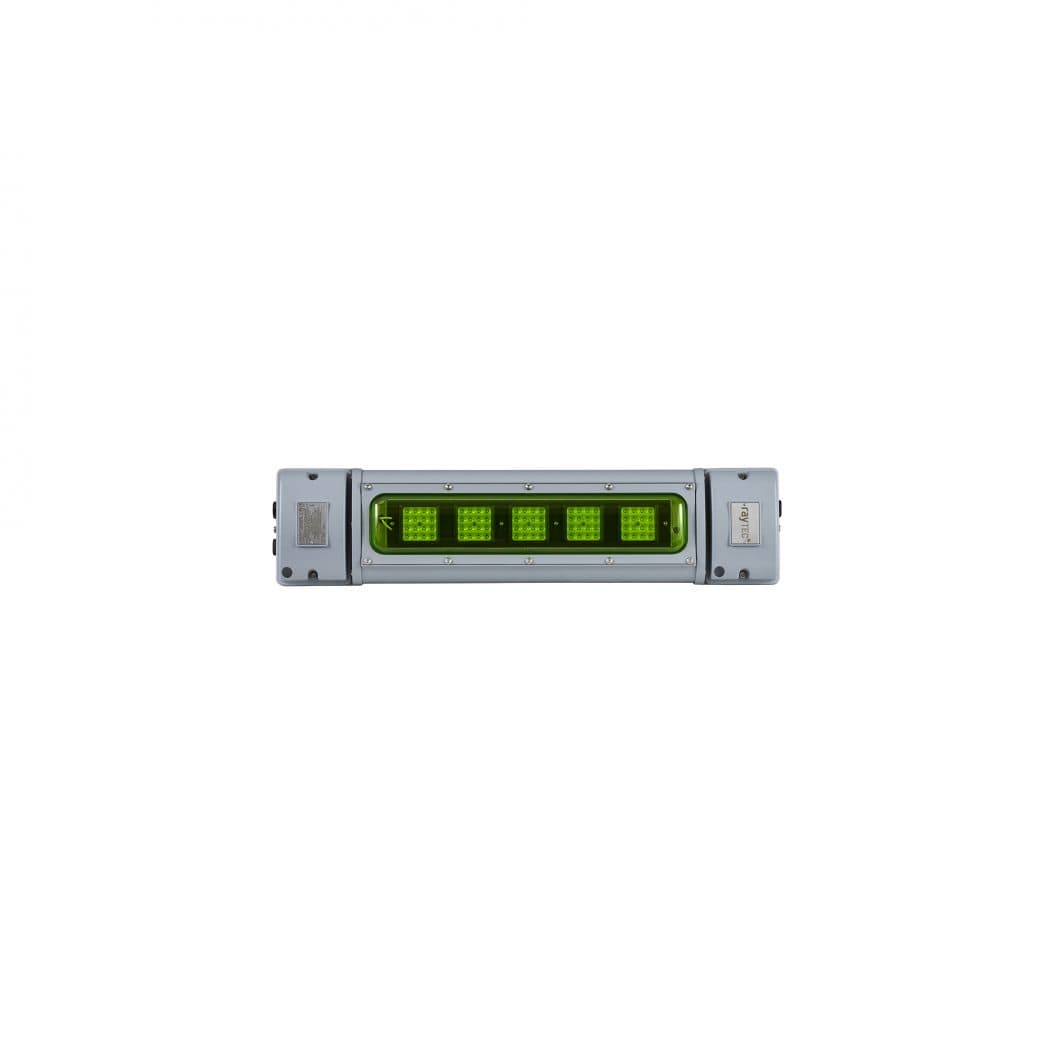

Safety Shower

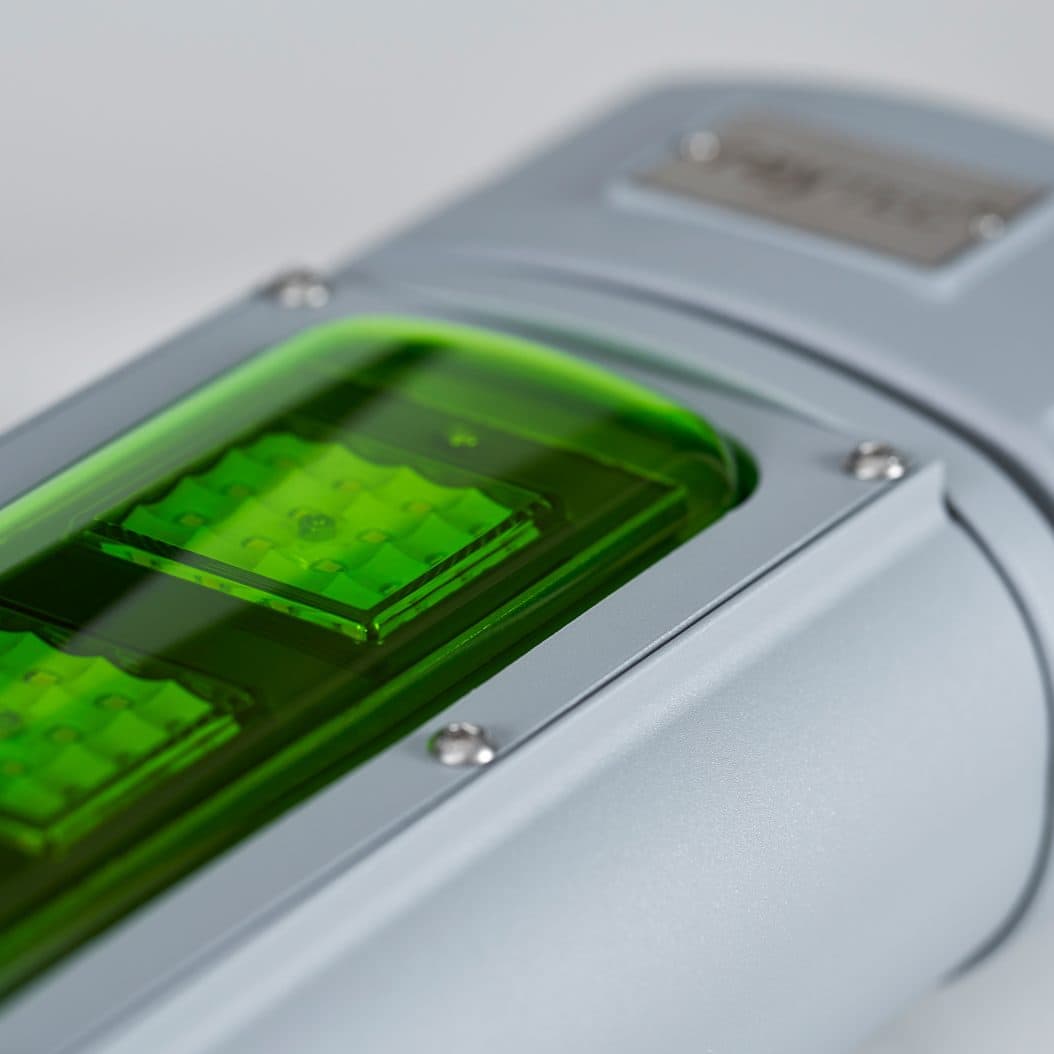

Green LED technology designed for use where safety shower units are located.
Dominant wavelength: 519nm
Dedicated optic for maximum visibility

Ex Linear Lighting - turtle friendly Ex Linear Lighting - turtle friendly

Wildlife Friendly

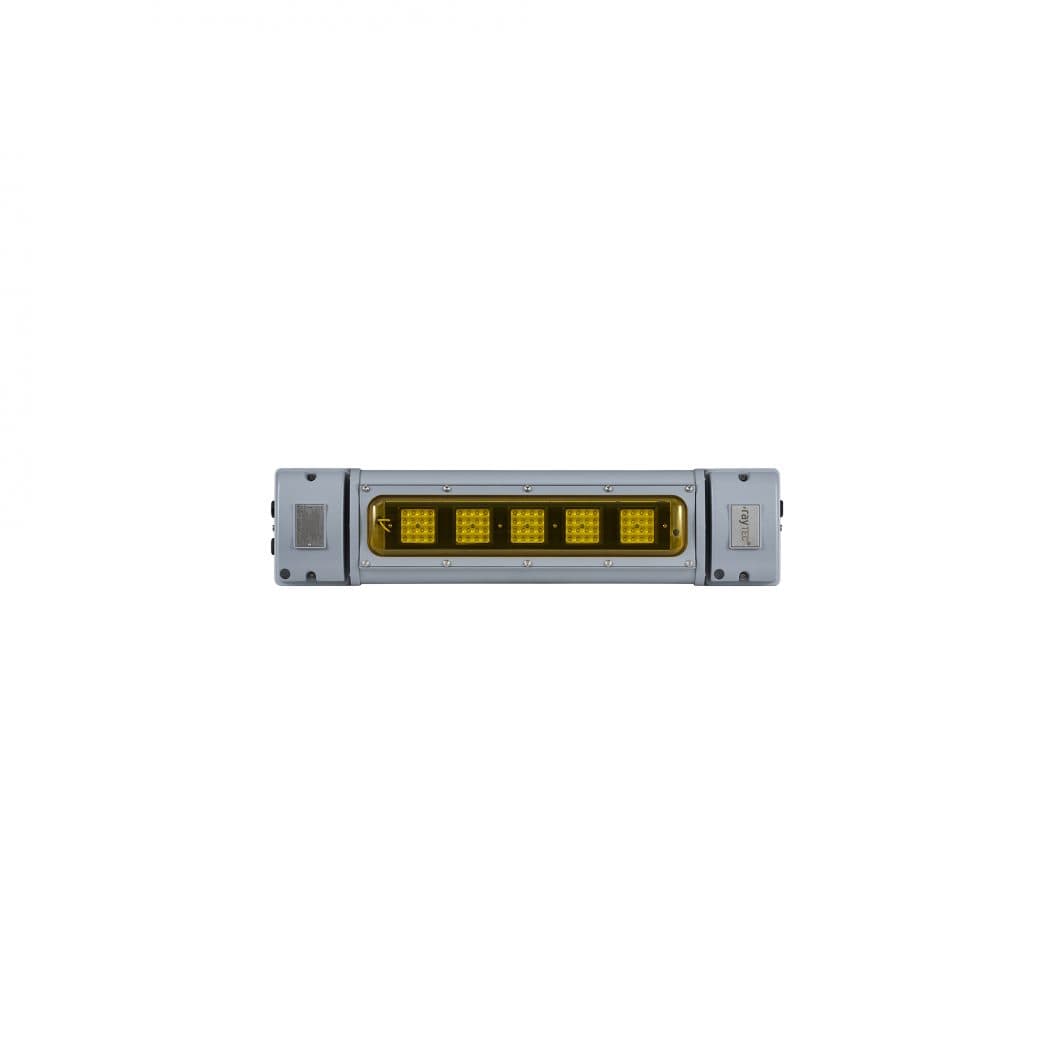

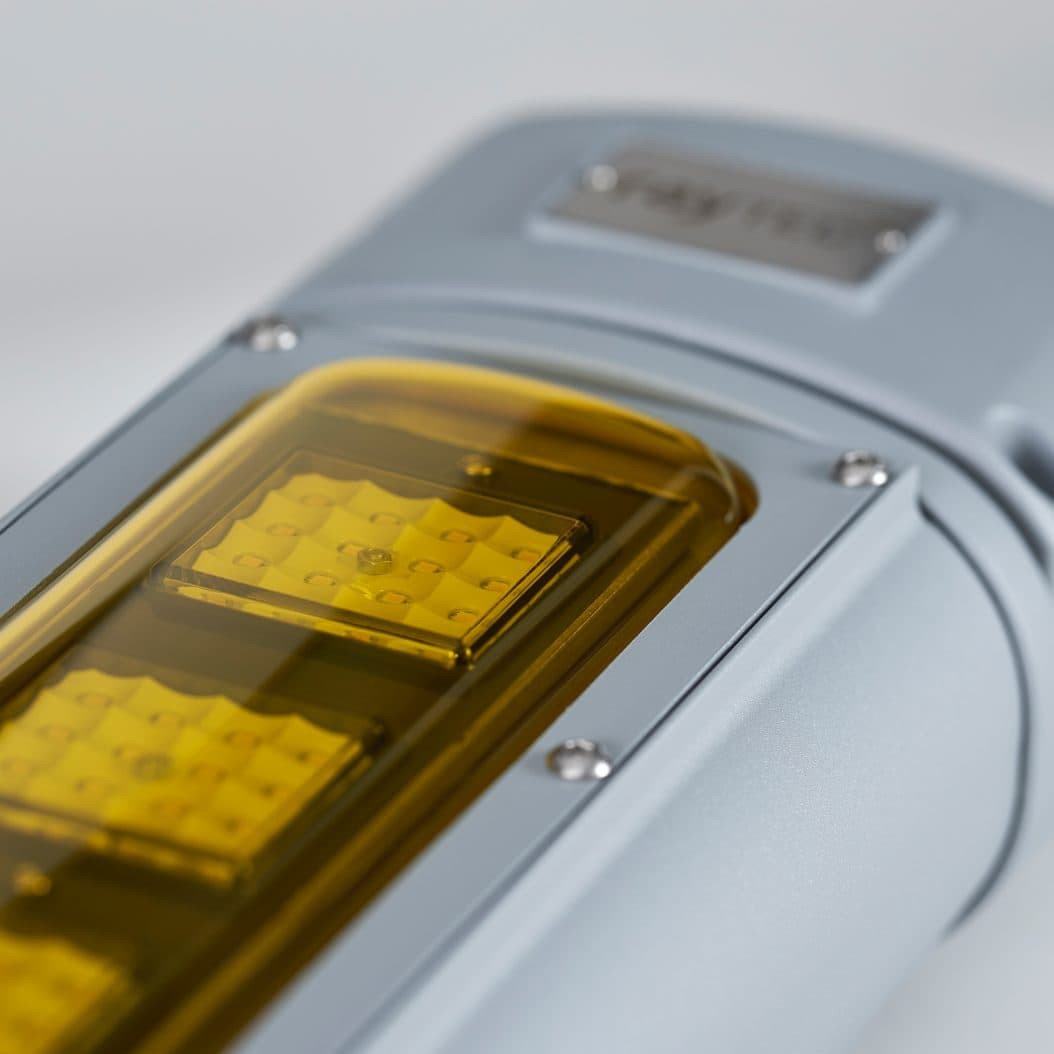

Amber LED technology designed to protect wildlife in coastal locations or natures reserves.
Dominant wavelength: 600nm

Ex Linear Lighting - diffused lens Ex Linear Lighting - diffused lens

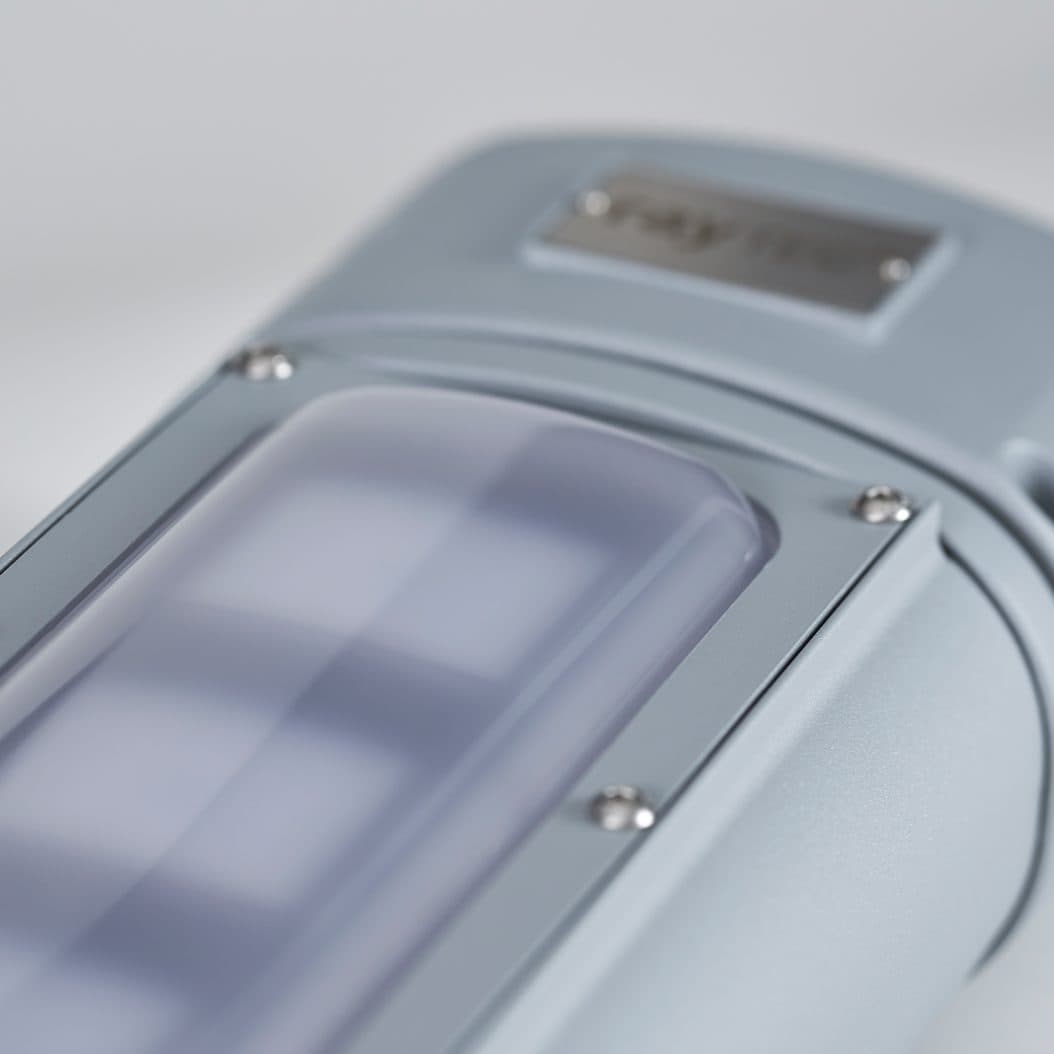

Diffused Lenses

Diffused lenses help to soften the light outut and are available as accessories or can come pre-fitted as standard

WL84 Essential

WL84 Essential for loop in, loop out installations

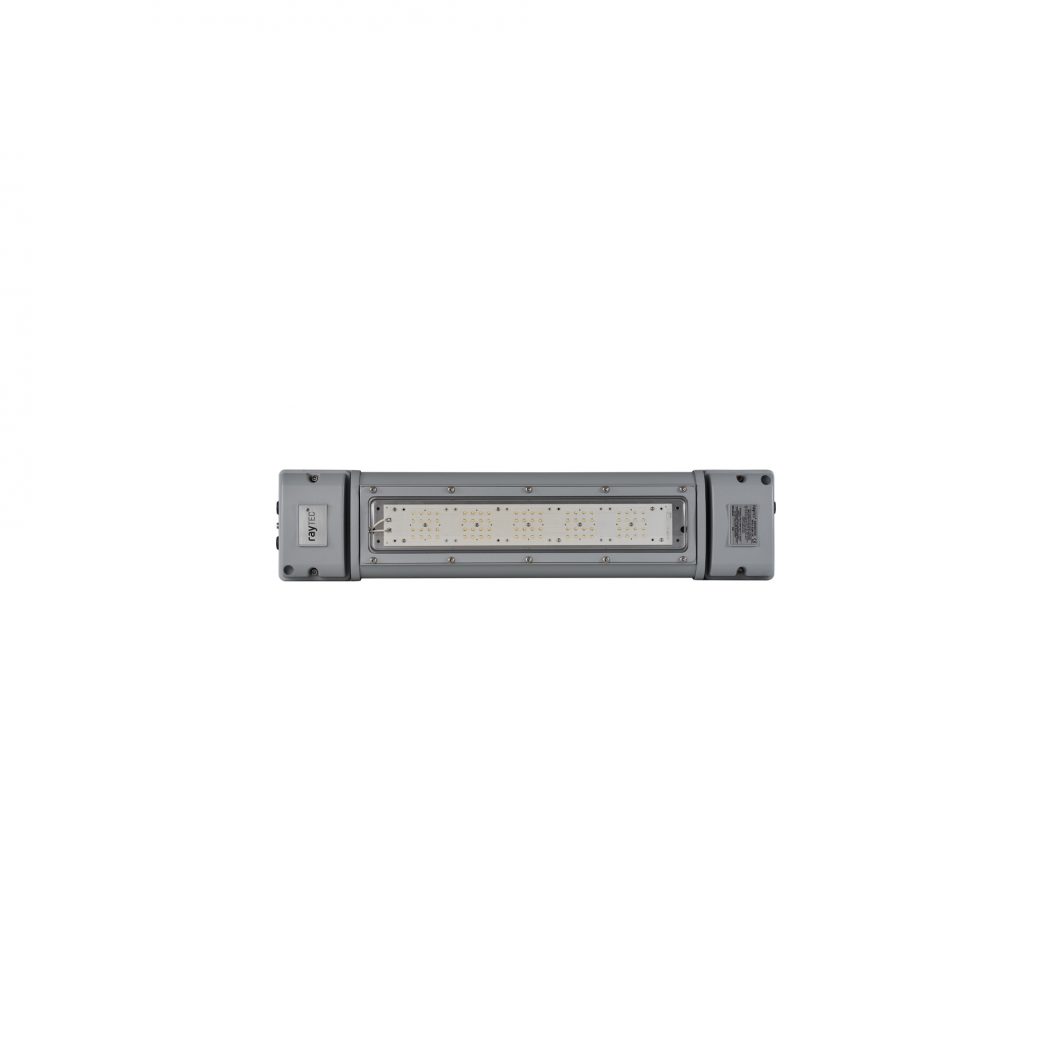

WL84 Standard

The standard WL84 is designed to directly replace existing 2x18W fluorescent luminaires, with equivalent dimensions, fixing centres and cable entries.

Ex Linear Lighting - retrofit variants Ex Linear Lighting - retrofit variants

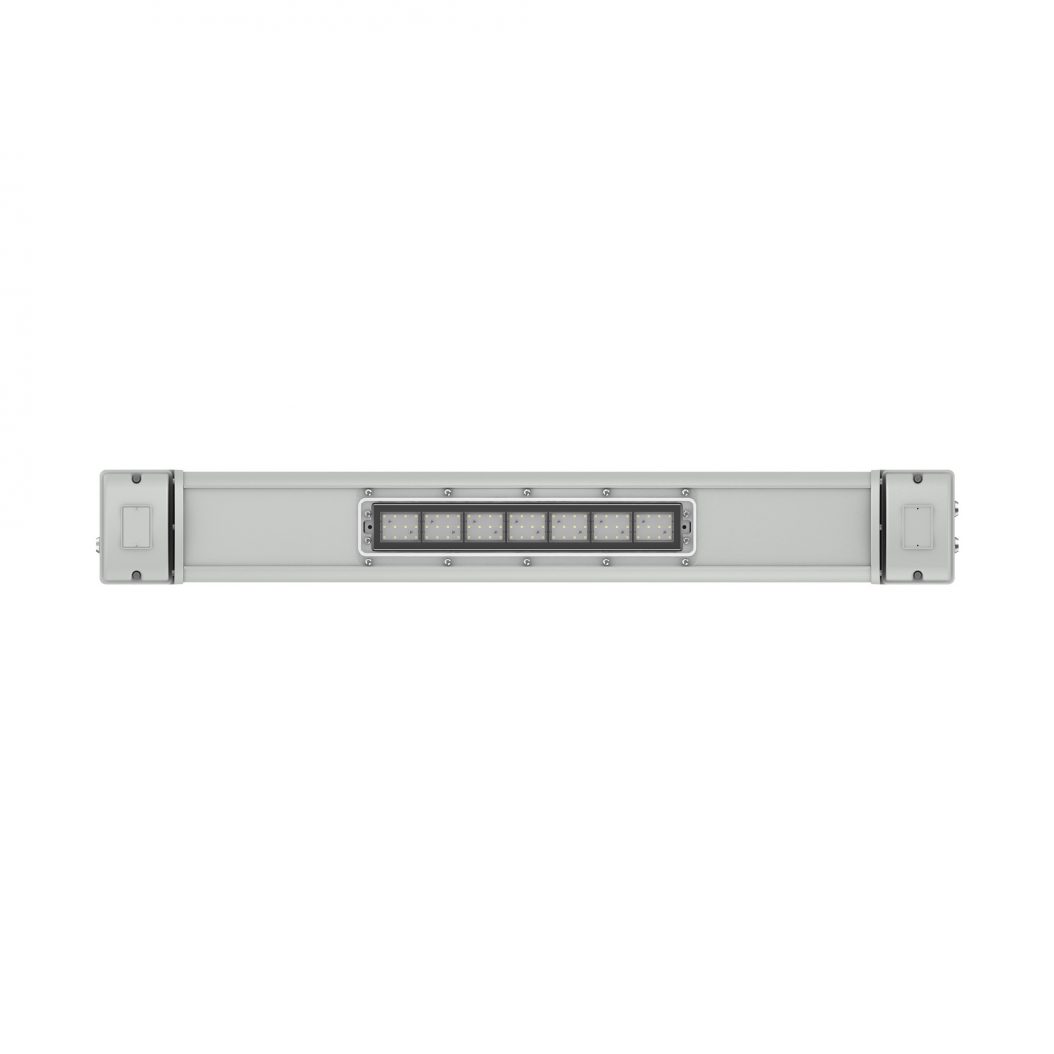

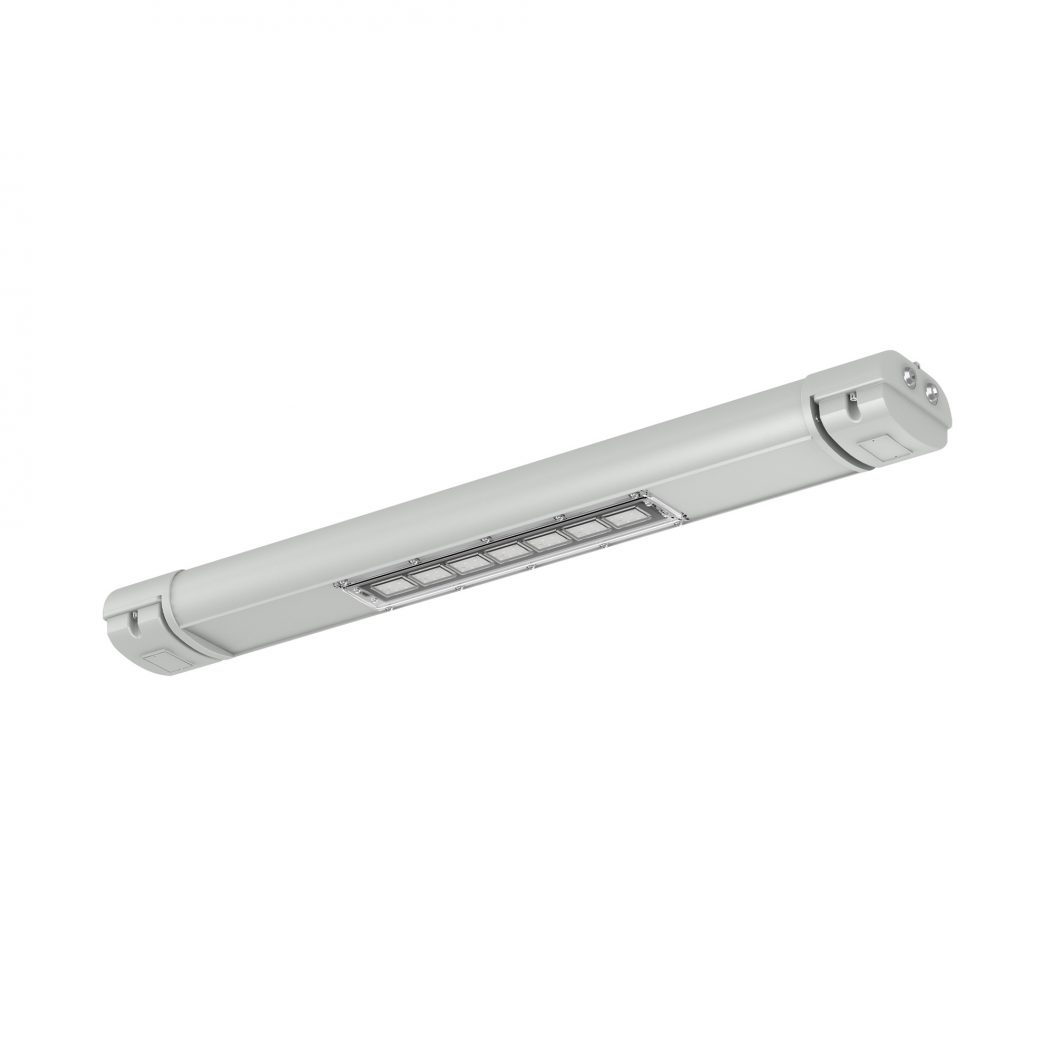

WL84-1200

The WL84-1200 has an elongated body which means it can directly replace a tradational 4ft fluorescent, but with the power and consuption of a 2ft LED luminaire to provide signficant cost savings

Specs

Select Option

WL84WL84 EMX25WL84 Essential
ATEX RatingATEX UKEX and IEC Ex rated for Gas and Dust
Hazardous Area RatingZone 2 (Gas), Zone 22 (Dust)
(Zone 21 Version also available : Zone 2 (Gas) Zone 21/22 (Dust))
CertificatesZone 2/22 version:
CML15ATEX4138
IEC Ex CML15.0068
CML21UKEX4104
Zone 21 version:
CML16ATEX1130
IEC Ex CML16.0052
CML21UKEX1100
GasII 3 G D
Ex ec mc IIC T4 Gc
Ta= -40°C to+60°C
(-20°C to +50°C for emergency variants)
DustEx tc IIIC T80°C Dc
Ta= -40°C to+60°C
(-20°C to +50°C for emergency variants)
Dust (Zone 21 Version)II 2 D Ex tb IIIC T80°C Db
Ta= -40°C to+60°C
(-20°C to +50°C for emergency variants)
ABS Certificate Number# 20-1990083-PDA
WL84WL84 EMX25WL84 Essential
InputStandard: 110-254Vac 50/60Hz, 110-254Vdc *
Low voltage: 18-48V AC and 18-69V DC
Extra low voltage: 12V AC/DC
110-254V 50/60Hz AC onlyStandard: 110-254Vac 50/60Hz, 110-254Vdc *
Low voltage: 18-48V AC and 18-69V DC
Extra low voltage: 12V AC/DC
Power24W32W24W
TerminationIncoming terminal block suitable for looping 4 core 4mm² cable (6mm² available - POA)
Power Factor>0.95
Cable Entries2xM20 cable entries at both ends, through wired as standard (other entries available upon request), dispatched complete with three ATEX/IEC Ex/UKEX approved blanking plugs2xM20 cable entries at both ends, through wired as standard (other entries available upon request), dispatched complete with three ATEX/IEC Ex/UKEX approved blanking plugs2xM20 cable entries at one end. Loop in loop out as standard (other entries available upon request), dispatched complete with one ATEX/IEC Ex approved blanking plug
*T6 variant is AC Only
WL84WL84 EMX25WL84 Essential
Lumen Output on Mains3524
LED TypePlatinum Elite SMT LEDsPlatinum Elite SMT LEDsPlatinum Elite SMT LEDs
Number of LEDs80
CRI80+
Colour Temperature6500K standard
WL84WL84 EMX25WL84 Essential
EnclosureMarine grade aluminium epoxy powder coated, UV stabilised polycarbonate, all external fasteners and brackets are marine grade stainless steel
Unit ColourSilver (RAL 9006)Silver (RAL 9006), Red (RAL3024) - Emergency battery coverSilver (RAL 9006)
MountingVia M8/M6 tapped holes. Various mounting arrangements available (please see product overview guide)

Product Dimensions.

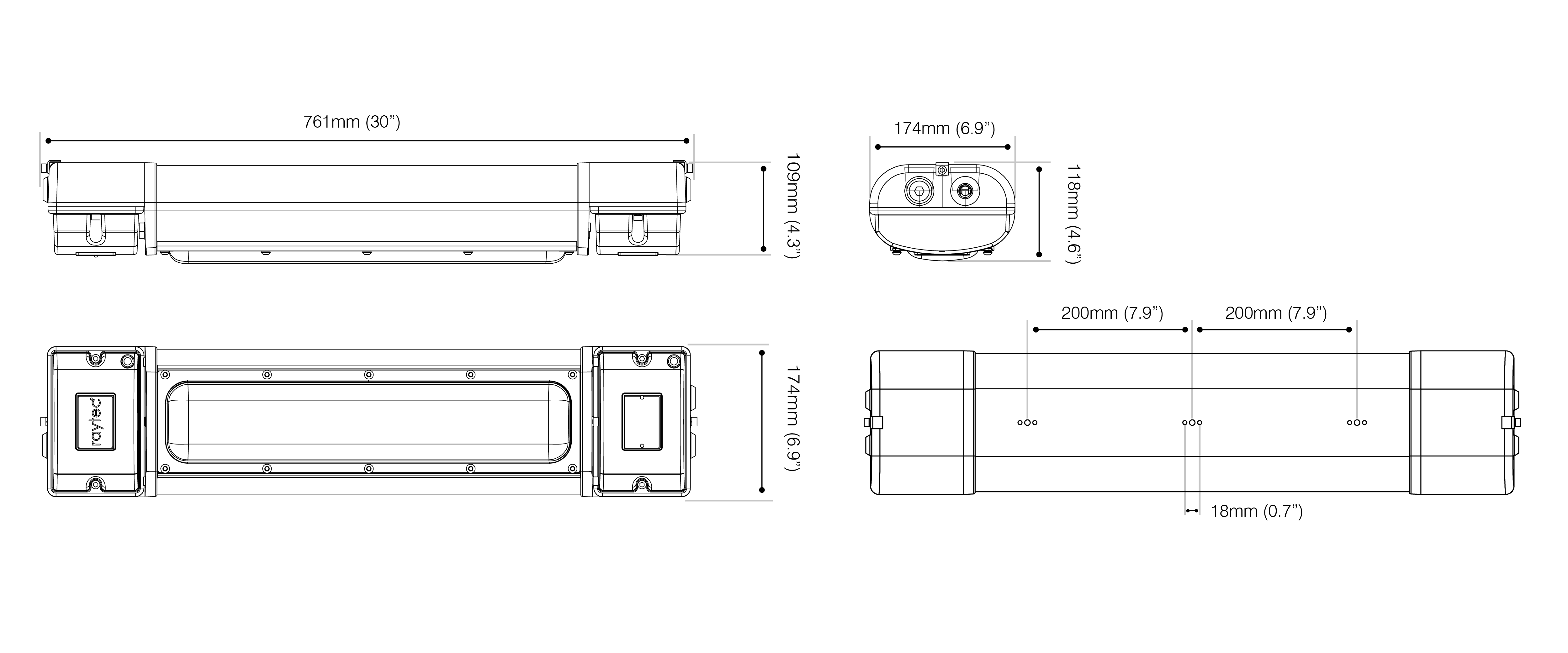

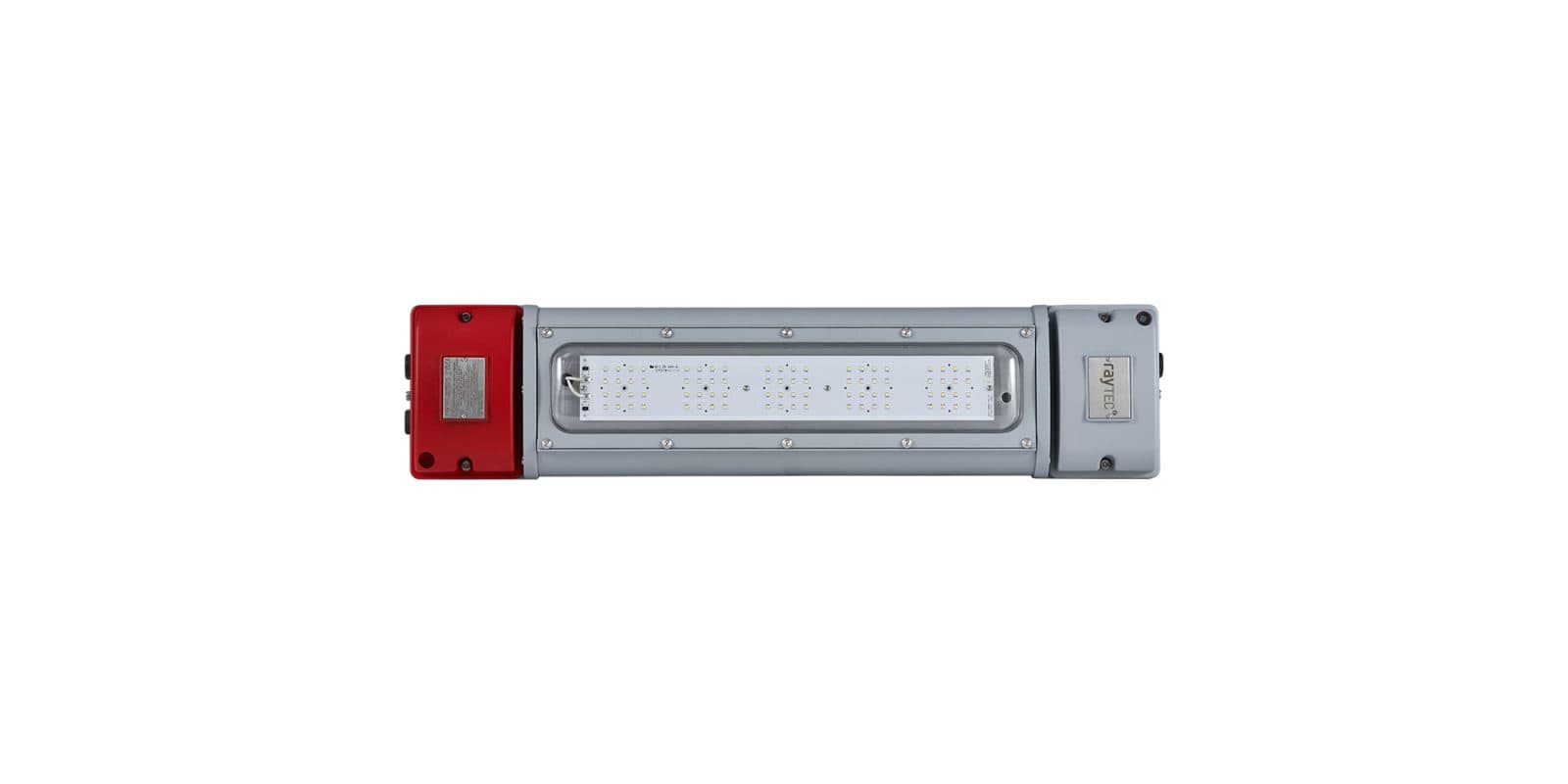

WL84 Standard & Emergency

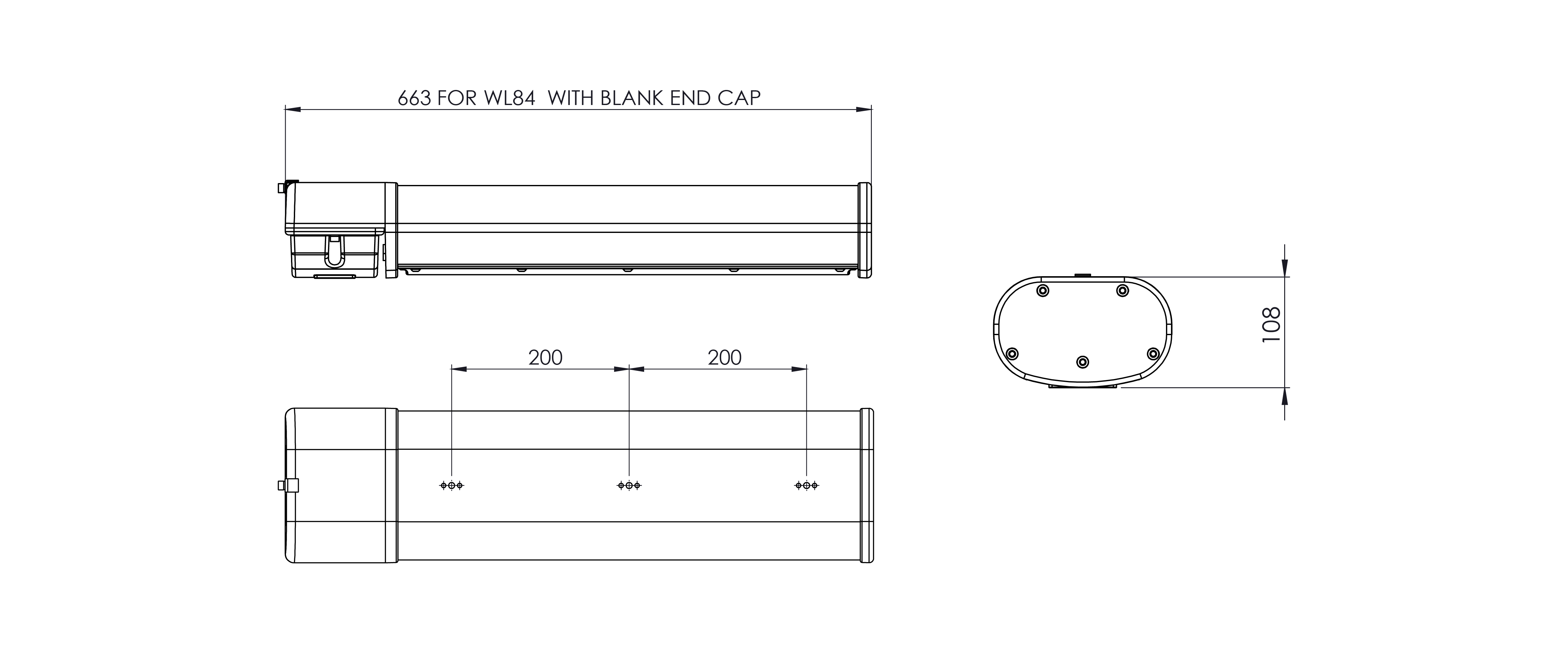

WL84 Essential

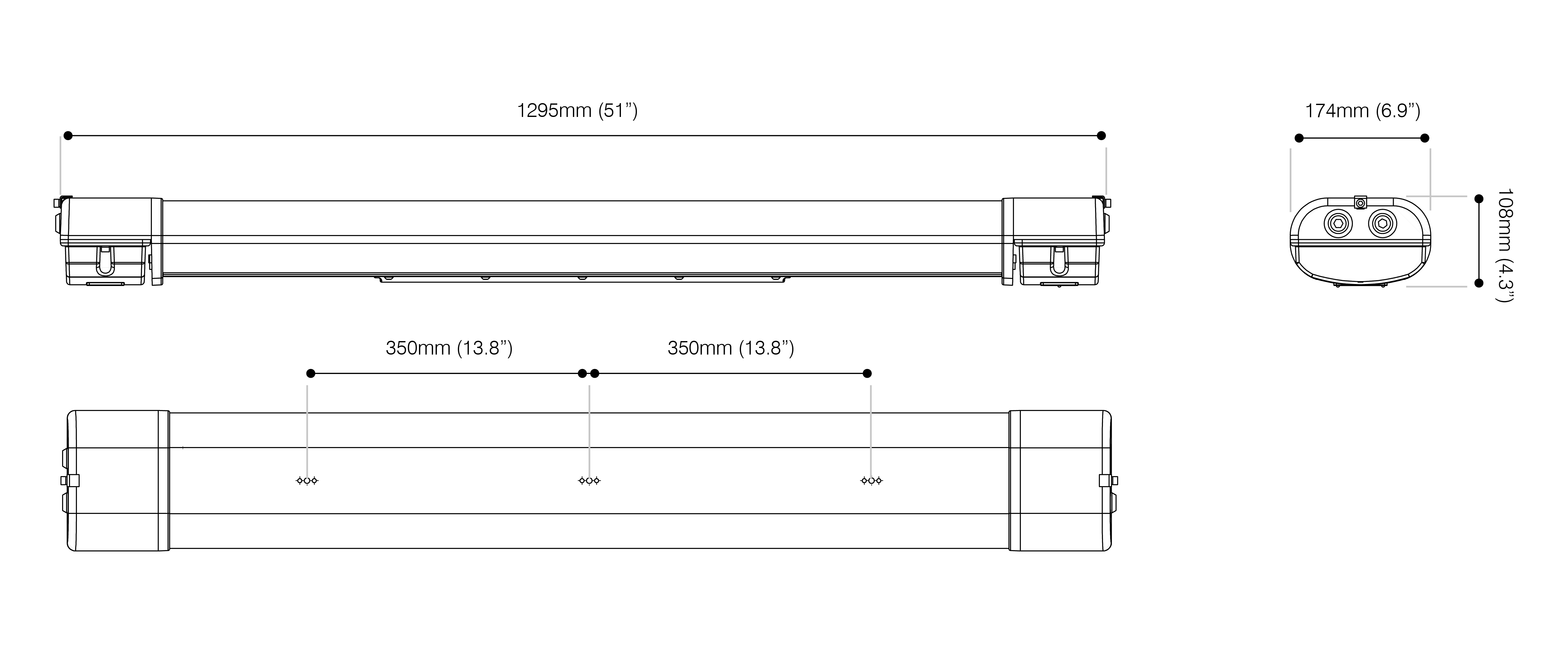

WL84-1200

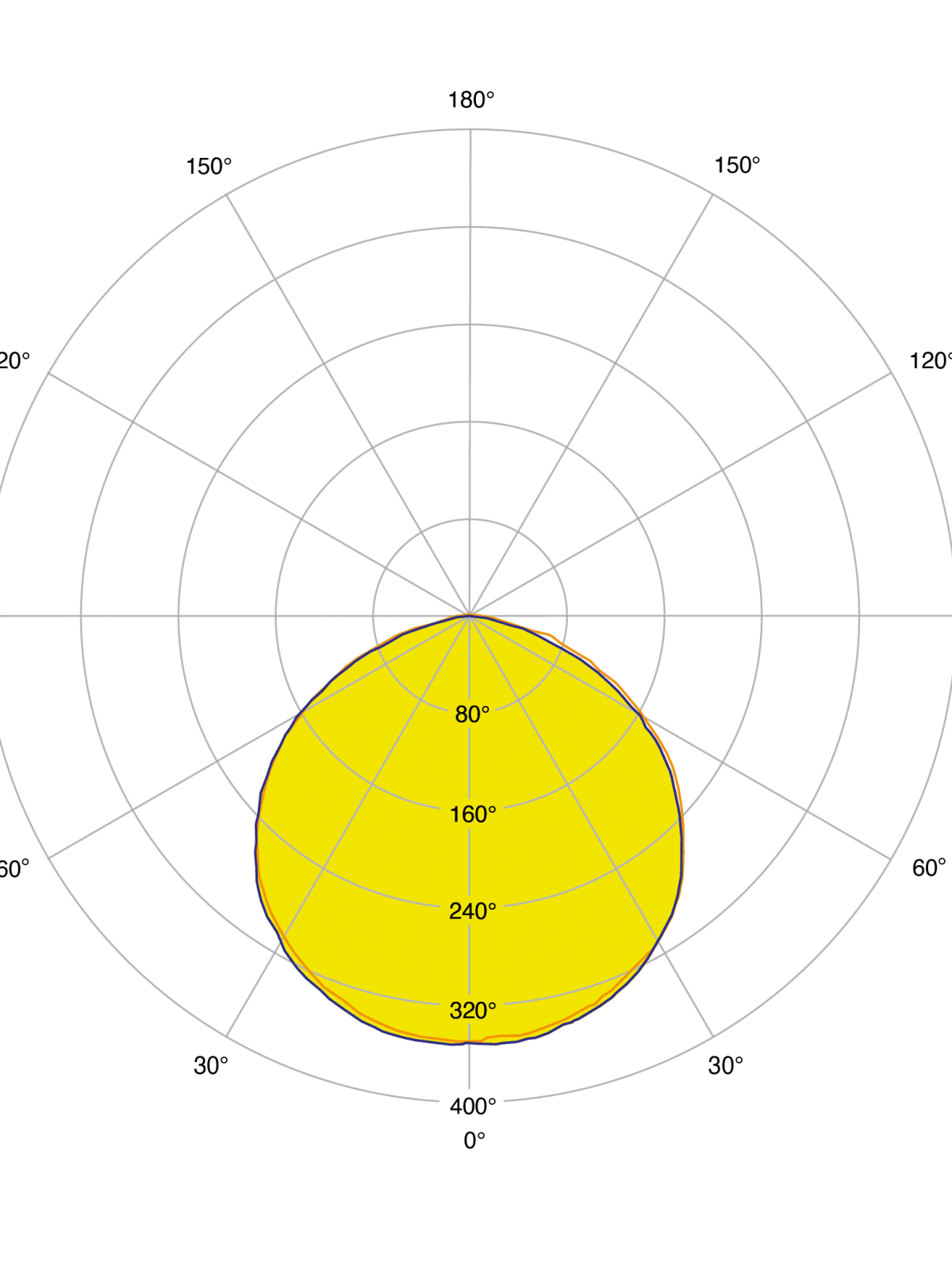

Light Distribution.

Standard Optic

Symmetrical Optics

Asymmetrical Optics
