Linear WL84 High Output

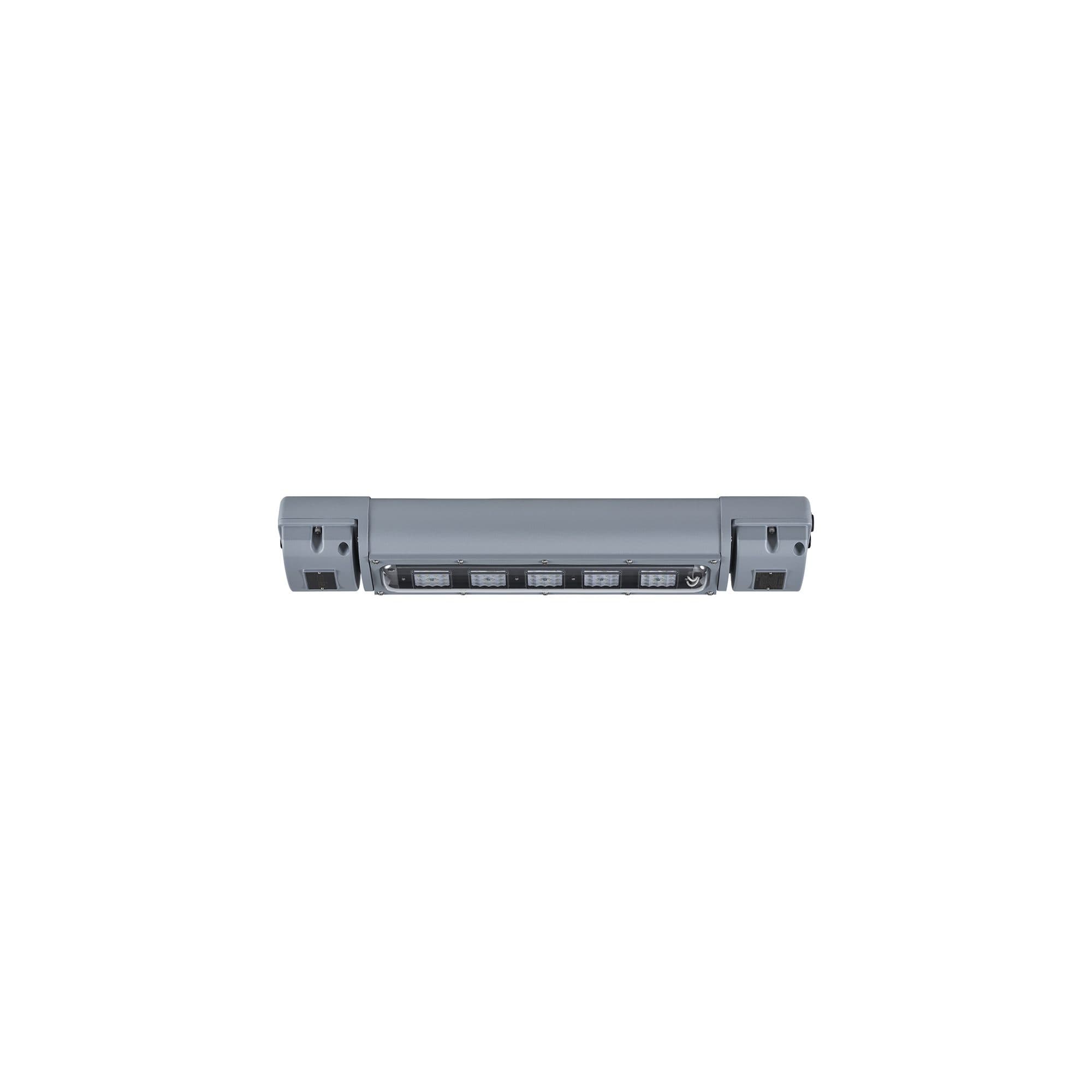

SPARTAN Linear WL84, High Output, Zone 1/21, 6,130lm

About SPARTAN Linear WL84 High Output Zone 1/21

Sector
Hazardous
Certification
ATEX, IECEx and UKEX
Classification
Zone 1 & 21

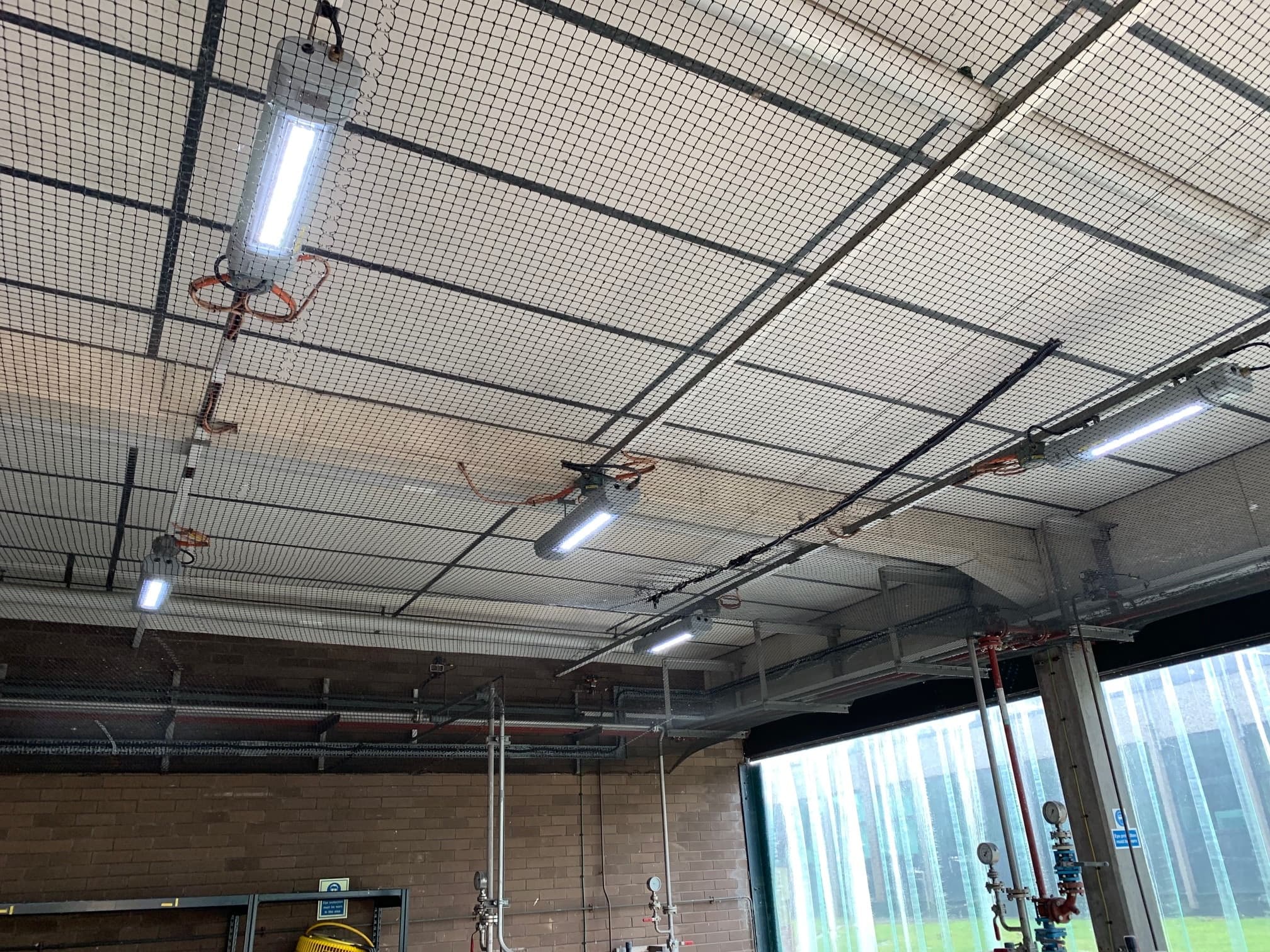

The SPARTAN Linear High Output range is an ideal solution for new hazardous area installations, offering twice the lumen output than the standard SPARTAN Linear whilst retaining the same luminaire look and feel. The increase in power means fewer luminaires are required across an installation when compared to traditional Linear fittings, while SPARTAN Linear High Output can also be utilised as a cost-effective alternative to low bay luminaires.

SPARTAN Linear has been designed to provide extreme levels of durability and features a unique modular design which makes maintenance quick and easy. All SPARTAN luminaires are designed and manufactured in the UK and come with an industry-leading 5-year warranty.

Jump to Downloads

Ultra-Powerful.

SPARTAN Linear High Output delivers industry-leading power and performance with a high lumen output of up to 12,000lm.

Robust and Durable.

Housed in marine grade aluminium with stainless steel fasteners and brackets, SPARTAN Linear High Output is IP66 and IP67 rated and can survive in the most extreme environments.

Bespoke LED.

Raytec are specialists in LED and SPARTAN Linear High Output has been specifically designed around the LEDs with a bespoke housing for optimum performance and reliability.

Choice of Optics.

Available with a choice of different optics to suit a wide range of applications, including asymmetric patterns for aisle, corridor and perimeter installations.

WL84 Variants.

Ex Linear Lighting - safety shower Ex Linear Lighting - safety shower

Safety Shower

Green LED technology designed for use where safety shower units are located.
Dominant wavelength: 519nm
Dedicated optic for maximum visibility

Ex Linear Lighting - turtle friendly Ex Linear Lighting - turtle friendly

Wildlife Friendly

Amber LED technology designed to protect wildlife in coastal locations or natures reserves.
Dominant wavelength: 600nm

Ex Linear Lighting - diffused lens Ex Linear Lighting - diffused lens

Diffused Lenses

Diffused lenses help to soften the light outut and are available as accessories or can come pre-fitted as standard

Specs

Select Option

WL84-HOWL84-HO Emergency
ATEX RatingATEX UKEX and IEC Ex rated for Gas and DustATEX UKEX and IEC Ex rated for Gas and Dust
Hazardous Area RatingZone 1 (Gas), Zone 21 (Dust)
CertificatesATEX: CML14ATEX3119
IECEx: IECExCML15.0001
UKEX: CML21UKEX3105
GasII 2 G D
Ex eb mb IIC T4 Gb
Ta= -40°C to+60°C
(-20°C to +50°C for emergency variants)
DustEx tb IIIC T80°C Db
Ta= -40°C to+60°C
(-20°C to +50°C for emergency variants)
ABS Certificate Number# 20-1990083-PDA
WL84-HOWL84-HO Emergency
InputStandard: 110-254V AC/DCEmergency: 110-254V AC Only
Power48W56W
TerminationIncoming terminal block suitable for looping 4 core 4mm² cable (6mm² available)Incoming terminal block suitable for looping 4 core 4mm² cable (6mm² available)
Power Factor>0.95

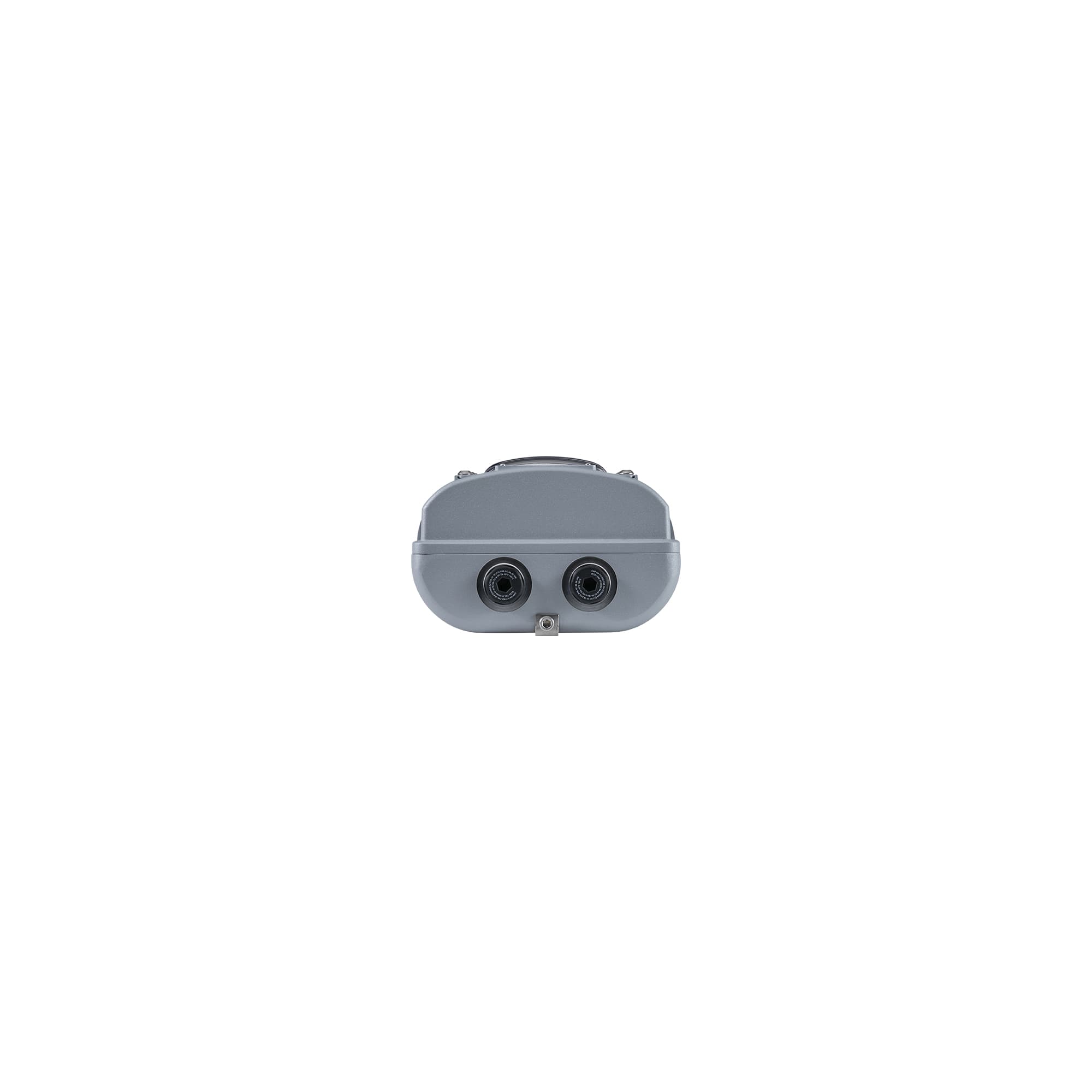

Cable Entries2xM20 cable entries at both ends, through wired as standard (other entries available upon request), dispatched complete with three ATEX/IEC Ex/UKEX approved blanking plugs2xM20 cable entries at both ends, through wired as standard (other entries available upon request), dispatched complete with three ATEX/IEC Ex/UKEX approved blanking plugs
WL84-HOWL84-HO Emergency
Lumen Output on Mains6,130
LED TypePlatinum Elite SMT LEDsPlatinum Elite SMT LEDs
Number of LEDs80
CRI80+80+
Colour Temperature6500K standard
WL84-HOWL84-HO Emergency
Burning PositionUniversal
IP RatingIP66 & IP67
IK RatingIK10
Temperature Rating-40°C to +60°C-20°C to +50°C
Weight6kg (13.2lbs)7kg (15.4lbs)
EnclosureMarine grade aluminium epoxy powder coated, UV stabilised polycarbonate, all external fasteners and brackets are marine grade stainless steelMarine grade aluminium epoxy powder coated, UV stabilised polycarbonate, all external fasteners and brackets are marine grade stainless steel
Unit ColourSilver (RAL 9006)
Emergency Cover - Red (RAL 3024)
MountingVia M8/M6 tapped holes. Various mounting arrangements available (please see product overview guide)Via M8/M6 tapped holes. Various mounting arrangements available (please see product overview guide)

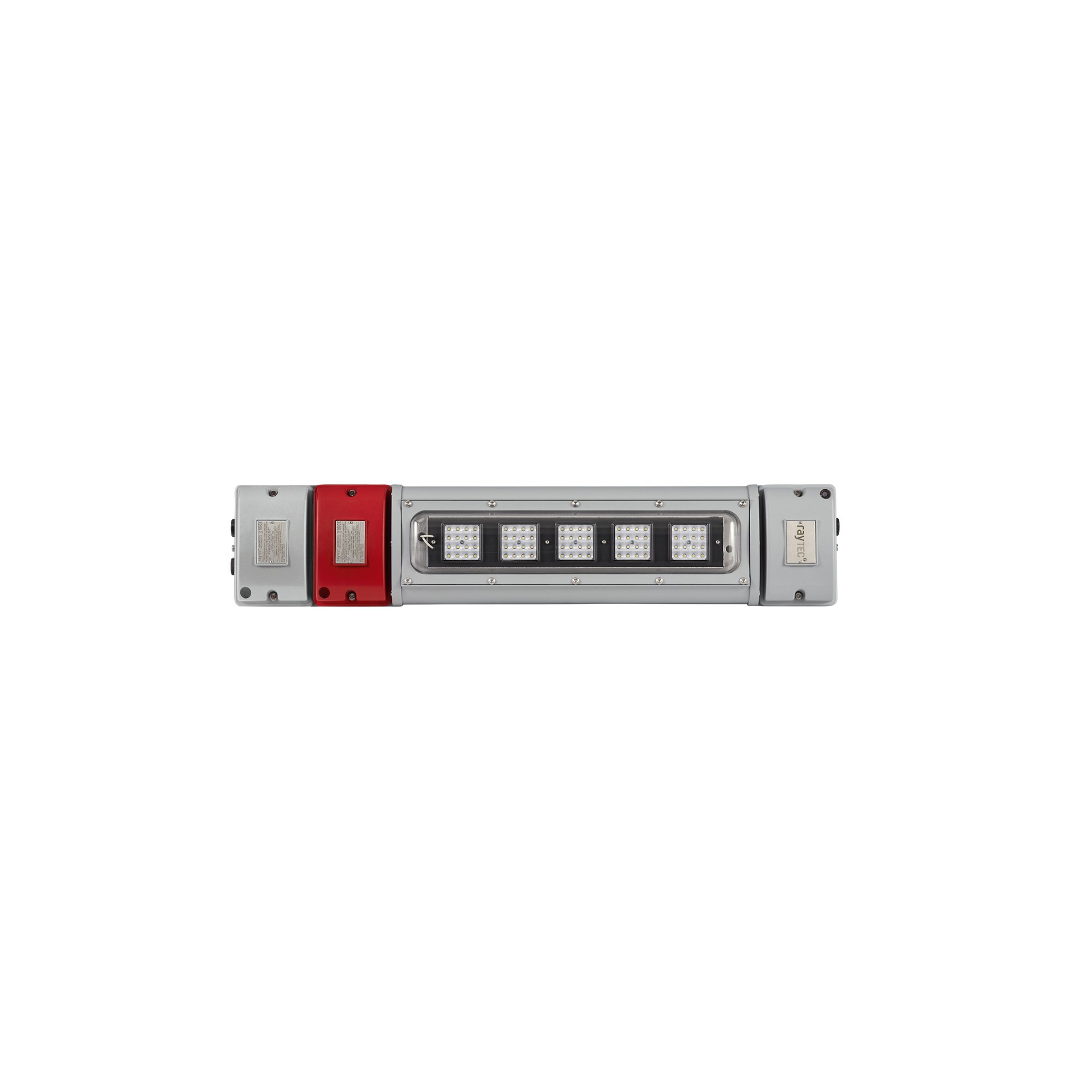

WL84-HO Emergency
FunctionSelf-testing intelligent emergency
System Health IndicatorTri-colour LED indicator
Emergency DurationUp to 3hrs @ 25% power
Other options available
Emergency BatteryNi/Cd 12V
Emergency Charge Time20 hours

Product Dimensions.

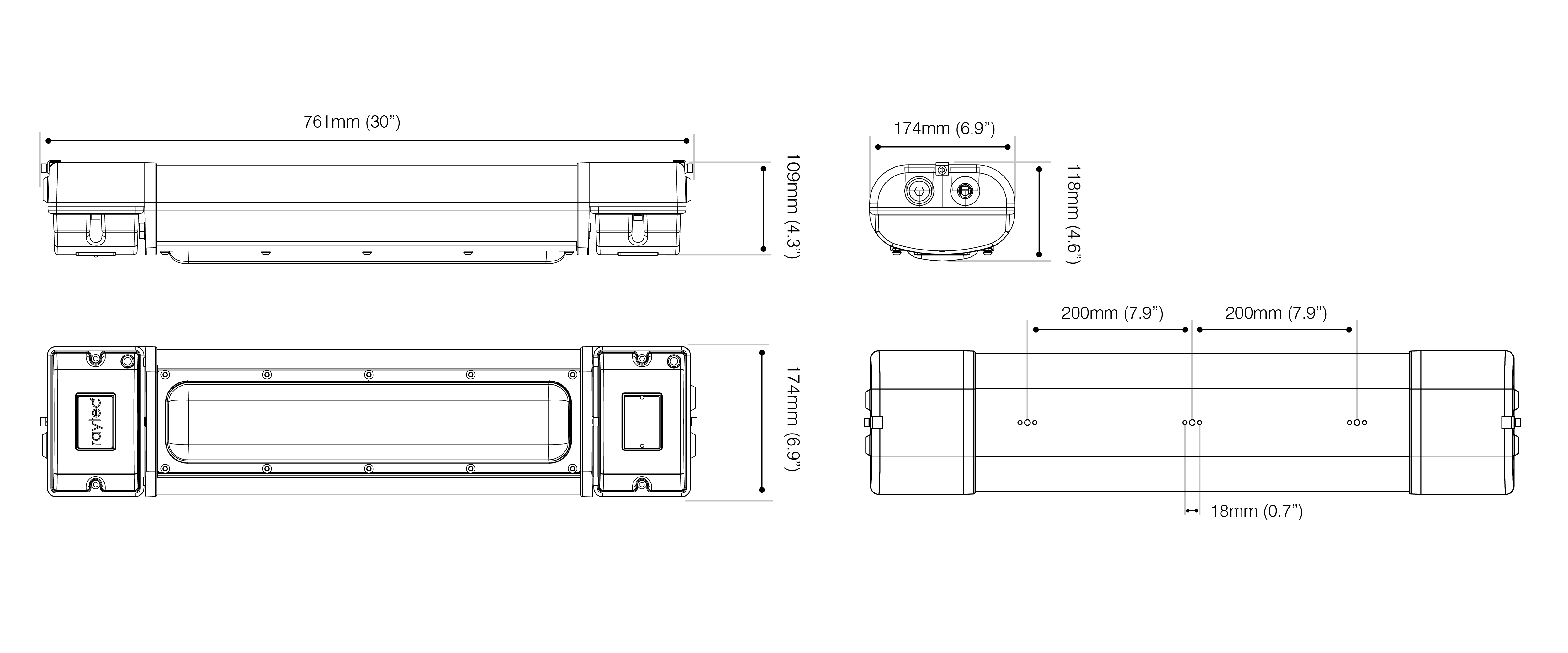

WL84 High Output - Standard WL84 High Output - Standard

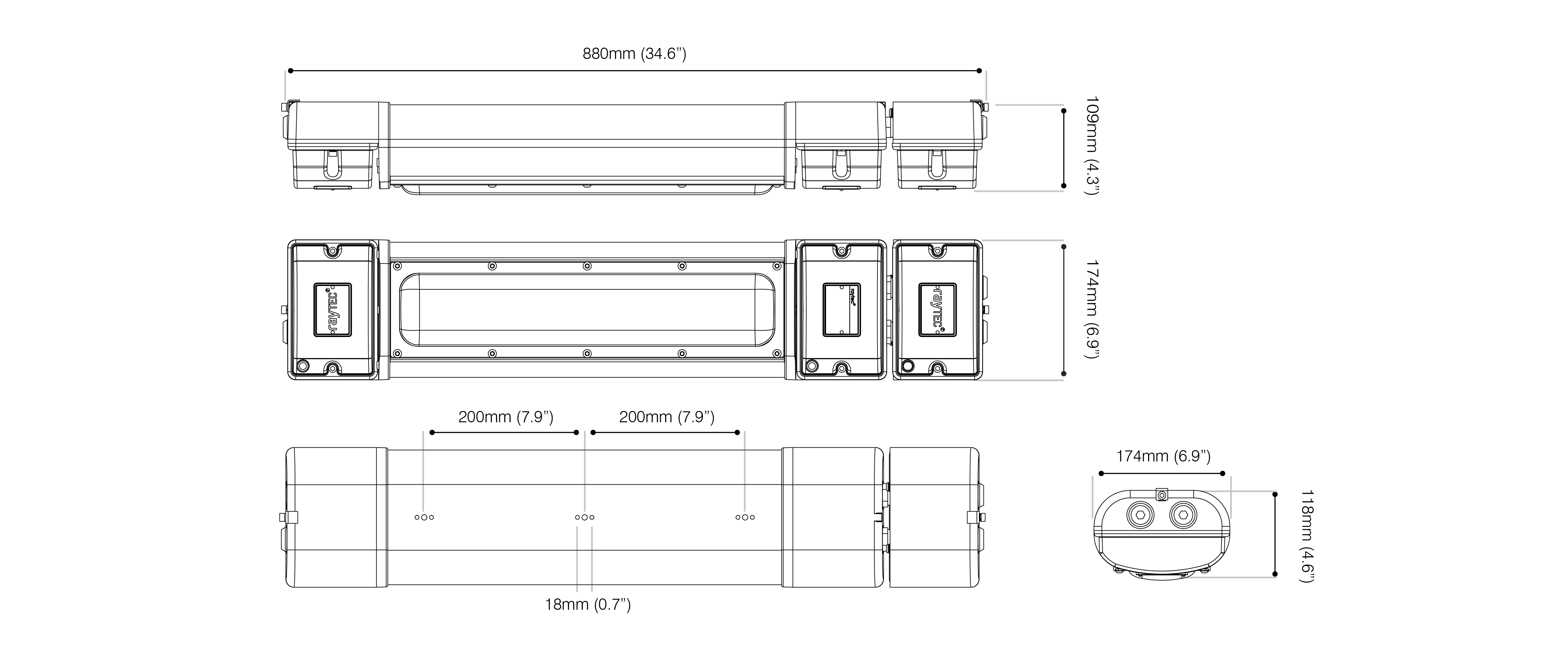

WL84 High Output - Emergency WL84 High Output - Emergency

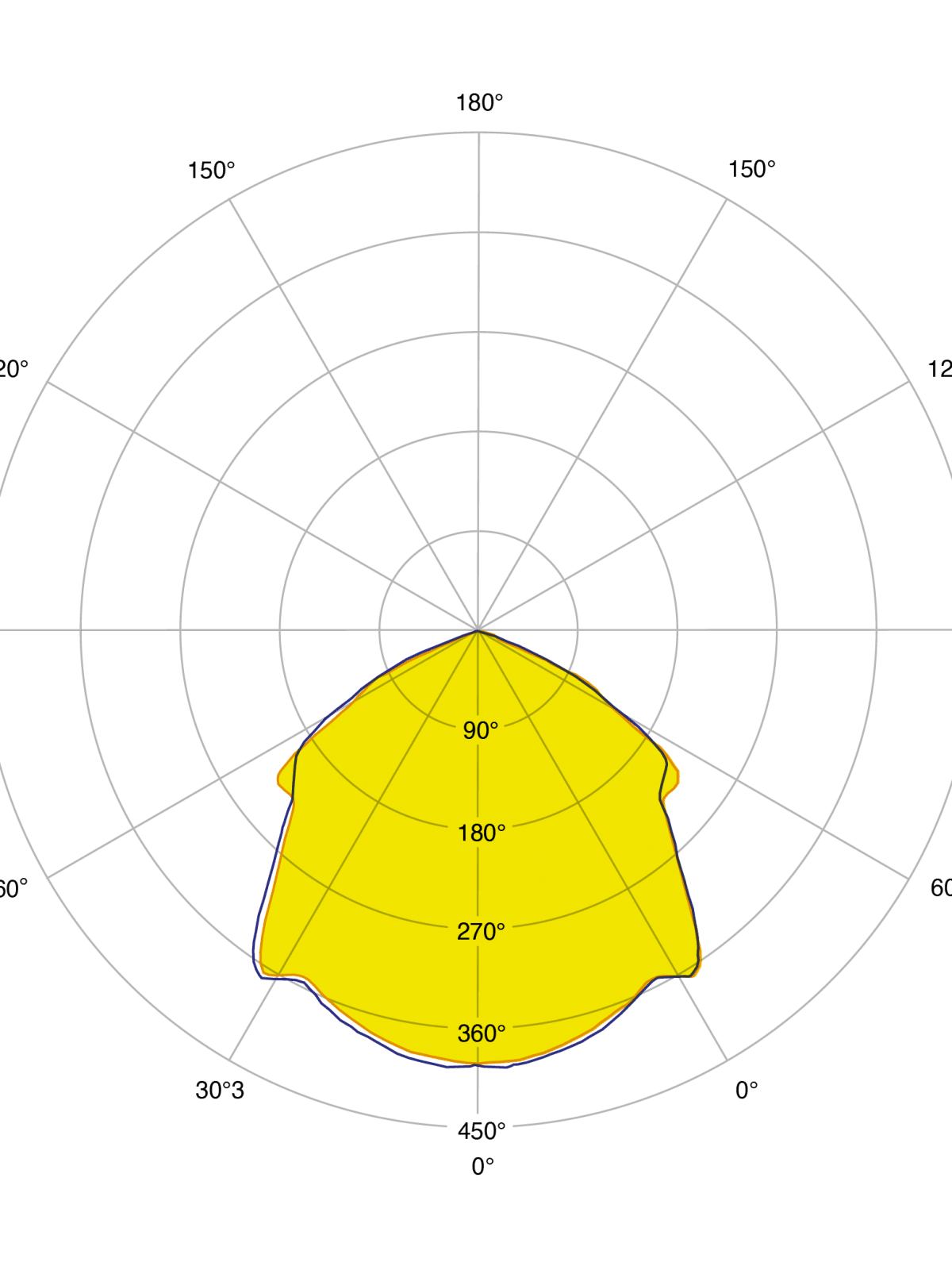

Light Distribution.

Standard Optic

Symmetrical Optics

Asymmetrical Optics
