Linear WL168

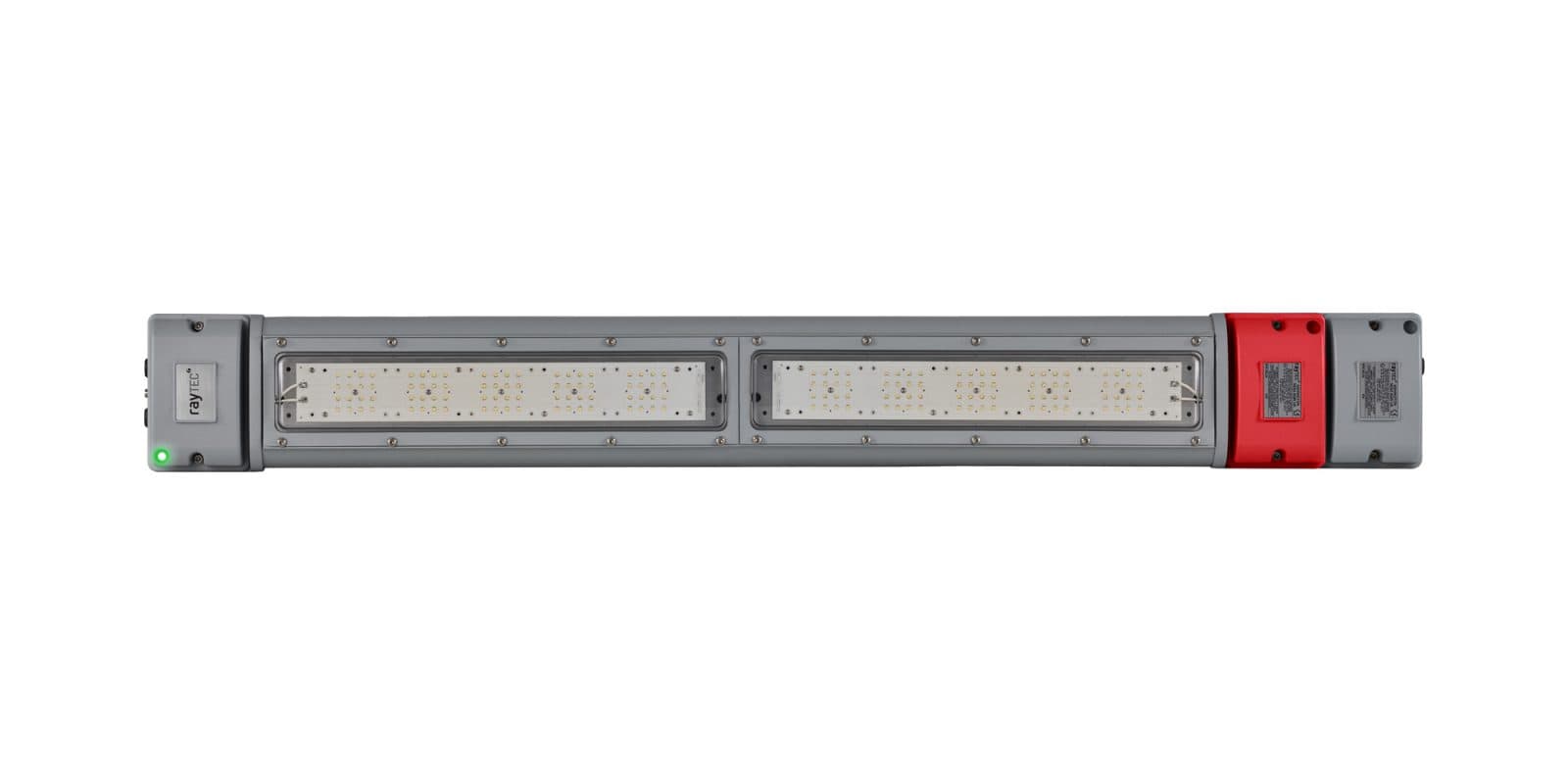

SPARTAN Linear WL168, Zone 2/22, 7,048lm

Sector: Hazardous
Certification: ATEX, IECEx and UKEX
Classification: Zone 2 & 22

The SPARTAN Linear range is designed to retrofit conventional fluorescent fittings or for use in new hazardous area installations. Designed to provide extreme levels of durability, and with a unique modular design which makes maintenance quick and easy. All SPARTAN luminaires are designed and manufactured in the UK and come with an industry-leading 5-year warranty.

Request a quote Add to quote

Jump to Downloads

Ultra-Powerful.

SPARTAN Linear delivers industry-leading power and performance with an efficacy of up to 142 lumens per watt on standard variants.

Robust and Durable.

Housed in marine-grade aluminium with stainless steel fasteners and brackets, Linear is IP66 and IP67 rated and can survive in the most extreme environments.

Bespoke LED.

Raytec are specialists in LED and SPARTAN Linear has been specifically designed around the LEDs with a bespoke housing for optimum performance and reliability.

Choice of Optics.

Available with a choice of different optics to suit a wide range of applications, including asymmetric patterns for aisle, corridor and perimeter installations.

Ex Linear Lighting - easy maintenance — Key components such as the LED and PSU modules are easily accessible for straightforward maintenance and inspection.

WL168 Variants.

SPARTAN Linear is available in a number of different variants to suit a wide range of applications.

Safety Shower

Green LED technology designed for use where safety shower units are located.
Dominant wavelength: 519nm
Dedicated optic for maximum visibility

Wildlife Friendly

Amber LED technology designed to protect wildlife in coastal locations or natures reserves.
Dominant wavelength: 600nm

Diffused Lenses

Diffused lenses help to soften the light outut and are available as accessories or can come pre-fitted as standard

WL168 Essential

WL168 Essential for loop in, loop out installations

4ft / 2x36W Retrofit

The standard Linear is a direct replacement for traditional 2x36W, or 4ft fluorescent luminaires

5ft / 2x58W Retrofit

The WL168-1500 features an elongoated body and is a direct replacement for traditional 2x58W fluorescent luminaires

Specs

Select Option

	WL168	WL168 Emergency	WL168 Essential
ATEX Rating	ATEX UKEX and IEC Ex rated for Gas and Dust
Hazardous Area Rating	Zone 2 (Gas), Zone 22 (Dust) (Zone 21 Version also available : Zone 2 (Gas) Zone 21/22 (Dust))
Certificates	Zone 2/22 version: CML15ATEX4138 IEC Ex CML15.0068 CML21UKEX4104 Zone 21 version: CML16ATEX1130 IEC Ex CML16.0052 CML21UKEX1100
Gas	Gas: II 3 G D Ex ec mc IIC T4 Gc Ta= -40°C to+60°C (-20°C to +50°C for emergency variants)
Dust	Ex tc IIIC T80°C Dc Ta= -40°C to+60°C (-20°C to +50°C for emergency variants)
ABS Certificate Number	# 20-1990083-PDA

	WL168	WL168 Emergency	WL168 Essential
Input	Standard: 110-254Vac 50/60Hz, 110-254Vdc * Low voltage: 18-48V AC and 18-69V DC Extra low voltage: 12V AC/DC	110-254V 50/60Hz AC only	110-254Vac 50/60Hz 110-254Vdc *
Power	49W	56W	49W
Termination	Incoming terminal block suitable for looping 4 core 4mm² cable
Power Factor	>0.95
Cable Entries	2xM20 cable entries at both ends, through wired as standard. Dispatched complete with three ATEX/IEC Ex/UKEX approved blanking plugs	2xM20 cable entries at both ends, through wired as standard. Dispatched complete with three ATEX/IEC Ex/UKEX approved blanking plugs	2xM20 cable entries at one end. Loop in loop out as standard. Dispatched complete with one ATEX/UKEX/IEC Ex approved blanking plugs
*T6 variant is AC Only

	WL168	WL168 Emergency	WL168 Essential
Lumen Output on Mains	7048
LED Type	Platinum Elite SMT LEDs
Number of LEDs	160
CRI	80+
Colour Temperature	6500K standard

	WL168	WL168 Emergency	WL168 Essential
Enclosure	Marine grade aluminium epoxy powder coated, UV stabilised polycarbonate, all external fasteners and brackets are marine grade stainless steel
Unit Colour	Silver (RAL 9006)	Silver (RAL 9006), Red (RAL3024) - Emergency battery cover	Silver (RAL 9006)
Mounting	Via M8/M6 tapped holes. Various mounting arrangements available (please see product overview guide)
