Linear WL168

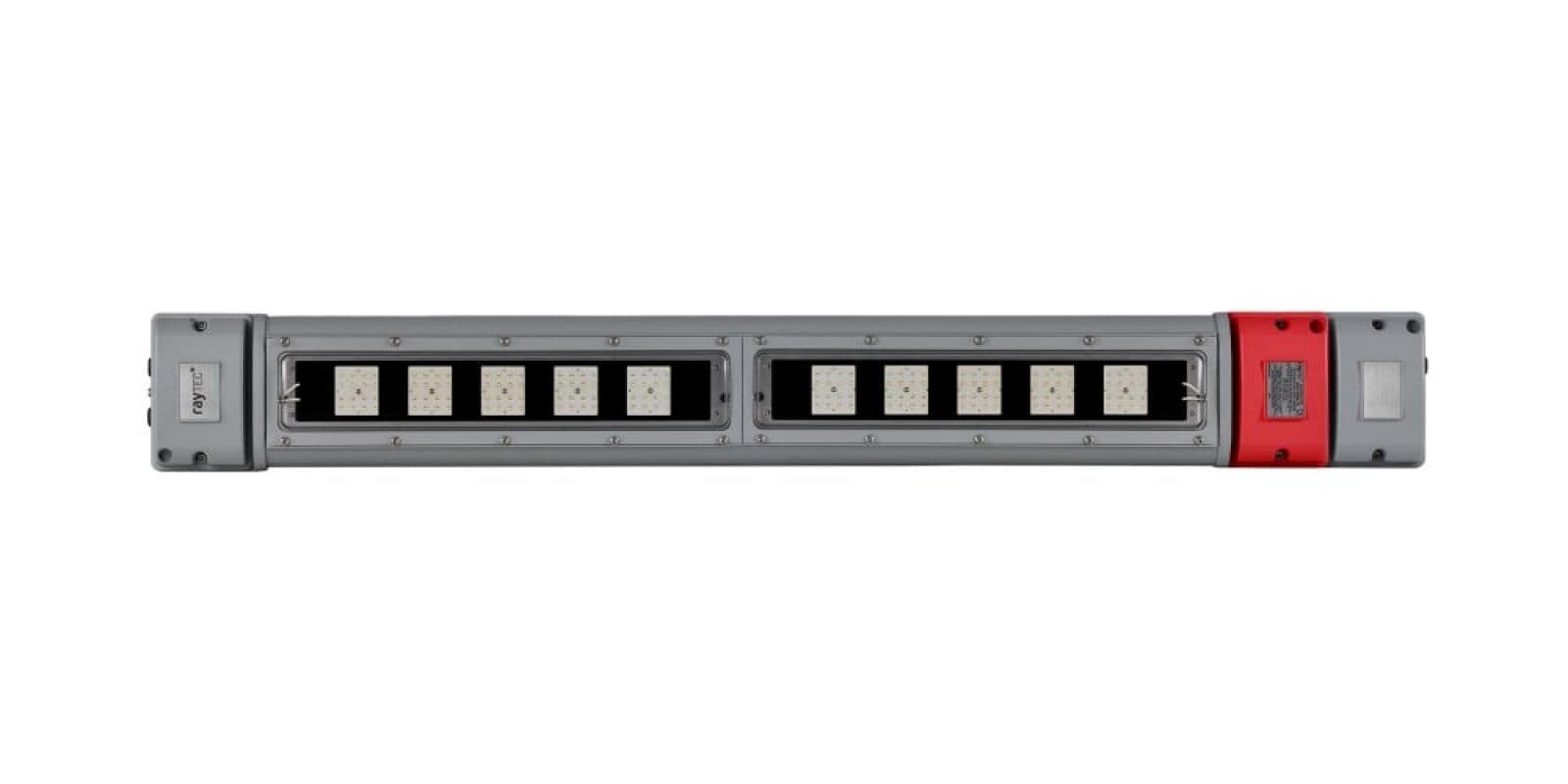

SPARTAN Linear WL168, Zone 1/21, 6,130lm

About SPARTAN Linear WL168 Zone 1

Sector
Hazardous
Certification
ATEX, IECEx and UKEX
Classification
Zone 1 & 21

The SPARTAN Linear range is designed to retrofit conventional fluorescent fittings or for use in new hazardous area installations. Ex Linear lighting that’s designed to provide extreme levels of durability, and with a unique modular design which makes maintenance quick and easy. All SPARTAN luminaires are designed and manufactured in the UK and come with an industry-leading 5-year warranty.

Jump to Downloads

Ultra-Powerful.

SPARTAN Linear delivers industry-leading power and performance with an efficacy of up to 142 lumens per watt on standard variants.

Robust and Durable.

Housed in marine-grade aluminium with stainless steel fasteners and brackets, Linear is IP66 and IP67 rated and can survive in the most extreme environments.

Bespoke LED.

Raytec are specialists in LED and SPARTAN Linear has been specifically designed around the LEDs with a bespoke housing for optimum performance and reliability.

Choice of Optics.

Available with a choice of different optics to suit a wide range of applications, including asymmetric patterns for aisle, corridor and perimeter installations.

WL168 Variants.

SPARTAN Linear is available in a number of different variants to suit a wide range of applications.

Ex Linear Lighting - safety shower Ex Linear Lighting - safety shower

Safety Shower

Green LED technology designed for use where safety shower units are located.
Dominant wavelength: 519nm
Dedicated optic for maximum visibility

Ex Linear Lighting - turtle friendly Ex Linear Lighting - turtle friendly

Wildlife Friendly

Amber LED technology designed to protect wildlife in coastal locations or natures reserves.
Dominant wavelength: 600nm

Ex Linear Lighting - diffused lens Ex Linear Lighting - diffused lens

Diffused Lenses

Diffused lenses help to soften the light outut and are available as accessories or can come pre-fitted as standard

Ex Linear Lighting - essential variants Ex Linear Lighting - essential variants

WL168 Essential

WL168 Essential for loop in, loop out installations

Ex Linear Lighting Ex Linear Lighting

4ft / 2x36W Retrofit

The standard Linear is a direct replacement for traditional 2x36W, or 4ft fluorescent luminaires

Ex Linear Lighting - retrofit variants Ex Linear Lighting - retrofit variants

5ft / 2x58W Retrofit

The WL168-1500 features an elongoated body and is a direct replacement for traditional 2x58W fluorescent luminaires

Specs

WL168WL168 EmergencyWL168 Essential
ATEX RatingATEX UKEX and IEC Ex rated for Gas and Dust
Hazardous Area RatingZone 1 (Gas), Zone 21(Dust)
CertificatesCML14ATEX3119 & IECExCML15.0001 & CML21UKEX3105
GasII 2 G D, Ex eb mb IIC T4 Gb, Ta= -40°C to+60°C (-20°C to +50°C for emergency variants)
DustEx tb IIIC T80°C Db, Ta= -40°C to+60°C, (-20°C to +50°C for emergency variants)
ABS Certificate Number# 20-1990083-PDA
WL168WL168 EmergencyWL168 Essential
InputStandard: 110-254V AC, Low voltage: 18-48V AC and 18-69V DC, Extra low voltage: 12V AC/DC110-254V AC onlyStandard: 110-254V AC, Low voltage: 18-48V AC and 18-69V DC, Extra low voltage: 12V AC/DC
Power49W56W49W
TerminationIncoming terminal block suitable for looping 4 core 4mm² cable
Power Factor>0.95
Cable Entries2xM20 cable entries at both ends, through wired as standard. Dispatched complete with three ATEX/IEC Ex/UKEX approved blanking plugs2xM20 cable entries at both ends, through wired as standard. Dispatched complete with three ATEX/IEC Ex/UKEX approved blanking plugs2xM20 cable entries at one end. Loop in loop out as standard (other entries available upon request), dispatched complete with one ATEX/UKEX/IEC Ex approved blanking plugs
WL168WL168 EmergencyWL168 Essential
Lumen Output on Mains6130
LED TypePlatinum Elite SMT LEDs
Number of LEDs80
CRI80+
Colour Temperature6500K standard
WL168WL168 EmergencyWL168 Essential
EnclosureMarine grade aluminium epoxy powder coated, UV stabilised polycarbonate, all external fasteners and brackets are marine grade stainless steel
Unit ColourSilver (RAL 9006)Silver (RAL 9006), Red (RAL3024) - Emergency battery coverSilver (RAL 9006)
MountingVia M8/M6 tapped holes. Various mounting arrangements available (please see product overview guide)

Product Dimensions.

SPARTAN Linear W168 Dimensions WL168 Standard
SPARTAN Linear W168 Essential Dimensions WL168 Essential
SPARTAN Linear W168-1500 Dimensions WL168-1500

Light Distribution.

Standard Optic

Symmetrical Optics

Asymmetrical Optics

Downloads.
