Safety Shower
Green LED technology designed for use where safety shower units are located.
Dominant wavelength: 519nm
Dedicated optic for maximum visibility
Linear WL168 High Output
SPARTAN Linear WL168, High Output, Zone 1/21, 12,260lm
About SPARTAN Linear WL168 High Output Zone 1/21
- Sector
- Hazardous
- Certification
- ATEX, IECEx and UKEX
- Classification
- Zone 1 & 21
The SPARTAN Linear High Output range is an ideal solution for new hazardous area installations, offering twice the lumen output than the standard SPARTAN Linear whilst retaining the same luminaire look and feel. The increase in power means fewer luminaires are required across an installation when compared to traditional Linear fittings, while SPARTAN Linear High Output can also be utilised as a cost-effective alternative to low bay luminaires.
SPARTAN Linear has been designed to provide extreme levels of durability and features a unique modular design which makes maintenance quick and easy. All SPARTAN luminaires are designed and manufactured in the UK and come with an industry-leading 5-year warranty.
Jump to Downloads
Ultra-Powerful.
SPARTAN Linear High Output delivers industry-leading power and performance with a high lumen output of up to 12,000lm.
Robust and Durable.
Housed in marine-grade aluminium with stainless steel fasteners and brackets, Linear High Output is IP66 and IP67 rated and can survive in the most extreme environments.
Bespoke LED.
Raytec are specialists in LED and SPARTAN Linear High Output has been specifically designed around the LEDs with a bespoke housing for optimum performance and reliability.
Choice of Optics.
Available with a choice of different optics to suit a wide range of applications, including asymmetric patterns for aisle, corridor and perimeter installations.
Easy Maintenance.
Fully Retrofitable.
WL168 Variants.
SPARTAN Linear High Output is available in a number of different variants to suit a wide range of applications.
Wildlife Friendly
Amber LED technology designed to protect wildlife in coastal locations or natures reserves.
Dominant wavelength: 600nm
Diffused Lenses
Diffused lenses help to soften the light outut and are available as accessories or can come pre-fitted as standard
Specs
Select Option
| WL168-HO | |
|---|---|
| ATEX Rating | ATEX UKEX and IEC Ex rated for Gas and Dust |
| Hazardous Area Rating | Zone 1 (Gas), Zone 21 (Dust) |
| Certificates | CML14ATEX3119 IECExCML15.0001 CML21UKEX3105 |
| Gas | II 2 G D Ex eb mb IIC T4 Gb Ta= -40°C to+60°C |
| Dust | Ex tb IIIC T80°C Db Ta= -40°C to+60°C |
| ABS Certificate Number | # 20-1990083-PDA |
| WL168-HO | |
|---|---|
| Input | Standard: 110-254Vac 50/60Hz 110-254Vdc |
| Power | 96W |
| Termination | Incoming terminal block suitable for looping 4 core 4mm² cable (6mm² available ) |
| Power Factor | >0.95 |
| Cable Entries | 2xM20 cable entries at both ends, through wired as standard (other entries available upon request), dispatched complete with three ATEX/UKEX/IEC Ex approved blanking plugs |
| WL168-HO | |
|---|---|
| Lumen Output on Mains | 12,260 |
| LED Type | Platinum Elite SMT LEDs |
| Number of LEDs | 160 |
| CRI | 80+ |
| Colour Temperature | 6500K standard |
| WL168-HO | |
|---|---|
| Burning Position | Universal |
| IP Rating | IP66 & IP67 |
| IK Rating | IK10 |
| Temperature Range | -40°C to +60°C |
| Weight | 10kg (22lbs) |
| Enclosure | Marine grade aluminium epoxy powder coated, UV stabilised polycarbonate, all external fasteners and brackets are marine grade stainless steel |
| Unit Colour | Silver (RAL 9006) |
| Mounting | Via M8/M6 tapped holes. Various mounting arrangements available (please see product overview guide) |

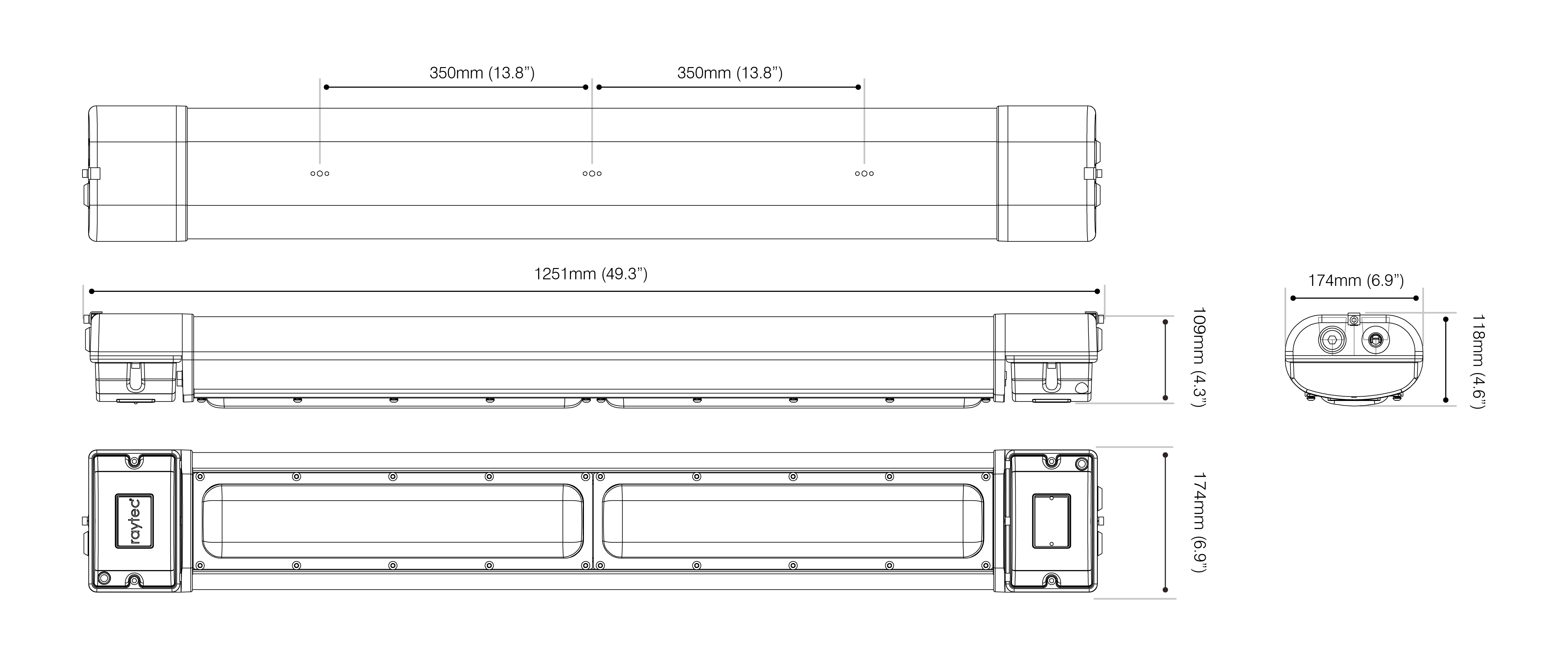

Product Dimensions.
WL168 High Output - StandardLight Distribution.
Standard Optic
Symmetrical Optics
Asymmetrical Optics
