Linear Spigot

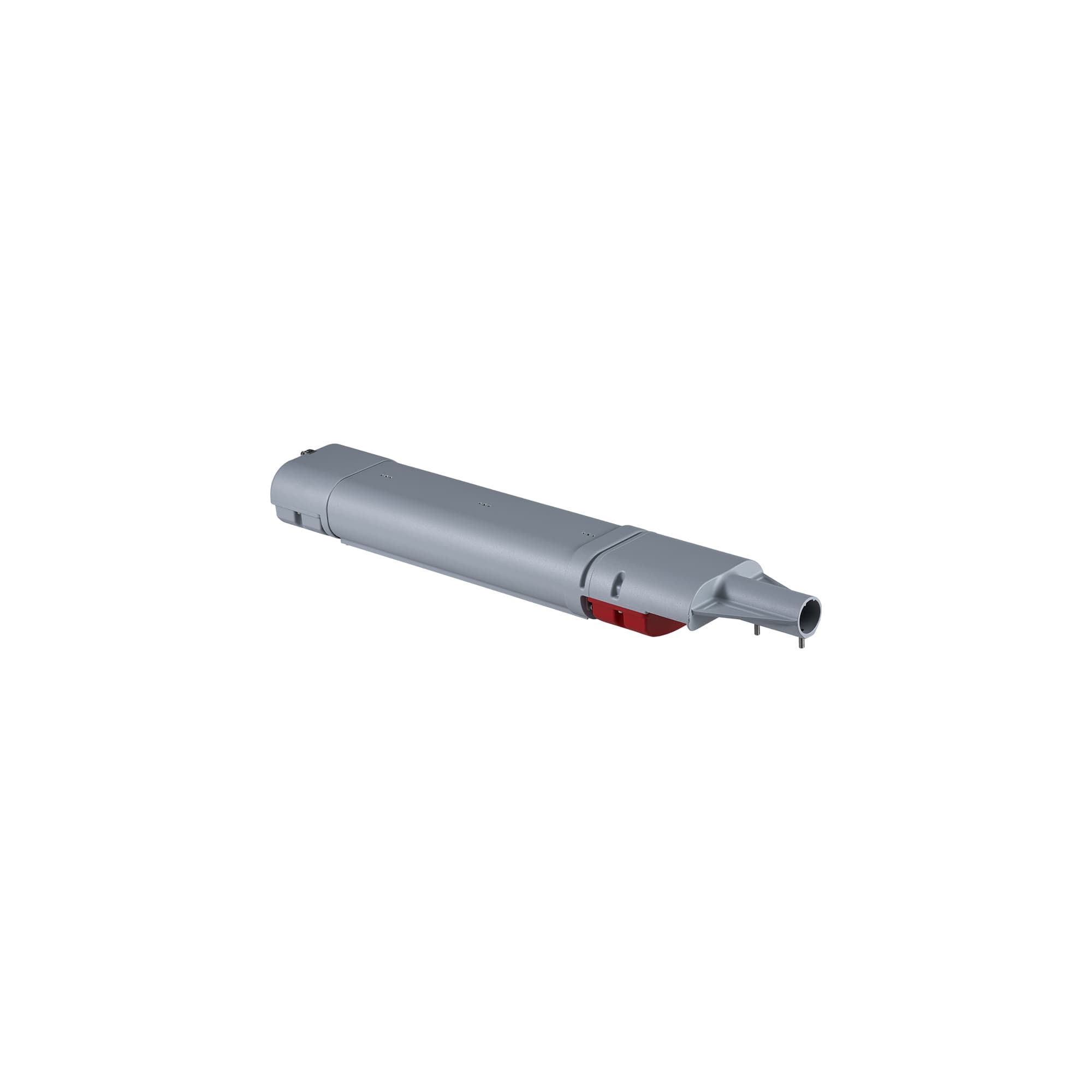

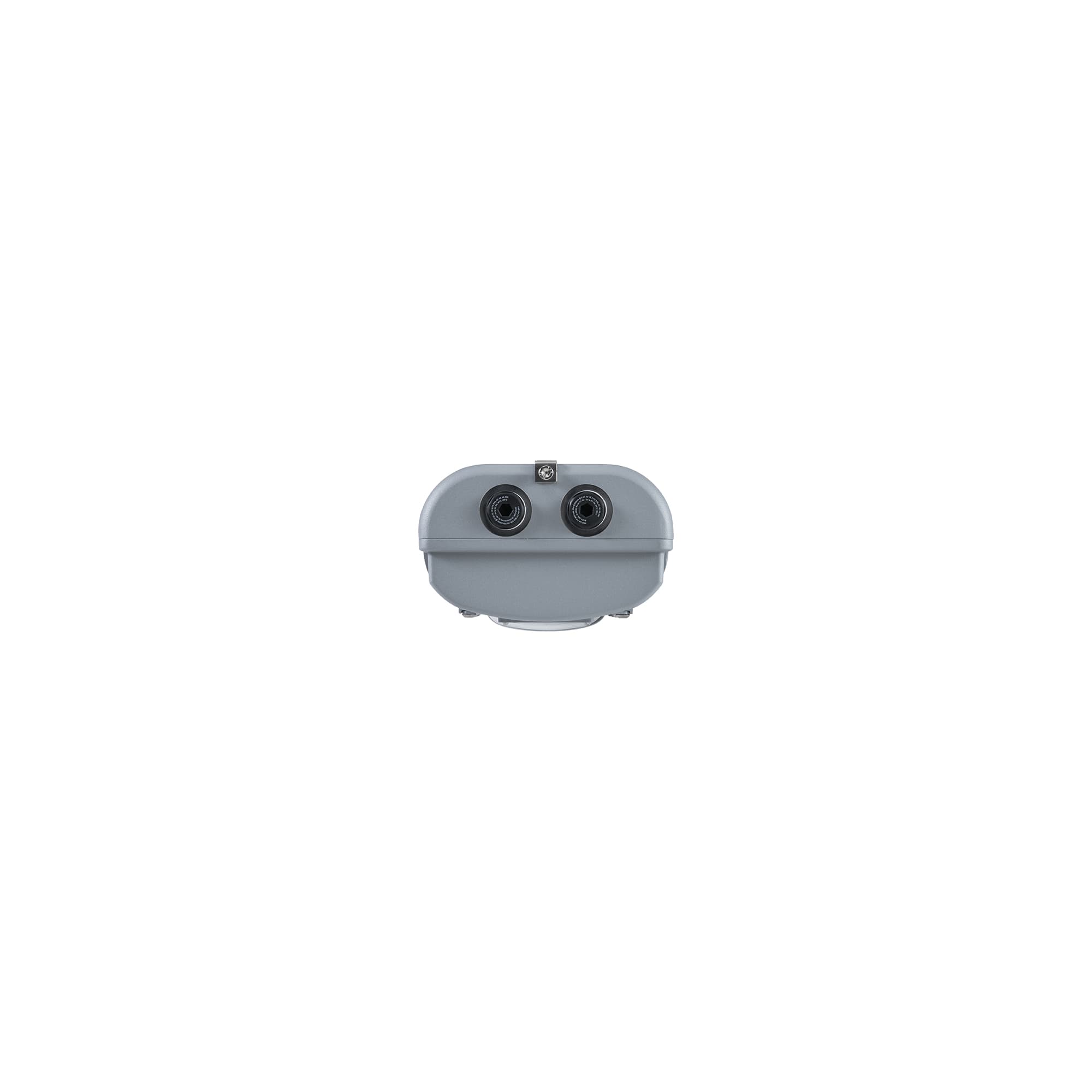

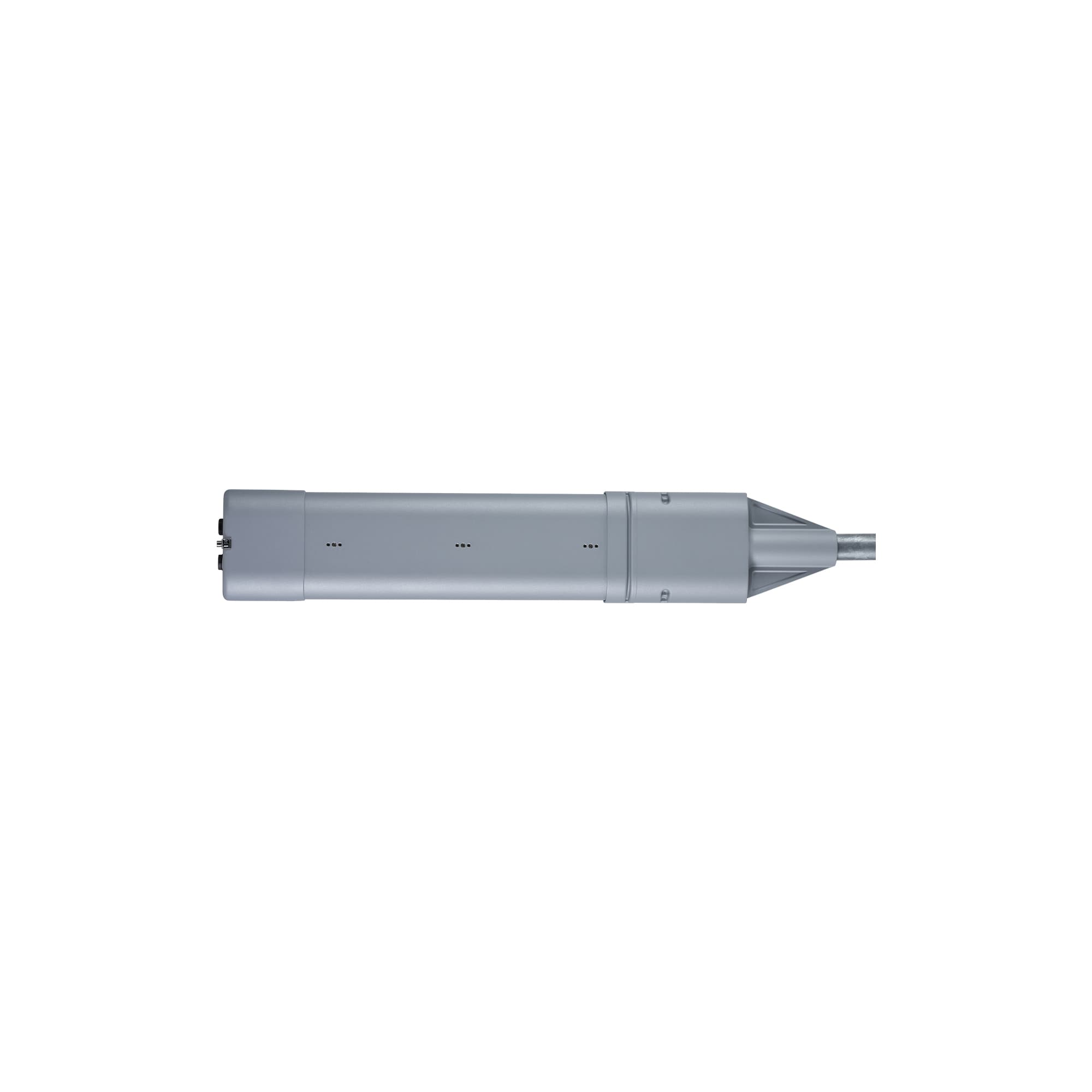

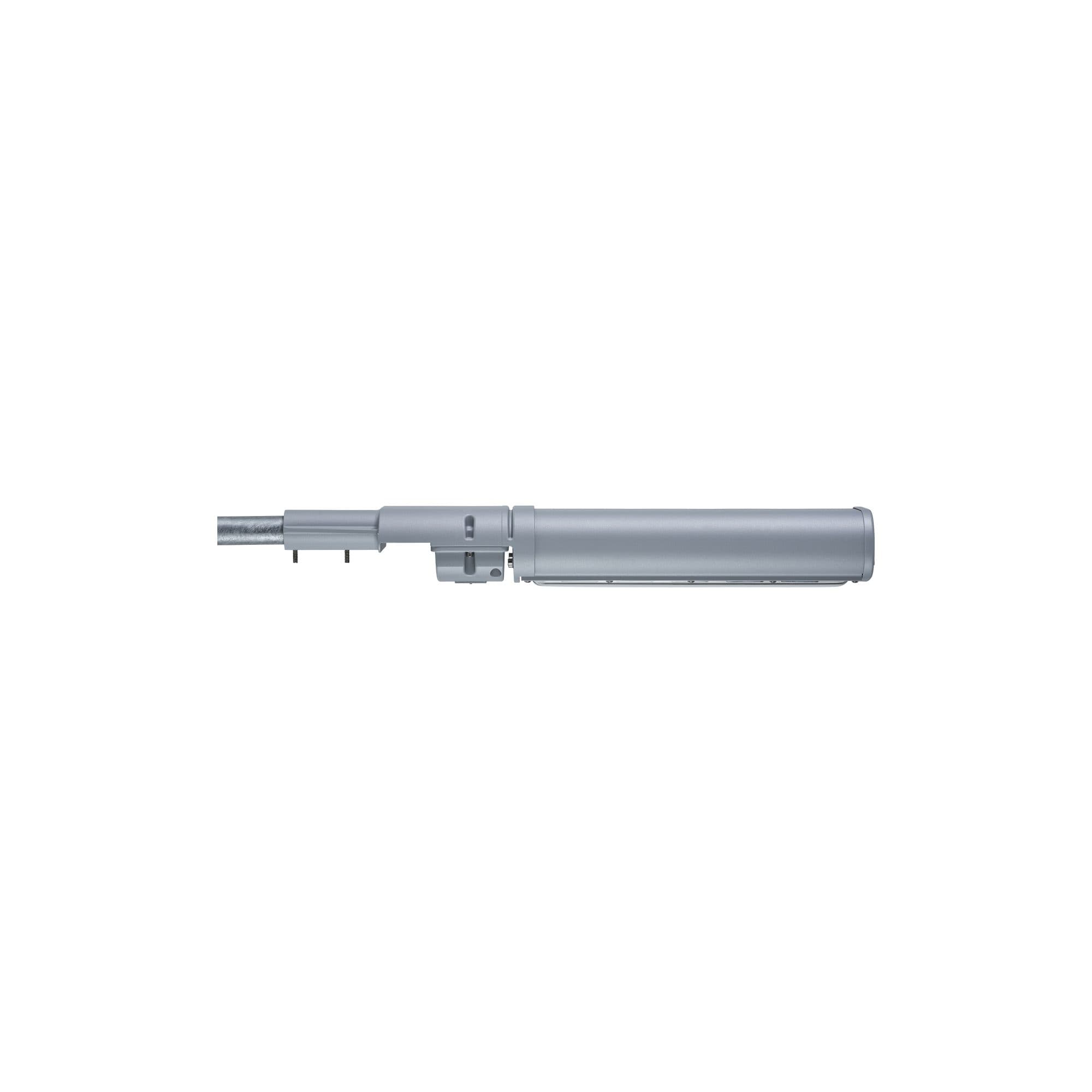

SPARTAN Linear Spigot, Class I Division 2, 3,525-7,048lm

About SPARTAN Linear Spigot CID2

Sector
Hazardous
Certification
UL/CSA Class I Division 2 rated for Gas and Dust
Classification
Class I, Div 2, Gp ABCD T4 Class II, Div 1, Div 2, Gp E,F,G Tamb = -40ºC to +55ºC Enclosure Type 4X Applicable Standards CSA C22.2 No. 94.2-07, CSA C22.2 No 25-M1966 CSA C22.2 No. 213-M1987, CSA C22.2 No. 250.13-14 CSA C22.2 No. 141-15, ANSI/ISA 12.12.01-2013, UL 1203 – 5th ed., UL 50E 1st ed UL 8750-1st ed., UL 924 10th ed, UL 844 13th ed

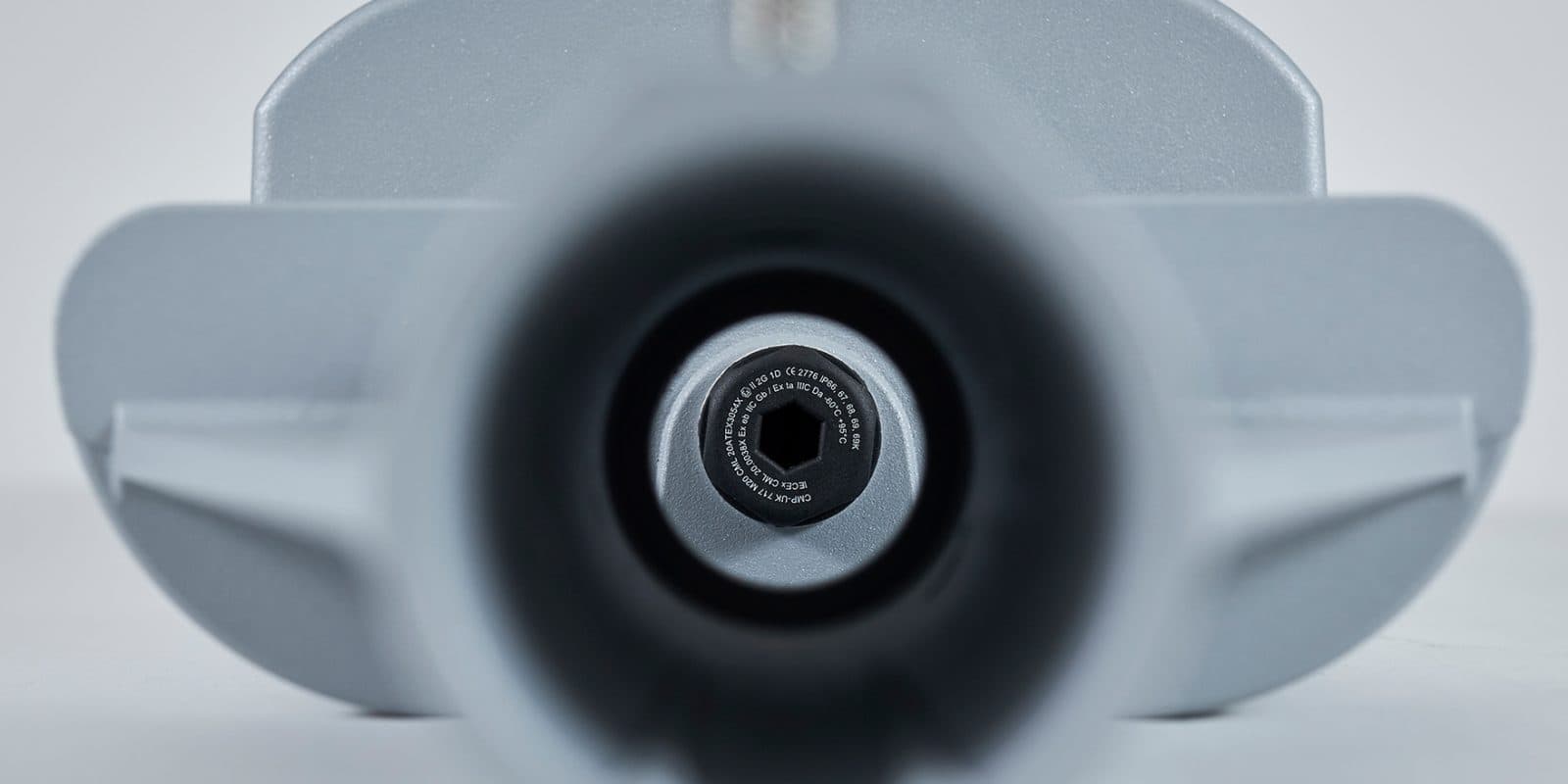

The SPARTAN Linear Spigot range is designed to retrofit existing fluorescent pole installations, or for new hazardous area pole mount applications. fittings or for use in new hazardous area installations. The integrated spigot bracket is designed to fit poles up to 42mm in diameter and is fully shrouded for environmental protection. All SPARTAN luminaires are designed and manufactured in the UK and come with an industry-leading 5-year warranty.

Jump to Downloads

Ultra Powerful.

SPARTAN Linear delivers industry-leading power and performance with an efficacy of up to 142 lumens per watt on standard variants.

Bespoke LED.

Raytec are specialists in LEDs, meaning SPARTAN Linear has been designed around the LEDs with a bespoke housing for optimum performance and reliability.

Intelligent Emergency.

Emergency variants are available to provide 3 hours of battery back-up at 25% power. The Intelligent Emergency system self-tests the battery and communicates via a tri-colour LED indicator.

Specs

Select Option

WL84WL84 EMX25WL168
Division MarkingClass I, Div 2, Gp ABCD T4 Class II, Div 1, Div 2, Gp E,F,G Tamb = -40ºC to +55ºC Enclosure Type 4X Applicable Standards CSA C22.2 No. 94.2-07, CSA C22.2 No 25-M1966 CSA C22.2 No. 213-M1987, CSA C22.2 No. 250.13-14 CSA C22.2 No. 141-15, ANSI/ISA 12.12.01-2013, UL 1203 – 5th ed., UL 50E 1st ed UL 8750-1st ed., UL 924 10th ed, UL 844 13th ed
ABS Certificate #ABS Certificate # 23-2432337-PDA
WL84WL84 EMX25WL168
InputStandard: 110-254V AC 50/60Hz 110-254V DC * Low voltage version: 18-48V AC and 18-69V DC110-254V 50/60Hz AC only110-254V AC 50/60Hz 110-254V DC
Power24W32W4859W
TerminationIncoming terminal block suitable 4 core 4mm² cable (6mm² available)
Power Factor>0.95
Cable Entries1x 3/4" NPT cable entry as standard (other entries available upon request), dispatched complete with an approved blanking plug
WL84WL84 EMX25WL168
Lumen Output on Mains35247048
LED typePlatinum Elite SMT LEDs
Number of LEDs8080
CRI80+
Colour Temperature6500K standard
WL84WL84 EMX25WL168
Burning PositionUniversal
IP RatingNEMA 4X (IP66 & IP67)
Temperature Range-40°F to +131°F (-40°C to +55°C)-4°F to +122°F (-20°C to +55°C)-40°F to +131°F (-40°C to +55°C)
Weight6kg (13.2lbs)7kg (15.4lbs)9kg (19.8lbs)
EnclosureMarine grade aluminium epoxy powder coated, UV stabalised polycarbonate, all external fasteners and brackets are marine grade stainless stee
Unit ColourSilver (RAL 9006)Silver (RAL 9006), Red (RAL3024) - Emergency battery coverSilver (RAL 9006)
MountingVia 34-42mm spigot entry. Grub screws provided as standard
WL84 EMX25
FunctionSelf-testing intelligent emergency backup
System Health IndicatorTri-colour LED indicator
Emergency DurationUp to 3hrs @ 25% power, other options available
Emergency BatteryNi/Cd 12V
Emergency Charge Time20 hours

Product Dimensions.

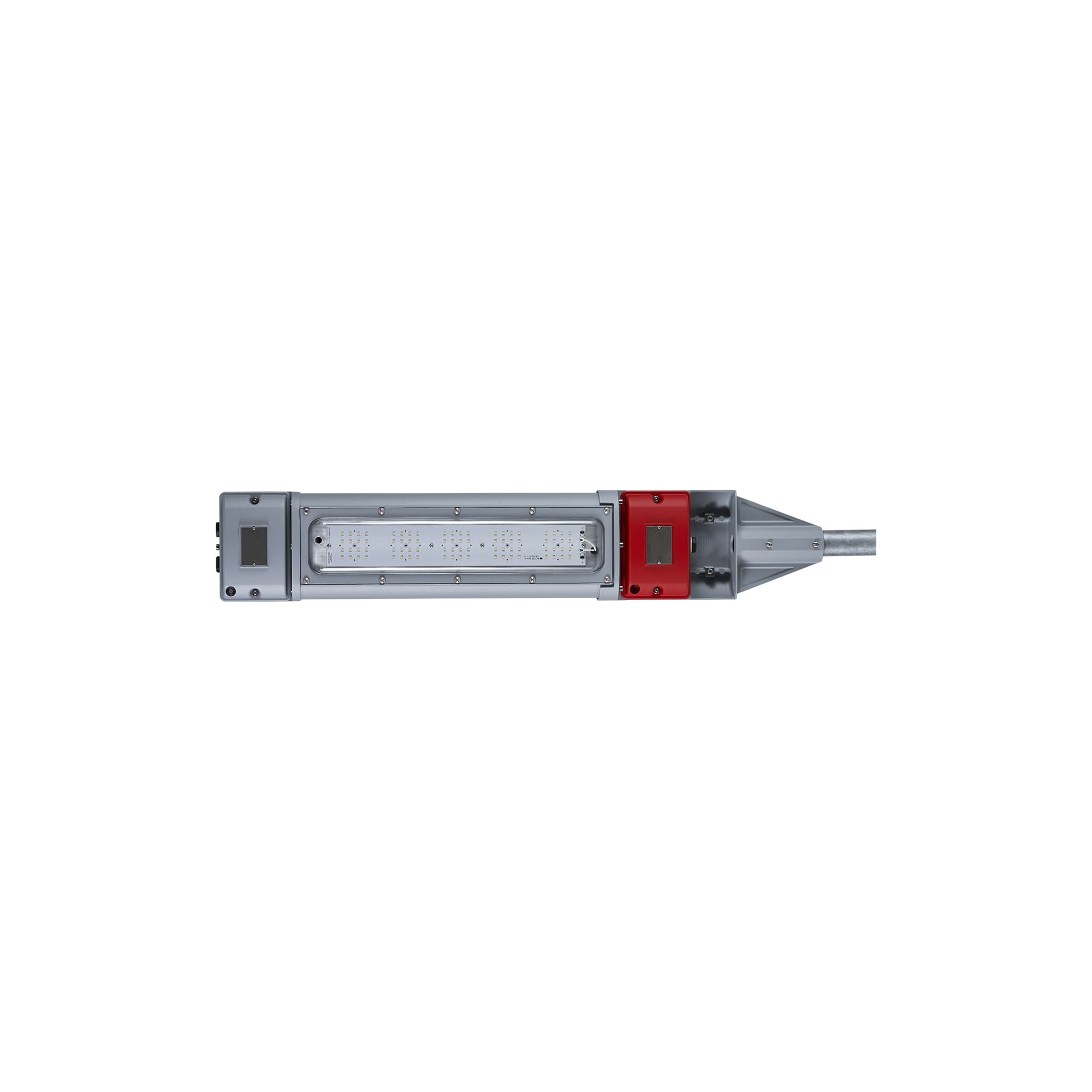

WL84 Spigot
WL84 Spigot Emergency
WL168 Spigot

Light Distribution.

Standard Optic

Symmetrical Optics

90 x 90
60x60
30x30

Asymmetrical Optics

Safety Shower - Wide Beam
Aisle - 80x30
PP3 Optic

Downloads.

SPARTAN Linear Spigot - CID2 - Datasheet CID2 Certificate - SPARTAN Linear SPARTAN Linear Mounting Acessories Guide 0920-D-00084 SPARTAN & WARRIOR Photometric Data ABS PDA Certificate
