High Power Flood

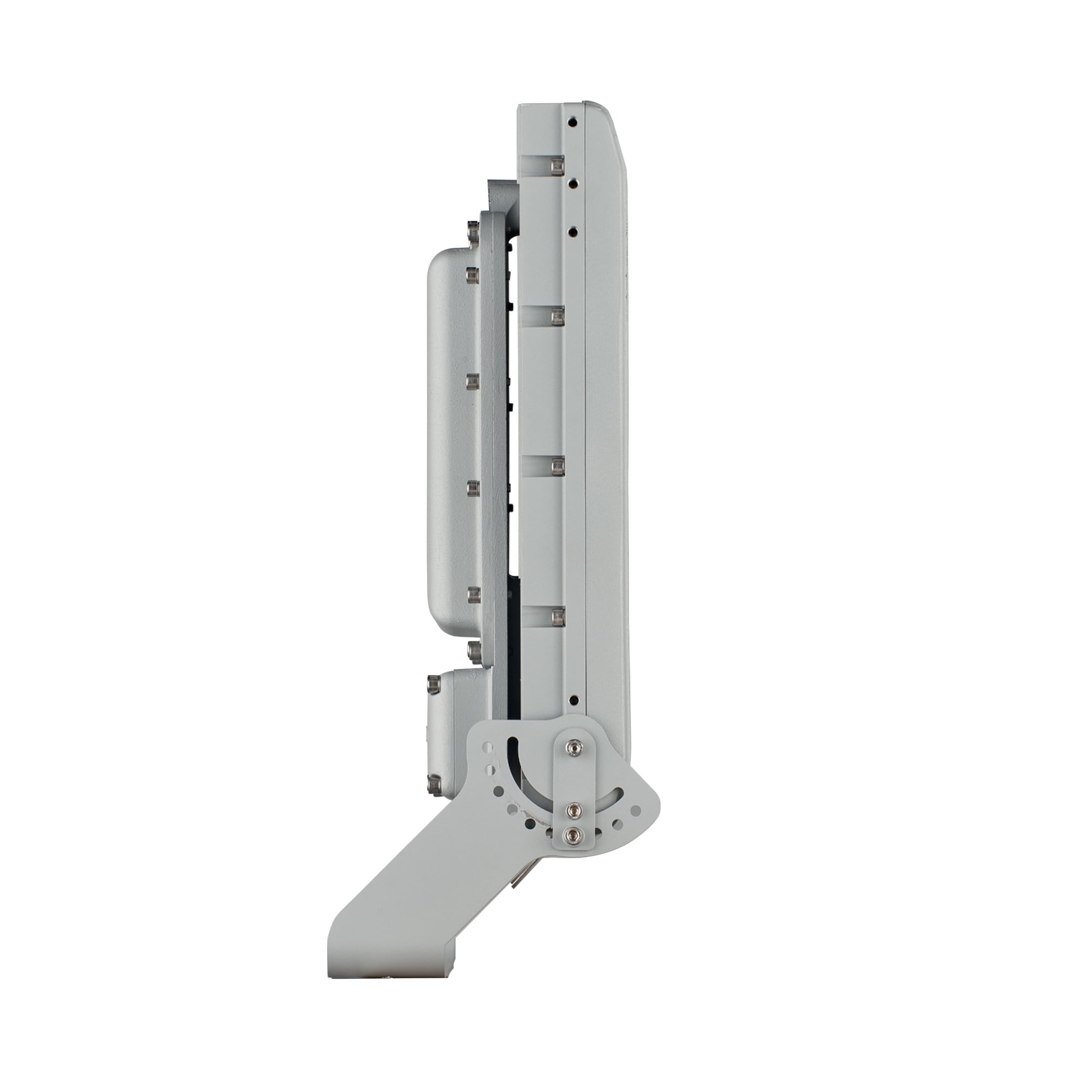

SPARTAN High Power Flood, Zone 2/22, 20,000lm - 34,000lm

Sector: Hazardous
Certification: ATEX, IECEx and UKEX
Classification: Zone 2 & 22

The SPARTAN High Power Flood Light range is designed to illuminate large, open spaces within hazardous area environments. Available with a range of different outputs from 20,000 to 34,000 lumens, the High Power Flood uses Raytec’s field-proven, long-life LED technology to ensure a lifetime of 10 years+. All SPARTAN luminaires come with an industry-leading 5-year warranty.

Request a quote Add to quote

Jump to Downloads

Raytec LED luminaires WARRIOR Flood light installed in an industrial application

Power and Performance.

High Power Flood Light - High lumen output up to 34,000 lumens and a range of beam patterns to effectively light up large open areas such as oil rigs.

Retrofittable and Modular.

Designed to directly replace traditional discharge light sources up to 400W SON. The modular design allows easy access to key components and the ability to mount the PSU remotely

ATEX LED FloodLight - Bracketry — Robust and durable construction from marine grade aluminium and with a wide operating temperature for even the most challenging conditions.

DALI 2.0 Dimmable as standard for precise and flexible control of lighting assets.

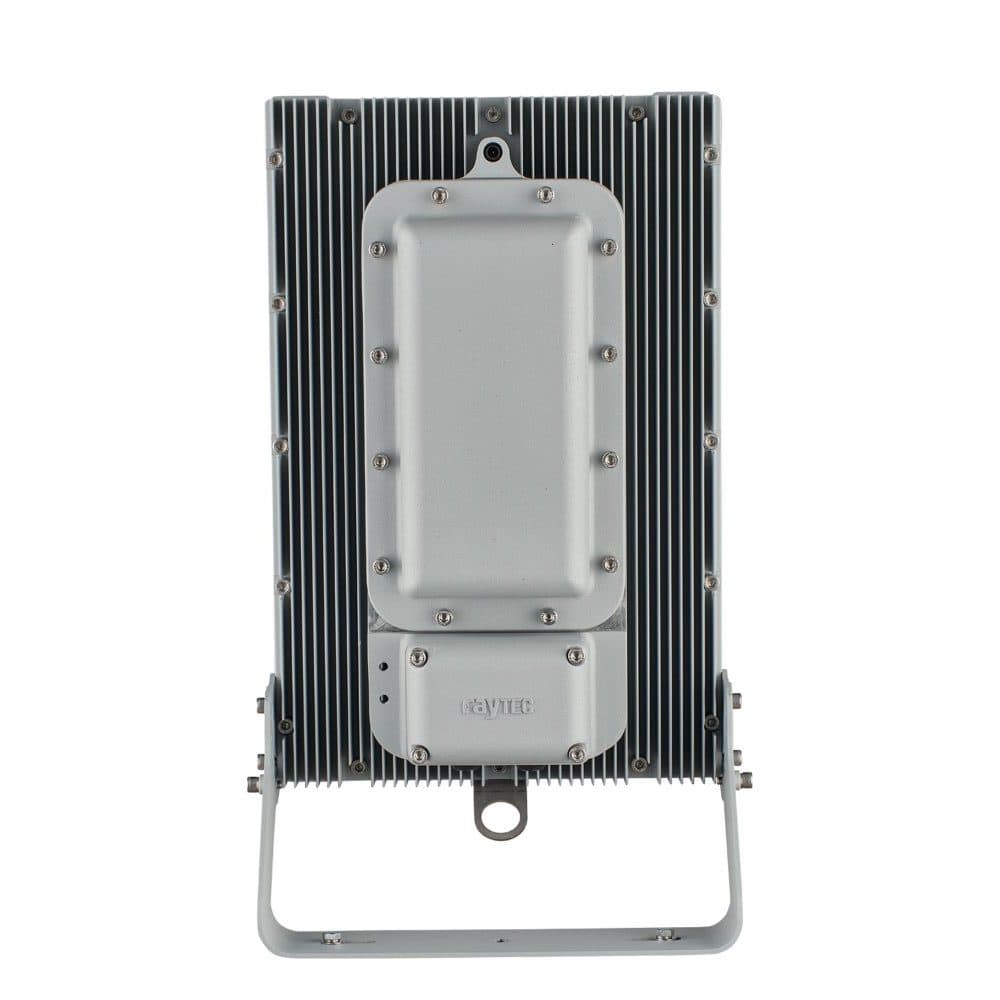

High power flood light — The modular design allows the power supply module to be mounted remotely, up to 100m away from the main luminaire. All wiring and serviceable parts can be positioned in an easy-to-access location to make installation easier, and future maintenance more efficient.

Specs

Select Option

	HPFL 20K	HPFL 25K	HPFL 30K
ATEX Rating	ATEX, UKEX and IEC Ex rated for Gas and Dust
Hazardous Area Rating	Zone 2 – Gas and Dust
Certificates	CML 17ATEX 4149 IEC Ex CML 17.0074 CML21UKEX4101
Gas	II 3 G D Ex ec nR IIC T4 Gc Ta= -50°C to +50°C
Dust	Ex tc IIIC T104°C Dc Ta+-50°C to +50°C IP66
ABS Certificate #	ABS Certificate # 20-1990083-PDA

	HPFL 20K	HPFL 25K	HPFL 30K
Input	150-264V 50/60Hz AC/DC (110V variant available - please contact Raytec)
Power	200W	250W	300W
Termination	Incoming terminal block suitable for looping 4 core 4mm² cable (6mm² available)
Power Factor	>0.95
Cable Entries	2xM20 as standard (other entries available upon request), dispatched complete with one ATEX/IEC Ex approved blanking plug

	HPFL 20K	HPFL 25K	HPFL 30K
Beam Patterns	30° x 30° or 60° x 60° or 90° x 90°
Lumen Output	22,971lm	28,713lm	34,456lm
LED Type	Platinum Elite SMT LEDs
No. of LEDs	24
CRI	70+
Colour Temperature	5,700K

	HPFL 20K	HPFL 25K	HPFL 30K
Burning Position	Universal
IP Rating	IP66
Temperature Range	-50°C to +50°C
Weight	23.5kg (51.8Ibs)
Enclosure	Marine grade aluminium epoxy powder coated, toughened glass, all external fasteners and brackets are marine grade stainless steel
Unit Colour	Silver (RAL 9006)
Mounting	Stirrup bracket (see dimension drawings below)

Product Dimensions.

High Power Flood

Light Distribution.

Optional Beam Patterns
