High Power Flood

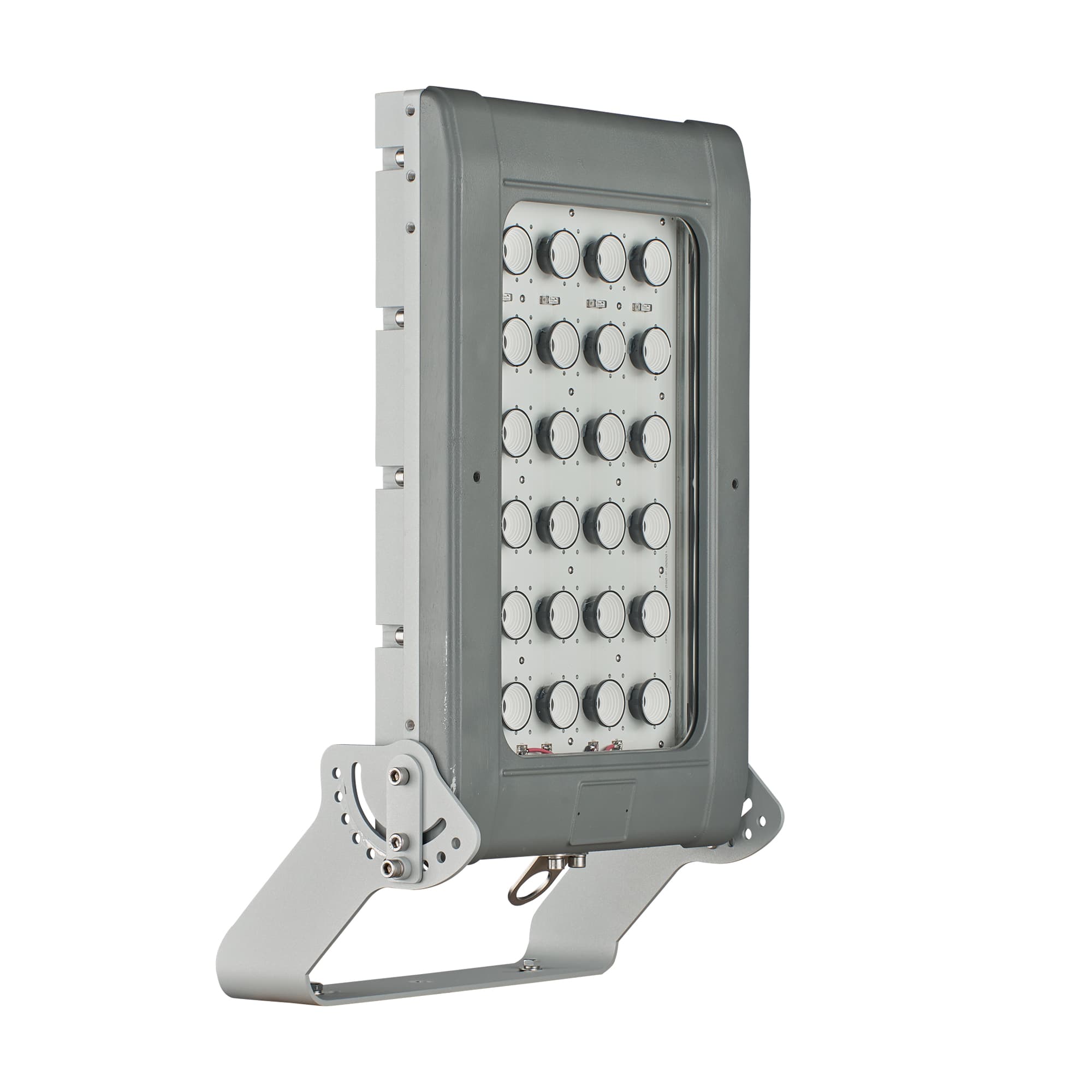

SPARTAN High Power Flood, Class I Division 2, 20,000lm - 25,000lm

Sector: Hazardous
Certification: Class I Division 2 rated for Gas and Dust
Classification: Class I, Div. 2 Gr ABCD T4
Class II, Div. 1 Div. 2 Gr EFG
Tamb= -40°C to +50°C
Enclosure Type 4X

The SPARTAN High Power Flood range is designed to illuminate large, open spaces within hazardous area environments. Available with a range of different outputs from 20,000 to 25,000 lumens, the High Power Flood uses Raytec’s field-proven, long-life LED technology to ensure a lifetime of 10 years+. All SPARTAN luminaires come with an industry-leading 5-year warranty.

Request a quote Add to quote

Jump to Downloads

Raytec LED luminaires WARRIOR Flood light installed in an industrial application

Power and Performance.

High lumen output up to 25,000 lumens and a range of beam patterns to effectively light up large open areas such as oil rigs.

Retrofittable and Modular.

Designed to directly replace traditional discharge light sources up to 400W SON. The modular design allows easy access to key components and the ability to mount the PSU remotely

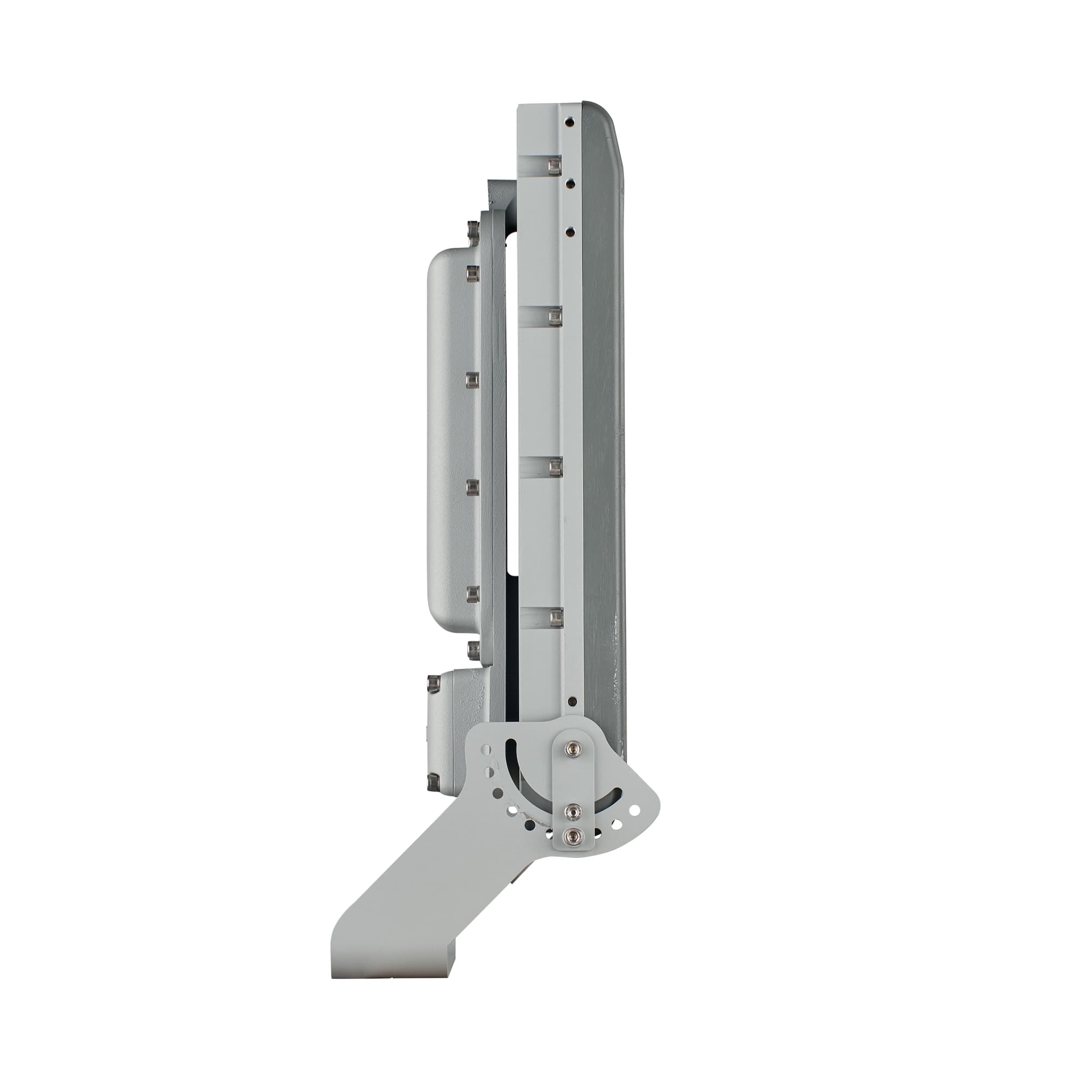

ATEX LED FloodLight - Bracketry — Robust and durable construction from marine grade aluminium and with a wide operating temperature for even the most challenging conditions.

DALI 2.0 Dimmable as standard for precise and flexible control of lighting assets.

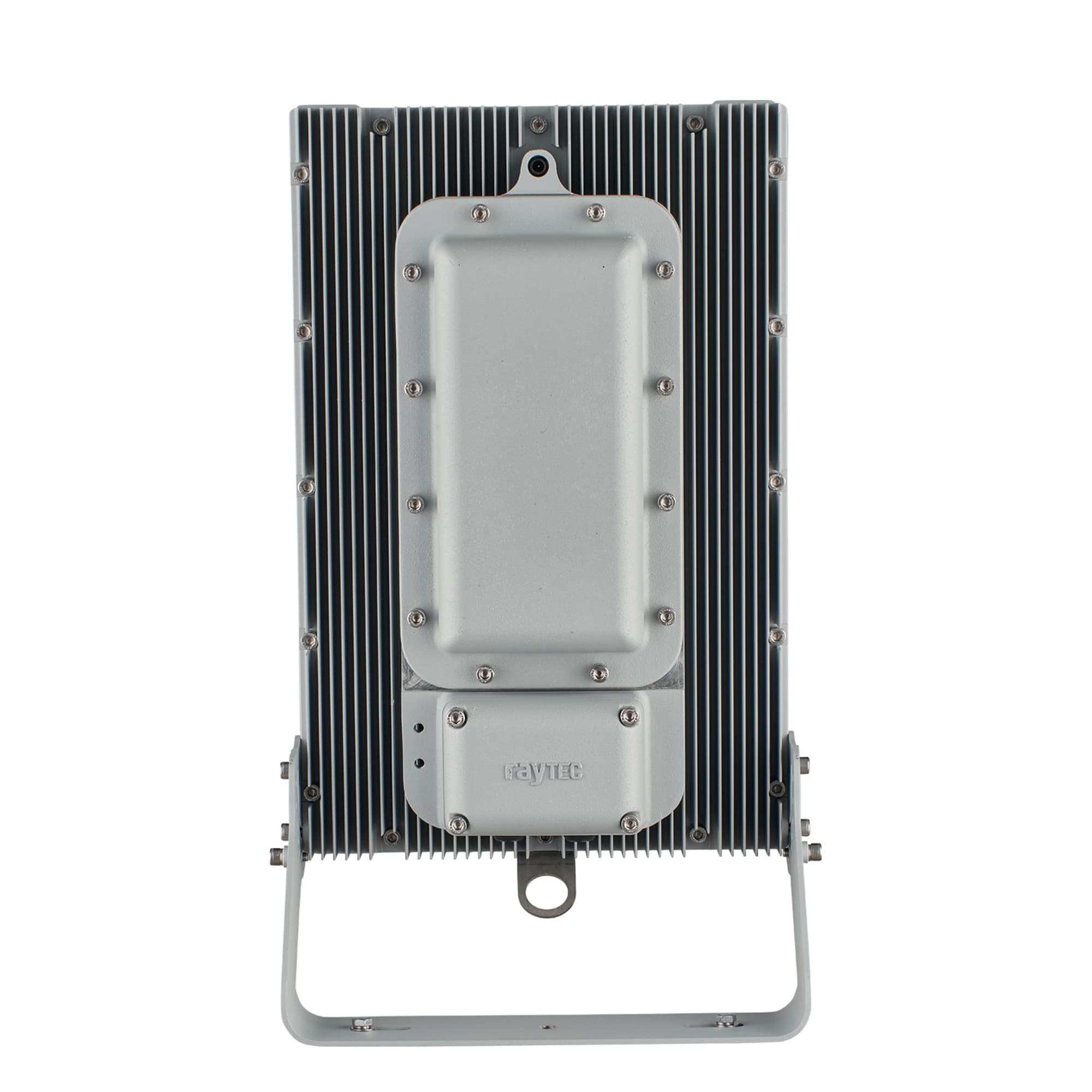

ATEX LED Flood Light - Rear PSU module — The PSUs and control gear are located in an easy to access rear compartment for straightforward maintenance. A SMART access wiring system allows for safe and efficient installation.

Specs

Select Option

	SPARTAN High Power Flood
Division Marking	Class I, Div. 2 Gr ABCD T4 Class II, Div. 1 Div. 2 Gr EFG Tamb= -40°C to +50°C Enclosure Type 4X
ABS Certificate #	ABS Certificate # 20-1990083-PDA

	20K	25K
Input	150-264V 50/60Hz AC/DC (110V variant available - please contact Raytec)
Power	240W	300W
Termination	Incoming terminal block suitable for looping 3 core 4mm² cable
Power Factor	>0.95
Cable Entries	2 x 3/4” NPT as standard (other entries available upon request), dispatched complete with one ATEX/IEC Ex approved blanking plug

	20K	25K
Beam Patterns	30° x 30° or 60° x 60° or 90° x 90°
Lumen Output	20,000lm	25,000lm
LED Type	Platinum Elite SMT LEDs
No. of LEDs	24	24
CRI	70+
Colour Temp	5,700K

	20K	25K
Burning Position	Universal
IP Rating	IP66 & IP67
Temperature Range	-50°C to +50°C
Weight	23.5kg (51.8Ibs)
Enclosure	Marine grade aluminium epoxy powder coated, toughened glass, all external fasteners and brackets are marine grade stainless steel
Unit Colour	Front - Dark Grey (RAL 7012), Back - Silver (RAL 9006)
Mounting	Stirrup bracket (see dimension drawings below)

Product Dimensions.

High Power Flood

Light Distribution.

Optional Beam Patterns
