High Power Bay
SPARTAN High Power Bay, Class I Division 2, 20,000lm - 25,000lm
About SPARTAN High Power Bay HPBY CID2
- Sector
- Hazardous
- Certification
- Class I Division 2 rated for Gas and Dust
- Classification
- Class I, Div. 2 Gr ABCD T4
Class II, Div. 1 Div. 2 Gr EFG
Tamb= -40°C to +50°C
Enclosure Type 4X

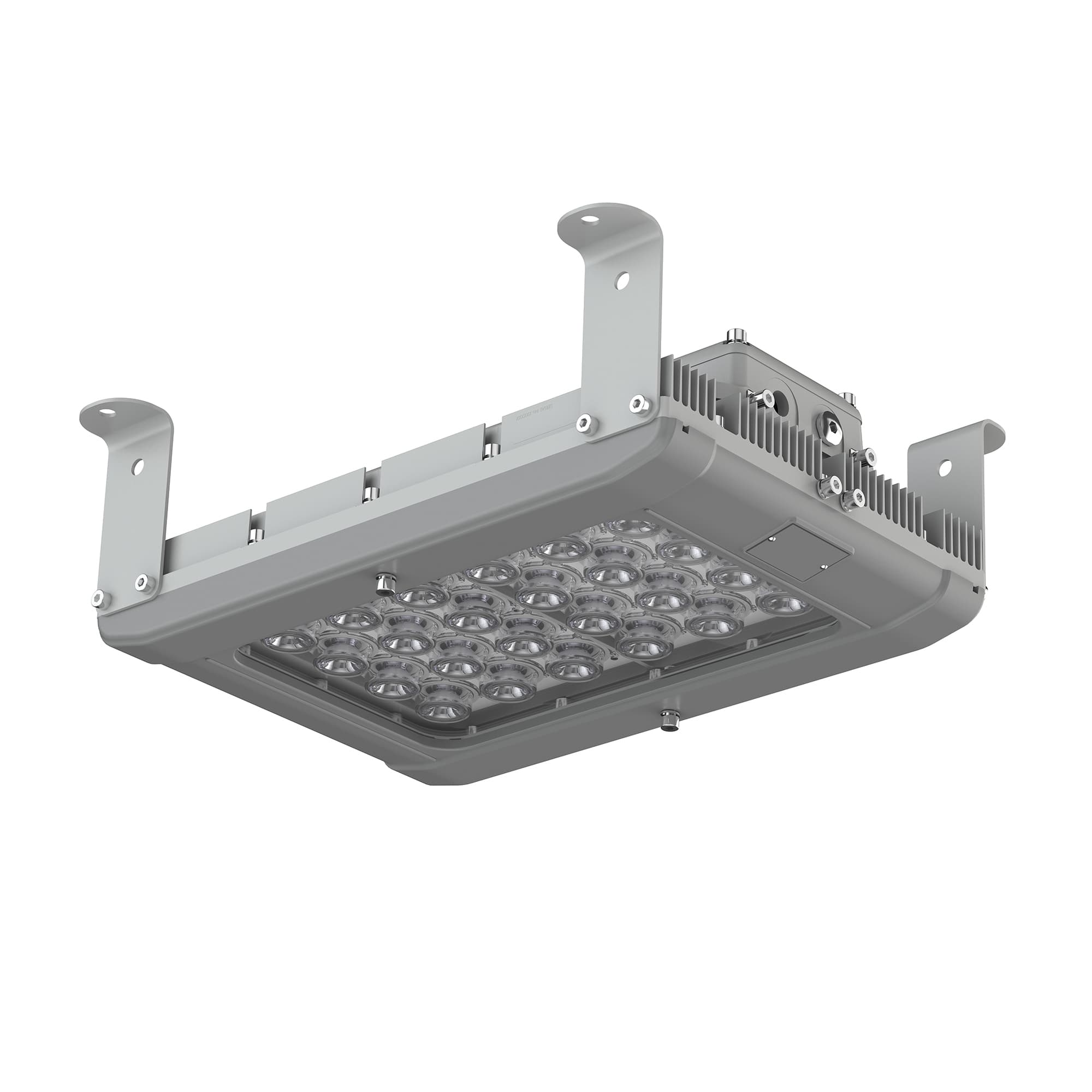

The SPARTAN High Power Bay range is designed to illuminate large, open spaces within hazardous area environments. Available with a range of different outputs from 20,000 to 25,000 lumens, the High Power Bay uses Raytec’s field-proven, long-life LED technology to ensure a lifetime of 10 years+. All SPARTAN luminaires come with an industry-leading 5-year warranty.
Jump to Downloads
Power and Performance.
High lumen output up to 25,000 lumens and a range of beam patterns to effectively light up large open areas.
Retrofittable and Modular.
Designed to directly replace traditional discharge light sources up to 400W SON. The modular design allows easy access to key components and the ability to mount the PSU remotely
Fully Controllable.
Easy to Maintain.
Robust and Durable.
Removable PSU.
Specs
Select Option
| HPBY 20K | HPBY 25K | |
|---|---|---|
| Division Marking | Class I, Div. 2 Gr ABCD T4 Class II, Div. 1 Div. 2 Gr EFG Tamb= -40°C to +50°C Enclosure Type 4X | |
| ABS Certificate # | ABS Certificate # 20-1990083-PDA | |
| HPBY 20K | HPBY 25K | |
|---|---|---|
| Input | 150-264V 50/60Hz AC/DC (110V variant available - please contact Raytec) | |
| Power | 240W | 300W |
| Termination | Incoming terminal block suitable for looping 3 core 4mm² cable | |
| Power Factor | >0.95 | |
| Cable Entries | 2x 3/4" NPT as standard (other entries available upon request), dispatched complete with one approved blanking plug | |
| HPBY 20K | HPBY 25K | |
|---|---|---|
| Lumen Output | 20,000lm | 25,000lm |
| LED Type | Platinum Elite SMT LEDs | |
| No. of LEDs | 24 | 24 |
| CRI | 70+ | |
| Colour Temp | 5,700K | |
| HPBY 20K | HPBY 25K | |
|---|---|---|
| Burning Position | Universal | |
| IP Rating | IP66 & IP67 | |
| Temperature Range | -50°C to +50°C | |
| Weight | 22.7kg (50Ibs) | |
| Enclosure | Marine grade aluminium epoxy powder coated, toughened glass, all external fasteners and brackets are marine grade stainless steel | |
| Unit Colour | Front - Dark Grey (RAL 7012) Back - Silver (RAL 9006) | |

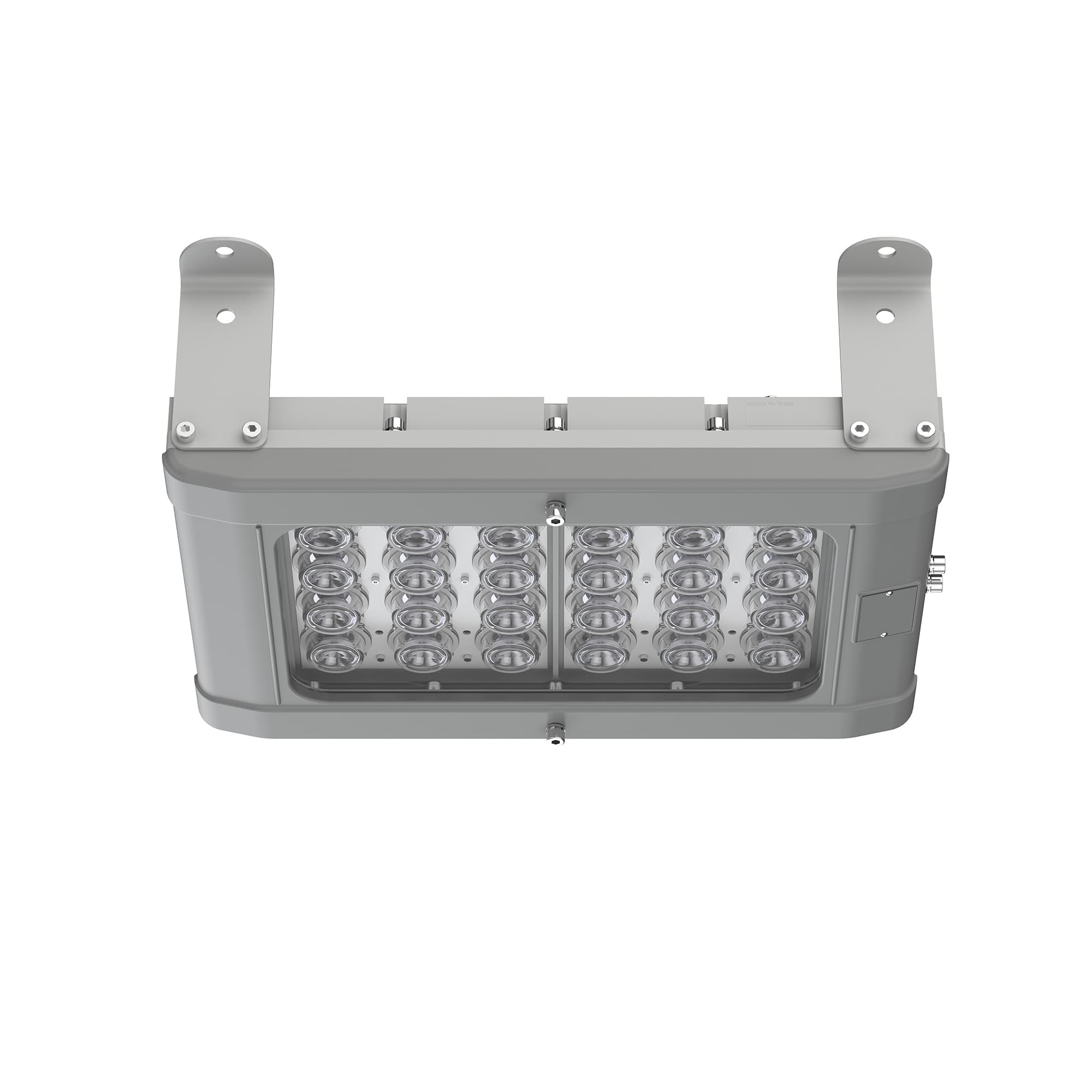

| Mounting | Ceiling mount brackets included | |
Downloads.
CID2 Certificate - SPARTAN FL, BL, HPFL & HPBY ABS Certificate - Approval 2020 SPARTAN & WARRIOR Photometric Data
