Flood BL24

SPARTAN Flood BL24, Zone 2/22, 2,750 - 4,650lm

About SPARTAN Flood BL24 Zone 2

Sector
Hazardous
Certification
ATEX, IECEx and UKEX
Classification
Zone 2 & 22

The SPARTAN Flood range is designed for hazardous area environments which require high performance, reliable, White-Light illumination. The flood range is available with emergency battery backup and delivering 4,650 lumens, the BL24 Flood is ideal for illuminating smaller areas. It uses Raytec’s field-proven, long-life LED technology to ensure a lifetime of 10 years+. All SPARTAN luminaires come with an industry-leading 5-year warranty.

Jump to Downloads

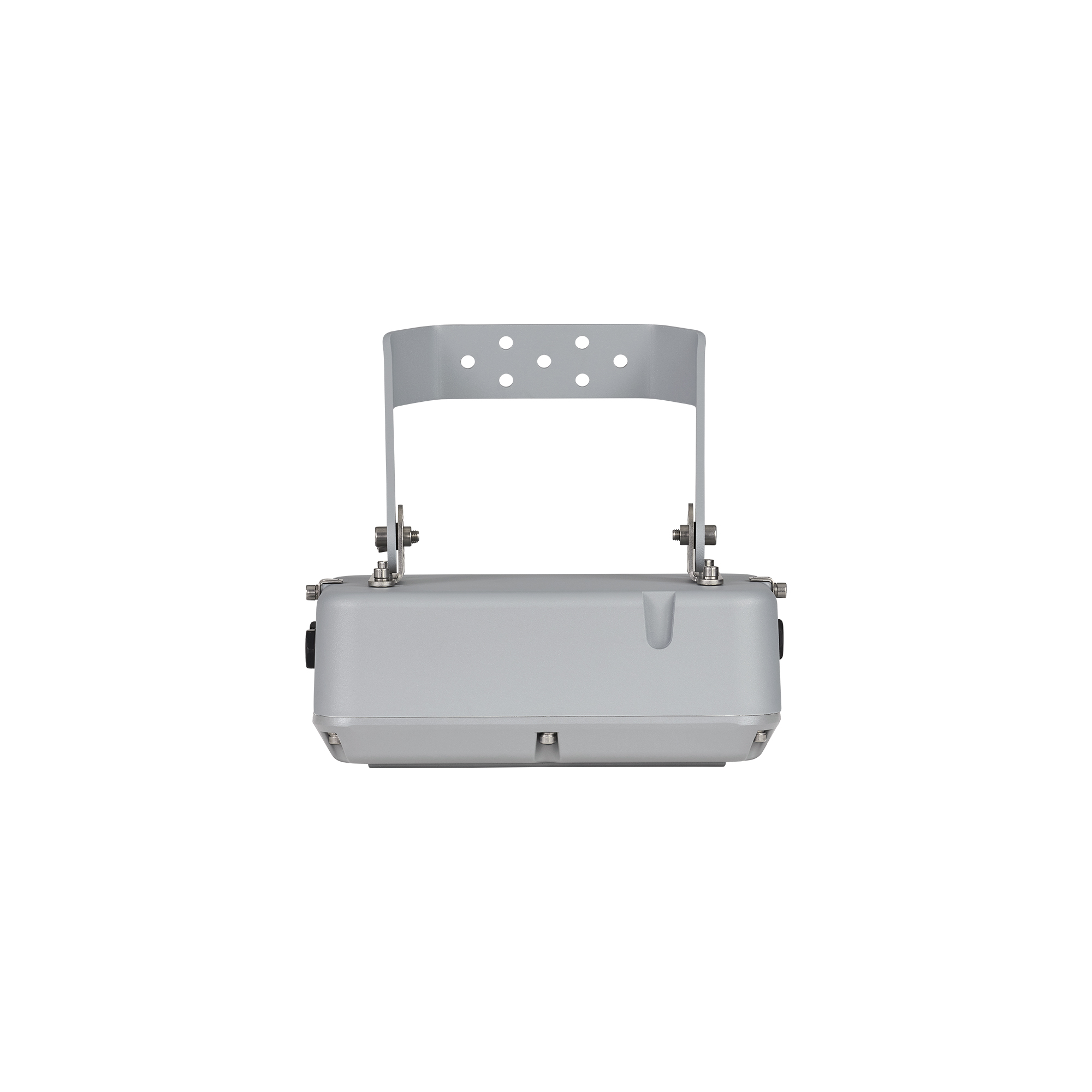

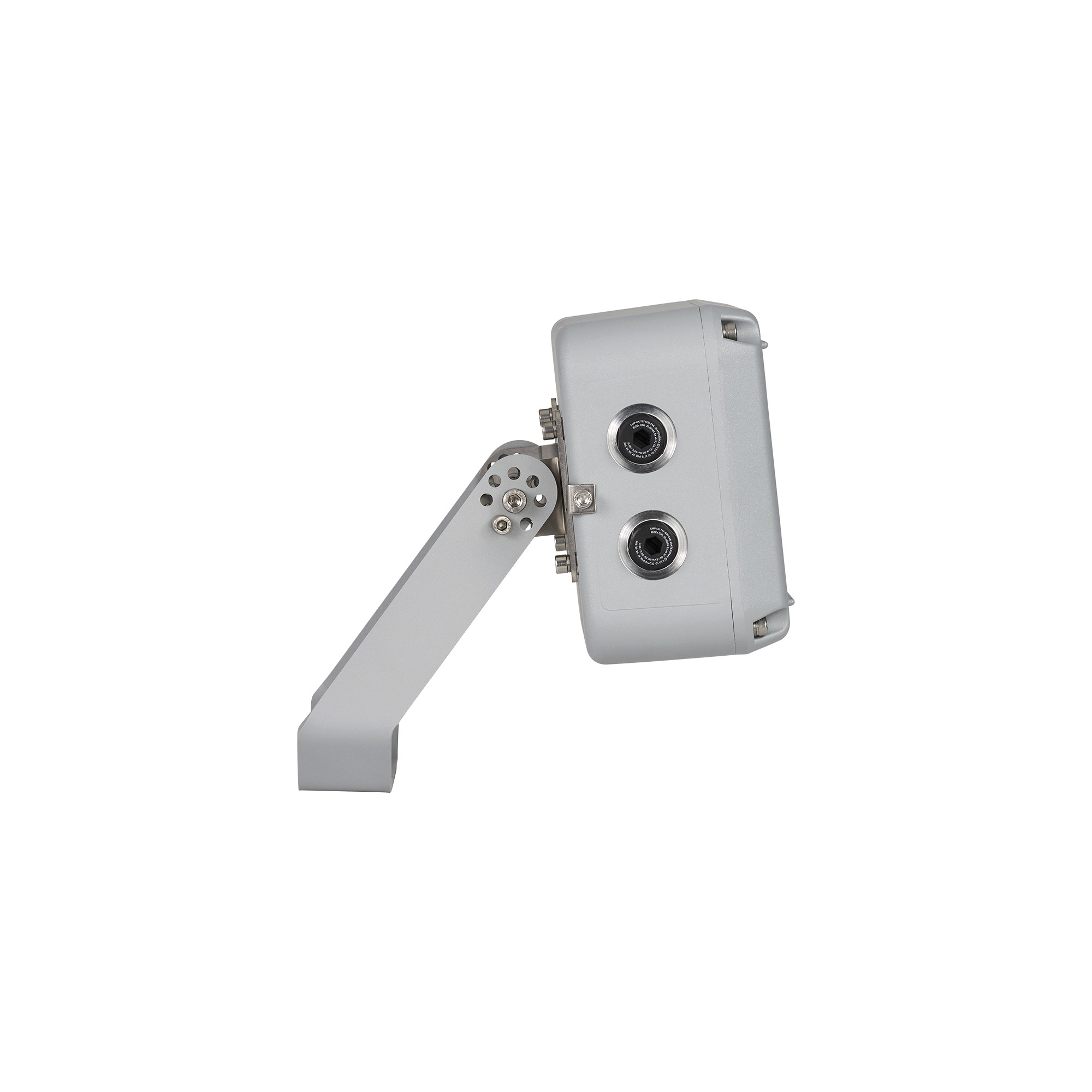

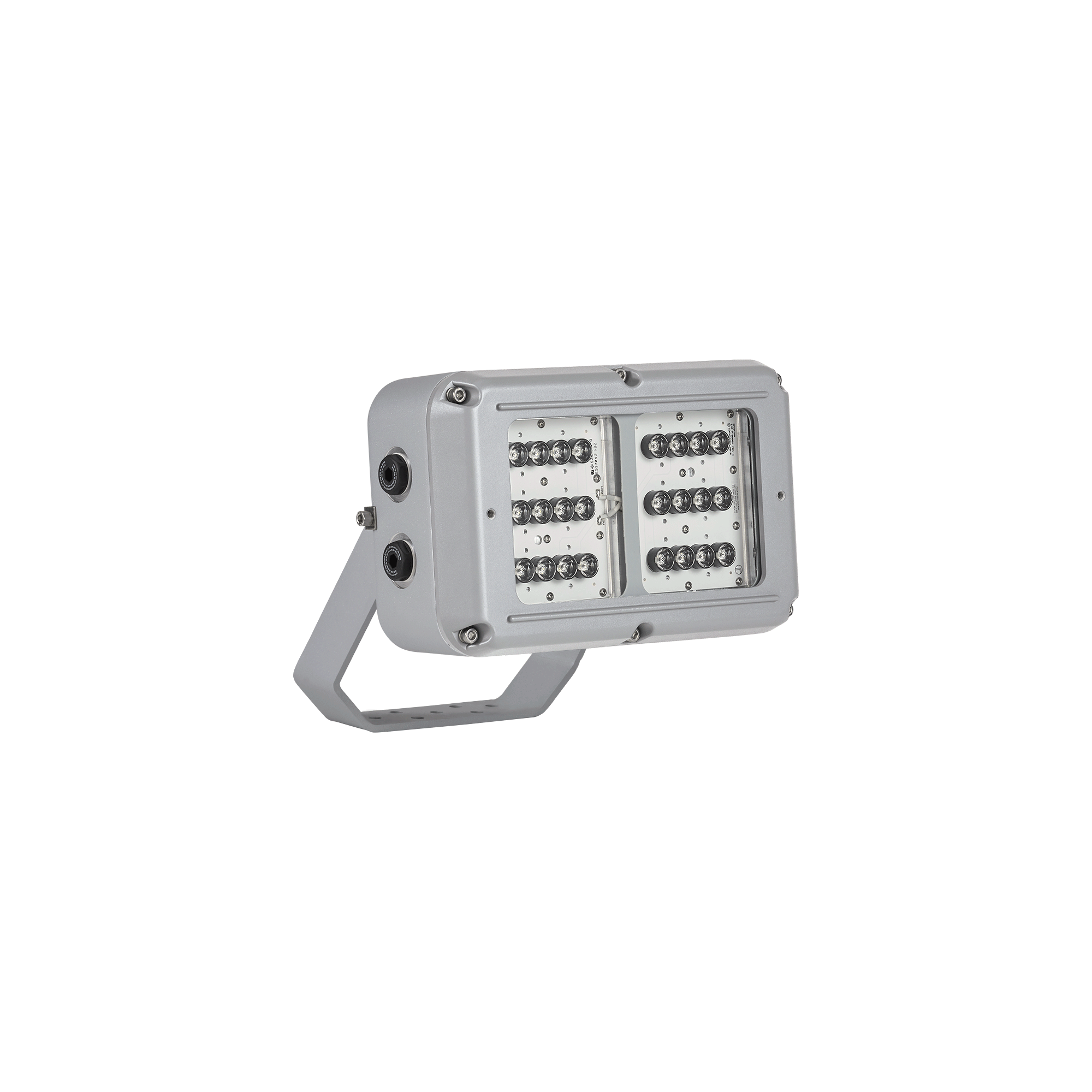

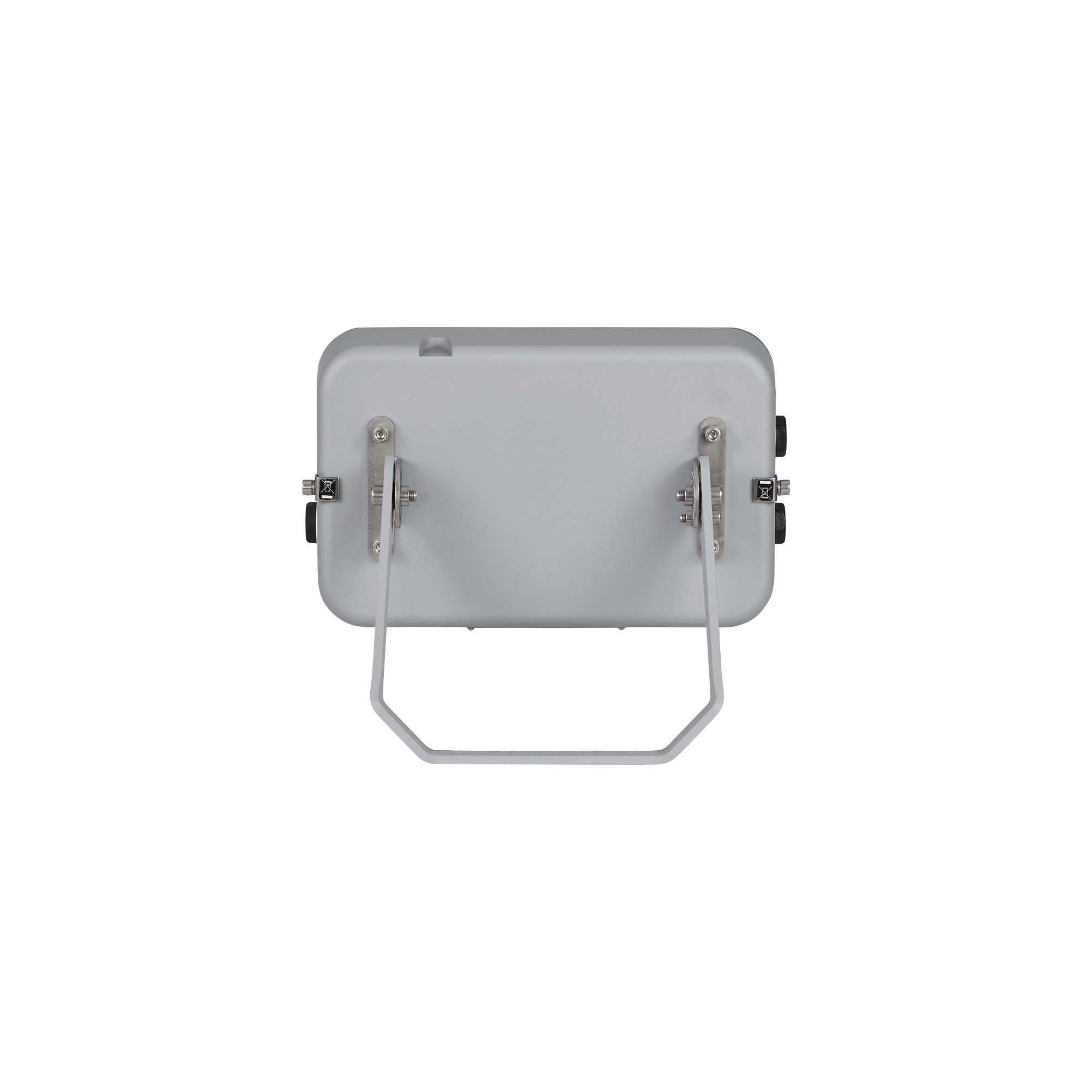

flood light up close Bulkhead BL24 Zone 2

Intelligent Emergency Variants.

Emergency variants have a self-test function to automatically maintain the battery's health. The batteries are contained within the existing housing to provide a compact solution.

Robust and Durable.

Bulkhead is designed from marine grade aluminium with stainless steel bracketry and fastenings to ensure it can withstand the most extreme environments.

Bespoke LED.

Raytec are specialists in LED and SPARTAN Flood has been specifically designed around the LEDs with a bespoke housing for optimum performance and reliability.

Specs

Select Option

BL24BL24-HOBL24 EmergencyBL24-HO Emergency
ATEX RatingATEX UKCA and IEC Ex rated for Gas and DustATEX UKCA and IEC Ex rated for Gas and Dust
Hazardous Area RatingZone 2 (Gas), Zone 22 (Dust)Zone 2 (Gas), Zone 22 (Dust)
CertificatesCML17ATEX4231 & IECEx CML17.0135CML17ATEX4231 & IECEx CML17.0135
GasII 3 GD
Ex ec mc IIC T4 Gc
Ta= -50°C to +55°C
(-20°C to +55°C for emergency variants)
II 3 GD
Ex ec mc IIC T4 Gc
Ta= -50°C to +55°C
(-20°C to +55°C for emergency variants)
DustEx tb IIIC T98°C Db
IP66 & IP67 - Ta -50°C to +55°C
(-20°C to +55°C emergency variants)
Ex tb IIIC T98°C Db
IP66 & IP67 - Ta -50°C to +55°C
(-20°C to +55°C emergency variants)
ABS Certificate #ABS Certificate # 20-1990083-PDAABS Certificate # 20-1990083-PDA
BL24BL24-HOBL24 EmergencyBL24-HO Emergency
Input110-254V 50/60Hz AC only Low voltage: 18-48V AC and 18-69V DC Extra low voltage: 12V AC/DC110-254V 50/60Hz AC only
Power20W34W24W37W
TerminationIncoming terminal block suitable for looping 4 core 4mm² cable (6mm² available)Incoming terminal block suitable for looping 4 core 4mm² cable (6mm² available)
Power Factor>0.9>0.9
Cable Entries4xM20 as standard (other entries available upon request), dispatched complete with three ATEX/UKEX/IEC Ex approved blanking plug4xM20 as standard (other entries available upon request), dispatched complete with three ATEX/UKEX/IEC Ex approved blanking plug
BL24BL24-HOBL24 EmergencyBL24-HO Emergency
Beam Patterns - Circular10°x 10° or 30°x 30° or 50°x 50° or 80°x80° or 120°x 120° (10 x 10 option can be upgraded to Vario Technology)10°x 10° or 30°x 30° or 50°x 50° or 80°x80° or 120°x 120° (10 x 10 option can be upgraded to Vario Technology)
Beam Patterns - Elliptical35°x 10°or 60°x 25°or 80°x 30° or 120°x 50° (VARIO)35°x 10°or 60°x 25°or 80°x 30° or 120°x 50° (VARIO)
Lumen Output2,750 lm – circular beam patterns 2,500 lm – elliptical beam patterns (VARIO)4,650 lm – circular beam patterns 4,100 lm – elliptical beam patterns (VARIO)2,750 lm – circular beam patterns 2,500 lm – elliptical beam patterns (VARIO)4,650 lm – circular beam patterns 4,100 lm – elliptical beam patterns (VARIO)
LED TypePlatinum Elite SMT LEDsPlatinum Elite SMT LEDs
Number of LEDs2424
CRI80+80+
Colour Temperature6500K standard6500K standard
BL24BL24-HOBL24 EmergencyBL24-HO Emergency
Burning PositionUniversalUniversal
IP RatingIP66 & IP67IP66 & IP67
Temperature Range- 50°C to +55°C- 20°C to +55°C
Weight5kg (11.0Ibs)6kg (13.2Ibs)
EnclosureMarine grade aluminium epoxy powder coated, toughened glass, all external fasteners and brackets are marine grade stainless steelMarine grade aluminium epoxy powder coated, toughened glass, all external fasteners and brackets are marine grade stainless steel
Unit ColourSilver (RAL 9006) Dark Grey (RAL 7012) FrontSilver (RAL 9006) Dark Grey (RAL 7012) Front
BL24 EmergencyBL24-HO Emergency
FunctionSelf-testing intelligent emergency
System health indicatorTri-colour LED indicator
Emergency DurationUp to 3hrs @ 25% power Other options available
Emergency Battery2.5 Ah
Emergency Charge Time20 hours

Product Dimensions.

Bulkhead Flood BL24 Dimension Sketch Flood BL24

Light Distribution.

Circular Beam Patterns

10x10
30x30
50x50
80x80
120x120

Elliptical Beam Patterns

35x10
60x25
80x30
120x50

Downloads.

Datasheet - SPARTAN Flood BL24 - Zone 2/22 Installation Guide - SPARTAN Bulkhead and BL24 Flood Zone 1/21 and 2/22 IECEx Certificate - SPARTAN FL & BL - Zone 2/22 ATEX Certificate - SPARTAN FL & BL - Zone 2/22 UKCA Certificate - SPARTAN FL & BL - Zone 2/22 Mounting & Accessories Guide - Flood & Bulkhead SPARTAN & WARRIOR Photometric Data
