Flood FL

SPARTAN Flood, Zone 1/21, 8,450lm - 16,900lm

About SPARTAN Flood FL Zone 1

Sector
Hazardous
Certification
ATEX, IECEx and UKEX
Classification
Zone 1 & 21

The SPARTAN Flood range is designed for hazardous area environments which require high-performance, reliable, White-Light illumination. Available with emergency battery back-up and delivering from 8,450 to 16,900 lumens, the FL Flood range uses Raytec’s field-proven, long-life LED technology to ensure a lifetime of 10 years+. All SPARTAN luminaires come with an industry-leading 5-year warranty.

Jump to Downloads
SPARTAN Flood Zone 1 Infra-Red

Bespoke LED.

Raytec are specialists in LED and SPARTAN Flood has been specifically designed around the LEDs with a bespoke housing for optimum performance and reliability.

Choice of Beam Patterns.

Available with a range of circular and elliptical beam patterns, from 10° to 120°. Raytec's VARIO technology allows the beam pattern to be modified on-site.

FL FLOOD Variants.

Available in two sizes, the FL24 and FL48, which both come with emergency battery back-up if required

led flood light with emergency backup led flood light with emergency backup

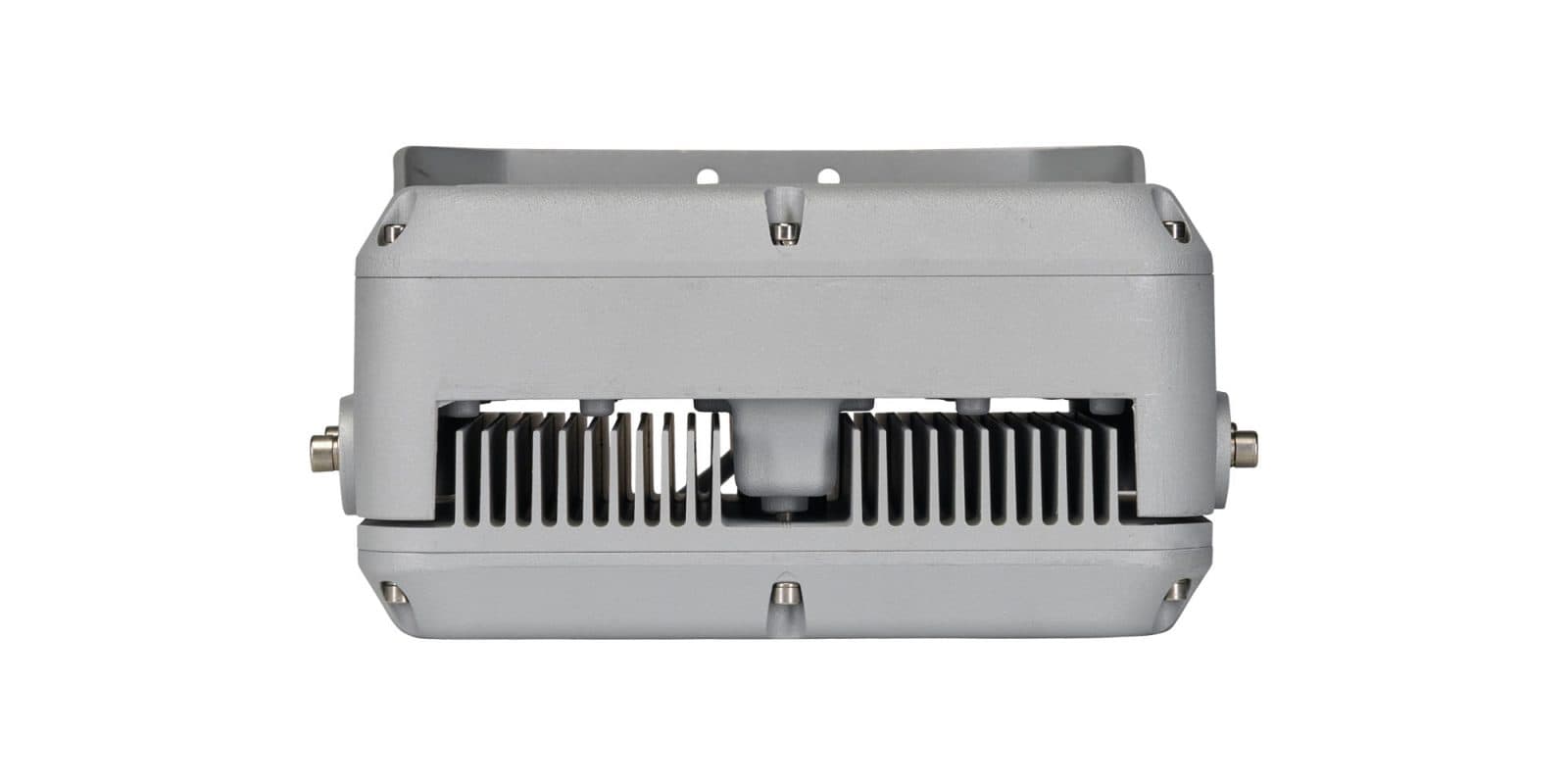

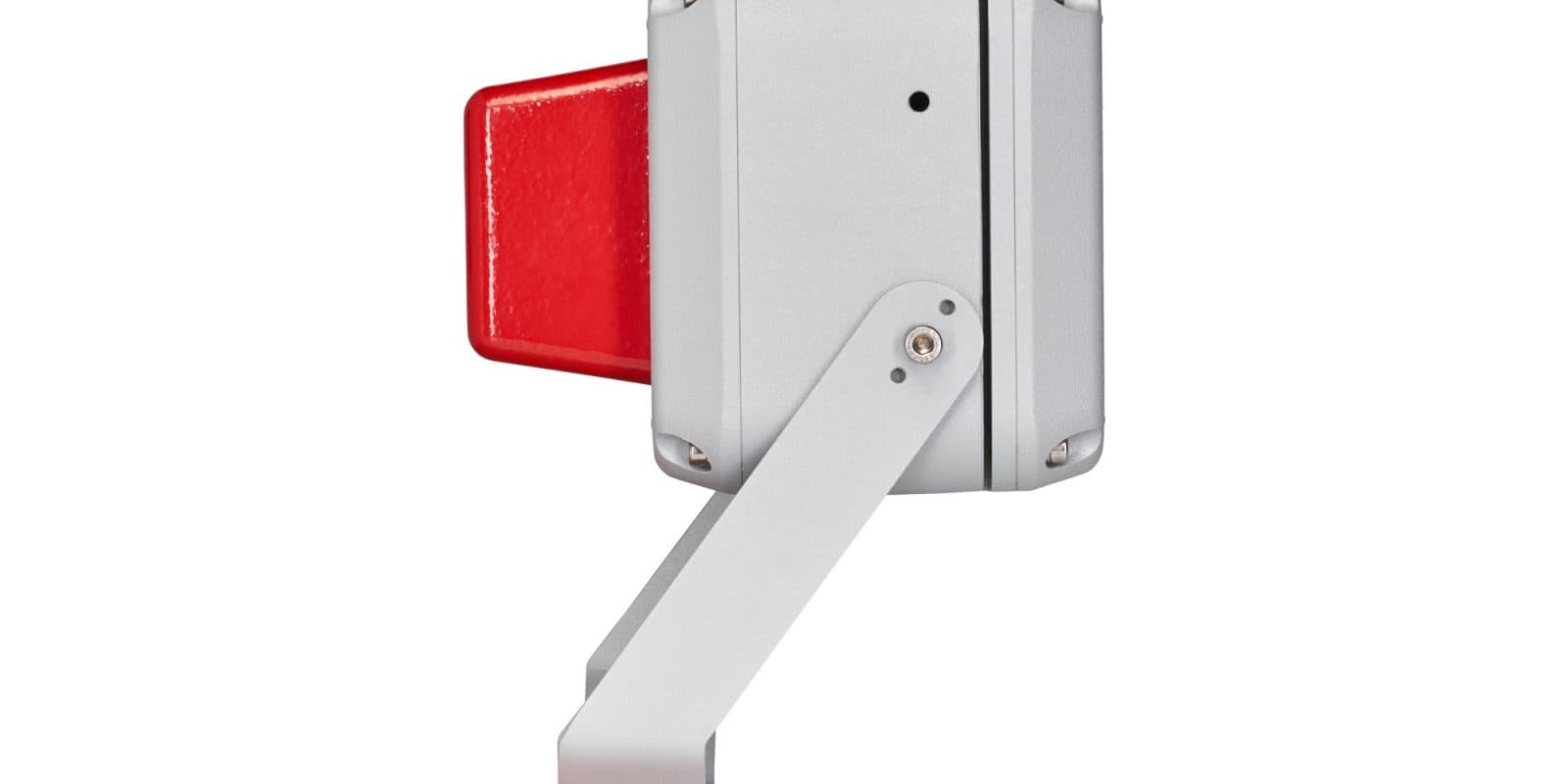

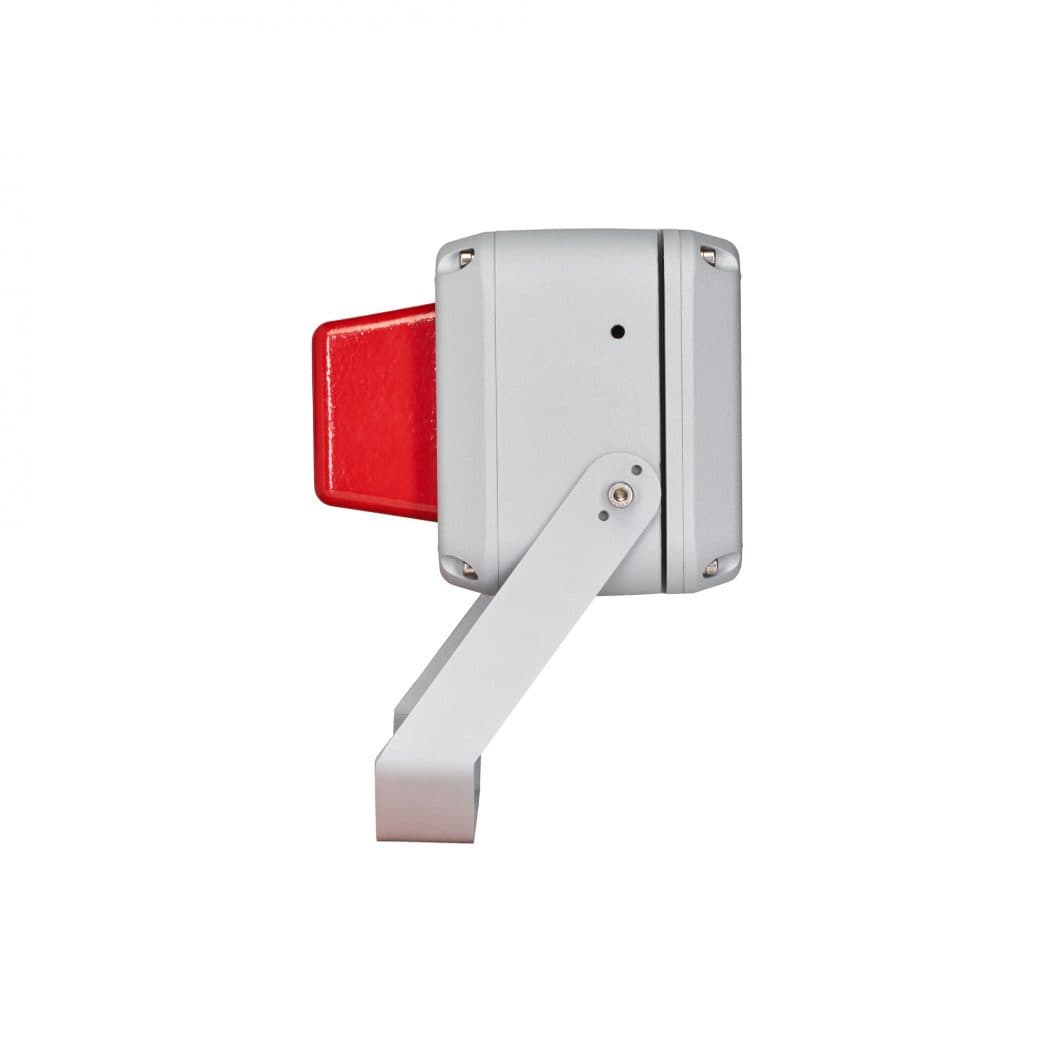

FL24

SPARTAN FL24 Floodlight, 8,450 lumens, standard and emergency options. LED flood light with emergency backup.

led flood light with emergency backup led flood light with emergency backup

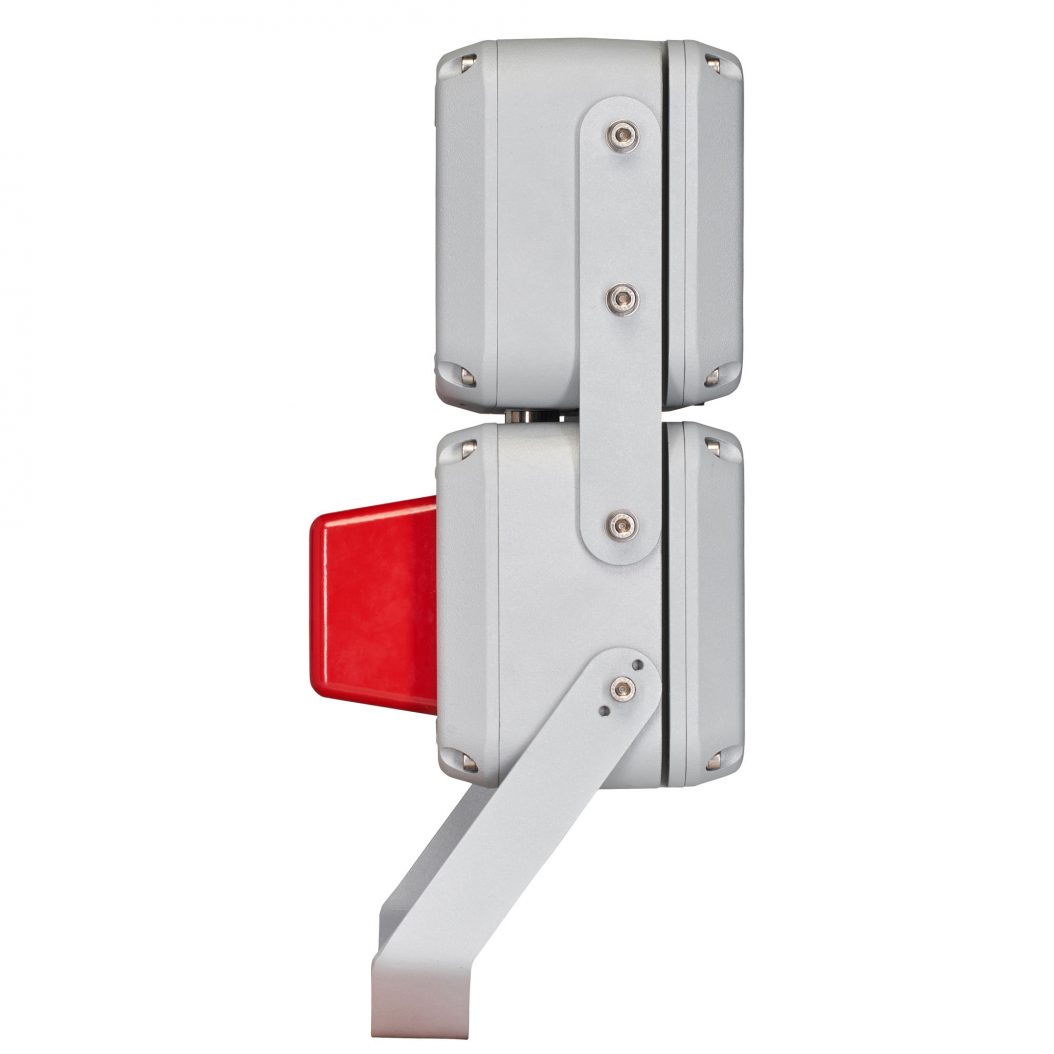

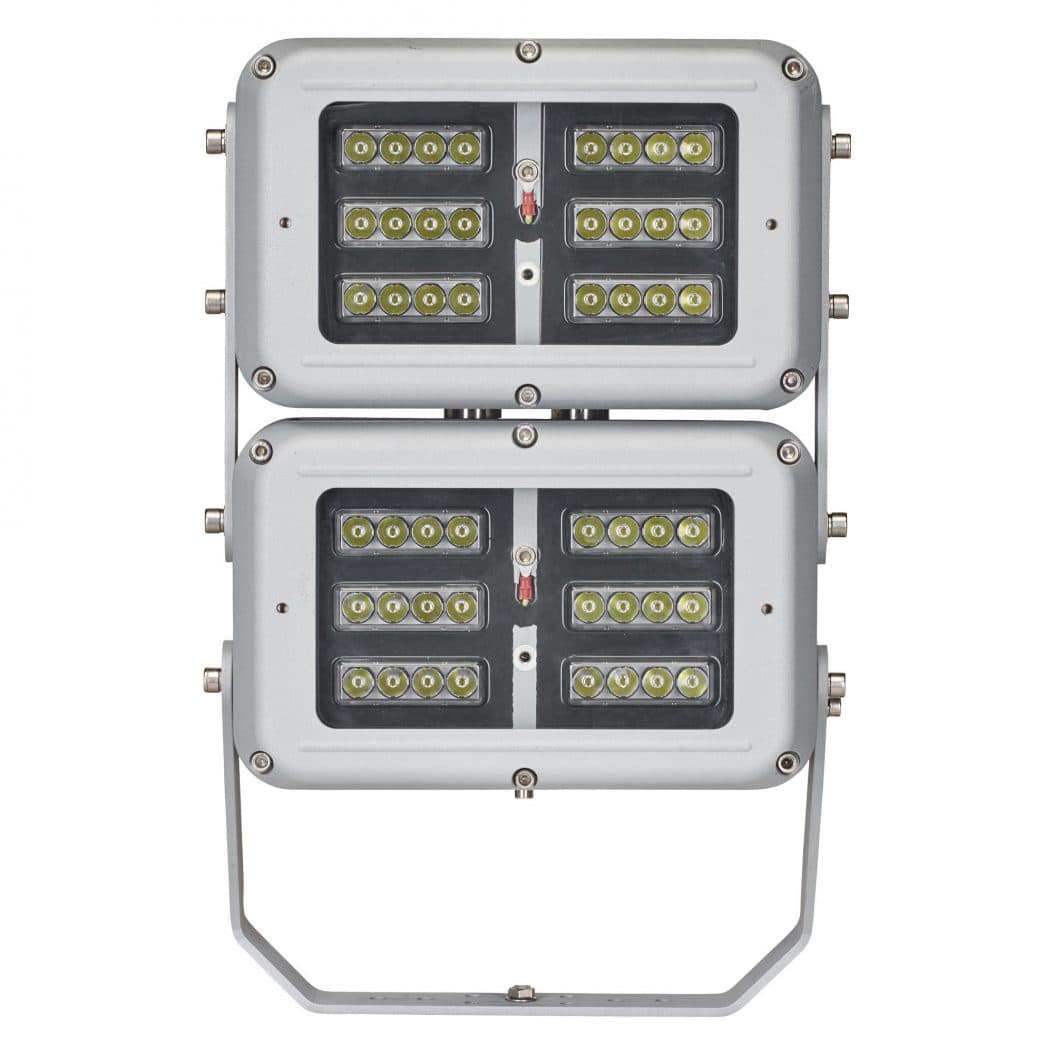

FL48

SPARTAN FL48 Floodlight, 16,900 lumens, standard and emergency options. LED flood light with emergency backup.

Specs

Select Option

FL24FL24 EM25FL48FL48 EM25
ATEX Rating ATEX, UKCA and IEC Ex rated for Gas and Dust
Hazardous Area RatingZone 1 (Gas), Zone 21(Dust)
CertificatesCML13ATEX3007, IEC Ex CML 14.0001 & CML 21UKEX3099
GasII 2 G D, Ex e mb IIC T4 Gb, Ta= Up to -52°C to +55°C (emergency variants have a lower ambient of -20°C only)
DustEx tb IIIC T82°C Db Ta= Up to -52°C to +55°C IP66/IP67
ABS RatingABS Certificate # 15-LD1364539-1-PD
FL24FL24 EM25FL48FL48 EM25
Input110-254V 50/60Hz AC only, 18-48V AC and 18-69V DC, 12V AC/DC110-254V 50/60Hz AC only110-254V 50/60Hz AC only, 18-48V AC and 18-69V DC, 12V AC/DC110-254V 50/60Hz AC only
Power68W 71W136W 139W
TerminationIncoming terminal block suitable for looping 4 core 4mm² cable (6mm² available)
Power Factor>0.95
Cable Entries2xM20 as standard (other entries available upon request), dispatched complete with one ATEX/IEC Ex approved blanking plug
FL24FL24 EM25FL48FL48 EM25
Lumen Output on MainsUp to 8,450 lm – circular beam patterns Up to 8,200 lm – elliptical beam patterns (VARIO)Up to 16,900 lm – circular beam patterns Up to 15,900 lm – elliptical beam patterns (VARIO)
LED typePlatinum Elite SMT LEDs
Number of LEDs2448
CRI80+
Colour Temperature6,000K+
FL24FL24 EM25FL48FL48 EM25
Burning positionUniversal
IP ratingIP66/IP67
Temperature range-52°C to +55°C-20°C to +55°C-52°C to +55°C-20°C to +55°C
Weight8kg (17.6lbs)10Kg (22lbs)8kg (35.2lbs) 10Kg (44lbs)
EnclosureMarine grade aluminium epoxy powder coated, toughened glass, all external fasteners and brackets are marine grade stainless steel
ColourSilver (RAL 9006)Silver (RAL 9006)
Red (RAL3024) - Emergency cover
Silver (RAL 9006)Silver (RAL 9006)
Red (RAL3024) - Emergency cover
MountingU bracket - complete with locking screw
FL24 EM25FL48 EM25
Emergency DurationUp to 90mins at 50% power - other options availableUp to 90mins at 25% power - other options available
Emergency BatteryNi/Cd 12V 4.5Ah
Emergency Charge Time20 hours

Product Dimensions.

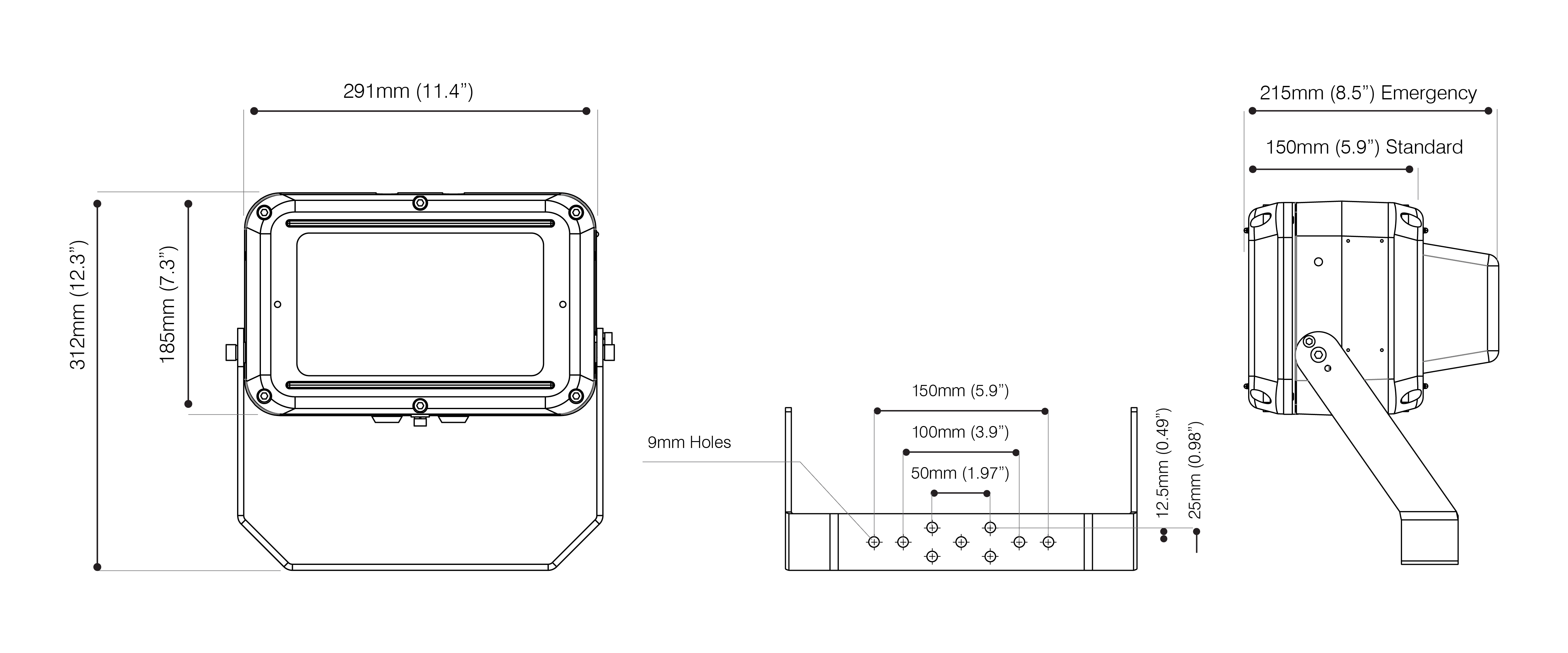

FL24 Standard and Emergency

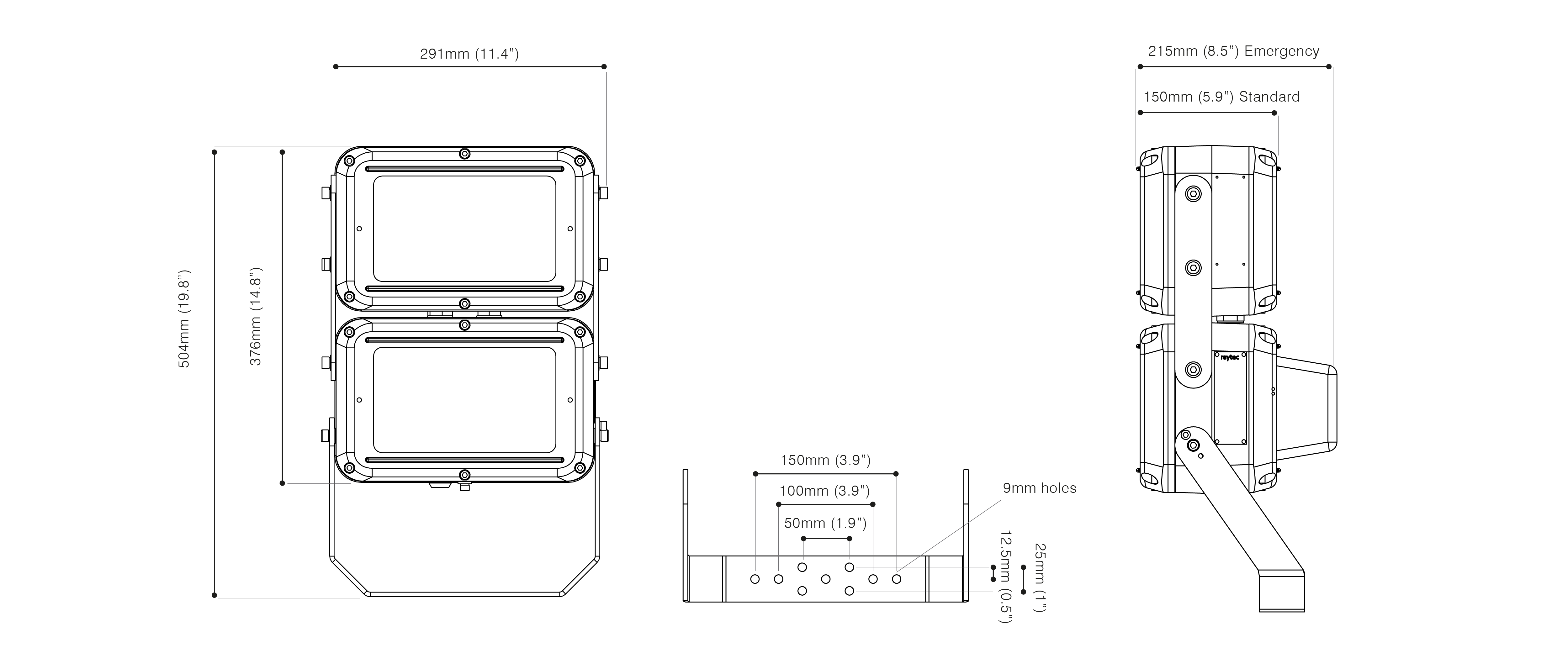

FL48 Standard and Emergency

Light Distribution.

Circular Beam Patterns

10x10
30x30
50x50
120x120

Elliptical Beam Patterns

35x10
60x25
80x30
120x50
