Flood FL

SPARTAN Flood, Class I Division 2, 5,500lm - 11,000lm

About SPARTAN Flood FL CID2

Sector
Hazardous
Certification
QPS accredited to applicable UL/CSA standards
Classification
Class I, Div. 2 Gr ABCD T5
Class II, Div. 1, Div. 2 Gr EFG
Tamb= -52˚C to + 50˚C
Enclosure Type 4X
Applicable Standards:
CSA C22.2 No. 94.2-07, CSA C22.2 No. 25-1996, CSA C22.2 No. 213-2016, CSA C22.2 No. 250.13-14, CSA C22.2 No. 141-15, UL 50E 1st edition, ANS/ISA-12.12.01-2015, UL 8750 2nd edition, UL 1203 5th edition, UL 844 13th edition, UL 924 10th edition

The SPARTAN Flood range is designed for hazardous area environments which require high performance, reliable, White-Light illumination. Available with emergency battery back-up and delivering from 5,500 to 11,000 lumens, the FL Flood range uses Raytec’s field-proven, long-life LED technology to ensure a lifetime of 10 years+. All SPARTAN luminaires come with an industry-leading 5-year warranty.

Jump to Downloads
SPARTAN Flood Zone 1 Infra-Red

Bespoke LED.

Raytec are specialists in LED and SPARTAN Flood has been specifically designed around the LEDs with a bespoke housing for optimum performance and reliability.

Choice of Beam Patterns.

Available with a range of circular and elliptical beam patterns, from 10° to 120°. Raytec's VARIO technology allows the beam pattern to be modified on-site.

FL FLOOD Variants.

Available in two sizes, the FL24 and FL48, which both come with emergency battery back-up if required

led flood light with emergency backup led flood light with emergency backup

FL24*

SPARTAN FL24 Floodlight, 5,000 lumens, standard and emergency options
*image denotes ATEX Zone 1 variant

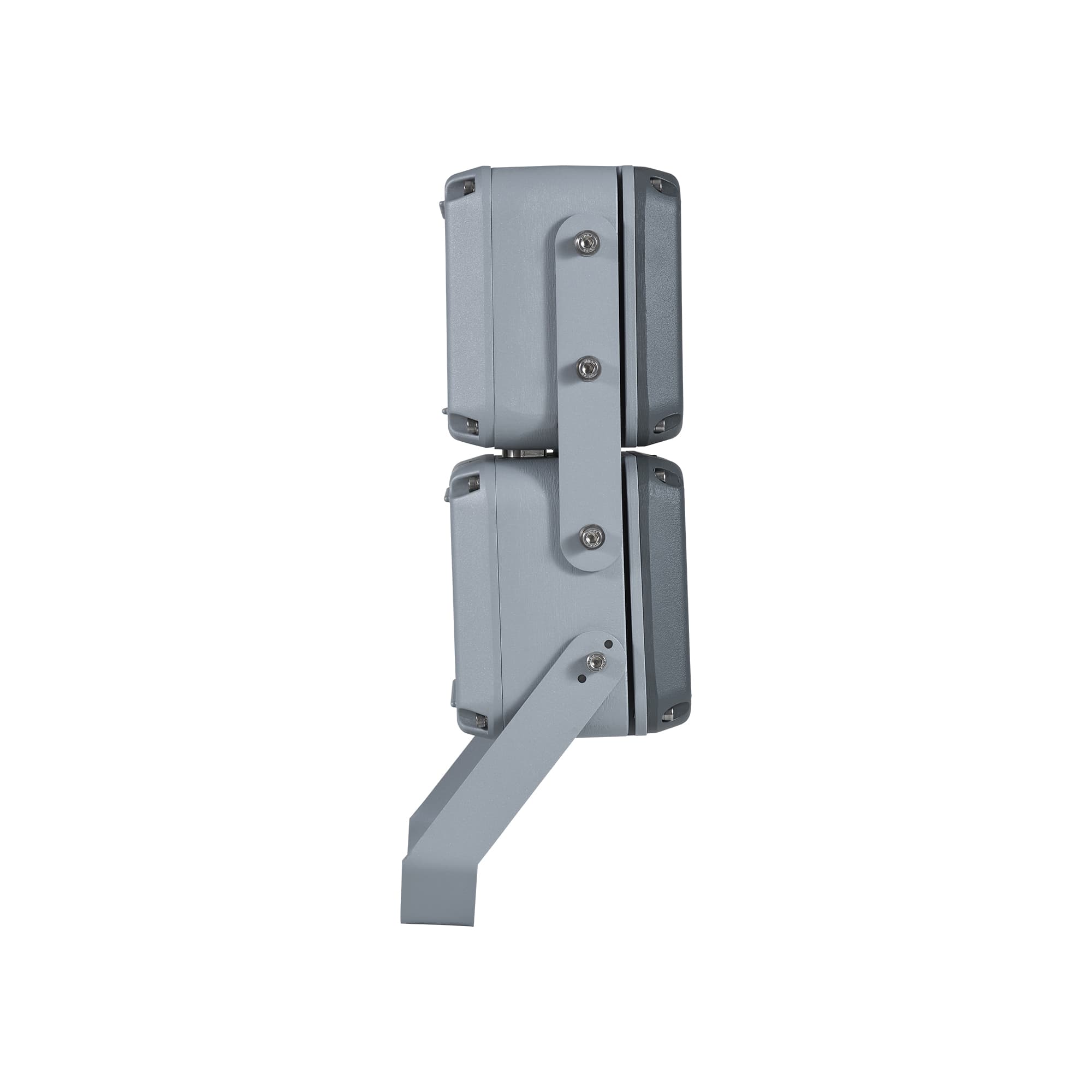

FL48

SPARTAN FL48 Floodlight, 10,000 lumens, standard and emergency options

Specs

Select Option

FL24FL24 EmergencyFL48FL48 Emergency
UL RatingClass I Division 2 rated for Gas and Dust
Hazardous Area RatingClass I, Div. 2 Gr ABCD T5
Class II, Div. 1, Div. 2 Gr EFG
Tamb= -52˚C to + 50˚C
Enclosure Type 4X
Applicable Standards:
CSA C22.2 No. 94.2-07, CSA C22.2 No. 25-1996, CSA C22.2 No. 213-2016, CSA C22.2 No. 250.13-14, CSA C22.2 No. 141-15, UL 50E 1st edition, ANS/ISA-12.12.01-2015, UL 8750 2nd edition, UL 1203 5th edition, UL 844 13th edition, UL 924 10th edition
ABS RatingABS Certificate # 15-LD1364539-1-PD
FL24FL24 EmergencyFL48FL48 Emergency
Input110-254V 50/60Hz AC only, 18-48V AC and 18-69V DC, 12V AC/DC110-254V 50/60Hz AC only110-254V 50/60Hz AC only, 18-48V AC and 18-69V DC, 12V AC/DC110-254V 50/60Hz AC only
Power68W71W136W139W
TerminationIncoming terminal block suitable for looping 4 core 4mm² cable (6mm² available)
Power Factor>0.95
Cable Entries2 x 3/4” NPT as standard (other entries available upon request), dispatched complete with one ATEX/IECEx approved blanking plug
FL24FL24 EmergencyFL48FL48 Emergency
Lumen Output on Mains5,50011,000
LED typePlatinum Elite SMT LEDs
Number of LEDs2448
CRI80+
Colour Temperature6,000K+
FL24FL24 EmergencyFL48FL48 Emergency
Burning positionUniversal
IP ratingIP66 & IP67
Temperature range-20°C to +55°C-20°C to +55°C-20°C to +55°C-20°C to +55°C
Weight8kg (17.6lbs)10Kg (22lbs)16kg (35.2lbs)20Kg (44lbs)
EnclosureMarine grade aluminium epoxy powder coated, toughened glass, all external fasteners and brackets are marine grade stainless steel
ColourSilver (RAL 9006)Silver (RAL 9006)

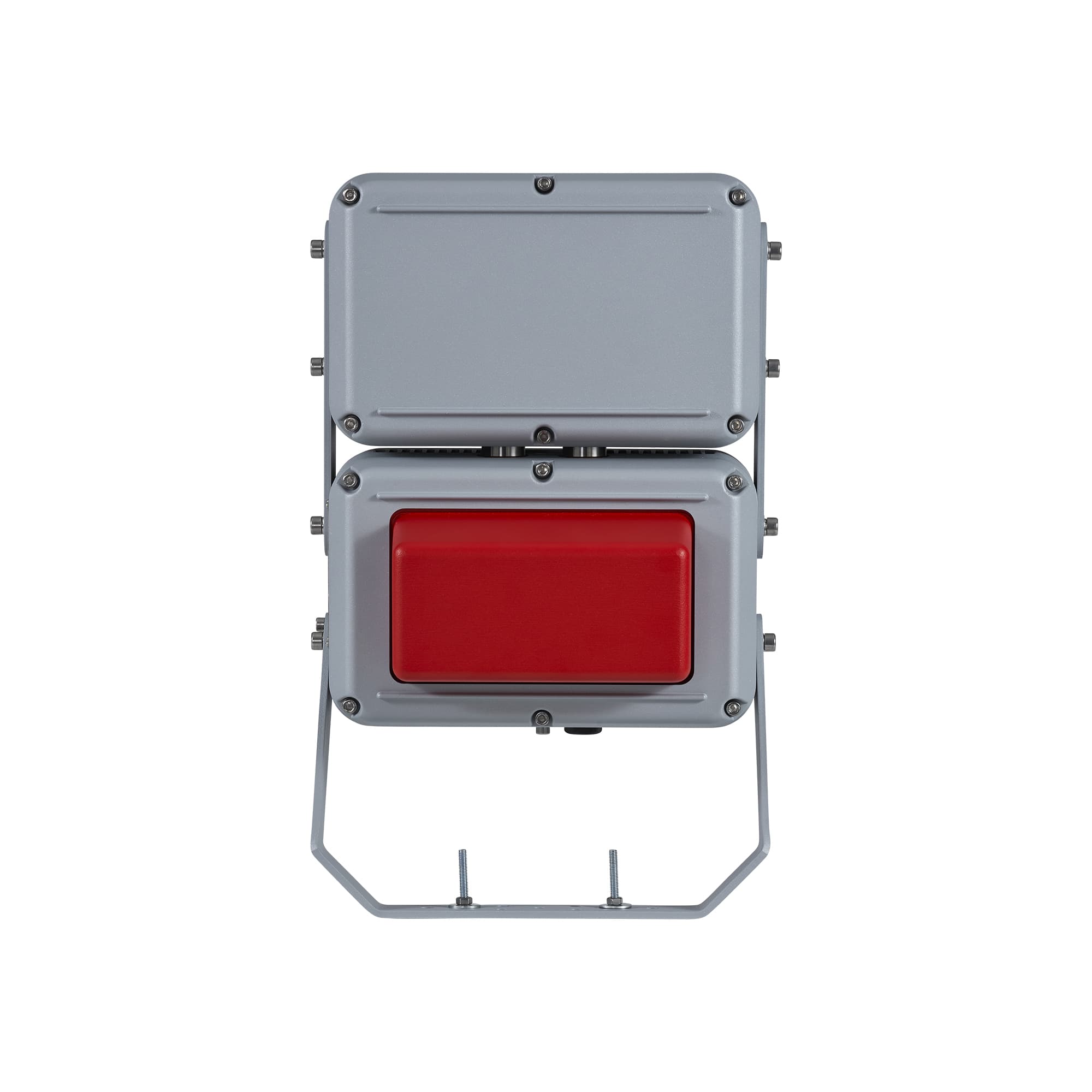

Red (RAL3024) - Emergency cover
Silver (RAL 9006)Silver (RAL 9006)
Red (RAL3024) - Emergency cover
MountingU bracket - complete with locking screw
FL24 EmergencyFL48 Emergency
Emergency DurationUp to 90mins at 50% power - other options availableUp to 90mins at 25% power - other options available
Emergency BatteryNi/Cd 12V 4.5Ah
Emergency Charge Time20 hours

Product Dimensions.

FL24 Standard and Emergency
FL48_Updated dimension sketch FL48_Updated Dim sketch

Light Distribution.

Circular Beam Patterns

10x10
30x30
50x50
120x120

Elliptical Beam Patterns

35x10
60x25
80x30
120x50

Downloads.

CID2 Certificate - SPARTAN FL, BL, HPFL & HPBY Guide - Storage and Handling of Batteries Mounting & Accessories Guide - Flood & Bulkhead ABS Certificate - Approval 2020 SPARTAN & WARRIOR Photometric Data
