Flood BL24

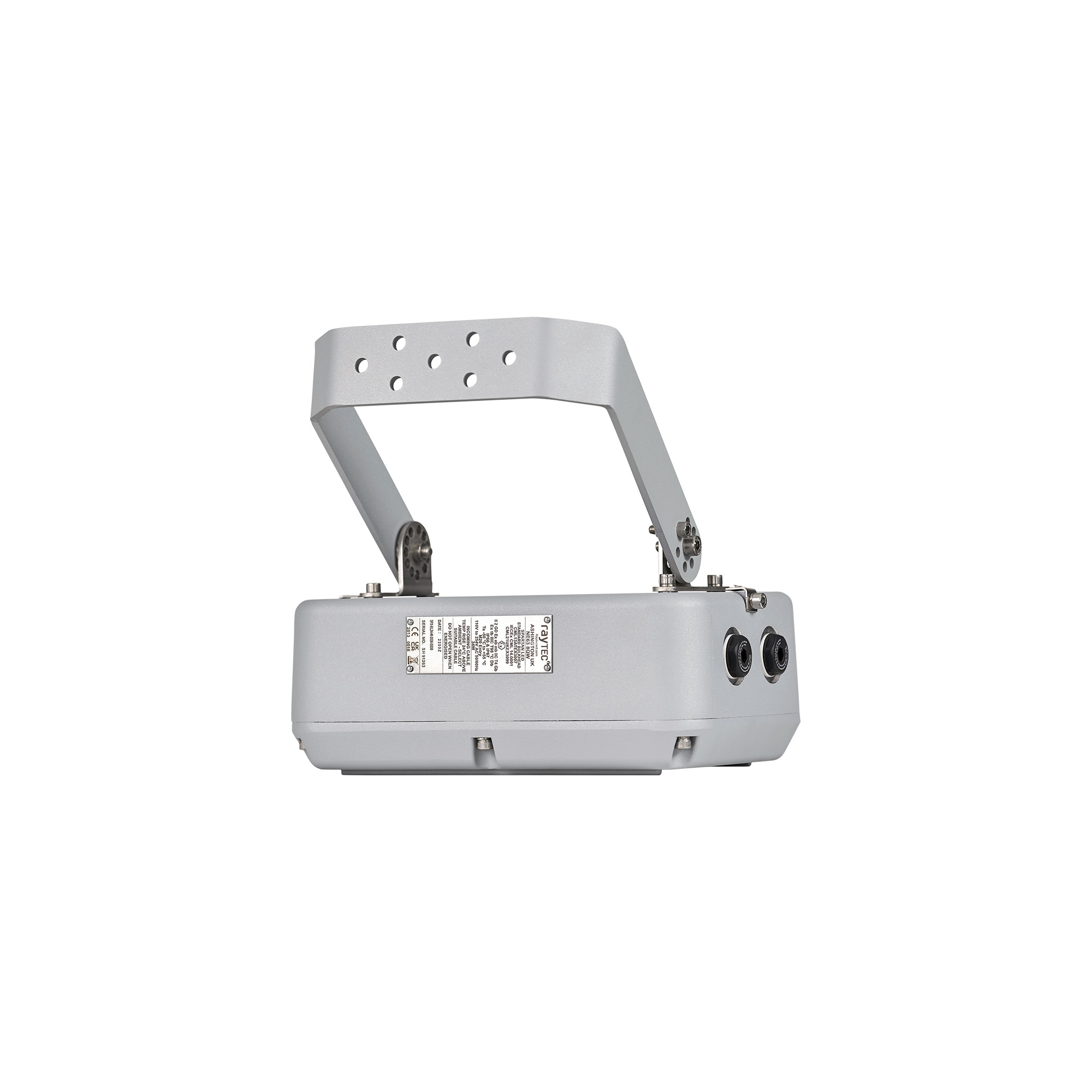

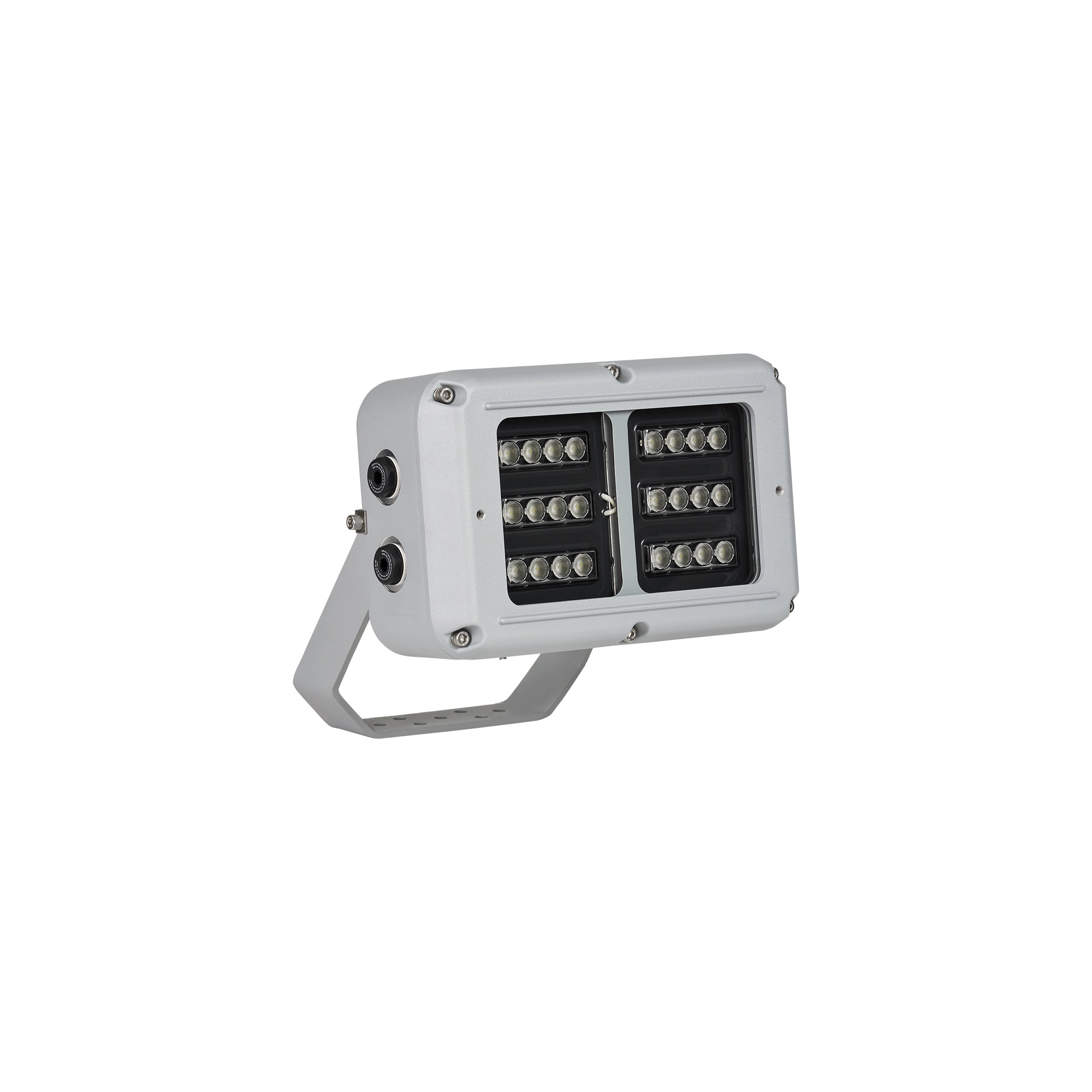

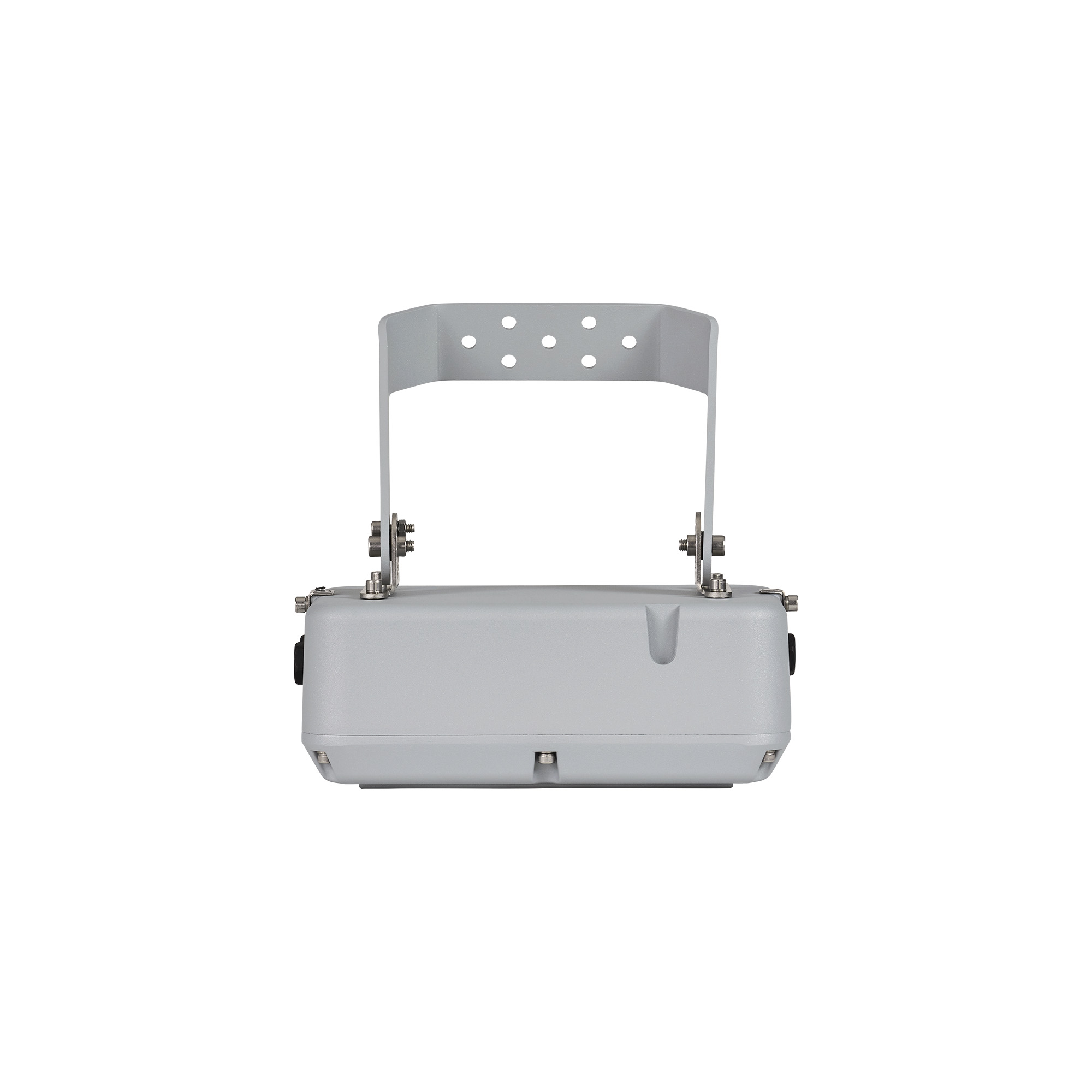

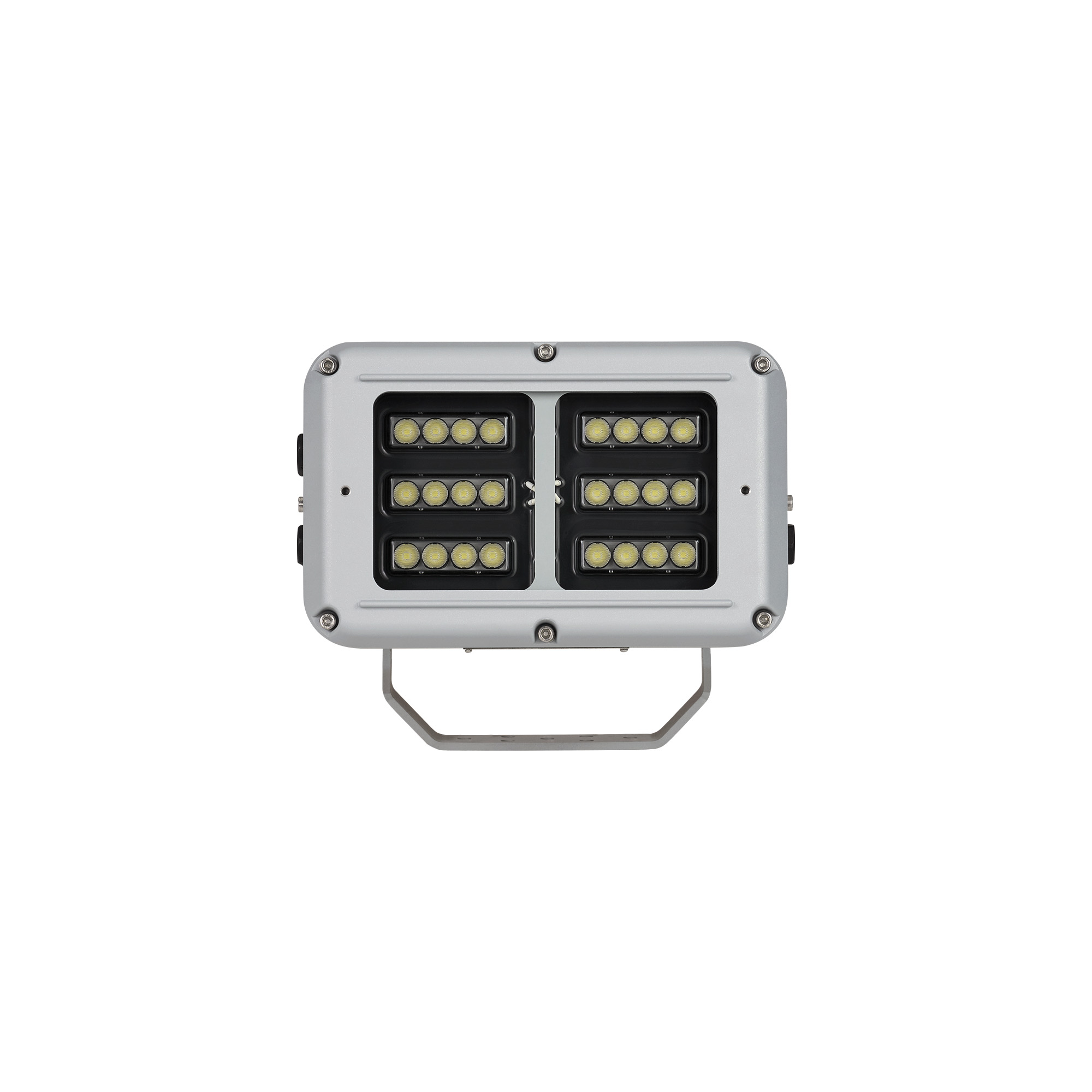

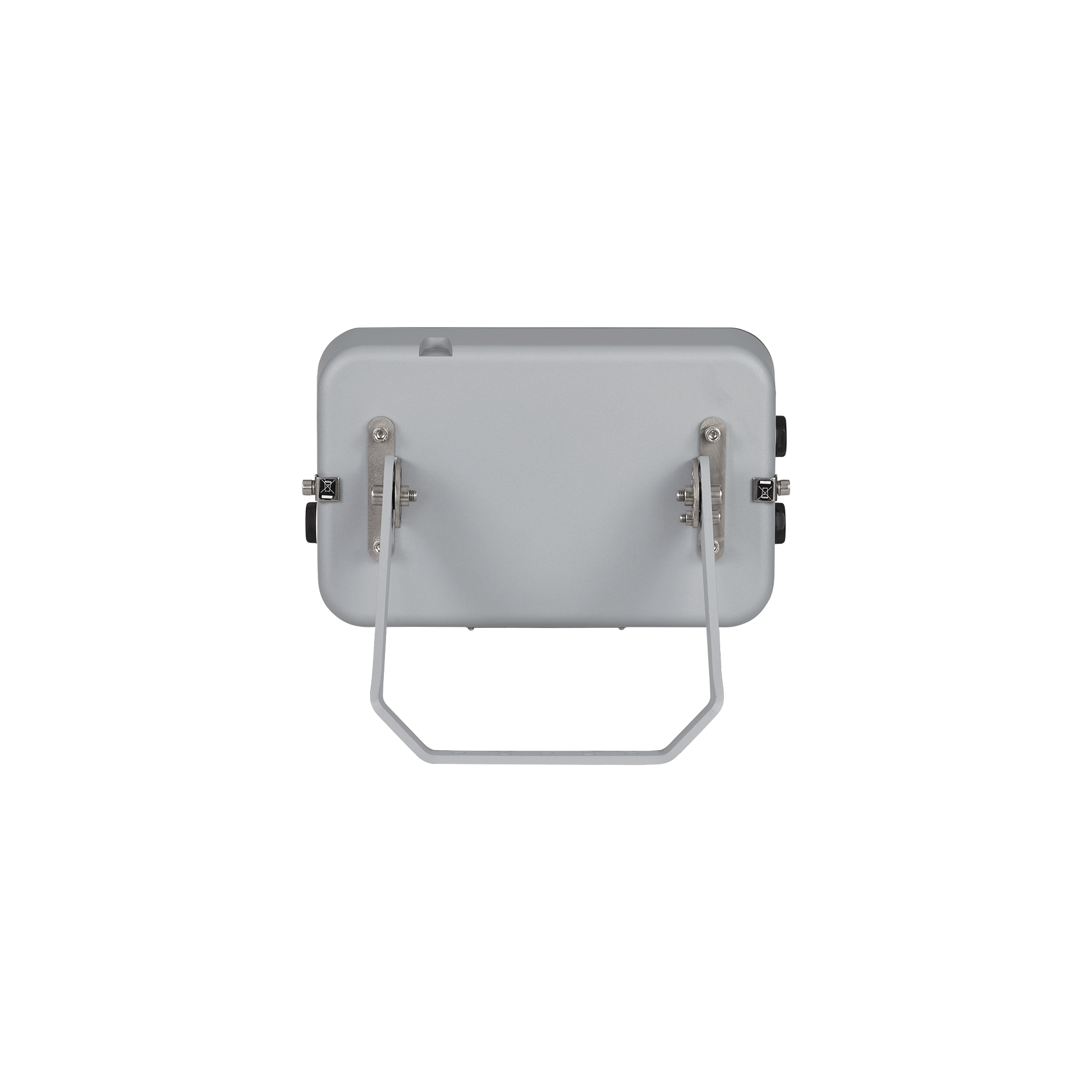

SPARTAN Flood BL24, Zone 1/21, 2,500 - 4,250lm
About SPARTAN Flood BL24 Zone 1
- Sector
- Hazardous
- Certification
- ATEX, IECEx and UKEX
- Classification
- Zone 1 & 21
The SPARTAN Flood range is designed for hazardous area environments which require high performance, reliable, White-Light illumination. Available with emergency battery backup and delivering 4,250 lumens, the Flood BL24 is ideal for illuminating smaller areas. It uses Raytec’s field-proven, long-life LED technology to ensure a lifetime of 10 years+. All SPARTAN luminaires come with an industry-leading 5-year warranty.
Intelligent Emergency Variants.
Emergency variants have a self-test function to automatically maintain the battery's health. The batteries are contained within the existing housing to provide a compact solution.
Robust and Durable.
Flood BL24 is designed from marine grade aluminium with stainless steel bracketry and fastenings to ensure it can withstand the most extreme environments.
Bespoke LED.
Raytec are specialists in LED and SPARTAN Flood has been specifically designed around the LEDs with a bespoke housing for optimum performance and reliability.
Adjustable Bracketry.
Latest Standards.
Specs
Select Option
| BL24 | BL24-HO | BL24 EMX25 | BL24-HO EMX25 | |
|---|---|---|---|---|
| ATEX Rating | ATEX UKCA and IEC Ex rated for Gas and Dust | |||
| Hazardous Area Rating | Zone 1 (Gas), Zone 21(Dust) | |||
| Certificates | CML 13ATEX3007, IEC Ex CML14.0001 & CML21UKEX3099-- | |||
| Gas | II 2 G D, Ex eb mb IIC T4 Gb, Ta= Up to -52°C to +55°C (-20°C to +46°C for emergency variants | |||
| Dust | Ex tb IIIC T98°C Db, Ta= Up to -52°C to +55°C (-20°C to +46°C for emergency variants), IP66 & IP67 | |||
| ABS Certificate # | ABS Certificate # 20-1990083-PDA | |||
| BL24 | BL24-HO | BL24 EMX25 | BL24-HO EMX25 | |
|---|---|---|---|---|
| Input | 110-254V 50/60Hz AC only, 18-48V AC and 18-69V DC (LV), 12V AC/DC (ELV) | 110-254V 50/60Hz AC only | ||
| Power | 20W | 34W | 24W | 37W |
| Termination | Incoming terminal block suitable for looping 4 core 4mm² cable (6mm² available) | Incoming terminal block suitable for looping 4 core 4mm² cable (6mm² available) | ||
| Power Factor | >0.9 | >0.9 | ||
| Cable Entries | 4xM20 as standard (other entries available upon request), dispatched complete with three ATEX/UKEX/IEC Ex approved blanking plug | 4xM20 as standard (other entries available upon request), dispatched complete with three ATEX/UKEX/IEC Ex approved blanking plug | ||
| BL24 | BL24-HO | BL24 EMX25 | BL24-HO EMX25 | |
|---|---|---|---|---|
| Beam Patterns - Circular | 10°x10° or 30°x30° or 50°x50° or 80°x80° or 120°x120° (10x10 option can be upgraded to Vario Technology) | 10°x10° or 30°x30° or 50°x50° or 80°x80° or 120°x120° (10x10 option can be upgraded to Vario Technology) | ||
| Beam Patterns - Elliptical | 35°x 10°or 60°x 25°or 80°x 30° or 120°x 50° (VARIO) | 35°x 10°or 60°x 25°or 80°x 30° or 120°x 50° (VARIO) | ||
| Lumen Output | 2,500 lm – circular beam patterns 2,250 lm – elliptical beam patterns (VARIO) | 4,250 lm – circular beam patterns 4,000 lm – elliptical beam patterns (VARIO) | 2,500 lm – circular beam patterns 2,250 lm – elliptical beam patterns (VARIO) | 4,250 lm – circular beam patterns 4,000 lm – elliptical beam patterns (VARIO) |
| LED Type | Platinum Elite SMT LEDs | Platinum Elite SMT LEDs | ||
| Number of LEDs | 24 | 24 | ||
| CRI | 80+ | 80+ | ||
| Colour Temperature | 6500K standard | 6500K standard | ||
| BL24 | BL24-HO | BL24 EMX25 | BL24-HO EMX25 | |
|---|---|---|---|---|
| Burning Position | Universal | Universal | ||
| IP Rating | IP66 & IP67 | IP66 & IP67 | ||
| Temperature Range | - 50°C to +55°C | - 20°C to +46°C | ||
| Weight | 5kg (11.0Ibs) | 6kg (13.2Ibs) | ||
| Enclosure | Marine grade aluminium epoxy powder coated, toughened glass, all external fasteners and brackets are marine grade stainless steel | Marine grade aluminium epoxy powder coated, toughened glass, all external fasteners and brackets are marine grade stainless steel | ||
| Unit Colour | Silver (RAL 9006) | Silver (RAL 9006) | ||
| Installation Instructions | Please see document 0940-D-00007 at www.raytecled.com | |||
| BL24 EMX25 | BL24-HO EMX25 | |
|---|---|---|
| Function | Self-testing intelligent emergency | |
| System health indicator | Tri-colour LED indicator | |
| Emergency Duration | Up to 3hrs @ 25% power Other options available | |
| Emergency Battery | 2.5 Ah | |
| Emergency Charge Time | 20 hours | |
Product Dimensions.
Flood BL24Light Distribution.
Circular Beam Patterns
Elliptical Beam Patterns
Downloads.
Datasheet - SPARTAN Flood BL24 - Zone 1/21 Installation Guide - SPARTAN Bulkhead and BL24 Flood Zone 1/21 and 2/22 IECEx Certificate - SPARTAN FL & BL - Zone 1/21 UKCA Certificate - SPARTAN FL & BL - Zone 1/21 ATEX Certificate - SPARTAN FL & BL - Zone 1/21 ABS Certificate - Approval 2020 SPARTAN & WARRIOR Photometric Data Mounting & Accessories Guide - Flood & Bulkhead
