Flood BL24

SPARTAN Flood BL24, Class I Division 2, 2,750lm

About SPARTAN Flood BL24-SB30 CID2

Sector
Hazardous
Certification
Class I Division 2 rated for Gas and Dust
Classification
Class I, Division 2 Groups A, B, C, D, T5
Class II, Division 1 & 2 Groups E, F, G
Class III, Division 1 & 2
NEMA 4x, IP66/IP67
UL50E, UL8750, UL 1203
C22.2 No

The SPARTAN Flood range is designed for hazardous area environments which require high performance, reliable, White-Light illumination. Available with emergency battery backup and delivering 2,750 lumens, the BL24 Flood is ideal for illuminating smaller areas. It uses Raytec’s field-proven, long-life LED technology to ensure a lifetime of 10 years+. All SPARTAN luminaires come with an industry-leading 5-year warranty.

Jump to Downloads

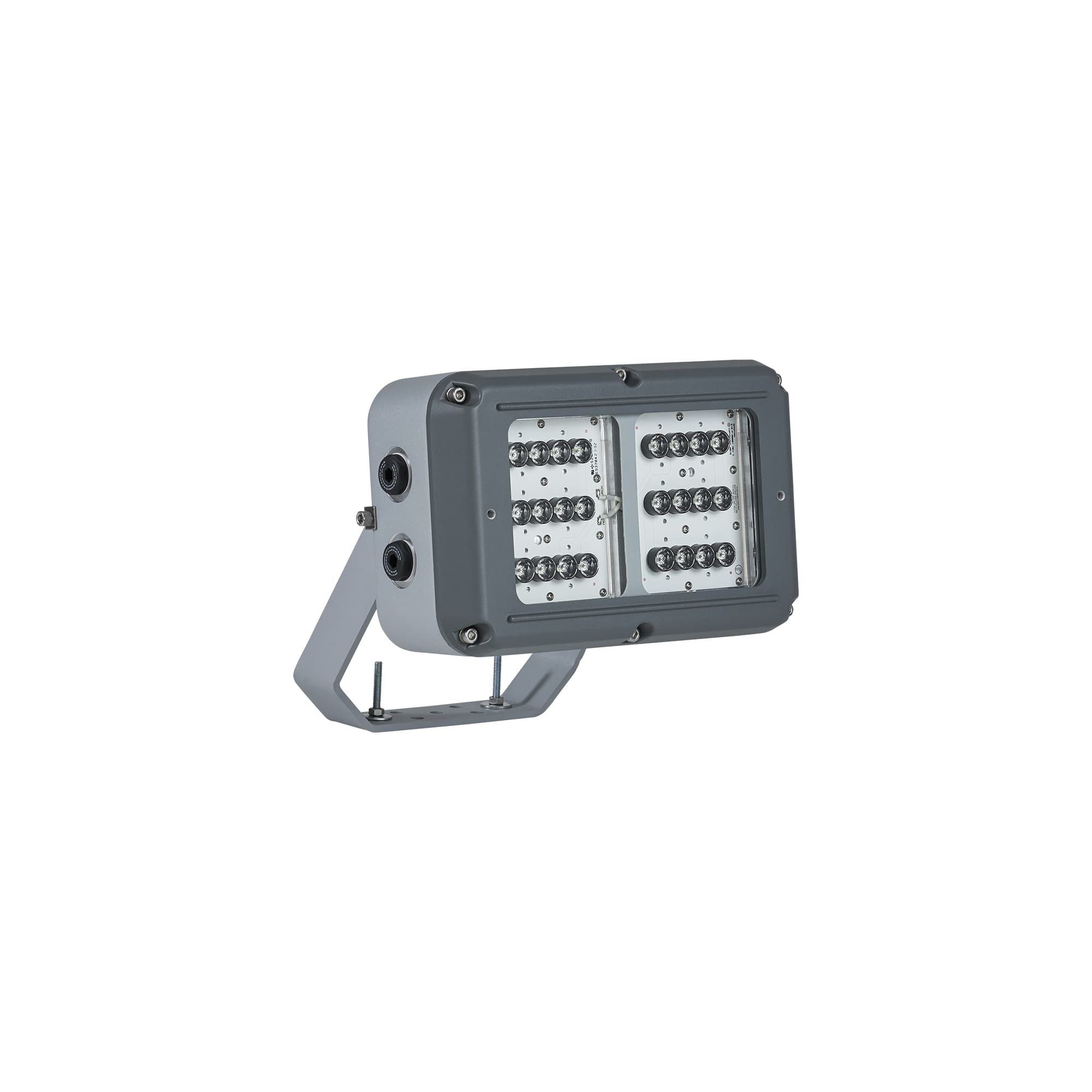

flood light up close Bulkhead BL24 Zone 2

Intelligent Emergency Variants.

Emergency variants have a self-test function to automatically maintain the battery's health. The batteries are contained within the existing housing to provide a compact solution.

Robust and Durable.

Bulkhead is designed from marine grade aluminium with stainless steel bracketry and fastenings to ensure it can withstand the most extreme environments.

Bespoke LED.

Raytec are specialists in LED and SPARTAN Flood has been specifically designed around the LEDs with a bespoke housing for optimum performance and reliability.

Specs

Select Option

BL24-SB30BL24-SB30 Emergency
UL RatingClass I Division 2 rated for Gas and Dust
Hazardous Area RatingClass I, Division 2 Groups A, B, C, D, T5
Class II, Division 1 & 2 Groups E, F, G
Class III, Division 1 & 2
NEMA 4x, IP66/IP67
UL50E, UL8750, UL 1203
C22.2 No
ABS Certificate #ABS Certificate # 20-1990083-PDA
BL24-SB30BL24-SB30 Emergency
Input110-254V 50/60Hz AC only, 18-48V AC and 18-69V DC (LV), 12V AC/DC (ELV)110-254V 50/60Hz AC only
Power34W37W
TerminationIncoming terminal block suitable for looping 4 core 4mm² cable (6mm² available)Incoming terminal block suitable for looping 4 core 4mm² cable (6mm² available)
Power Factor>0.95
Cable Entries4 x 3/4 NPT as standard (other entries available upon request), dispatched complete with three approved blanking plugs
BL24-SB30BL24-SB30 Emergency
Beam Patterns - Circular10°x10°, 30°x30°, 50°x50°, or 120°x120° (10x10 option can be upgraded to Vario Technology)
Beam Patterns - Elliptical35°x10°, 60°x25°, 80°x30° or 120°x50° (VARIO)
Lumen Output2,750m (circular beam patterns), 2,500lm (elliptical beam patterns)
LED TypePlatinum Elite SMT LEDs
Number of LEDs23
CRI80+
Colour Temperature6500K standard
BL24-SB30BL24-SB30 Emergency
Burning PositionUniversal
IP RatingIP66 & IP67
Temperature Range- 50°C to +55°C - 20°C to +46°C
Weight5kg (11.0Ibs)6kg (13.2Ibs)
EnclosureMarine grade aluminium epoxy powder coated, toughened glass, all external fasteners and brackets are marine grade stainless steel
Unit ColourSilver (RAL 9006)
MountingStirrup bracket. Other options available.
BL24-SB30 Emergency
FunctionSelf-testing intelligent emergency
System health indicatorTri-colour LED indicator
Emergency DurationUp to 3hrs @ 25% power Other options available
Emergency Battery2.5 Ah
Emergency Charge Time20 hours

Product Dimensions.

Bulkhead Flood BL24 Dimension Sketch Flood BL24

Light Distribution.

Circular Beam Patterns

10x10
30x30
50x50
120x120

Elliptical Beam Patterns

35x10
60x25
80x30
120x50

Downloads.

Mounting & Accessories Guide - Flood & Bulkhead CID2 Certificate - SPARTAN FL, BL, HPFL & HPBY Guide - Storage and Handling of Batteries SPARTAN & WARRIOR Photometric Data ABS Certificate - Approval 2020
