Mid-Power Bay
SPARTAN Mid Power Bay, Zone 1/21, 5,000 - 15,000lm
About SPARTAN Bay MPBY Zone 1
- Sector
- Hazardous
- Certification
- ATEX, IECEx and UKEX
- Classification
- Zone 1 & 21

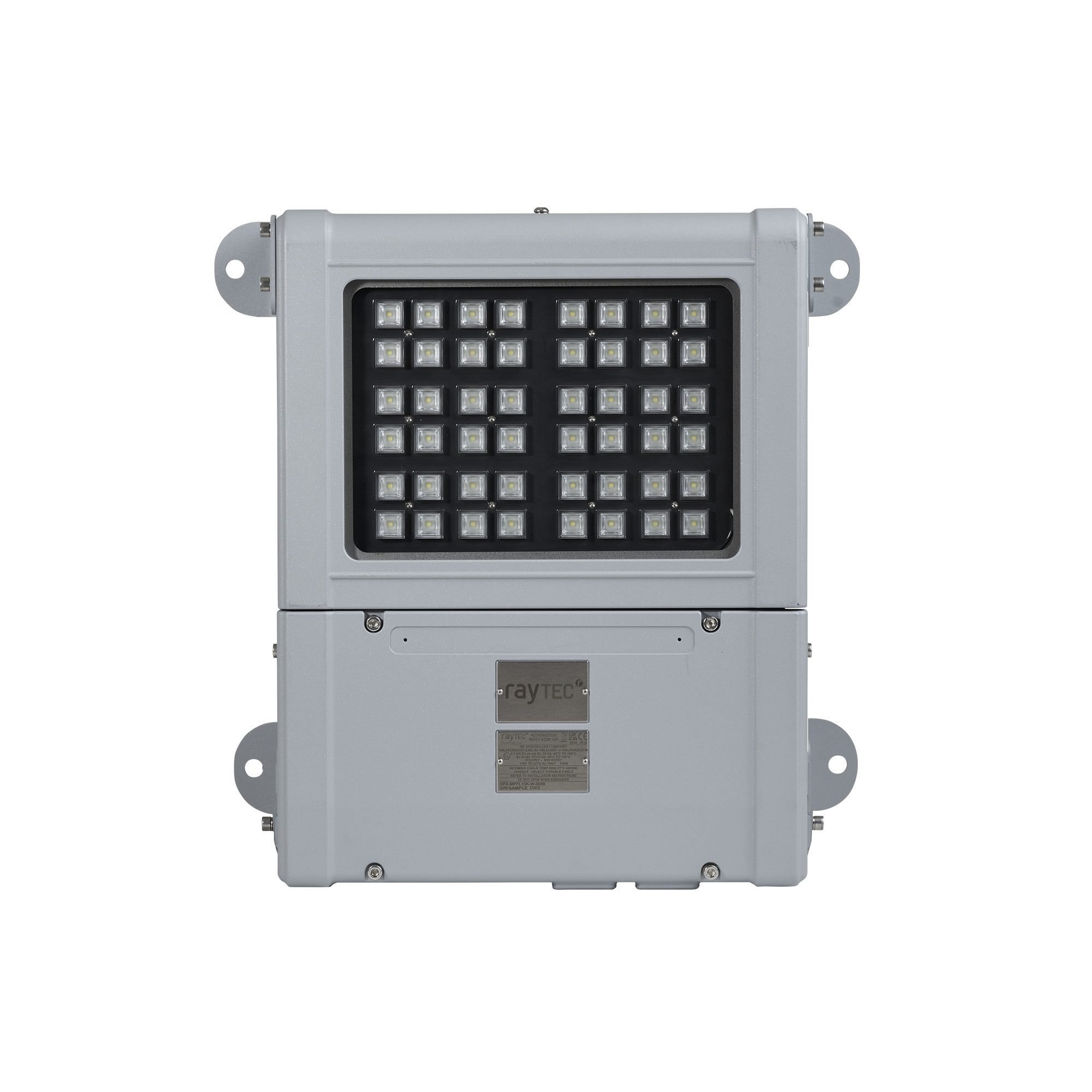

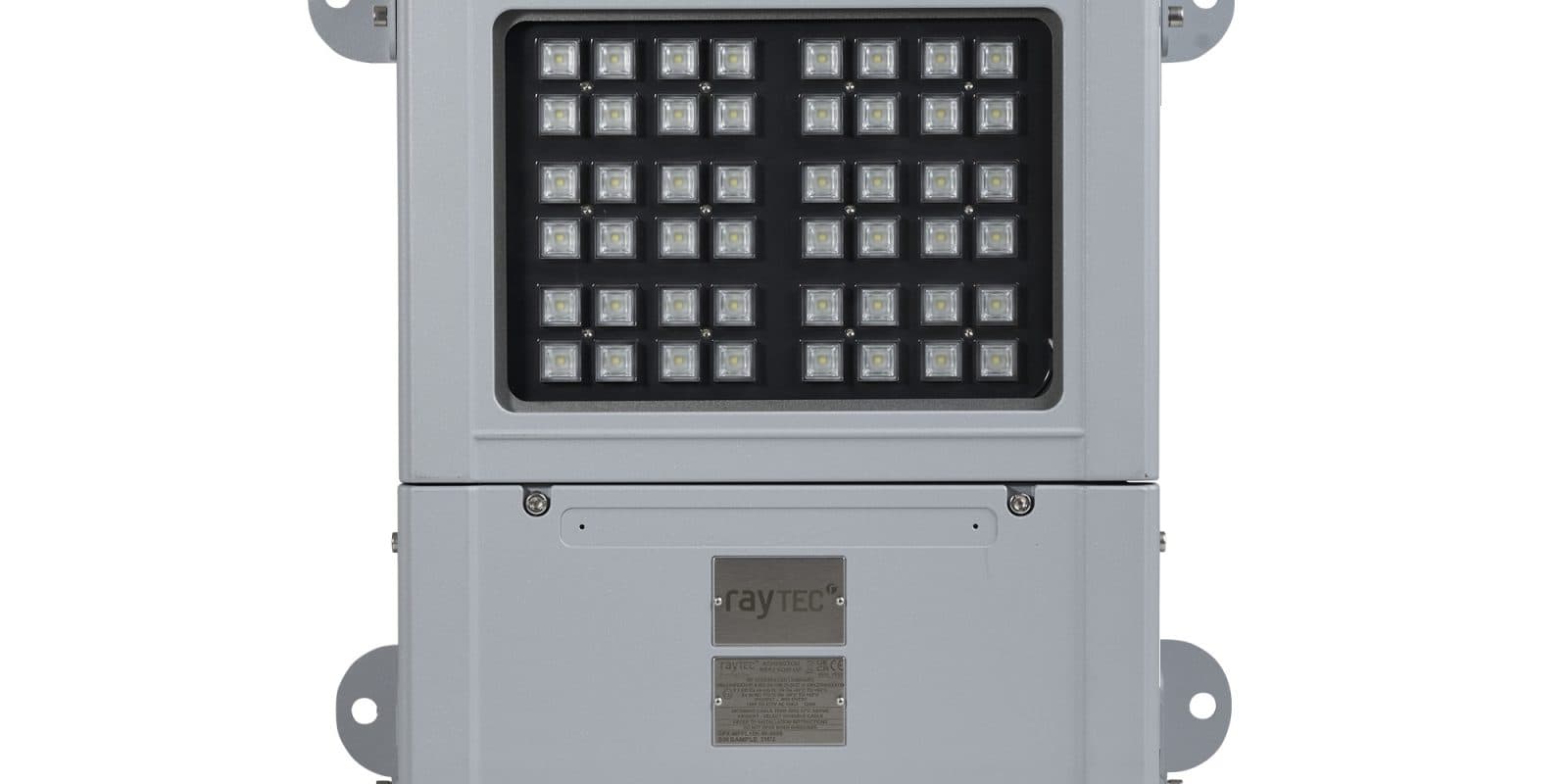

The SPARTAN Mid-Power Bay range is designed to illuminate large, open spaces within hazardous area environments. Available with a range of different outputs from 5,000 to 15,000 lumens, the Mid-Power Bay uses Raytec’s field-proven, long-life LED technology to ensure a lifetime of 10 years+. All SPARTAN luminaires come with an industry-leading 5-year warranty.
Built Powerful.
High lumen output from 5,000 to 15,000 lumens, along with a range of different beam patterns to effectively light up large open areas.
Built Flexible.
The modular design allows easy access to key components and the ability to mount the PSU remotely, making installation and maintenance easy.
Built Tough.
Constructed using tough, marine-grade aluminium and IP66 & IP67 rated, the MPBY is designed to withstand even the most challenging conditions.
Easy to Maintain.
Secondary Optics.
Robust & Durable.
Specs
Select Option
| MPBY 5K | MPBY 7.5K | MPBY 10K | MPBY 12.5K | MPBY 15K | |
|---|---|---|---|---|---|
| ATEX Rating | ATEX, UKEX and IEC Ex rated for Gas and Dust | ||||
| Hazardous Area Rating | Zone 1 (Gas), Zone 21(Dust) | ||||
| Certificates | CML21ATEX3317 & IEC Ex CML21.0037 or CML21UKEX3319 | ||||
| Gas | II 2 G D, Ex eb mb IIC T4 Gb, Ta= -40°C to+60°C | ||||
| Dust | Ex tb IIIC T90°C Db, Ta= -40°C to+60°C | ||||
| MPBY 5K | MPBY 7.5K | MPBY 10K | MPBY 12.5K | MPBY 15K | |
|---|---|---|---|---|---|
| Input | 110-277V 50/60Hz AC only | ||||
| Power | 40W | 60W | 80W | 100W | 120W |
| Termination | Incoming terminal block suitable for looping 4 core 4mm² cable | ||||
| Power Factor | >0.95 | ||||
| Cable Entries | 2xM20 as standard (other entries available upon request), dispatched complete with one ATEX/IEC Ex/UKEX approved blanking plug | ||||
| MPBY 5K | MPBY 7.5K | MPBY 10K | MPBY 12.5K | MPBY 15K | |
|---|---|---|---|---|---|
| Lumen Output | 4,792 | 7,132 | 9,585 | 11,981 | 14,263 |
| LED Type | Platinum Elite SMT LEDs | ||||
| No. of LEDs | 24 | 24 | 48 | 48 | 48 |
| CRI | 70+ | ||||
| Colour Temperature | 5,700K | ||||
| MPBY 5K | MPBY 7.5K | MPBY 10K | MPBY 12.5K | MPBY 15K | |
|---|---|---|---|---|---|
| Burning Position | Universal | ||||
| IP Rating | IP66 & IP67 | ||||
| Temperature Range | -40°C to +60°C | ||||
| Weight | 13.2kg (29.1lbs) | ||||
| Enclosure | Marine grade aluminium epoxy powder coated, toughened glass, all external fasteners and brackets are marine grade stainless steel | ||||
| Unit Colour | Silver (RAL 9006) | ||||
| Mounting | Ceiling brackets included | ||||
Product Dimensions.
MPBYDownloads.
Datasheet - SPARTAN Mid Power Bay Zone 1 / 21 Installation Guide - SPARTAN Mid Power Flood & Bay Zone 1 & 2 ATEX Certificate - SPARTAN MPFL & MPBY - Zone 1/21 IECEx Certificate - SPARTAN MPFL & MPBY - Zone 1/21 UKCA Certificate - SPARTAN MPFL & MPBY - Zone 1/21 SPARTAN & WARRIOR Photometric Data
