Mid-Power Flood

SPARTAN Mid Power Flood, Zone 2/22, 5,000lm - 15,000lm

About SPARTAN Flood MPFL Zone 2

Sector
Hazardous
Certification
ATEX, IECEx and UKEX
Classification
Zone 2 & 22

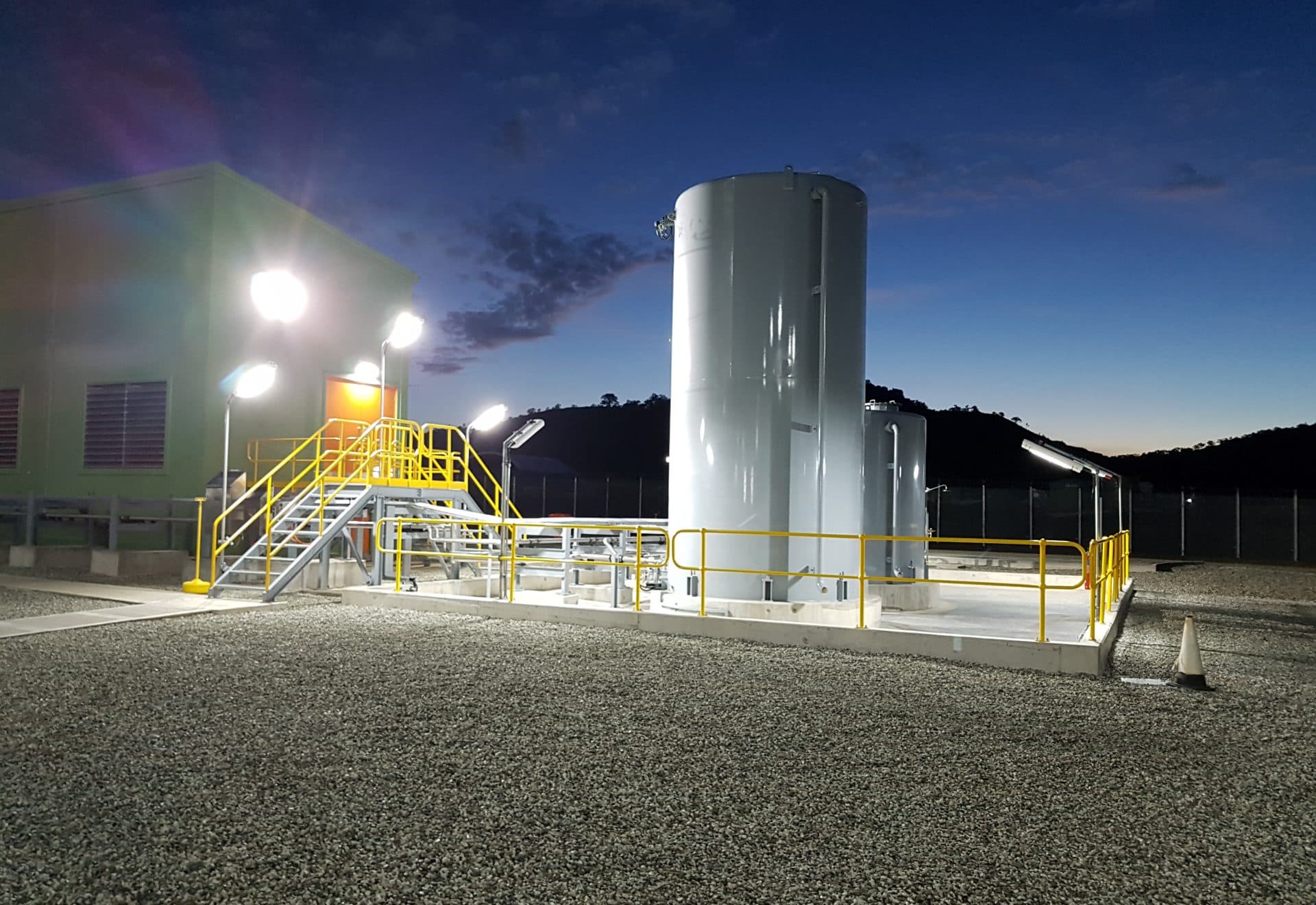

The Mid-Power SPARTAN ATEX LED Floodlight range is designed to illuminate large, open spaces within hazardous area environments. Available with a range of different outputs from 5,000 to 15,000 lumens, the Mid-Power Flood uses Raytec’s field-proven, long-life LED technology to ensure a lifetime of 10 years+. All SPARTAN luminaires come with an industry-leading 5-year warranty.

Jump to Downloads
ATEX LED Floodlight

Built Powerful.

SPARTAN ATEX LED Floodlight - High lumen output from 5,000 to 15,000 lumens, along with a range of different beam patterns to effectively light up large open areas such as oil rigs.

Built Flexible.

The modular design allows easy access to key components and the ability to mount the PSU remotely, making installation and maintenance easy.

Built Tough.

Constructed using tough, marine-grade aluminium and IP66 & IP67 rated, the MPFL is designed to withstand even the most challenging conditions.

Robust & Durable.

ATEX LED Floodlight - Bracketry WARRIOR Mid-Power Flood
Robust and durable construction from marine grade aluminium and with a wide operating temperature for even the most challenging conditions.

Easy to Maintain.

WARRIOR Mid-Power Bay
Designed with maintenance in mind, featuring an innovative modular design to allow quick and easy on-site servicing.

Secondary Optics.

Secondary optics are utilised to deliver a range of different beam patterns. This ensures light is targeted efficiently and there's no loss of light output on wider beam angle variants.

Specs

Select Option

MPFL 5KMPFL 7.5KMPFL 10KMPFL 12.5KMPFL 15K
ATEX RatingATEX, UKEX and IEC Ex rated for Gas and Dust
Hazardous Area RatingZone 2 (Gas), Zone 22(Dust)
CertificatesCML21ATEX3320 & IEC Ex CML21.0038 or CML21UKEX3321
GasII 3 G D Ex ec mc IIC T4 Gc Ta= -40°C to+60°C
DustEx tc IIIC T90°C Dc Ta= -40°C to+60°C
MPFL 5KMPFL 7.5KMPFL 10KMPFL 12.5KMPFL 15K
Input110-277V 50/60Hz AC only
Power40W60W80W100W120W
TerminationIncoming terminal block suitable for looping 4 core 4mm² cable
Power Factor>0.95
Cable Entries2xM20 as standard (other entries available upon request), dispatched complete with one ATEX/IEC Ex/UKEX approved blanking plug
MPFL 5KMPFL 7.5KMPFL 10KMPFL 12.5KMPFL 15K
Lumen Output5,149lm7,663lm10,298lm12,873lm15,325lm
LED TypePlatinum Elite SMT LEDs
No. of LEDs2424484848
CRI70+
Colour Temperature5,700K
MPFL 5KMPFL 7.5KMPFL 10KMPFL 12.5KMPFL 15K
Burning PositionUniversal
IP RatingIP66 & IP67
Temperature Range-40°C to +60°C
Weight13.2kg (29.1lbs)
EnclosureMarine grade aluminium epoxy powder coated, toughened glass, all external fasteners and brackets are marine grade stainless steel
Unit ColourSilver (RAL 9006)
MountingStirrup bracket

Product Dimensions.

MPFL Dimension Drawing MPFL

Light Distribution.

Optional Beam Patterns

10x10
30x30 Circuar beam pattern
30x30
60x60 Circuar beam pattern
60x60
90x90 Circuar beam pattern
90x90
120x15

Downloads.

Datasheet - SPARTAN Mid Power Flood - Zone 2 /22 Installation Guide - SPARTAN Mid Power Flood & Bay Zone 1 & 2 ATEX Certificate - SPARTAN MPFL & MPBY - Zone 2/22 IECEx Certificate - SPARTAN MPFL & MPBY - Zone 2/22 UKCA Certificate - SPARTAN MPFL & MPBY - Zone 2/22 SPARTAN & WARRIOR Photometric Data
