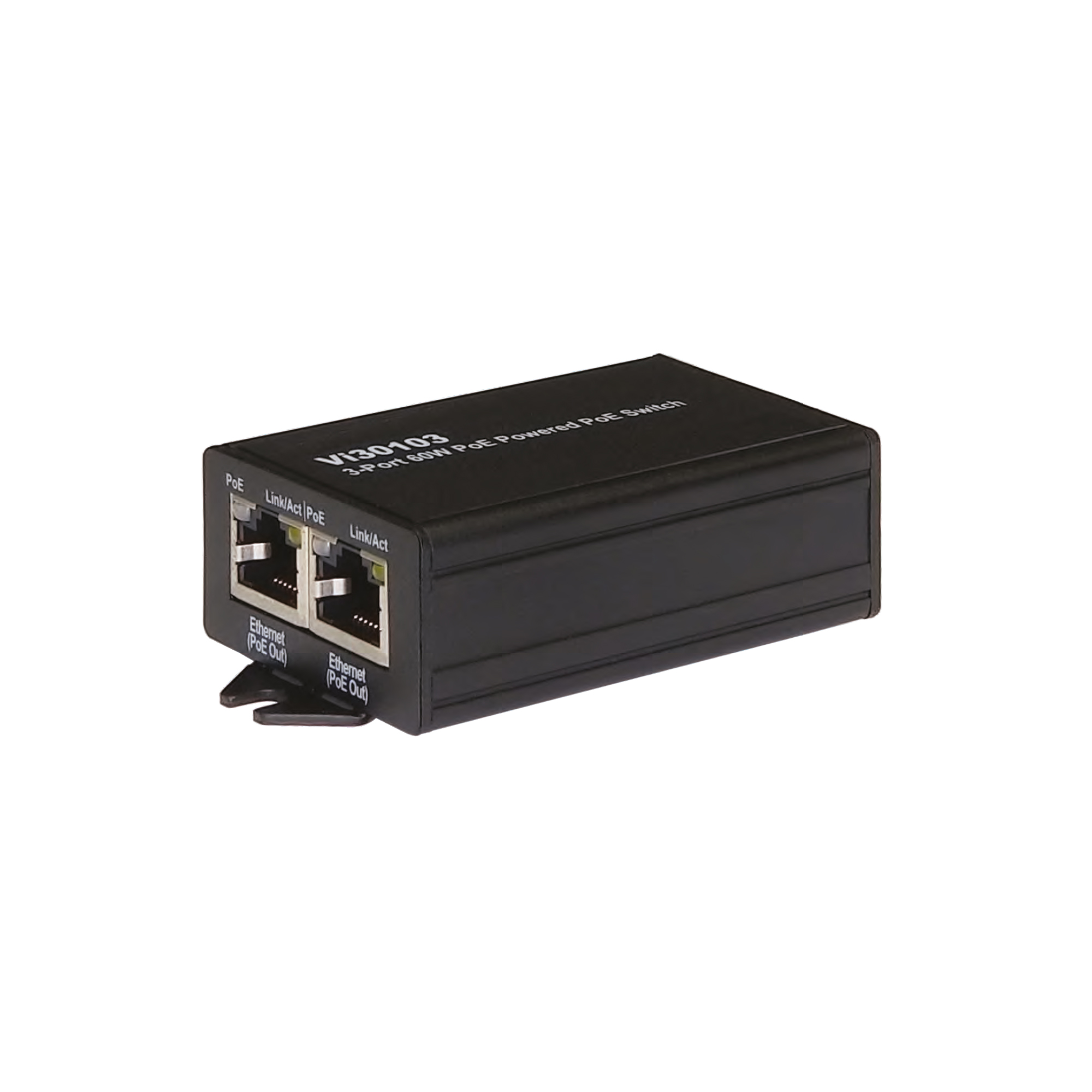

RVi30103 3-Port Drop and Insert 60W PoE Switch

(Only available in the Americas)

About RVi30103

Sector
Security

The RVi30103 is a 3-port Layer 2 PoE switch providing drop and insert capability for connecting several IP devices along a single cable run. The RVi30103 provides a cost effective method for increasing distances beyond the standard Ethernet limit of 328 feet (100m).

Jump to Downloads

Specs

RVi30103
PoE RatingPort 1 (PoE In): up to 60W, Port 2 & 3 (PoE Out): up to 30W
Network Connection(3) RJ-45 IEC 60603-7
Bandwidth10/100Mbps
Wiring SupportCat 5/5e/6
Supported Distance328ft (100m) per link
Status LEDsPort 1: Vi30103 Power (Green), Link/Activity (Orange) Port 2: PoE (Green), Link/Activity (Orange) Port 3: PoE (Green), Link/Activity (Orange)
Data RateAuto Configuring, Ports 1, 2 & 3: 10/100Base-TX
Humidity0 to 95%, non-condensing
TemperatureOperating: -20°C to +60°C Storage: -40°C to +85°C
Dimensions0.97x1.76x2.7 in., 2.5x4.5x6.9 cm (HxWxL)
Weight0.19 lb, 86 g
MaterialExtruded Aluminum
Power Consumption1.5W

Downloads.

Datasheet - RVi30103
