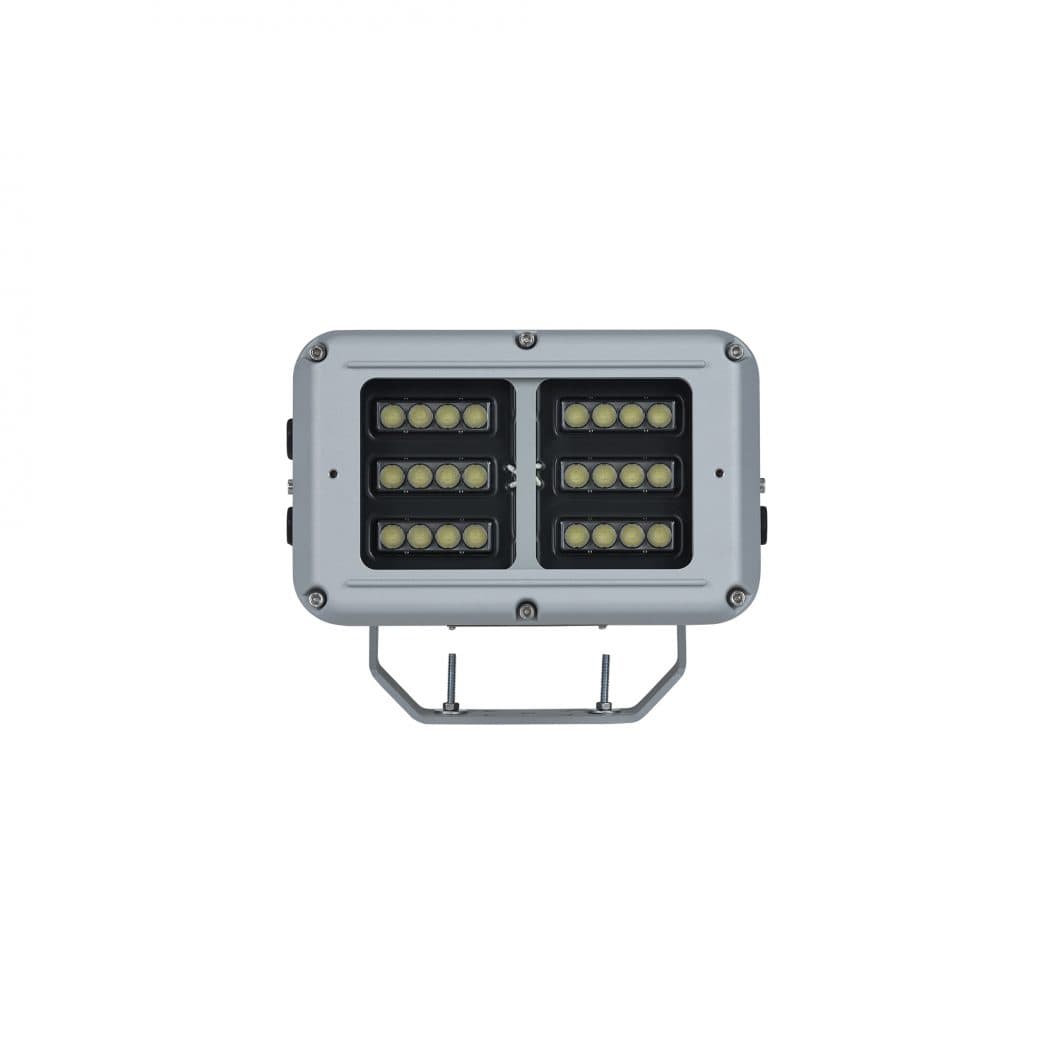

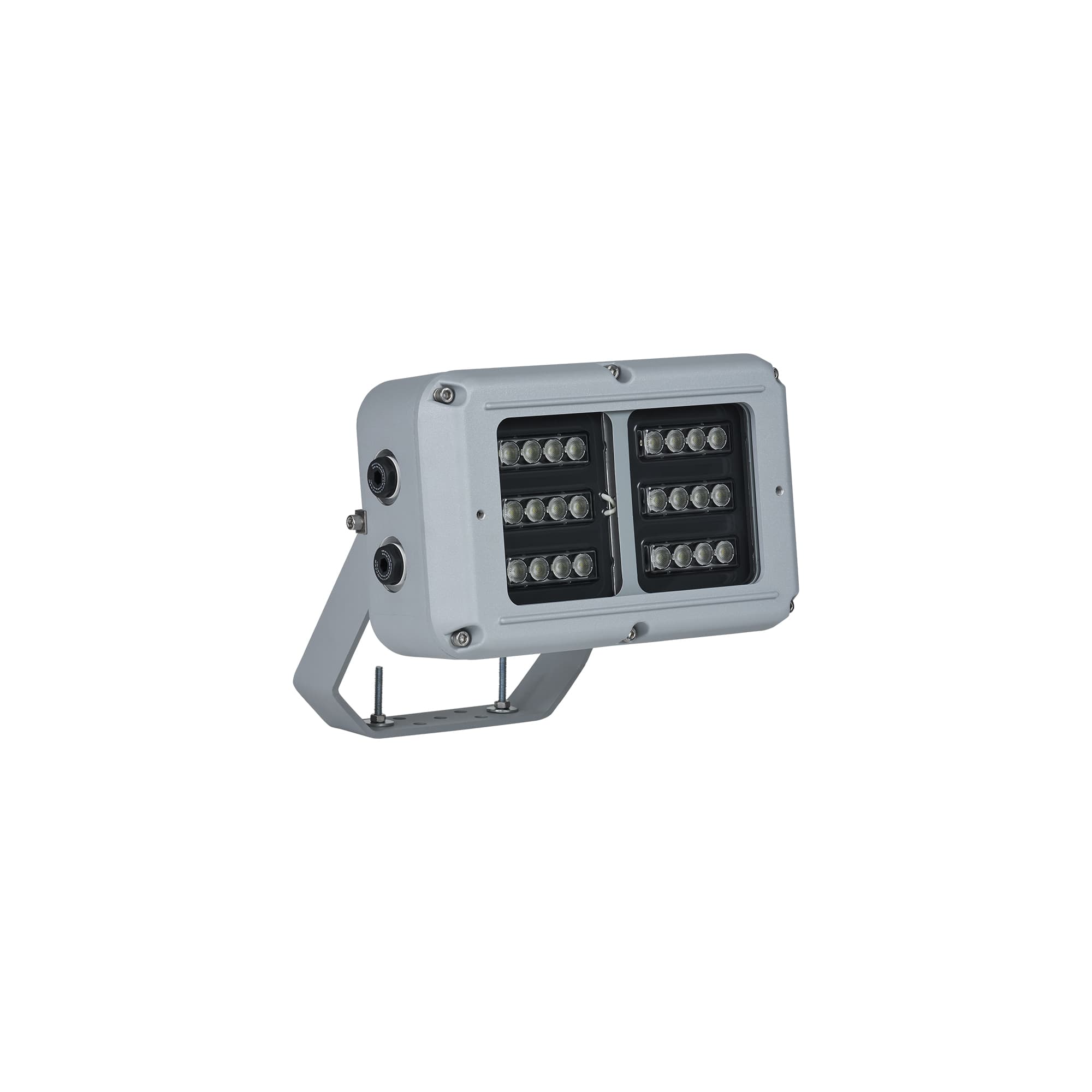

SPARTAN BL24 Floodlight, 34W, 850nm IR, standard and emergency options. Available as Zone 1 or Zone 2 variant.
Ex Floodlight
SPARTAN Flood, Hazardous Area Floodlight, Zone 1/21, 850nm
About SPARTAN Flood Zone 1 Infra-Red
- Sector
- Hazardous
- Certification
- ATEX, IECEx and UKEX
- Classification
- Zone 1 & 21
The SPARTAN Flood Zone 1 Infra-Red range is designed for hazardous area environments which require high performance, reliable, Infra-Red illumination. Available with emergency battery back-up, the FL Flood range uses Raytec’s field-proven, long-life LED technology to ensure a lifetime of 10 years+. All SPARTAN luminaires come with an industry-leading 5-year warranty.
Jump to Downloads
Bespoke LED.
Raytec are specialists in LED and the SPARTAN Flood zone 1 infra-red range is designed for hazardous area environments which require high performance, reliable, Infra-Red illumination. has been specifically designed around the LEDs with a bespoke housing for optimum performance and reliability.
Choice of Beam Patterns.
Available with a range of circular and elliptical beam patterns, from 10° to 120°. Raytec's VARIO technology allows the beam pattern to be modified on-site.
Emergency Back-Up.
Thermal Management.
Easy Maintenance.
FL FLOOD VariantS.
Available in three sizes, the BL24, FL24 and FL48, all of which are available with emergency battery back-up.
FL24

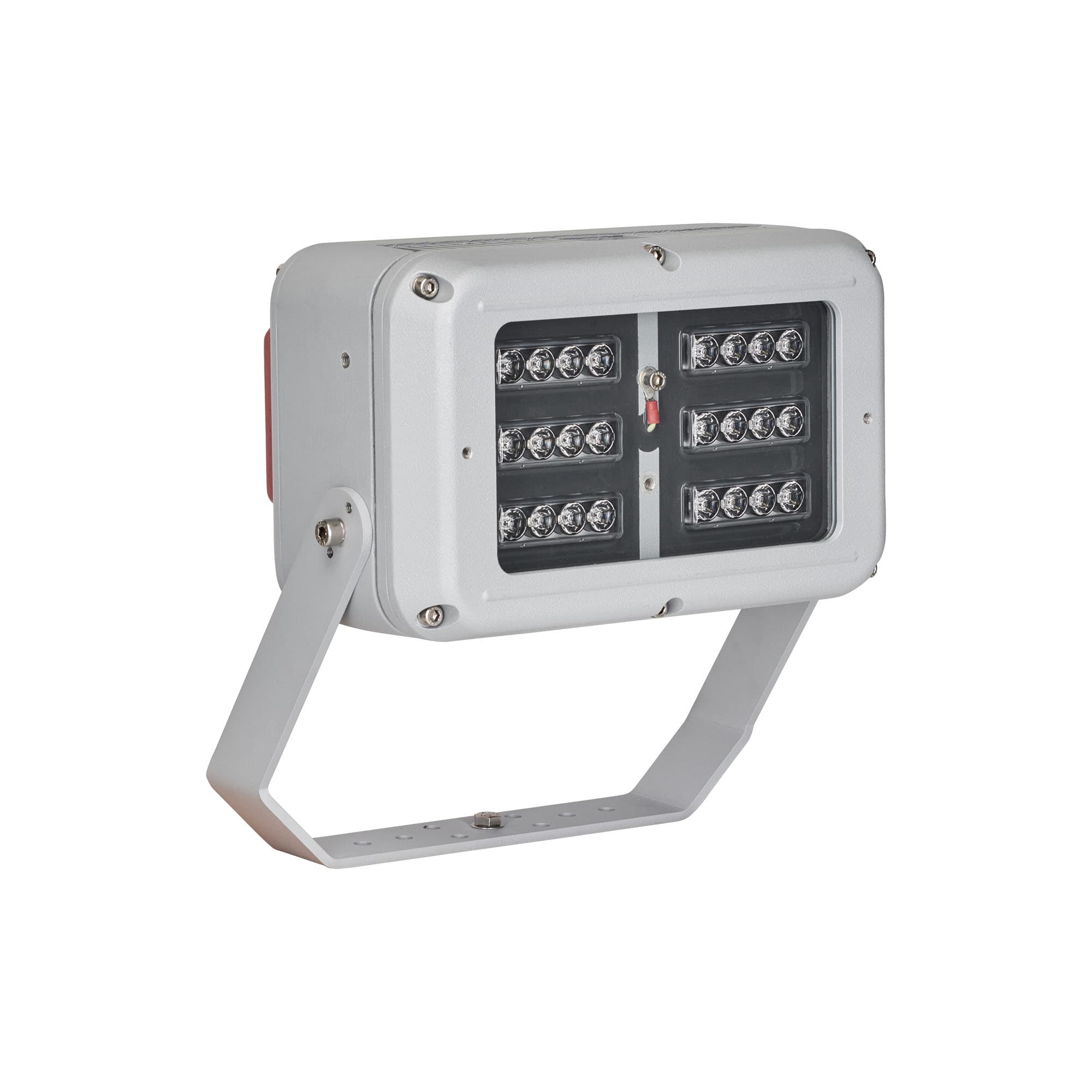

SPARTAN FL24 Floodlight, 68W, 850nm IR, standard and emergency options. Available as Zone 1 or Zone 2 variant.
FL48

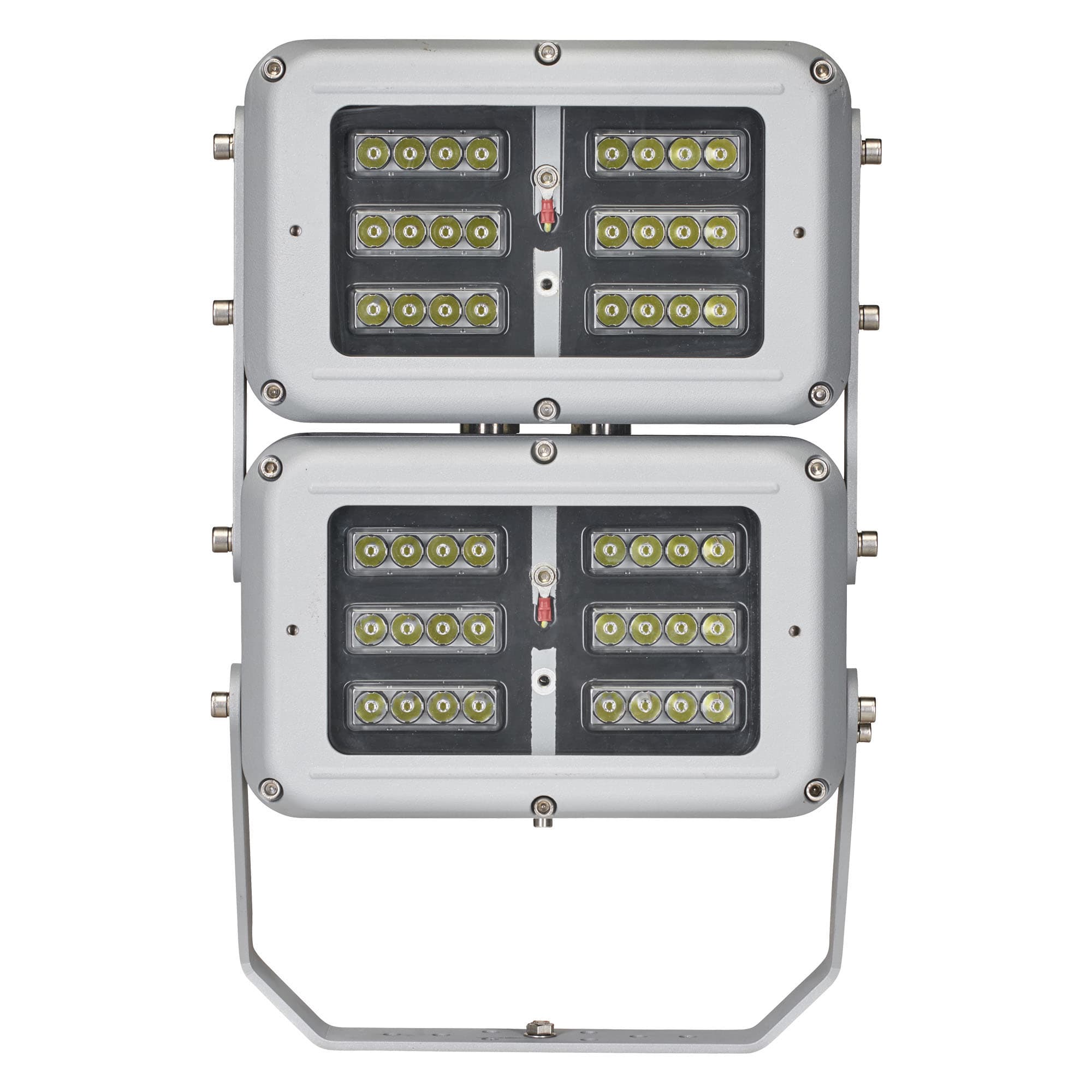

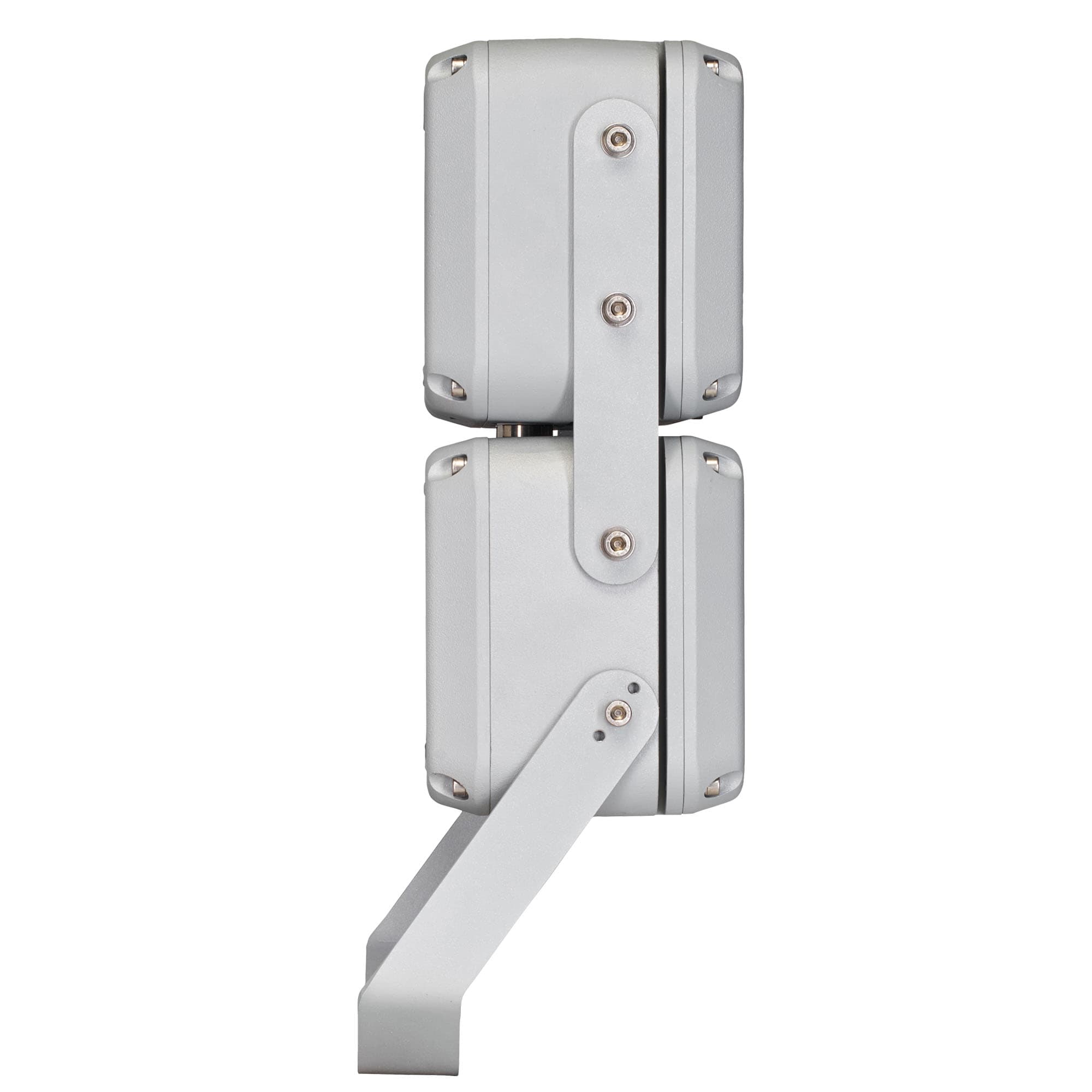

SPARTAN FL24 Floodlight, 136W, 850nm IR, standard and emergency options. Available as Zone 1 or Zone 2 variant.
Specs
Select Option
| BL24-SB30 | BL24-SB30 Emergency Backup | FL24 | FL24 Emergency Backup | FL48 | FL48 Emergency Backup | |
|---|---|---|---|---|---|---|
| ATEX Rating | ATEX, UKCA and IEC Ex rated for Gas and Dust | |||||
| Hazardous Area Rating | Zone 1 (Gas), Zone 21(Dust) Zone 2 options also available. | |||||
| Certificates | CML13ATEX3007, IEC Ex CML 14.0001 & CML 21UKEX3099 Contact Raytec for Zone 2 variants. | |||||
| Gas | II 2 G D Ex eb mb IIC T4 Gb Ta= Up to -52°C to +55°C (-20°C to +46°C for emergency variants) Contact Raytec for Zone 2 variants | II 2 G D Ex e mb IIC T4 Gb Ta= Up to -52°C to +55°C (emergency variants have a lower ambient of -20°C only) Contact Raytec for Zone 2 variants. | ||||
| Dust | Ex tb IIIC T98°C Db Ta= Up to -52°C to +55°C (-20°C to +46°C for emergency variants) IP66 & IP67 Contact Raytec for Zone 2 variants | Ex tb IIIC T82°C Db Ta= Up to -52°C to +55°C IP66/IP67 Contact Raytec for Zone 2 variants. | ||||
| ABS Rating | ABS Certificate # 20-1990083-PDA | ABS Certificate # 15-LD1364539-1-PD | ||||
| BL24-SB30 | BL24-SB30 Emergency Backup | FL24 | FL24 Emergency Backup | FL48 | FL48 Emergency Backup | |
|---|---|---|---|---|---|---|
| Input | 110-254V 50/60Hz AC only, 18-48V AC and 18-69V DC, 12V AC/DC | 110-254V 50/60Hz AC only | 110-254V 50/60Hz AC only, 18-48V AC and 18-69V DC, 12V AC/DC | 110-254V 50/60Hz AC only | ||
| Power | 34W | 37W | 68W | 71W | 136W | 139W |
| Termination | Incoming terminal block suitable for looping 4 core 4mm² cable (6mm² available) | |||||
| Power Factor | >0.95 | |||||
| Cable Entries | 4xM20 as standard (other entries available upon request), dispatched complete with three ATEX/UKEX/IEC Ex approved blanking plug | 2xM20 as standard (other entries available upon request), dispatched complete with one ATEX/IEC Ex approved blanking plug | ||||
| BL24-SB30 | BL24-SB30 Emergency Backup | FL24 | FL24 Emergency Backup | FL48 | FL48 Emergency Backup | |
|---|---|---|---|---|---|---|
| Wavelength | 850nm | 850nm | 850nm | 850nm | 850nm | 850nm |
| LED type | Platinum Elite SMT LEDs | |||||
| Number of LEDs | 24 | 24 | 24 | 24 | 48 | 48 |
| BL24-SB30 | BL24-SB30 Emergency Backup | FL24 | FL24 Emergency Backup | FL48 | FL48 Emergency Backup | |
|---|---|---|---|---|---|---|
| Burning position | Universal | |||||
| IP rating | IP66 & IP67 | |||||
| Temperature range | - 50°C to +55°C | - 20°C to +46°C | -52°C to +55°C | -20°C to +55°C | -52°C to +55°C | -52°C to +55°C |
| Weight | 5kg (11.0Ibs) | - 20°C to +46°C | 8kg (17.6lbs) | 10Kg (22lbs) | 16kg (35.2lbs) | 20Kg (44lbs) |
| Enclosure | Marine grade aluminium epoxy powder coated, toughened glass, all external fasteners and brackets are marine grade stainless steel | |||||
| Colour | Silver (RAL 9006) | Silver (RAL 9006) Red (RAL3024) - Emergency cover | Silver (RAL 9006) | Silver (RAL 9006) Red (RAL3024) - Emergency cover | ||
| Mounting | U bracket - complete with locking screw | |||||
| BL24-SB30 Emergency Backup | FL24 Emergency Backup | FL48 Emergency Backup | |
|---|---|---|---|
| Function | Self-testing intelligent emergency | N/A | N/A |
| System health indicator | Tri-colour LED indicator | N/A | N/A |
| Duration | Up to 3hrs @ 25% power Other options available | Up to 90mins at 50% power - other options available | Up to 90mins at 25% power - other options available |
| Battery | Ni/Cd 12v 2.5 Ah | Ni/Cd 12V 4.5Ah | |
| Charge Time | 20 hours | ||

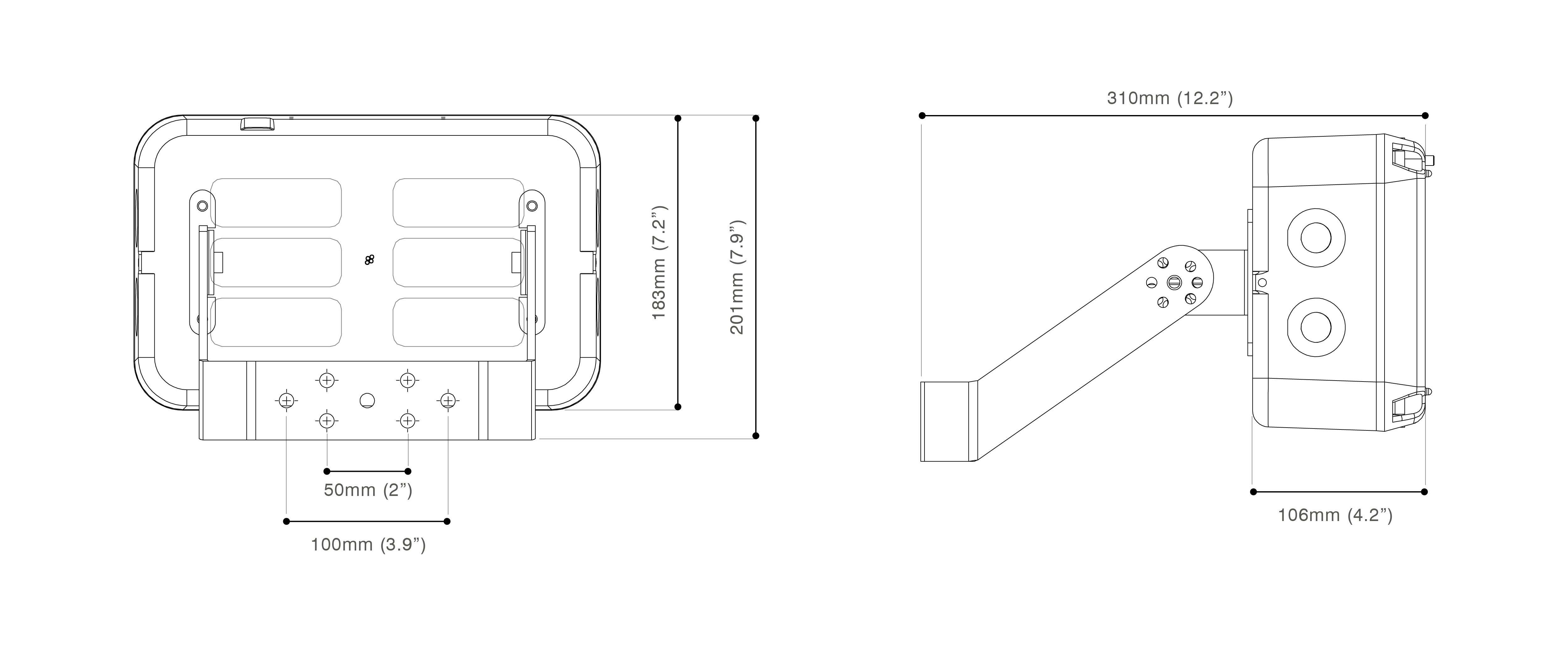

Product Dimensions.
BL24-SB30
FL24 Standard and Emergency
FL48 Standard and EmergencyLight Distribution.
Circular Beam Patterns
Elliptical Beam Patterns
Downloads.
Datasheet - SPARTAN Flood BL24 IR Installation Guide - SPARTAN Flood - Zone 1/21 and 2/22 IECEx Certificate - SPARTAN FL & BL - Zone 1/21 UKCA Certificate - SPARTAN FL & BL - Zone 1/21 ATEX Certificate - SPARTAN FL & BL - Zone 1/21 ABS Certificate - Approval 2020 Mounting & Accessories Guide - Flood & Bulkhead
